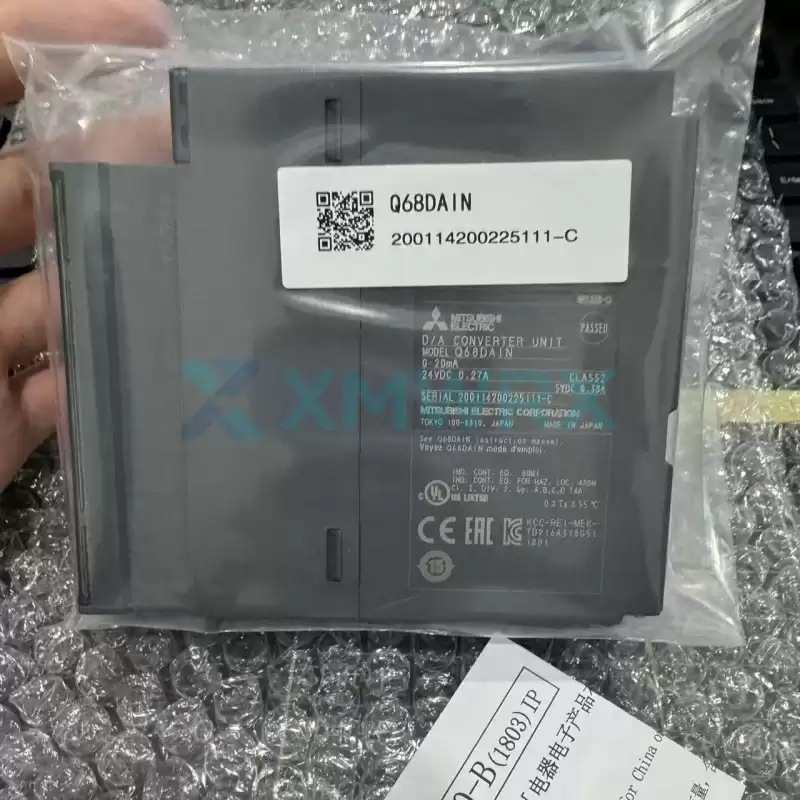

The Q68DAIN is an 8-channel analog current output module (D/A converter) from the Mitsubishi MELSEC-Q series.
It converts PLC digital signals into 4-20mA or 0-20mA current signals for controlling actuators in industrial automation.
This module supports high-precision, high-speed conversion and is suitable for scenarios requiring multi-channel current control.
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support Reliable Warranty
Technical Specifications
| Brand |
Mitsubishi Electric |
| Series |
MELSEC-Q Series |
| Type |
ANALOG OUTPUT |
| Power Supply (V) |
24 |
| Current Type |
DC |
| Occupied I/O Points on PLC |
16 |
| Integrated Analogue Outputs |
8 |
| Output Current Range (mA) |
0-20; 4-20 |
| Wiring |
SCREW |
| Int. Current Consumption (A) |
0,38 |
Conformity & Certifications
| CE |
COMPLIANT |
| UL / cUL |
COMPLIANT |
| UKCA |
COMPLIANT |
| Shipping Approvals |
ABS, BV, DNV GL, KR, LR, NK, RINA |
| EAC |
NON-COMPLIANT |
Why Source This Module From Us?
- Genuine Guarantee: Guaranteed original Mitsubishi Electric product. We say no to counterfeits or refurbished parts.
- Ready-to-Ship Inventory: In-stock PLC modules can be dispatched immediately to reduce industrial downtime.
- Technical Support: Our engineers assist with PLC model verification and wiring diagrams.
- Competitive Pricing: Strong supply chain ensures competitive prices and bulk order discounts.
Applications
- Water Treatment/Environmental Protection: Controlling aeration volume (variable frequency blower), dosing pump flow rate, and sludge dewatering machine speed in wastewater treatment plants.
- Food and Beverage: Level control in bottling lines, temperature/pressure regulation in autoclaves, and flow rate and proportioning in batching systems.
- Chemical/Pharmaceutical: Multi-loop closed-loop control of temperature, pressure, and pH values in reactors.
- Automotive Manufacturing: Paint flow control in painting workshops and temperature zone control in drying ovens.
- HVAC: Group control of chiller units in large buildings and adjustment of fresh air valve openings.
Engineer's Tip: The Q68DAIN is an analog output module designed for multi-loop, high-precision, long-distance current signal control. It is best suited for process automation (such as flow, pressure, and level control) and complex industrial scenarios that require the simultaneous driving of multiple frequency converters/actuators, and is a key component in building large-scale distributed control systems (DCS style).
