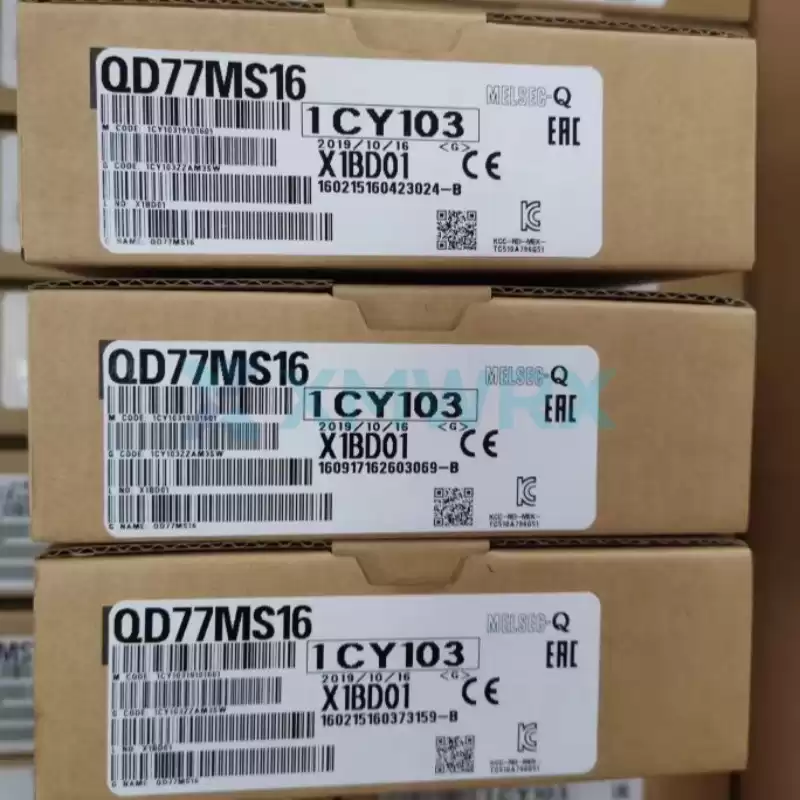

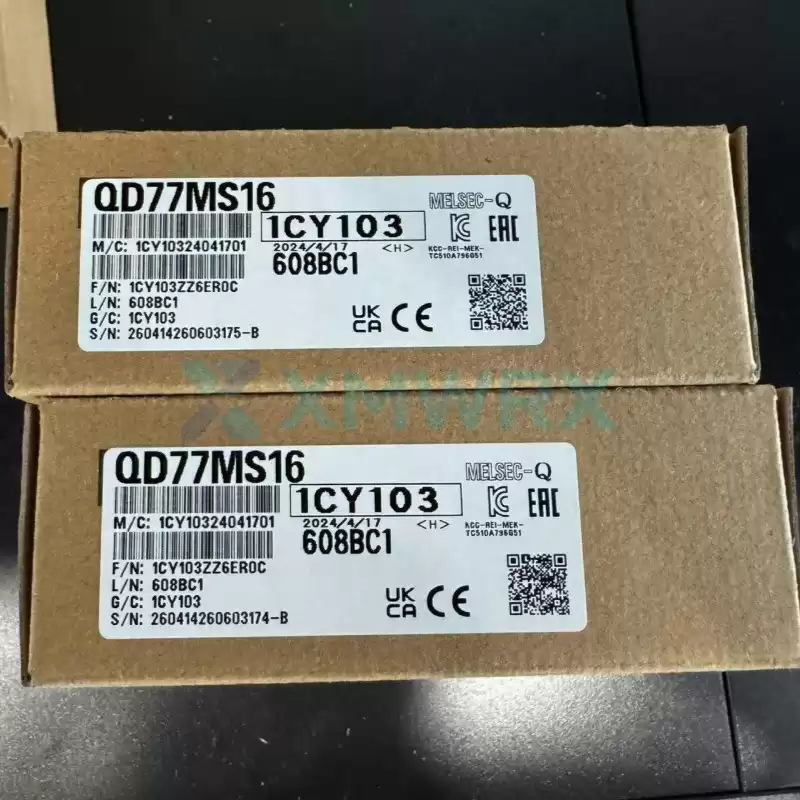

The Mitsubishi Electric QD77MS16 is a 16-axis Simple Motion Module for the MELSEC-Q series PLCs.
It primarily communicates with servo amplifiers via the high-speed synchronous network SSCNET III/H, and is designed for applications requiring high-precision, multi-axis synchronous control.
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support Reliable Warranty
Technical Specifications
| Brand |
Mitsubishi Electric |
| Series |
MELSEC-Q SERIES |
| Type |
SIMPLE MOTION MODULE |
| Command Interface |
SSCNET III/H, SSCNET III |
| Number of Axes |
16 |
| Program Capacity |
600 |
| Program Capacity Unit |
POSITIONING DATA / AXIS |
| Inputs |
4 |
Conformity & Certifications
| CE |
COMPLIANT |
| UL / cUL |
COMPLIANT |
| EAC |
NON-COMPLIANT |
Why Source This Module From Us?
- Genuine Guarantee: Guaranteed original Mitsubishi Electric product. We say no to counterfeits or refurbished parts.
- Ready-to-Ship Inventory: In-stock PLC modules can be dispatched immediately to reduce industrial downtime.
- Technical Support: Our engineers assist with PLC model verification and wiring diagrams.
- Competitive Pricing: Strong supply chain ensures competitive prices and bulk order discounts.
Applications
- Packaging and Printing Machinery: This is the core application scenario for the QD77MS16. Utilizing its powerful synchronous control and electronic cam control functions, complex mechanical linkages can be achieved.
- Material Handling and Assembly: The module's multi-axis processing capabilities make it ideal for complex spatial path control.
- Electronics and Semiconductor Equipment: The QD77MS16's SSCNET III/H bus possesses strong anti-interference capabilities and low latency characteristics, making it suitable for precision electronics manufacturing.
Engineer's Tip: If your automation equipment needs to control 8 to 16 servo axes and has high requirements for the synchronization and response speed of these axes (such as in the lithium battery, photovoltaic, and printing industries), the QD77MS16 is currently the most cost-effective and simplest architecture solution in Mitsubishi's Q series.
