Mitsubishi QX42-S1 MELSEC-Q series high-speed DC input modules (PN: 146922)

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment

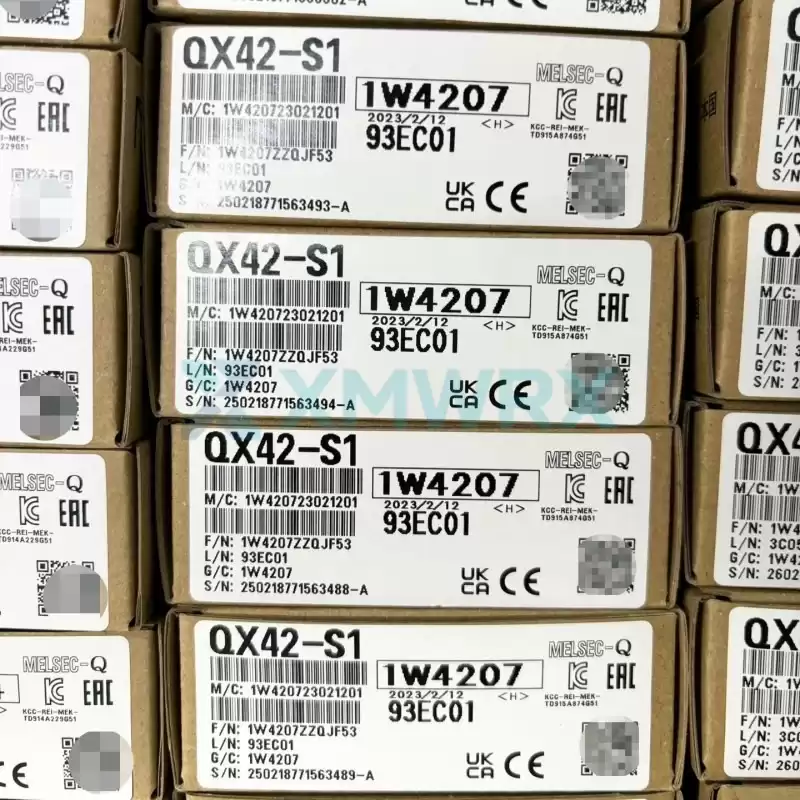

Condition: Brand New & Original Mitsubishi Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

PLC Q Series Input module; 24 V DC; 64 inputs; sink; response time 0,1 ms

Facebook Twitter Pinterest LinkedIn 分享

Description

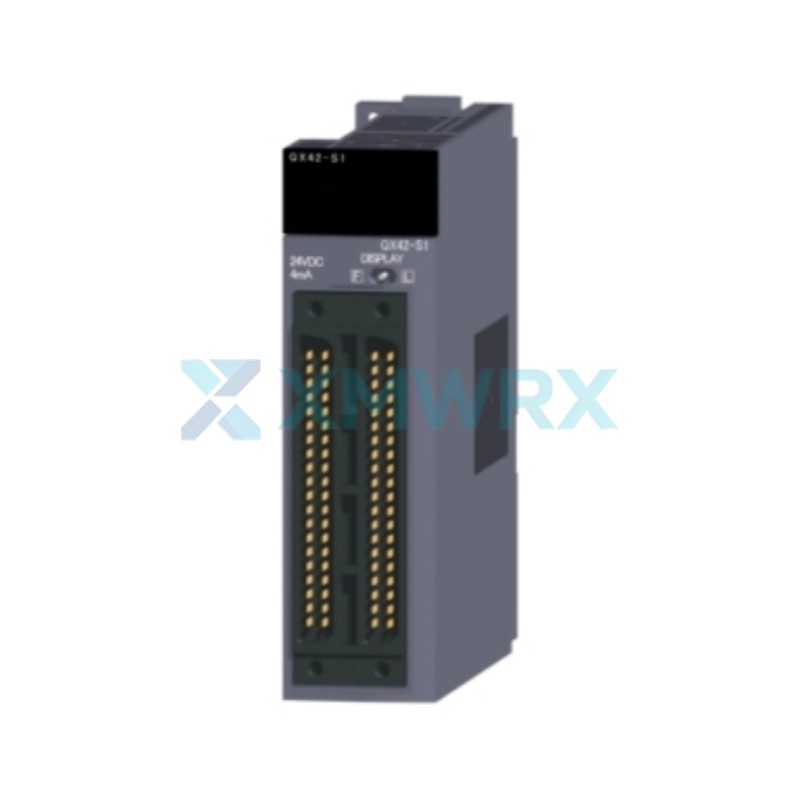

The QX42-S1 is a high-speed DC input module in Mitsubishi Electric's MELSEC-Q series PLCs.

Material Number: 146922

High-density integration: Providing 64 input points on a single module significantly saves control cabinet space.

Interference immunity: Internal optocouplers provide insulation, effectively improving system stability.

Adjustable parameters: The filtering response time can be flexibly adjusted according to the interference conditions of the field environment.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support Reliable Warranty

Technical Specifications

Series	MELSEC-Q SERIES
Type	DC INPUT (PLUS COMMON)
Power Supply (V)	24
Current Type	DC
Occupied I/O Points on PLC	64
Integrated Digital Inputs	64
Rated Input Voltage (VDC)	24
Wiring	CONNECTOR
Int. Current Consumption (A)	0,075

Conformity & Certifications

CE	COMPLIANT
UL / cUL	COMPLIANT
UKCA	COMPLIANT
Shipping Approvals	ABS, BV, DNV GL, LR, NK, RINA
EAC	NON-COMPLIANT

Why Source This Module From Us?

Genuine Guarantee: Guaranteed original Mitsubishi Electric product. We say no to counterfeits or refurbished parts, ensuring the absolute stability of your machinery.
Ready-to-Ship Inventory: Supported by a robust warehousing system, in-stock items are dispatched immediately upon order confirmation to minimize costly downtime.
End-to-End Support: From pre-sales model verification to after-sales wiring guidance, our engineering team ensures a hassle-free procurement process.
Competitive Pricing: Leveraging our strong supply chain network, we offer highly competitive pricing and exclusive discounts for bulk orders.

Applications

Automated production lines and packaging machinery: Used for intensive sensor signal acquisition, such as photoelectric switches, proximity switches, and safety door interlock signals.
CNC machine tools and printing equipment: Utilizing its high-speed pulse capture capability of up to 200kHz, it enables high-precision positioning systems and servo control status monitoring.
Automotive manufacturing and warehousing logistics: Real-time monitoring of the positioning status of various robotic arms, conveyors, and assembly stations on large production lines.

Engineer's Tip: It is primarily used for acquiring high-density DC switching signals in industrial automation environments. It features 64 input points, supports NPN (common anode) wiring, and has an adjustable response time.
