Mixed-dual motor controller

Long-term Safe and Reliable Work

From 2009 to 2012, more than 6,000 MCU controllers of electric vehicle were running in nearly 20 cities including Hangzhou, Qingdao, Nanjing, Suzhou, Nantong, Xiamen, Haikou, Urumqi and Tianjin. The new energy bus worked safely and reliably for 6-8 years. The running mileage of each electric vehicle reaches 500,000 -700,000 kilometers.


  • PackageStandard Export Package Carton/Wood
  • TransportationExpress · Sea freight · Land freight · Air freigh
  • Delivery Time14-30 working days for customized EV motor controller
  • Warranty24 Months
  • CustomizedYES
  • Term of paymentT/T, L/C, D/P
  • Sample freight payerBuyer
  • Sample provideYES
  • AvailabilityOEM/ODM, Minmum Order Request
  • Place of OriginChina
  • Shipping PortShenzhen
  • CertificationCE, EAC, ISO9001, OHSAS18001, TS16949, SGS

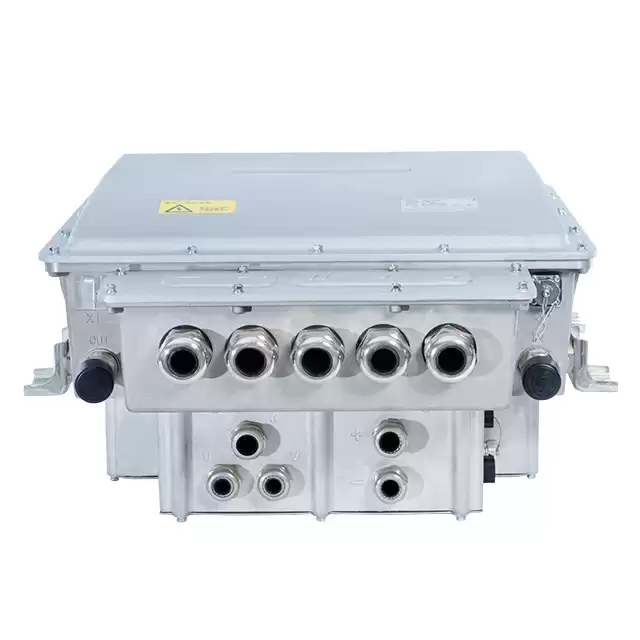

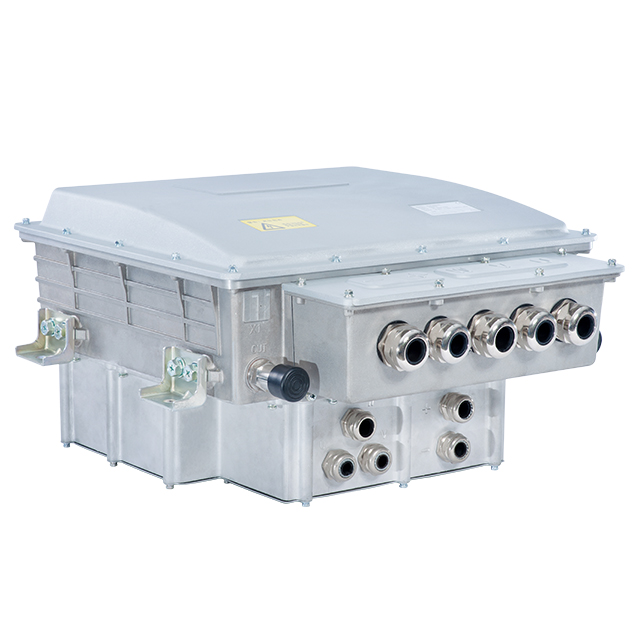

V6-H-4D110G & V6-H-4D110G /V6-H-2D55G & V6-H-2D55G

Two-in-one Hybrid drive motor & ISG motor controller


Technical Paramenter

Item

Specification

Adaptable motor type

Three phase asynchronous motor; Permanent magnet synchronous motor

Applicable vehicle types

9-11m hybrid power bus

Product types

V6-H-4D110G&V6-H-4D110G

V6-H-2D55G&V6-H-2D55G

Rated input voltage

DC 540V

DC 336V

Rated power

110kw&110kw

55kw&55kw

Input voltage range

DC 350V-750V

DC 200V-450V

Rated output current

210A&210A

210A&210A

Maximum output current

350A&350A

350A&350A

Output frequency range

0-1000HZ

Control accuracy

1:1000Encoder ;mode

Protection level

IP67

Cooling type

Water cooling

Outline dimension

545*540*177mm

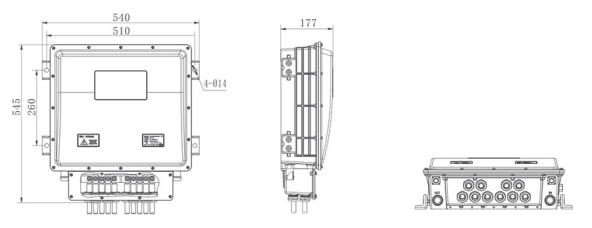

Outline Dimension



Application












Shenzhen V&T Technologies Co.,Ltd. is committed to R&D and manufacturing of mixed-dual motor controller. Please browse online now for more parameter information.


Product Tags 9-11m Hybrid power bus          Motor controller for Hybrid power vehicle          New energy hybrid power bus
