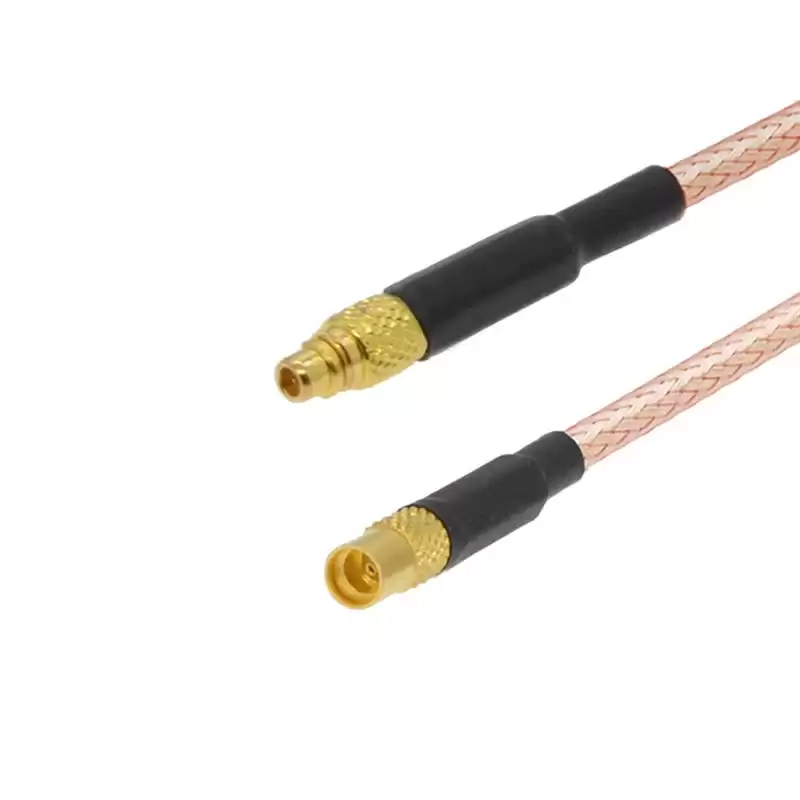

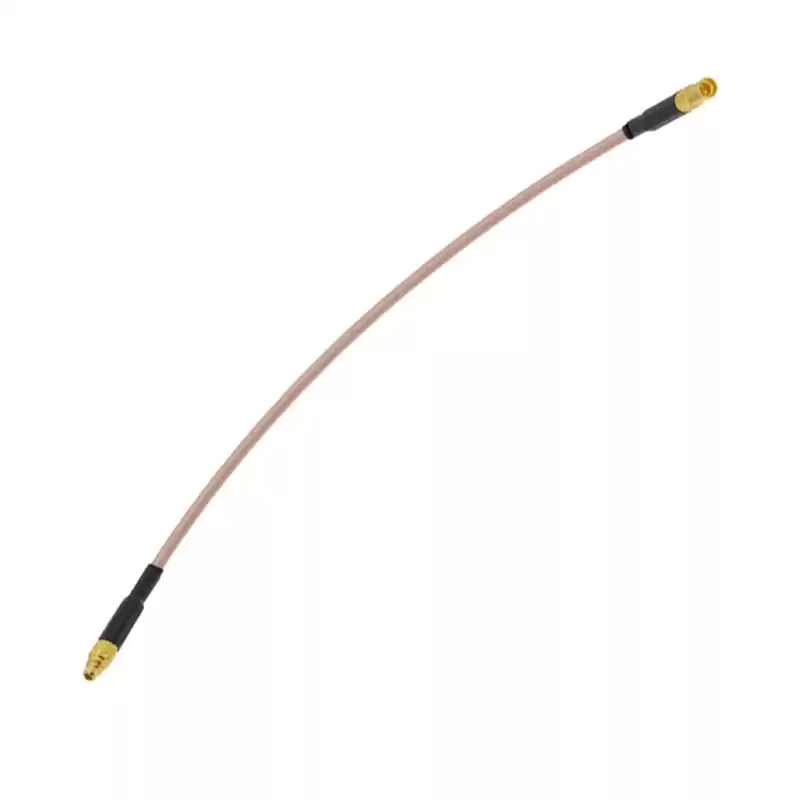

MMCX Plug Male to MMCX Jack Female Connector Assembly with RG316 Coax Jumper Pigtail Cable
The MMCX cable assembly can use flexible or formable coaxial cable such as LMR100, RG174, RG178, RG188 or RG316 cable; the body of MMCX to MMCX cable assembly is right angle or straight connectors which is plug to plug, jack to jack or plug to jack gender. This MMCX plug to MMCX jack cable assembly uses a 50ohm straight MMCX for connector 1 and a 50ohm straight MMCX for connector 2, Cable is 50ohm flexible cable type RG316.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
MMCX |
| Connector 1 Style |
Str Plug |
| Cable Type |
RG316 |
| Connector 2 Series |
MMCX |
| Connector 2 Style |
Str Jack |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Max Frequency |
6GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Antennas
- Instrumentation
- Base Stations
- Broadband
- Telecommunications
