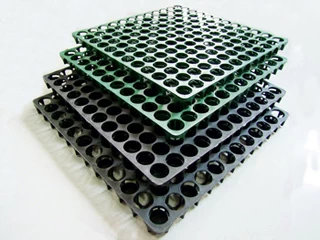

Modular Drainage Systems For Roof Garden Specifications:
| Item No. |
MP-S25A |
MP-S25B |
MP-S25C |
| Color |
Light green |
Dark green |
Black |
| Picture |
 |
 |
 |
| Size(mm) |
333x333x25 |
333x333x25 |
333x333x25 |
| Unit weight(g/m2) |
3150g/m2 |
3150g/m2 |
3150g/m2 |
| Material |
HDPE |
HDPE |
HDPE |
| Pressure strength(Kpa) |
1000KN |
835KN |
734KN |
| Hardness |
135 |
113 |
92 |
| Water Drainage |
95% |
95% |
95% |
| Vertical Circulating Capacity(cm3/s) |
30cm3/S |
30cm3/S |
30cm3/S |
| Loading Capacity |
1100SQM=1x20FT CONTAINER
2233SQM=1x40FT CONTAINER
2533SQM=1x40FT CONTAINER
|
1100SQM=1x20FT CONTAINER
2233SQM=1x40FT CONTAINER
2533SQM=1x40FT CONTAINER
|
1100SQM=1x20FT CONTAINER
2233SQM=1x40FT CONTAINER
2533SQM=1x40FT CONTAINER
|
| Package |
18pcs/bundle, 0.06m3/bundle |
18pcs/bundle, 0.06m3/bundle |
18pcs/bundle, 0.06m3/bundle |
| MOQ |
1x20FT CONTAINER |
1x20FT CONTAINER |
1x20FT CONTAINER |
LEIYUAN Modular Drainage Systems to replace the drainage layer pebbles treatment not only save time,effort and energy, saving investment, but also reduce the load of the building. Good Drainage system for normal use and life cycle of civil construction and the building has an important role. Long and short cylindrical Green Roof Drainage Plate and geotextiles to form a drainage system, to form a water seepage, water and drainage systems.
Plastic Drainage Board light of its own weight, the roof structure will not increase the load. 100% recycled, not cause secondary pollution to the environment. Loading capacity per square can reach 80 tons weight, suitable for create a variety of landscape.
Features and Benefits:
Lightweight
High compression strength
Seepage proof
Available in different sizes
Cost save
Water drainage and storage
Easy installation
No surface drains required
Reduces surface temperature around building
High load bearing 148.58t/m2 unconfined
Replenishes water supply to landscaped areas
Unique and easy to use interlocking system
Promotes fast and excellent plant growth
Strong structure can support heavy loads
Retains a minimum of approximately 76L/m2 of perched water above the cells
Strength Drainage Plate Application:
Roof greening
Bridge abutments
Underground
Road
Tunnels
Play ground
Retaining walls
Golf courses water drainage
Fire truck access paths
Fire lanes
Golf buggy
Trolley paths
Modern factory building
Noble living communities
Emergency vehicle access roads through fields

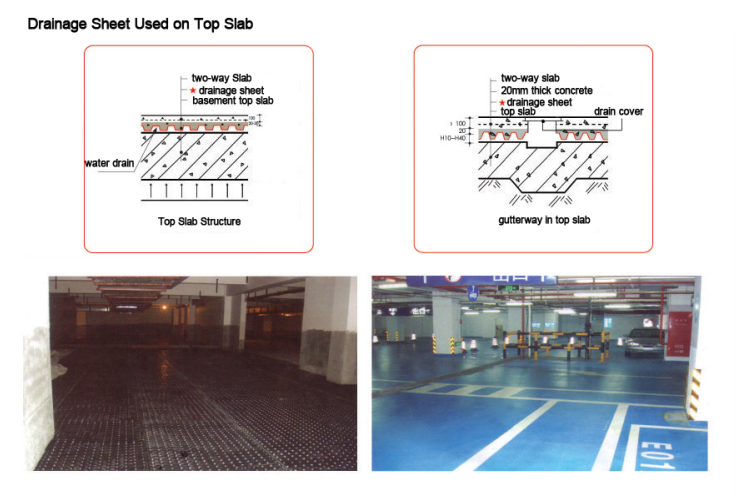

Strength Drainage Plate Construction:

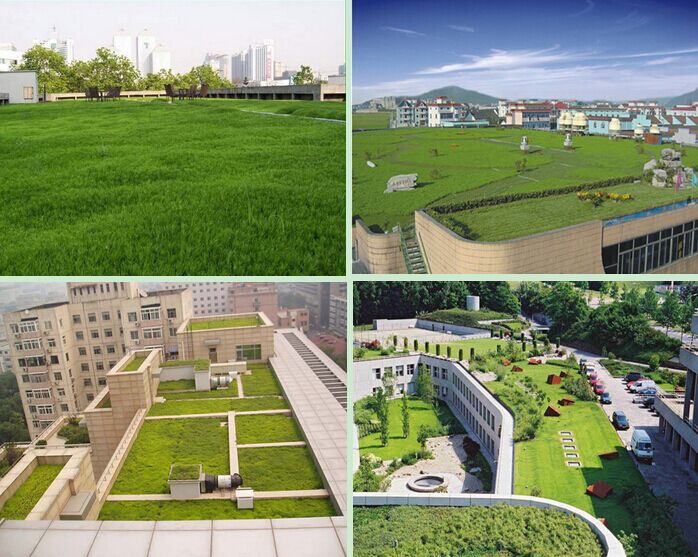

Strength Drainage Plate Projects View:
Leiyuan Strength Drainage Plate: Good water feature, Long life service！
