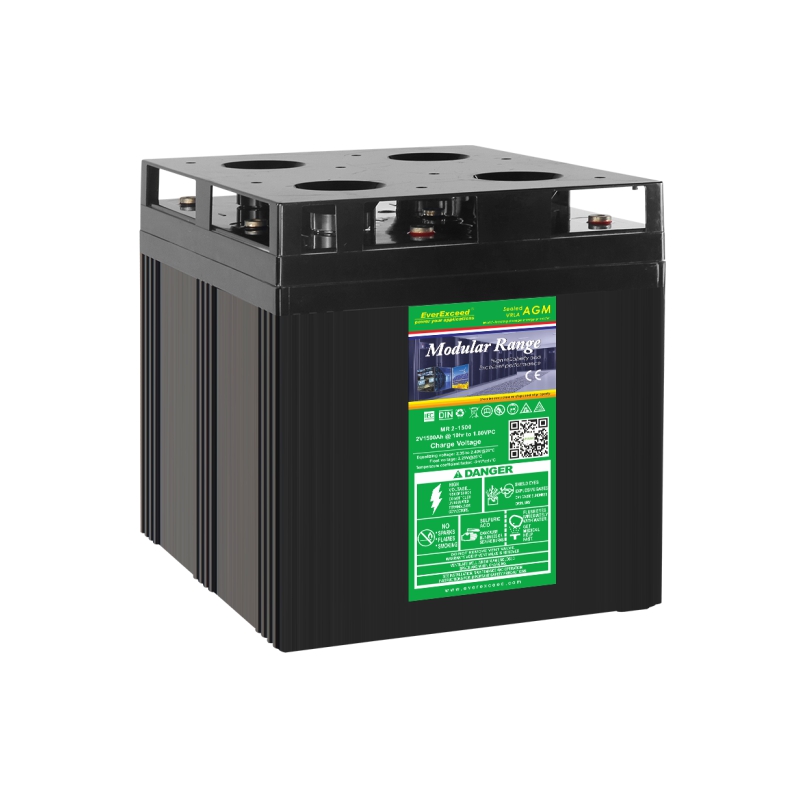

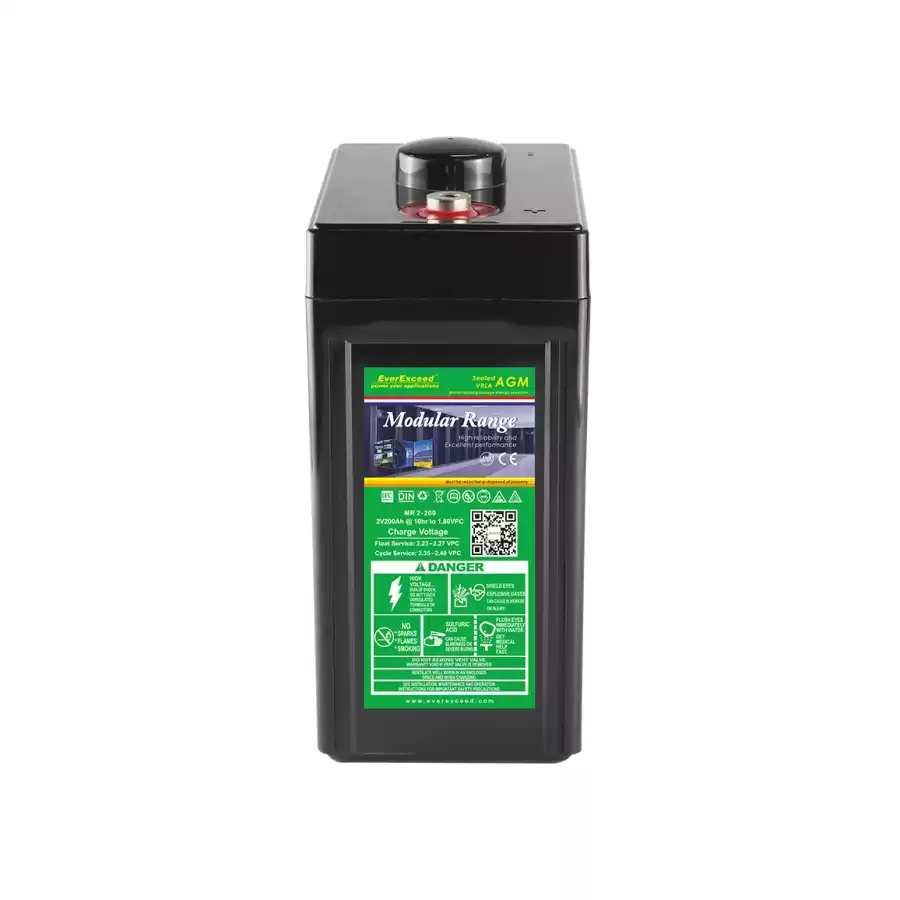

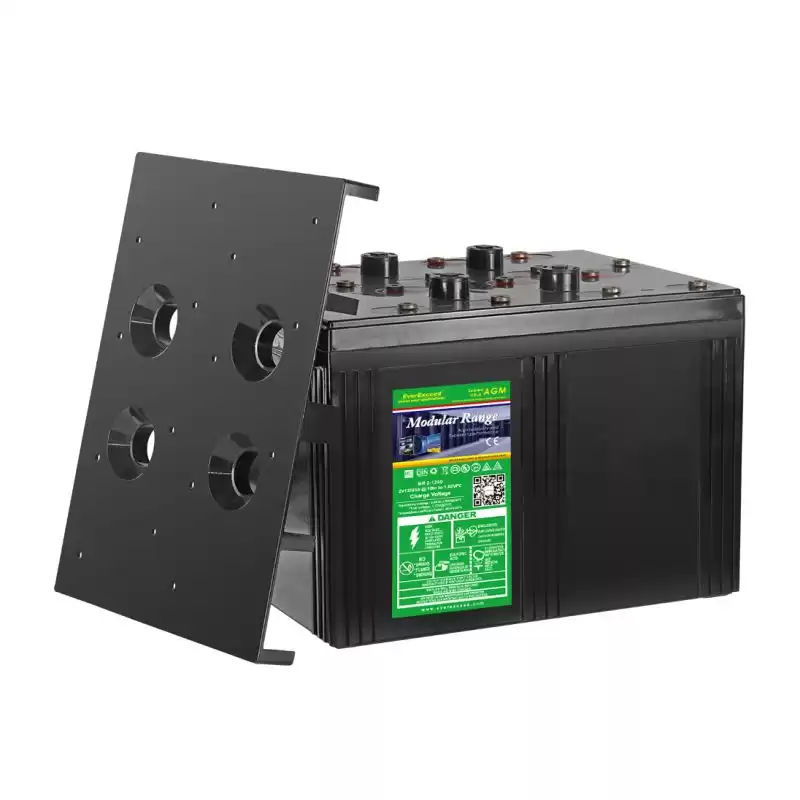

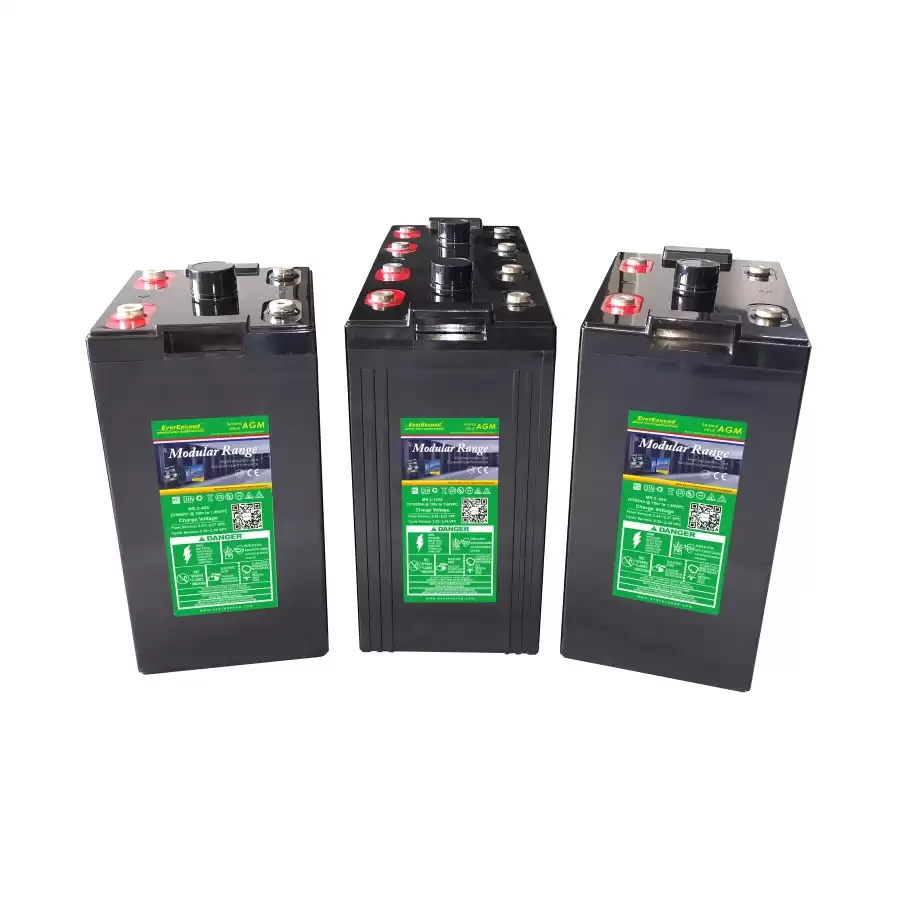

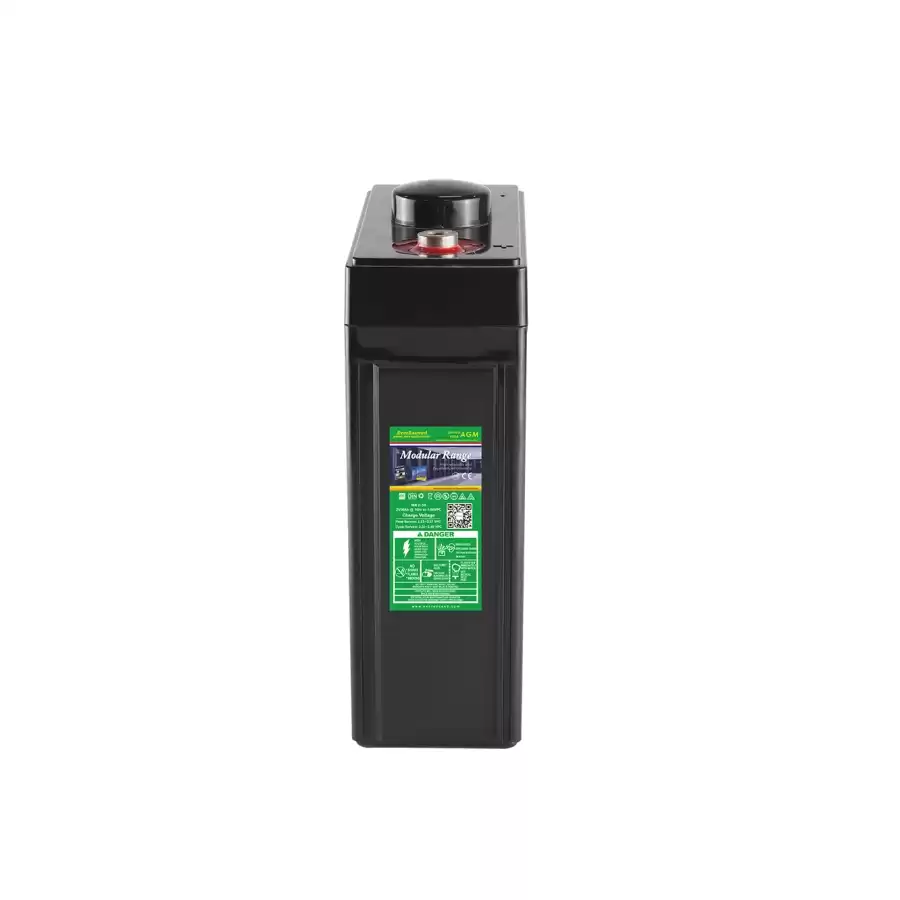

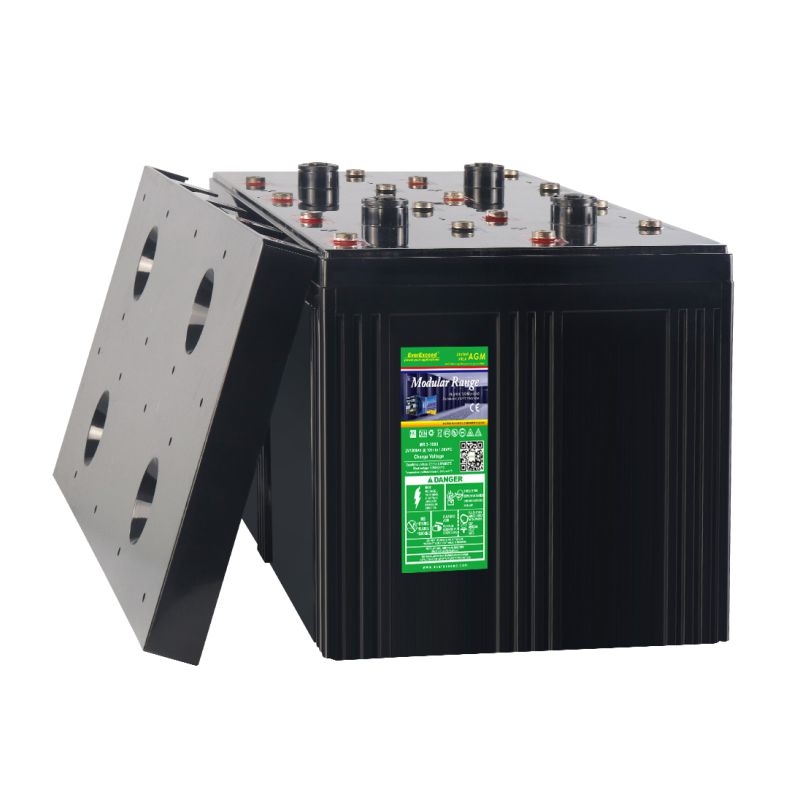

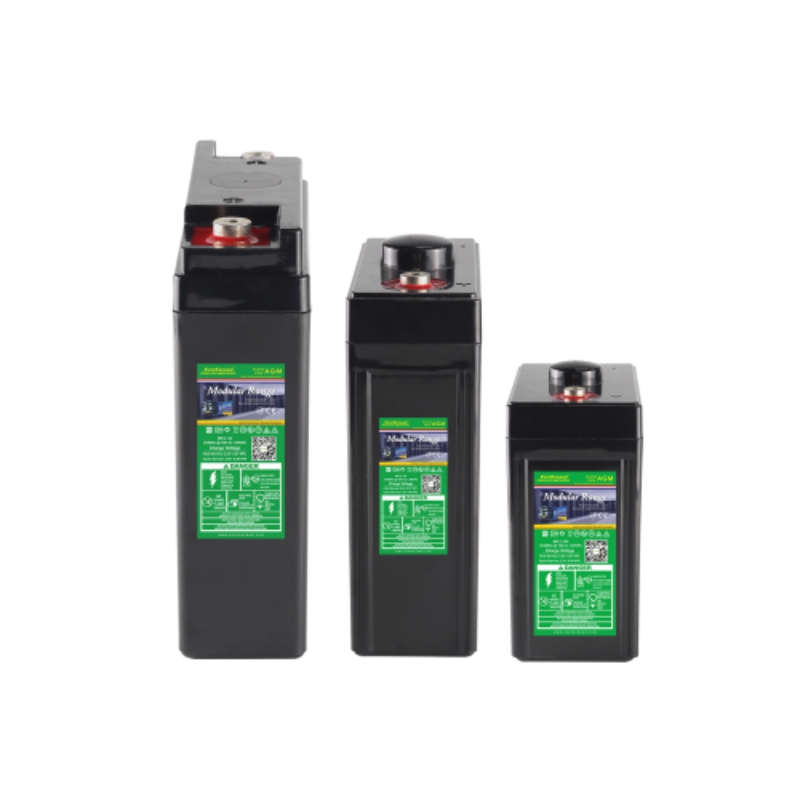

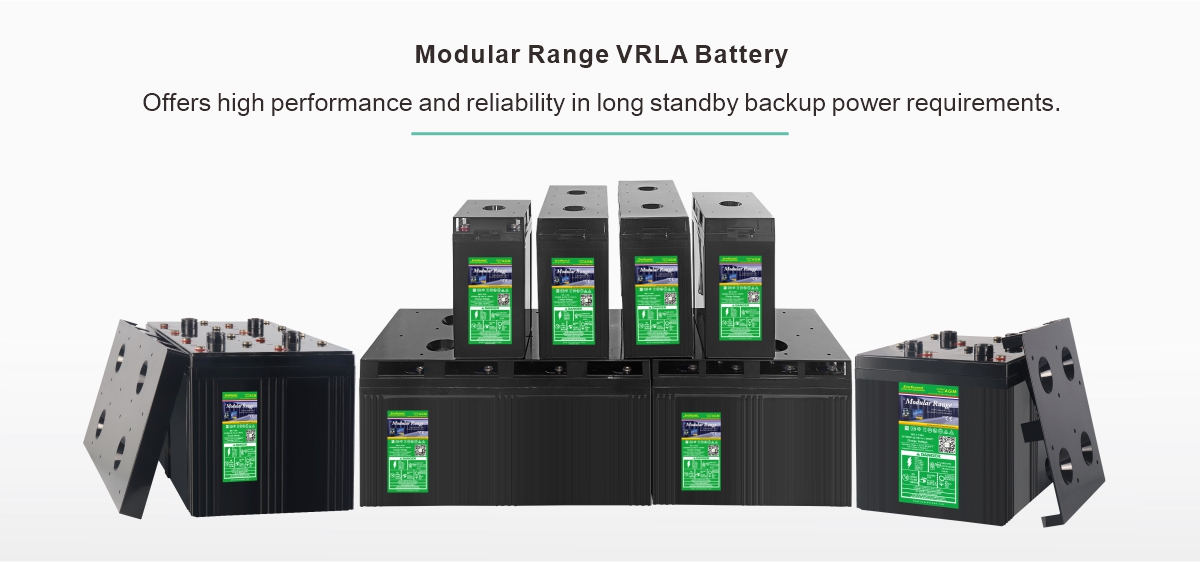

Modular Range VRLA Battery

EverExceed Modular Range Valve Regulated Lead Acid (V.R.L.A.) batteries are designed for the long standby back-up power requirements of wireless/PCS telecommunications, MTSO's, central offices, utilities, switchgear and control applications. EverExceed advanced AGM absorbed electrolyte technology ensures reliable performance, safety, outstanding battery life and value.


  • UsageTelecommunications;Emergency Lighting;Navigation Aids;UPS system;Switchgear/Substation;Cellular RadioControl Systems;Standby Power Supply;Photovoltaic/Solar;Power Plant
  • OEM/ODM Service Yes, customized
  • Rated capacity(Ah)50-3000Ah
  • Rated voltage(V)2V
  • ModelMR Series
  • CertificatesUL1989; IEC61427;IEC60896; CE
Facebook Twitter Pinterest LinkedIn 分享


Technical Features:











Superior cycle performance
Unique performance
VRLA recombinant technology
Thick plate design for extra long cycle life. Nano-carbon enhanced active material to maximize cycle performance and PSoC operation
Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection.

High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficiency.











Wide operating temperature range
Ultra long backup time
Long service life
-40°C to +70°C
Storage time from a fully charged condition: 12 months at 20°C ~25°C ; for each 9°C  rise, reduce the storage time by half.
Fully tank formed plates design which is perfectly suitable for long standby backup power requirements.
Thick positive plate design for maximum service float life- 20 years design life @ 20°C(68°F).










Assured quality

Maintenece free
Low self-discharge rate

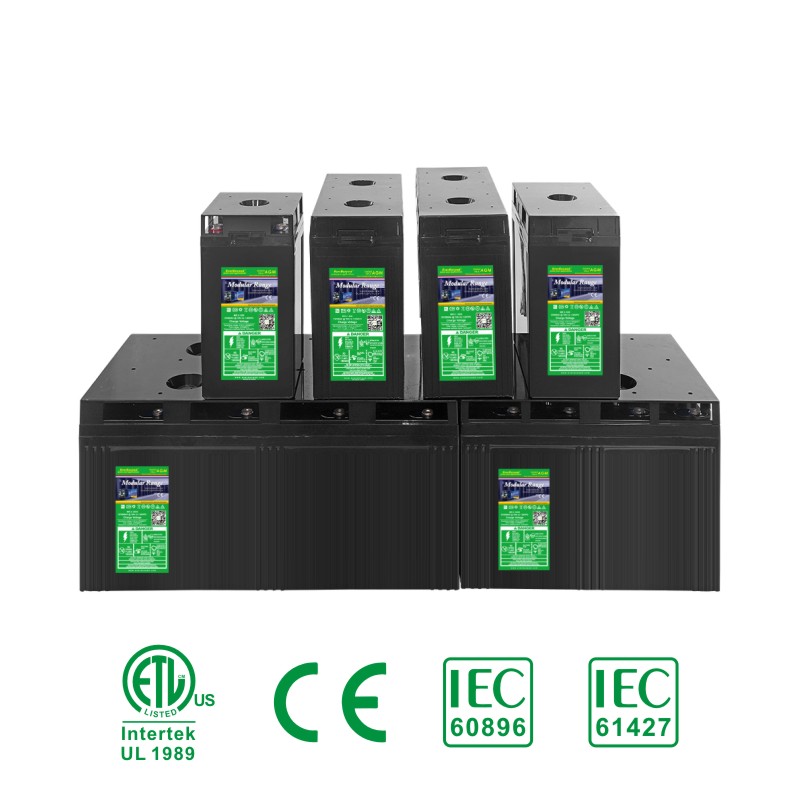

These industry leading rechargeable batteries are approved with UL1989, CE, IEC60896, IEC61427
No maintenance required, never needs addition of water.
Less than  3% per month

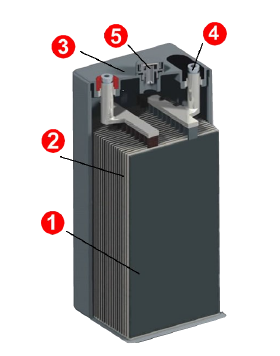

Construction:





• Plates: calcium / high tin lead alloy, optimized for high corrosion resistance and long deep cycle life.

• Separator: Highly porous glass micro-fiber separator, optimized for low internal resistance, for maximum absorption of the electrolyte and for electrical separation of the positive and negative plates

• Standard Housing:Reinforced ABS (UL 94HB) container and cover.

• Optional Housing:Flame-retardant reinforced ABS container and cover compliant with U.L.94 V-0 with an Oxygen limiting Index of greater than 28%.

• Terminals:Silver plated Copper female insert for easy and safe assembly and maintenance free connection with excellent conductivity.
• Valves: Release gas in case of excess pressure and protects the cell against atmosphere.





Applications:

• Telecommunications；• Emergency Lighting；• Navigation Aids；• UPS system；

• Switchgear/Substation；• Cellular Radio； • Control Systems； • Standby Power Supply；• Photovoltaic/Solar；• Power Plant

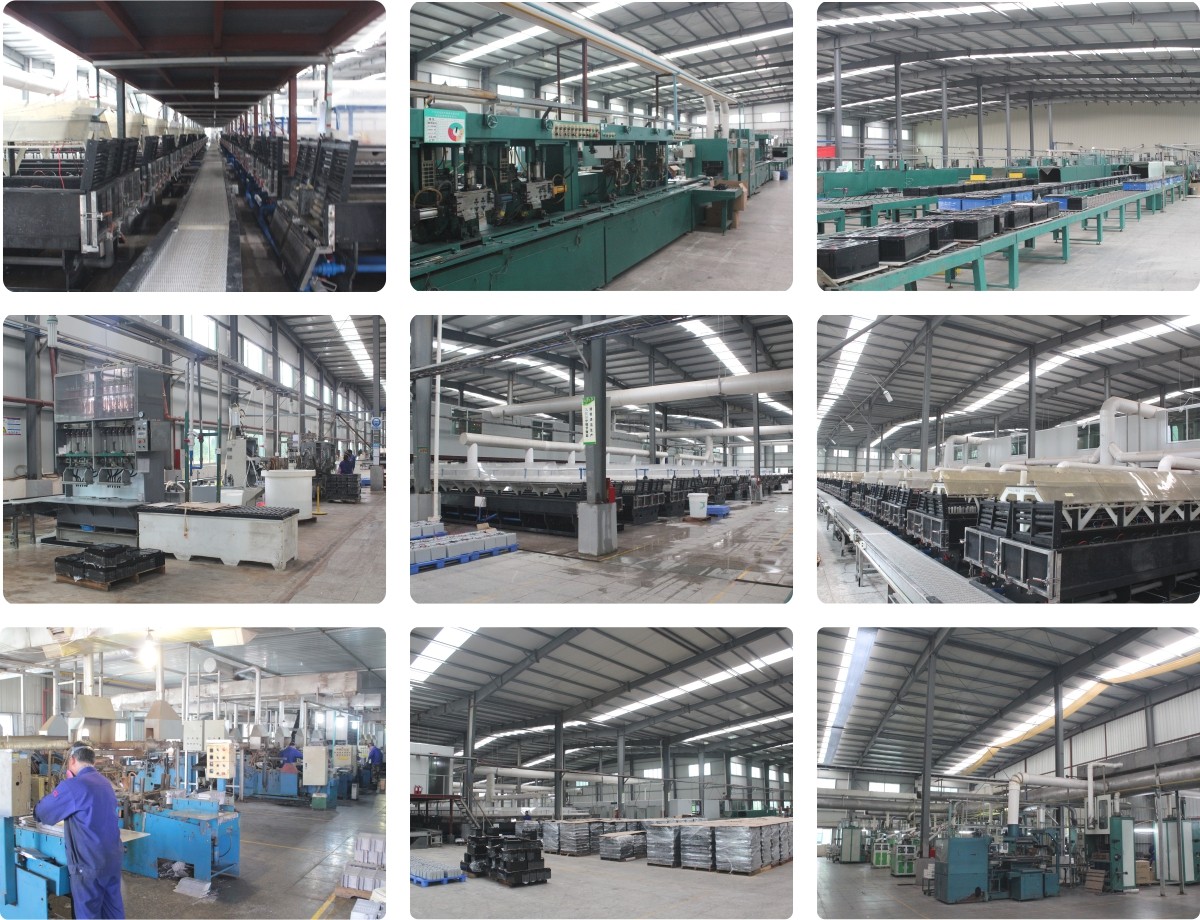

Factory:
