Mold Carbide Core Pin

Mold carbide core pin, pilot pin, lock pin, with G5, V30, KG7, KD20, for precision mobile component, automotive precision component, and textile small component, household small component.

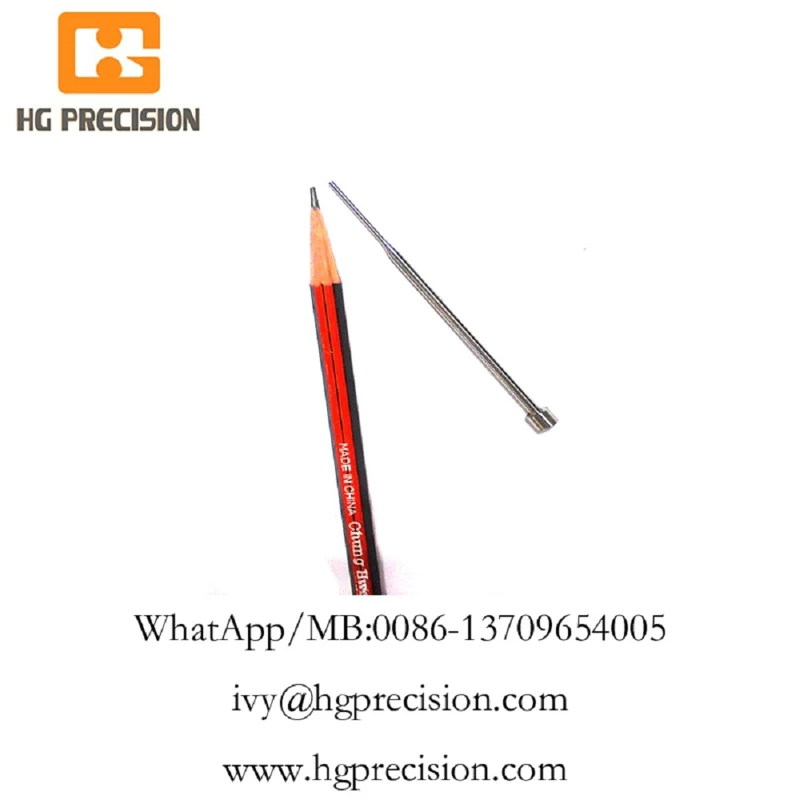

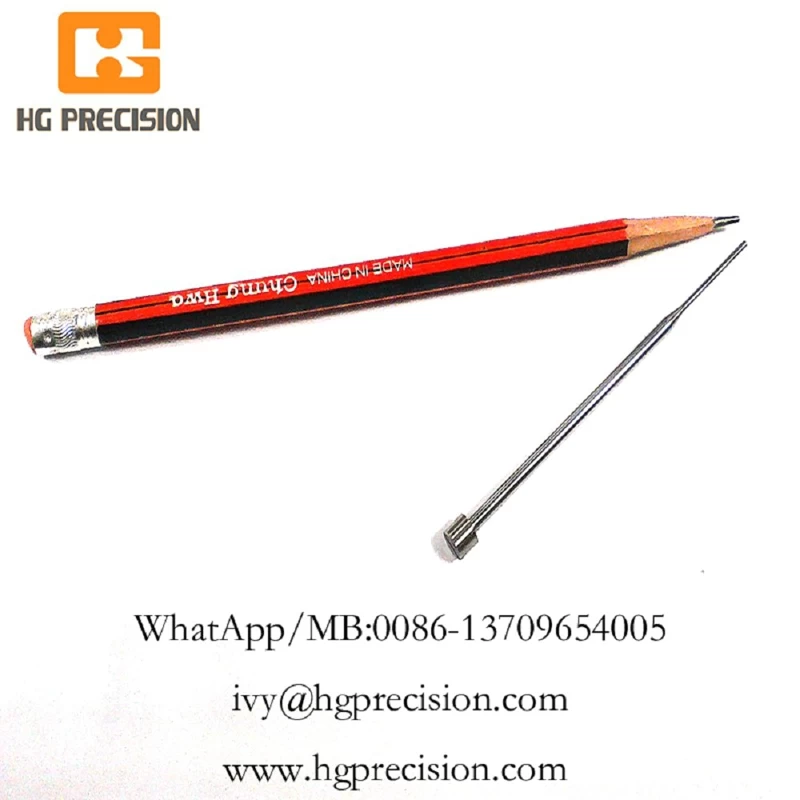

Micro Carbide Core Pins

Carbide core pins-Injection Molding

HG Precision has worked closely with most of the world's top medical product companies for more than a decade to produce tungsten carbide core pins and inserts that are fully validated and incorporated on high cavitation molds.

With maximum tooling rigidity, molders have been able to maximize part quality and dimensional repeatability beyond anything previously achieved.

HG Precision engineers and manufactures high precision, complex form, HG Precision carbide core pins, inserts, ejectors, and other injection molding tooling with the exacting level of tolerances and design features that high-precision molders require.

The tooling is harder and more rigid than any other mold tooling material on the market, significantly reducing core shift/deflection, which allows for the highest possible precision and repeatability with injection molded parts.

Material: carbide, V30, KD20, KG7, Or Hitachi, Fuji other brand carbide material.

Lead time: 14days is possible.

Process: CNC Milling, CNC Turning, CNC Tapping, CNC lathing, CNC Machining, Jig grinding, profile grinding, EDM, WEDM, profile grinding and so on.

We have special design machine to make these micro core pin.

Coating: Tin, Ticn, DLC

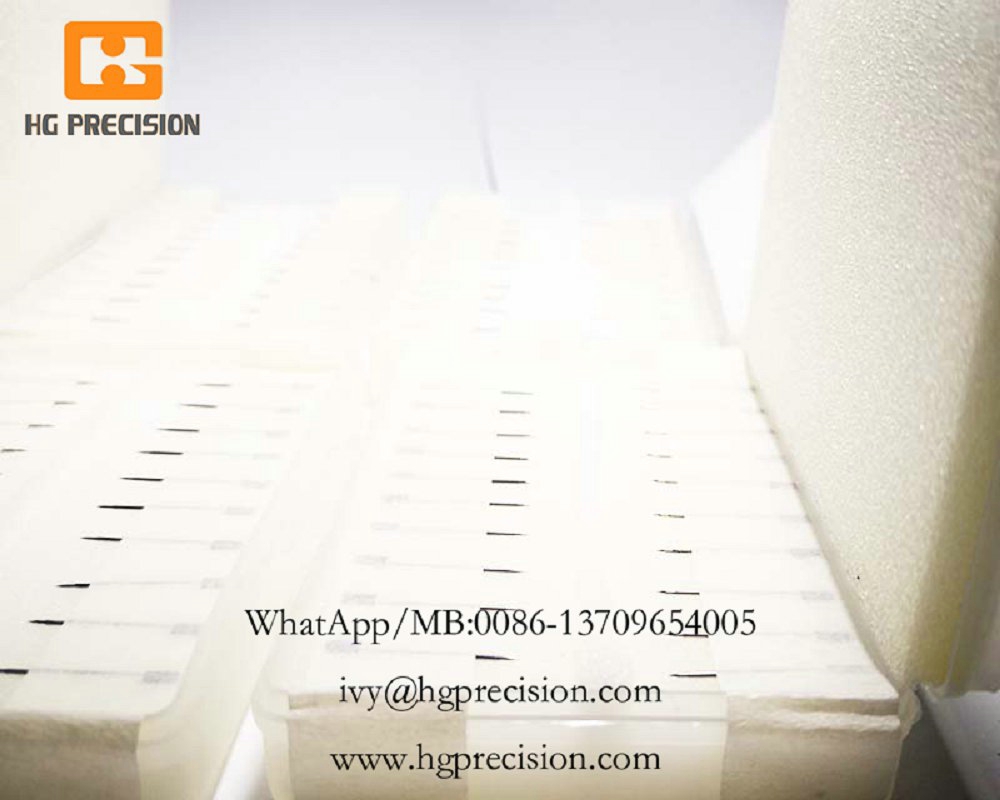

Package: standard package/pallet or container/ as per customized specifications

Delivery: DHL, EMS, UPS, FedEx, OCS, and other special express line.

Quality: 100% full check

Quality Control: 3D, 2.5D, high tester, hardness tester

We pride ourselves on customer service and fast delivery. We treat our employees and customers with the upmost respect and we are always looking to grow our business with quality personnel, new equipment, products and services made with pride in China, at precision core pins our work is our bond. Our service includes precision& performance at reasonable price.
