Molybdenum Sheet&Powder

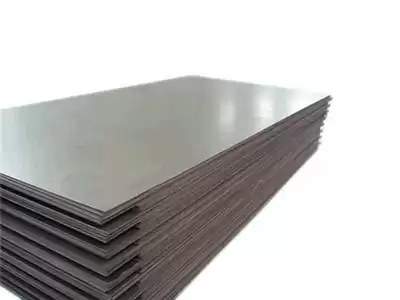

UrbanMines is committed to developing and researching qualified Molybdenum Sheet. We are now capable of machining molybdenum sheets with a range of thickness from 25mm to lower than 0.15 mm. Molybdenum sheets are made by undergoing a sequence of processes including hot rolling, warm rolling, cold rolling and others.

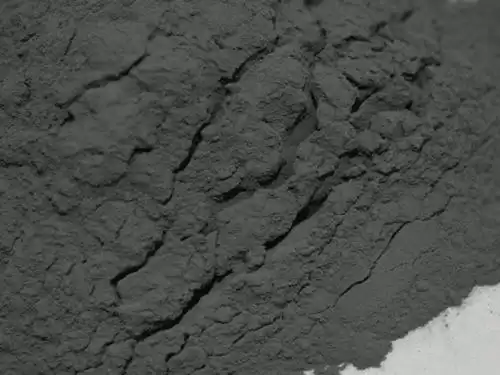

UrbanMines specializes in supplying high purity Molybdenum Powder with the smallest possible average grain sizes. Molybdenum powder is produced by hydrogen reduction of molybdenum trioxide and ammonium molybdates. Our powder has a purity of 99.95% with low residual oxygen and carbon.



Molybdenum

Synonyms: Molybdan(German)

(Originated from molybdos of lead meaning in Greek); one kind of metal elements; element symbol: Mo; atomic number: 42; atomic weight: 95.94; silver white metal; hard; added in steel for high-speed steel manufacturing; liquid lead.

Molybdan is not used much in industries. In high-temperature industries with requirements of mechanical properties, it’s often used (such as positive electrode for vacuum tube) as it’s cheaper than tungsten. Recently, the application in panel production line such as plasma power panel has been increasing.


High Grade Molybdenum Sheet Specification

Symbol Mo(%) Spec(size)
UMMS997 99.7~99.9   0.15~2mm*7~10mm*coil or plate    0.3~25mm*40~550mm*L(L max.2000mm    unit coil max.40kg)

Our molybdenum sheets are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.


What is Molybdenum Sheet used for?

Molybdenum sheet is used for making electric light source parts, components of electric vacuum and electric power semiconductor. It is also used for producing molybdenum boats, heat shield and heat bodies in high temperature furnace.


High Quality  Molybdenum Powder Specification

Symbol Chemical Component
Mo      ≥(%) Foreign Mat.≤ %
Pb Bi Sn Sb Cd Fe Ni Cu Al Si Ca Mg P
UMMP2N 99.0 0.001 0.001 0.001 0.001 0.001 0.03 0.005 0.003 0.005 0.01 0.004 0.005 0.005
UMMP3N 99.9 0.0001 0.0001 0.0001 0.001 0.0001 0.005 0.002 0.001 0.002 0.003 0.002 0.002 0.001

Packing:Plastic woven bag with plastic lining, NW: 25-50-1000kg per bag.


What is Molybdenum Powder used for?

• Used for processing fabricated metal products and machine parts such as wire, sheets, sintered alloys, and electronic components.

• Used for alloying, brake pads, ceramic metallization, diamond tooling, infiltration, and metal injection molding.

• Used as a chemical catalyst, detonation initiator, metal matrix composite, and sputtering target.
