PERC cell solar panel Mono 370Watts
Spcifications of Mono solar panel from 360W-375W
|
Electrical Characteristics of Mono solar panels
|
|
Module No.
|
UOM
|
SWP72-360
|
SWP72-365
|
SWP72-370
|
SWP72-375
|
|
Rated Maxmum Power-Pmax
|
WP
|
360
|
365
|
370
|
375
|
|
Maxmum Power Voltage-Vmp
|
V
|
39
|
39.3
|
39.7
|
40
|
|
Maxmum Power Current -Imp
|
A
|
9.24
|
9.3
|
9.33
|
9.37
|
|
Open Circuit Voltage-Voc
|
V
|
47.7
|
48.0
|
48.3
|
48.5
|
|
Short Circuit Current-lsc
|
A
|
9.7
|
9.77
|
9.83
|
9.88
|
|
Power Tolerance
|
%
|
+/-3
|
|
Module Efficiency
|
%
|
18.5
|
18.8
|
19.0
|
19.3
|
|
Current Temperature coefficient
|
%/k
|
0.06±0.01
|
|
Voltage Temperature Coefficient
|
mv/k
|
-(155±10)
|
|
Power Temperature Coefficient
|
%/k
|
-(0.5±0.05)
|
|
Nominal Operating Cell Temperature(NOCT)
|
℃
|
45±2℃
|
|
Standard Test Conditions STC:1000W/Wm2, spectrum
AM1.5 and cell temperature 25ºC.
|
|
Mechanical & Packaging Characteristics
|
|
Type of Solar Cell
|
|
Mono Crystalline 156*156mm
|
|
Solar cell and Configuration
|
|
72（8X9）
|
|
Dimension of Module
|
mm
|
1950X984X40
|
|
Weight
|
kg
|
22.5
|
|
Junction
Box
|
|
IP67 Rated
|
|
Type
of Glass and Thickness
|
|
Low-ron Tempered Glass
|
|
Frame
|
|
Clear anodized aluminium alloy, color: silver
|
|
packing Configuration and Quantity per Pallet
|
|
30 pcs per carton and one carton per pallet
|
|
Container Loading Capacity for 20GP
|
|
288
|
|
Container Loading Capacity for 40GP
|
|
576
|
|
Container Loading Capacity for 40HQ
|
|
648
|
|
Warranty: 15 years product warranty and 25 years performance
warranty ensure reliability of modules.
|
|
Note: All specifications & characteristics we can provide
depend the customer's requirement.
|
Dimensions of PERC solar panels
Curve of PERC solar panels

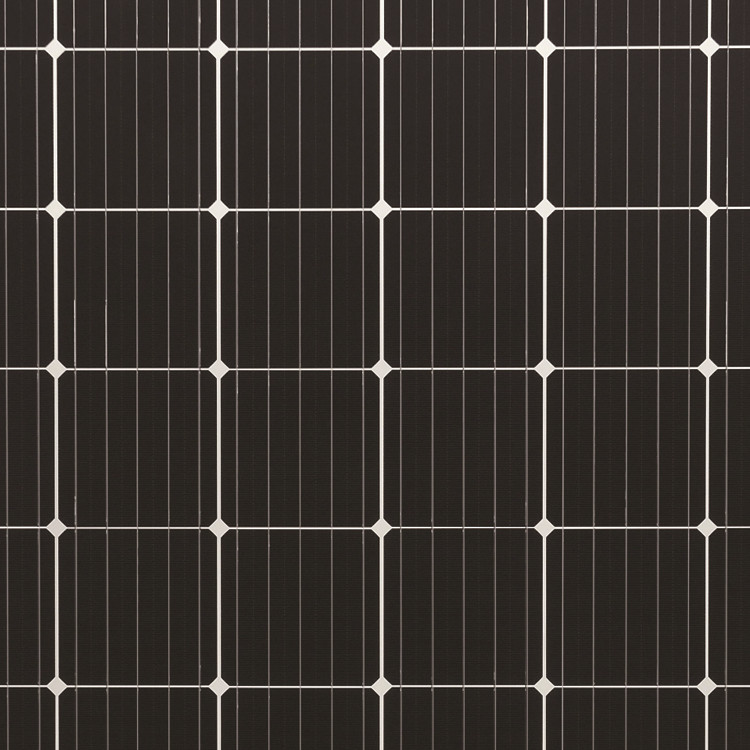

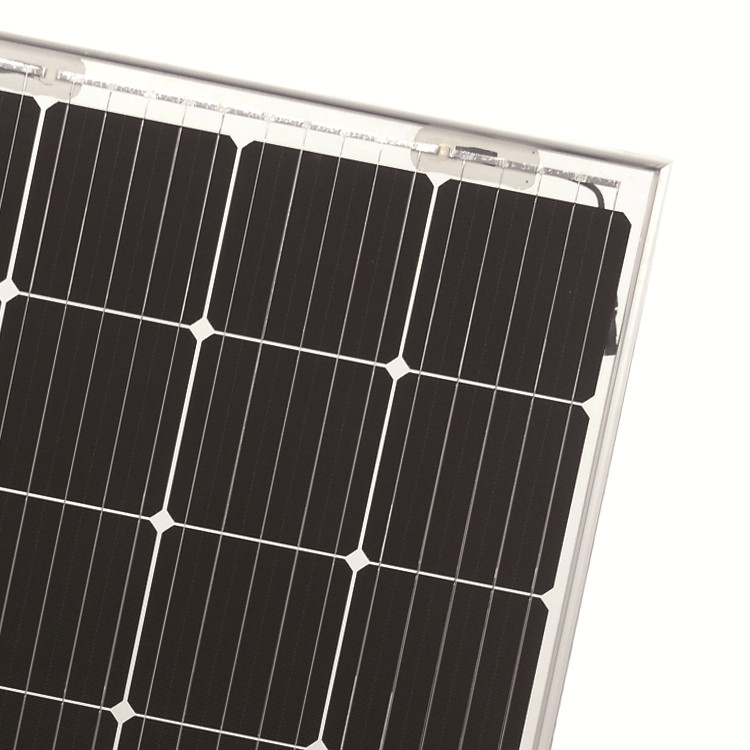

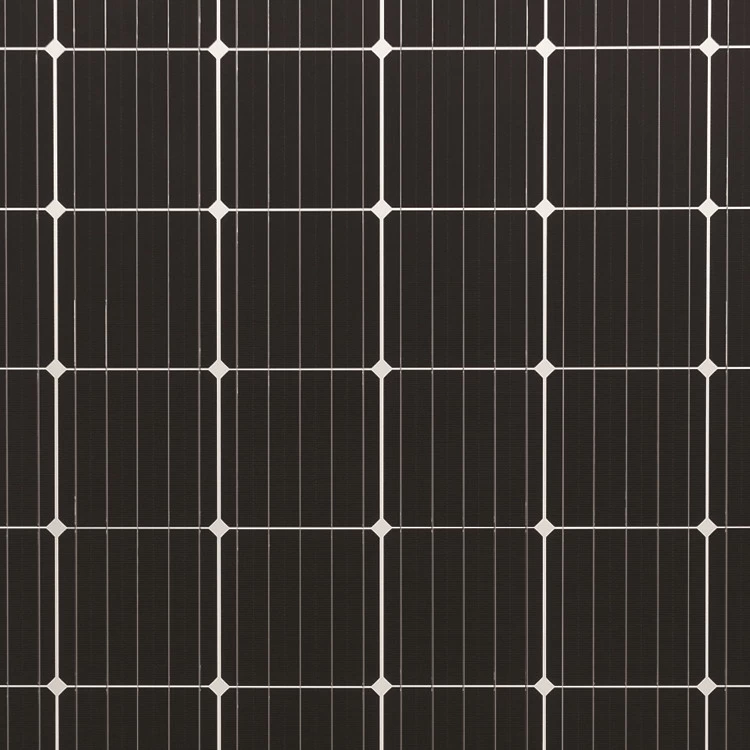

Details of PERC Mono solar panels
Assemly of PERC solar panels
Package of Mono solar panels
Payment of Mono solar panels
|
|
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
|
FOB
|
|
CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
CIF
|
|
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
|
Amount lower than 5000usd
|
|
|
|
|
7~10days after receiving payment for one container
|
