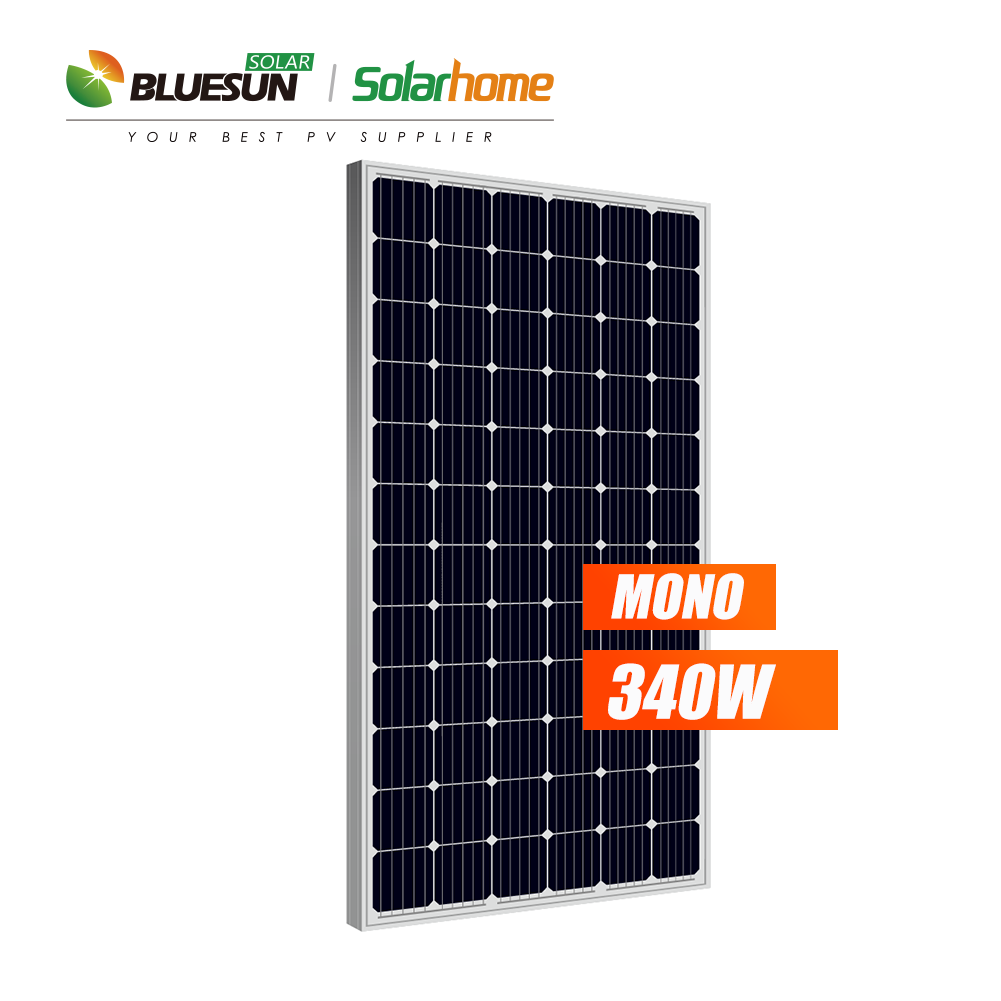

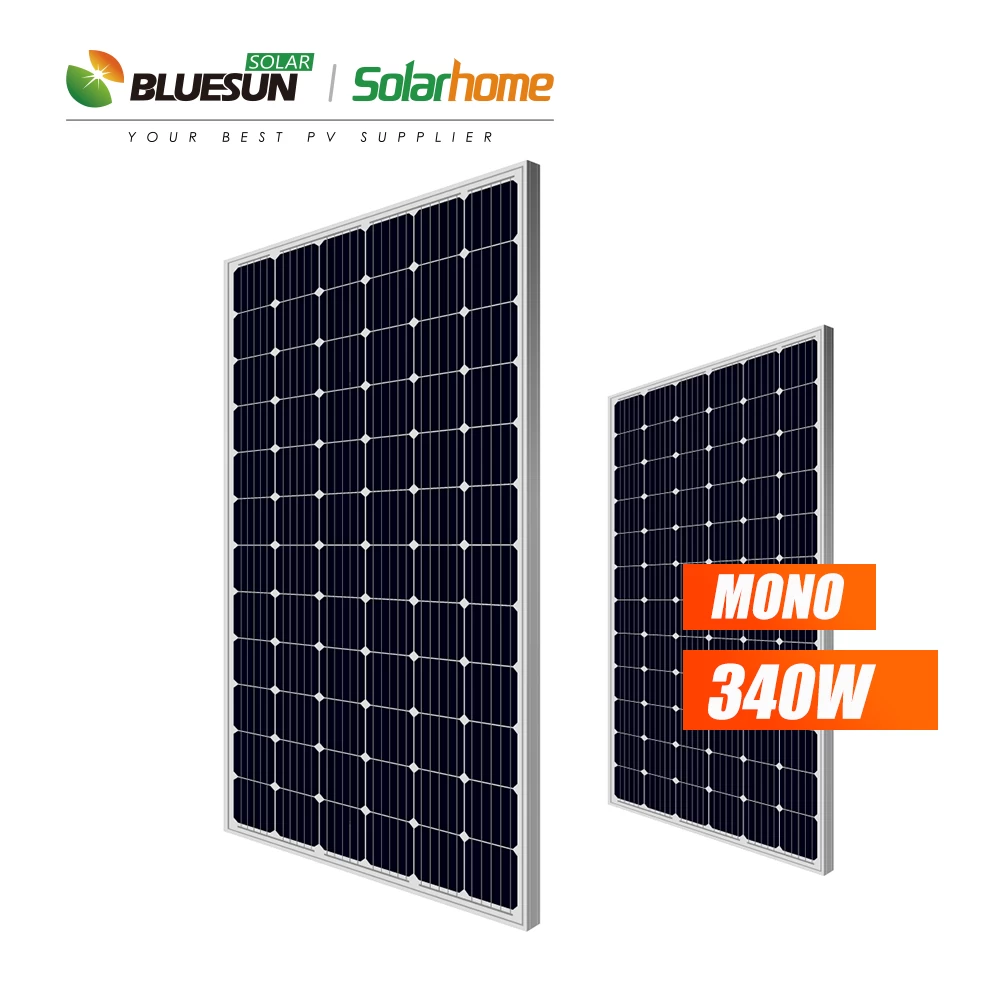

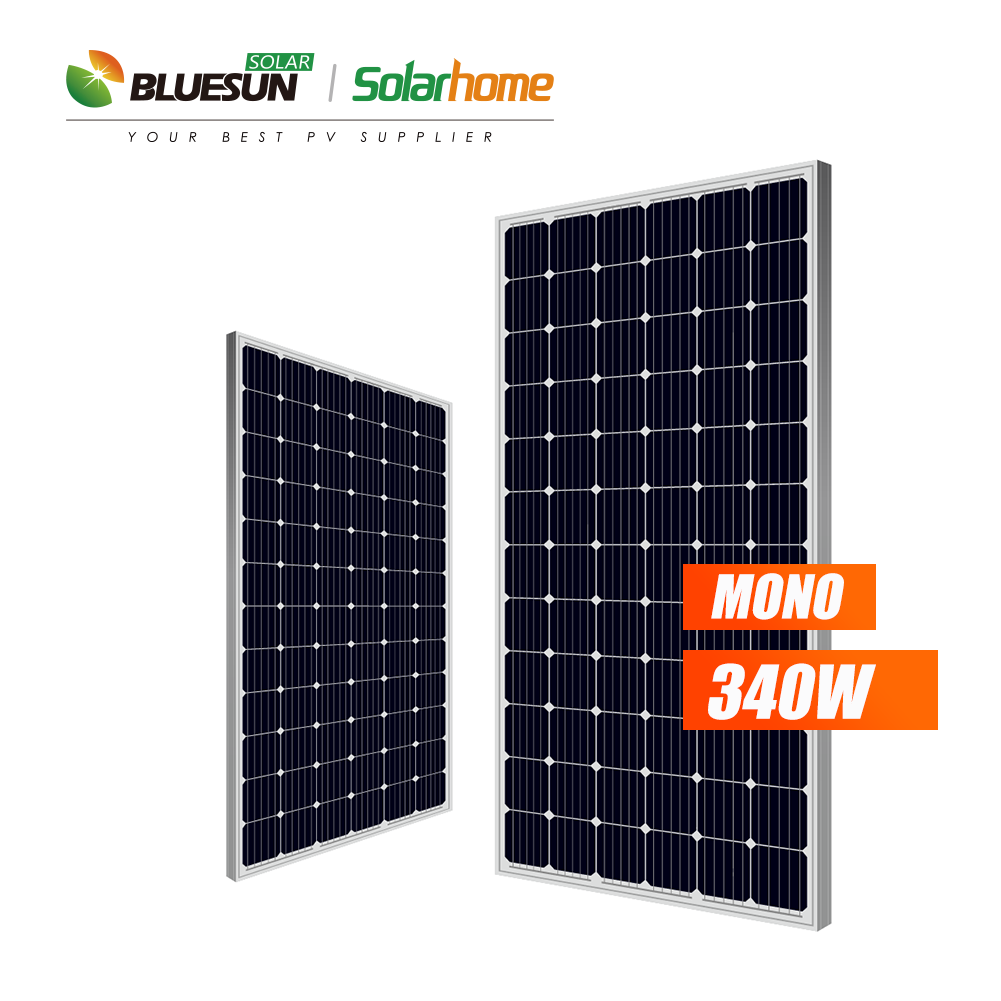

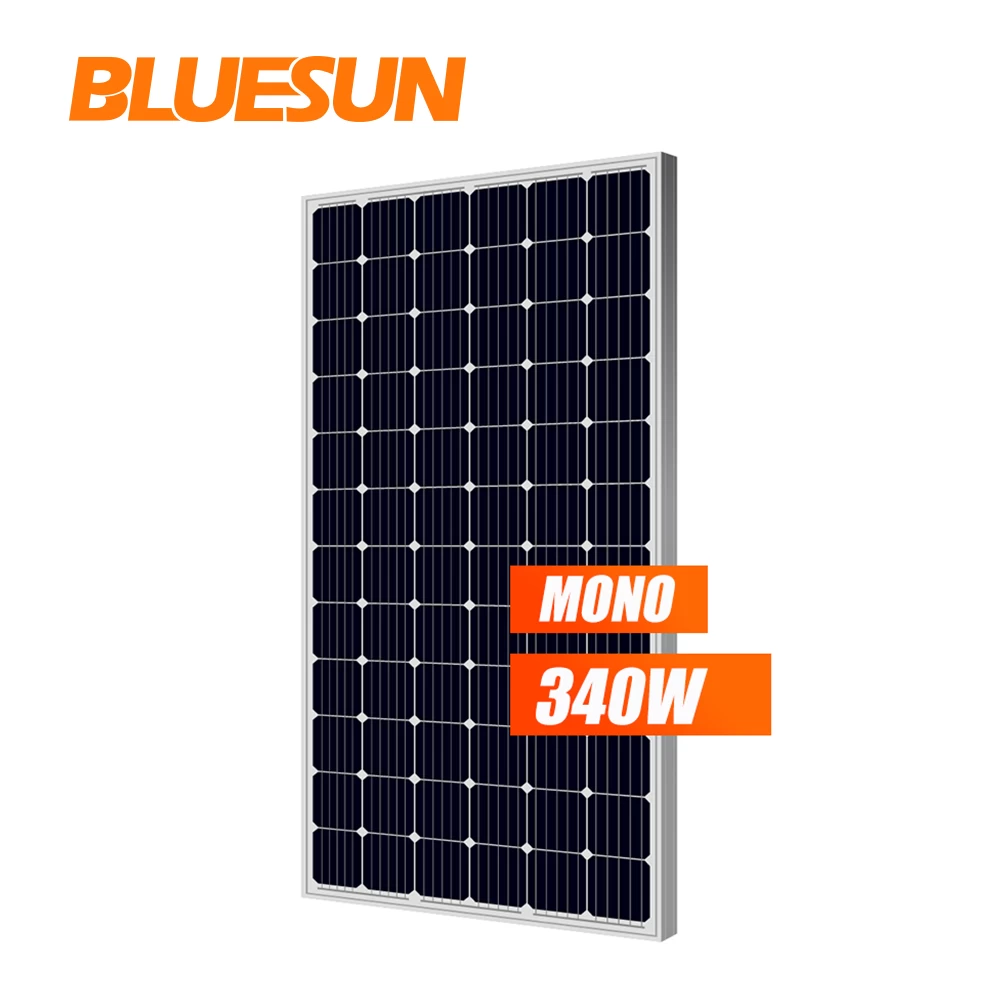

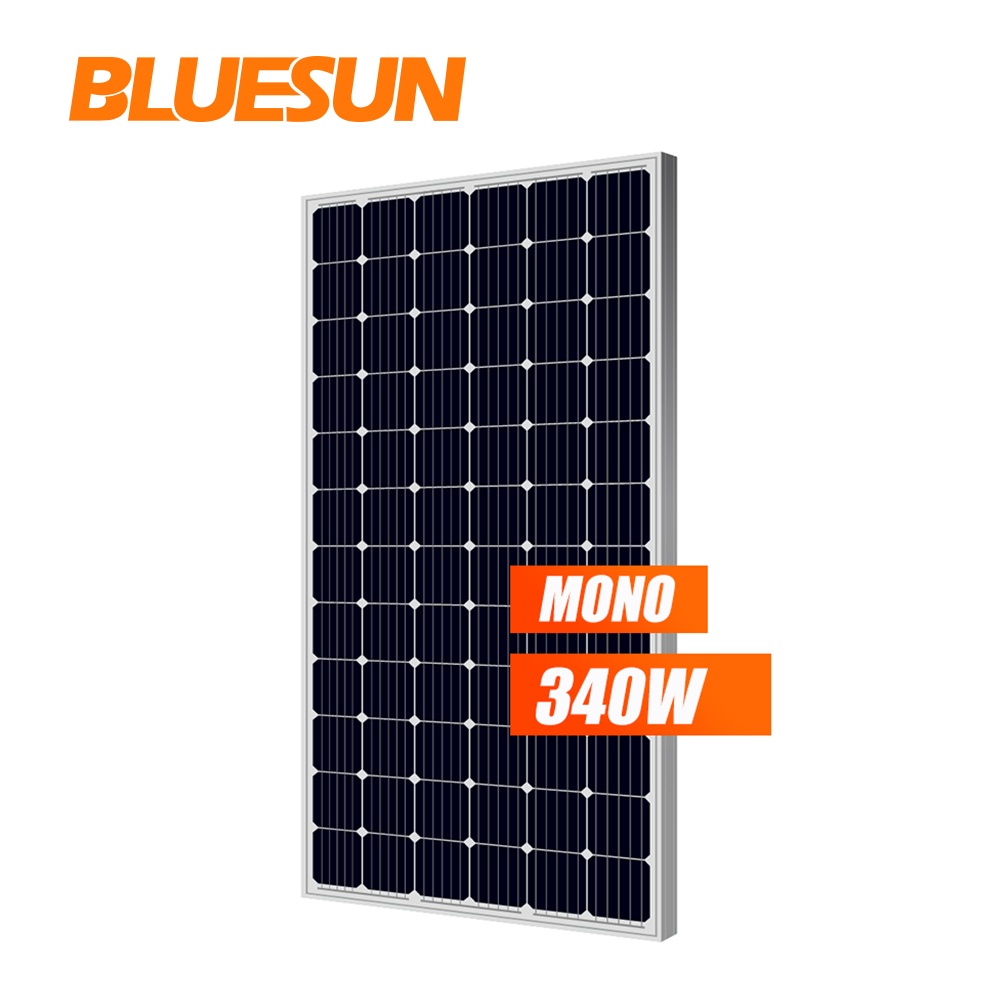

Mono Solar Panel 72 Cells Series 340w

Monocrystalline solar cells high efficiency 345w 350watt 340wp 360w solar panels for home solar power system , Higher conversion efficiency – higher capacity and power output performance per unit area ,48v pv system solar module for microgrid solar power plant 24v mono solar panel


  • PaymentT/T, L/C, Paypal, Western Union
  • Lead time5 days
  • CertificateTUV, CEC, CE, ISO
  • Size1956*992*35/40mm
  • Power range340w-380w
  • Number of cells72
  • Solar cell5BB mono 156mm
  • Warranty25 years

Monocrystalline 360W 370W 380W solar panel 48V PV system solar module for solar power plant


Product Description





Moduel

BSM340M-72

BSM345M-72

BSM350M-72

BSM355M-72

BSM360M-72

Rated Maximum Power at STC

340

345

350

355

360

Open Circuit Voltage(Voc/V)

46.91

47.13

47.29

47

47.2

Maximum Power Voltage(Vmp/V)

38.17

38.39

38.59

38.7

38.9

Short Circuit Current(Isc/A)

9.41

9.48

9.55

9.69

9.79

Maximum Power Current(Imp/A)

8.91

8.99

9.07

9.17

9.26

Module Efficiency(%)

17.54

17.8

18

18.3

18.5

Power Tolerance

-0~+3%

Standard Test Condition(STC)

Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5






Detailed&Production









Packing & Delivery



26 pieces per pallet , 280 pieces per 20ft container , 620 pieces per 40HQ container

Monocrystalline 340W solar panels and 72 cells series solar modules , normal package is 2 pieces per carton , we accept customized or OEM package too.



350w solar panel 350watt solar panels



Project






Monocrystalline 340 Watt solar panel and higher efficiency 350 W 360 W solar panel, higher conversion efficiency , higher capacity and power output performance per unit area.

As follows some advantages of 5BB 340 W monocrystalline silicon solar panel for your reference:


Reduction of transportation costs 4%
Reduction of land costs 3%
Reduction of installation costs 2.5%

Reduction of BOS-costs 1.5%

Higher solar module efficiency lower solar system cost per watt .


If you are an end users , we can offer more detail information to you. So that you can get the satisfied solar power system for your home solar generator solution or factory solar system plant .

Any more doubts , you can ask our professional products consultant.
