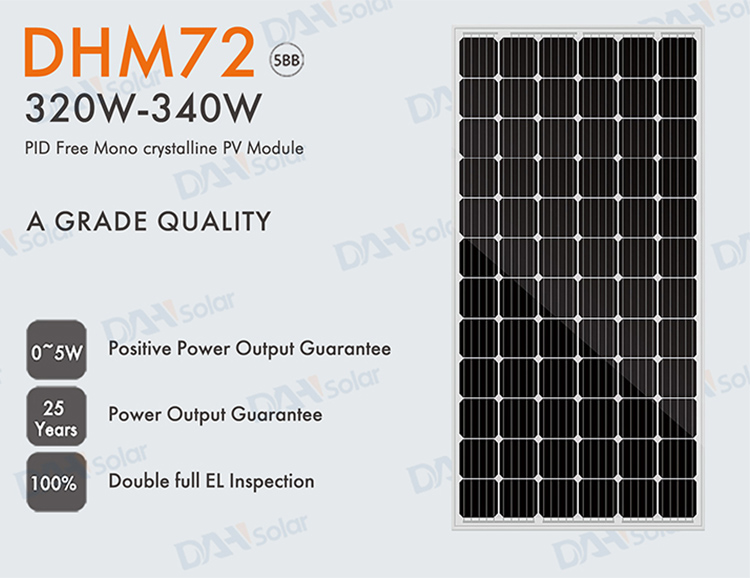

Mono Solar Panel 72 Cells Series

5BB PID Free Mono solar panel-72cells


  • Type :Up to 17.54%
  • Max.Power :IP67
  • Dimensions :1956*991*35mm
  • Certificate :TUV/CE/CEC/INMETRO/SEC/CQC/ISO/FIDE
  • Warranty :25 Years
  • Payment :T/T, L/C, Paypal, Western Union
  • Lead Time

72 cells 5BB Mono solar panel 320w/325w/330w/335w/340w all with A Grade for on-grid & off-grid solar system use for residential and public rooftop PV Power Station



Electrical Characteristics (STC)

Module Type

DHM72-325

DHM72-330

DHM72-335

DHM72-340

Maximum Power (Pmax)

325W

330W

335W

340W

Open-circuit Voltage (Voc)

45.9V

46.1V

46.3V

46.5V

Maximum Power Voltage (Vmp)

37.3V

37.6V

37.9V

38.2V

Short-circuit Current (Isc)

9.17A

9.26A

9.36A

9.45A

Maximum Power Current (Imp)

8.72A

8.78A

8.84A

8.90A

Module Efficiency(%)

16.77%

17.02%

17.28%

17.54%

Power Tolerance

0~+5W

Standard Test Environment

Irradiance 1000W/m2, Cell Temperature 25℃Spectrum AM 1.5



72cells Packing Details

Container

20GP

40GP

40HC

pcs/pallet

27

27

27

pallet/container

10

24

24

pcs/container

270

648

696



First-class solar panel warranty Reliable quality

1.10 years material & technology guarantee

2. 25 years linear power output guarantee

3. 100% Double full EL inspection
4. 0-+5W  Positive power output guarantee


Product Characteristics


1. Excellent PID free performance.

DAH Solar’s DHM72 cells Series solar panel is PID Free module under the condition of 85℃/ 85% RH. It can be used for all applications, including Civil and commercial solar power system.

2. Certified anti Salt-mist,anti ammonia corrosion performancesand and storm test by TUV Rheinland and TUV Nord.

3. Excellent mechanical performance with 2400 Pa wind load and 5400 Pa snow load.

4. Outstanding weak light generating performance with A grade solar panel(morning,nightfall,cloudy & rainy day).

5. Anti-reflective glass not only increase light absorption,but also reduce the power loss by solar panel self cleaning function under rainy environment.
