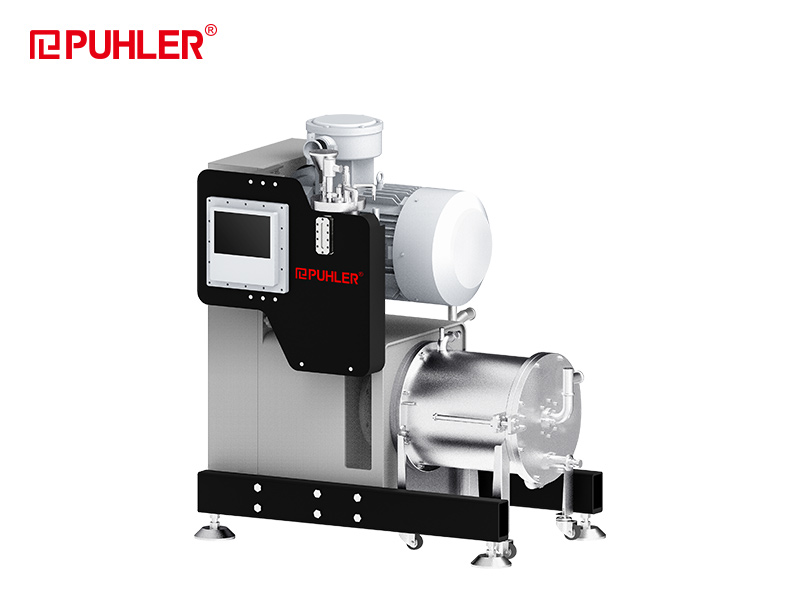

MORPH KDP® - Innovation in wet grinding dynamic separation technology The highly efficient dynamic centrifugal separation system enables the use of smallest grinding media from a diameter of 0.1-1.8mm in reliable continuous operation. It is specially designed for wet grinding and dispersing processes especially “gentle dispersing” in the nanometer range. Working with the machines is a pleasure due to its easy operation.

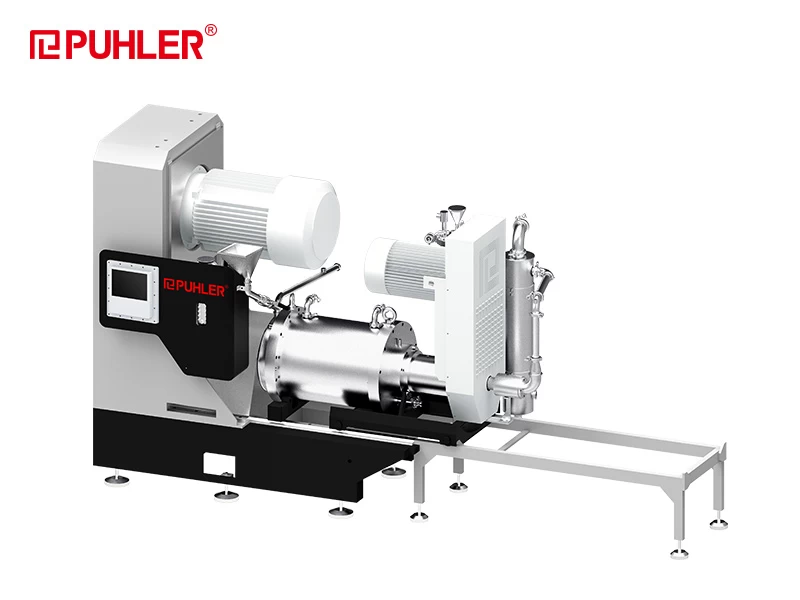

MORPH KDP® with Honor - A new generation of Nano Mill. This new generation of nano mill is the sieve free centrifugal bead-material separation system.
MORPH KDP® with Honor made a further R&D on the basis of MORPH KDP®, adopted special screw design of max flow with sieve free centrifugal bead - material separation system, it can use minimum 0.03mm grinding media, a new assemble type peg grinding system MDC (Multiple - zone Dynamic Classifier), was a classical combination of nano grinding technology and dynamic separation technology.
Advantages：
1. Adopted innovative technology of nano-scale dynamic separation, the dynamic separator is separated from the original grinding rotor structure, and the grinding rotor and dynamic separation system are driven and controlled by independent driving device.
2. Process production moves towards intelligent chemical process production, realizing the flexible design of production process.
3. The application of 0.03mm zirconium bead in bead mill is realized.
4. The unique dynamic separation design, effectively ensure long-term continuous and stable operation.
5. Grinding finer and more evenly.
TECHNICAL PARAMETER:
|
Function \ Model (L)
|
|
2
|
10
|
25
|
60
|
90
|
150
|
400
|
|
Productivity enlarged proportion factor
|
|
0.3
|
1
|
2
|
4
|
6
|
8
|
11
|
|
Motor Power [KW]
|
|
11-15.
|
22-30
|
37-45
|
75-90
|
132-160
|
132-160
|
132-160
|
|
Rotation Speed [rpm]
|
|
500-2800
|
350-1400
|
350-1400
|
250-900
|
250-900
|
250-900
|
250-900
|
|
MORPH KDP®
|
|
o
|
o
|
o
|
-
|
-
|
-
|
o
|
|
MORPH KDP® with Honor
|
|
o
|
-
|
o
|
o
|
o
|
o
|
o
|
|
H-hollow shaft drive power [KW]
|
|
3
|
5.5
|
7.5
|
18.5
|
25
|
30
|
37
|
|
H-hollow shaft drive speed [rpm]
|
|
2800
|
1400
|
1400
|
960
|
960
|
960
|
960
|
|
Diameter of grinding medium [um]
|
|
30-900
|
30-900
|
30-900
|
30-1000
|
30-1600
|
30-1600
|
30-1600
|
|
Filling rate of grinding medium (vol. %)
|
|
70-89%
|
70-89%
|
70-89%
|
70-89%
|
70-89%
|
70-89%
|
70-89%
|
|
Rate of flow [kg/h]
|
|
200-600
|
1000-3000
|
2000-6000
|
3000-10000
|
3000-13000
|
3000-18000
|
4000-36000
|
|
Rotor material of MDC grinding system
|
ZrO2
|
o
|
o
|
o
|
o
|
o
|
o
|
o
|
|
Si3N4
|
o
|
o
|
o
|
o
|
-
|
-
|
-
|
|
PU
|
o
|
o
|
o
|
o
|
o
|
o
|
o
|
|
WC
|
o
|
o
|
o
|
o
|
o
|
o
|
o
|
|
Material of inner chamber
|
SiC
|
o
|
o
|
o
|
o
|
o
|
o
|
o
|
|
Alloy YG 8
|
-
|
-
|
-
|
o
|
o
|
o
|
o
|
|
o Optional - Unavailable
|
