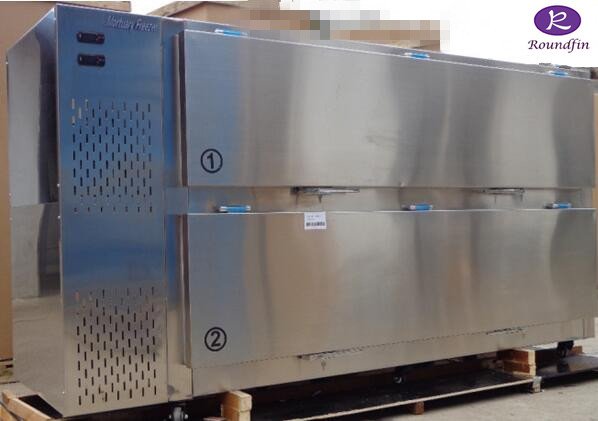

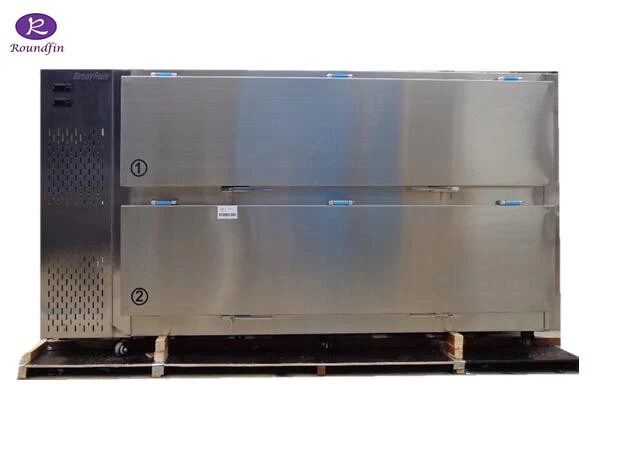

Mortuary Refrigerator
with side open door: 1,2 and 3 models:
The corpses cold storage and the freezing corpsed cold box are a series of product for hospital, funeral parlor, and postmortem examination department.
Features: Side open door models:
01: Refrigerant: Environmental protection R406A.
02: Material for the product: Stainless steel for inner & outer layer, also for the trays. Our standard configuration with the stainless steel is: SS201; SS304 steel and the other steel is optional.
03: Each unit will be packed with 6 pcs strong quality universal wheel to be sure the unit is easy to move.
04. Compressors:
High quality compressor, the Germany High quality compressor is Optional, each compressor control each chamber.
05. Power.
220-240V/50Hz-60Hz, back up power (UPS) can supplier according to customer’s requirement.
06. Temperature:
The temperature set-value can be adjusted at -18℃~10℃, high-accuracy computer-controlled temperature system with original binding can maintain the temperature constancy in the box at 1-5℃precisely.
Big temperature display on the top of the unit. And each chamber with one control button.
07. 5 kinds of alarm systems.
08. Nice appearance.
The integrated frame door design, to be sure the door is more tidy and nice.
09: Strong sliding road system, to be sure the body tray is easy to pull-out and take-back.
10: Safty and closed lock door design.
Main technical parameter：
The normal dimension is as follows, we can produce according to customer’s dimension requirement.
| Model Number |
Climate type |
Temperature (Factory setting) |
Internal size(mm) |
Exterior size(mm) |
Weight KGS
|
Layers |
| RD-1S |
N |
-18℃~10℃ |
2000*650*450 |
2500*820*620 |
150
|
1 |
| RD-2S |
N |
-18℃~10℃ |
2000*650*450 |
2500*820*1250 |
300 |
2 |
| RD-3S |
N |
-18℃~10℃ |
2000*650*450 |
2520*850*1870 |
450 |
3 |
Temperature: Factory setting is -18 to 10 ℃，but the user can adjust the temperature from -30 to 10 ℃ by himself.
