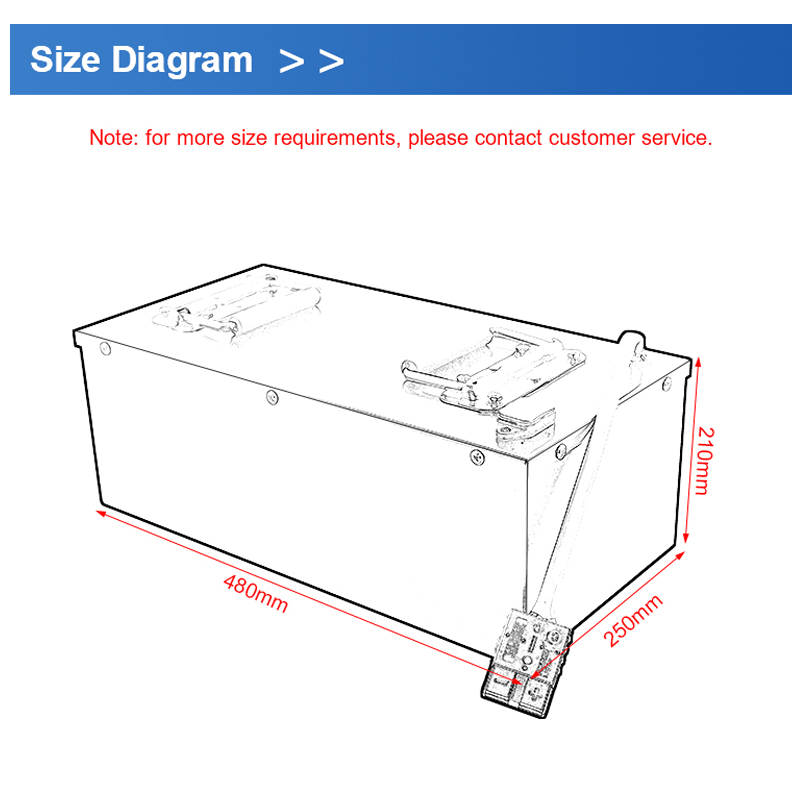

Size:480*250*210mm or Customized

Capactiy:50Ah 100Ah 200Ah

Platform Voltage:48V 60V 72V

Discharge cut-off voltage:44V

Charge cut-off voltage:67.2V

Standard Charging:<=10A

Standard Discharging:50A

Discharging current(MAX):80A

Short circuit protection:YES

Short-circuit protection recovery:Disconnect the load

Cycel Life:800th cycle>90% of 1st Cycle Capacity or 1000th cycle>80% of 1st Cycle Capacity

Discharge Characteristics (by temperature):55℃ ≥100%

25℃ =100%

10℃ ≥90%

0℃ ≥80%

-10℃ ≥75%

-20℃ ≥70

Storage Characteristics:100%SOC, discharge 30min at 2C current then storage 28 days at 45℃, recoverable capacity will be tested at 25℃±2℃

Charge Temperature：0 to 45℃

Discharge Temperature：-20 to 60℃
