Mounting System for Photovoltaic

Mounting System for Photovoltaic is designed for Metal Roof, it has advantages like Easy Assembly, enormous Power Supply, steady and so on.


  • Tilt Angle0°~60°
  • FoundationClamp/Hook
  • Panel TypeFramed & Frameless
  • HS Code76109000
  • Installation SiteMetal Roof

Mounting System for Photovoltaic

Mounting System for Photovoltaic is designed for Metal Roof, it has advantages like Easy Assembly, enormous Power Supply, steady and so on.


On Grid PV Mounting Systems



Material
   AL 6005-T5/SUS304
Surface Treatment

   Average Anodizing Coating Thickness12μm Average

Panel Type
   Framed & Frameless
Wind Load
   ≤60m/s
Snow Load
   1.4KN/m2
 Panel Orientation
   Landscape/Portrait
 Tilt Angle
   0°~60°
Seismic Load
   Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  15years quality warranty, 25years life span warranty








standing seam clamp metal roof

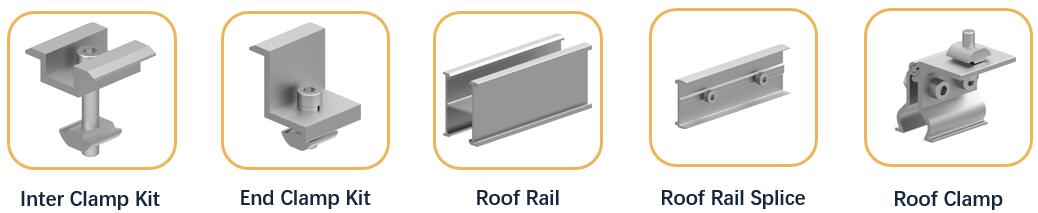

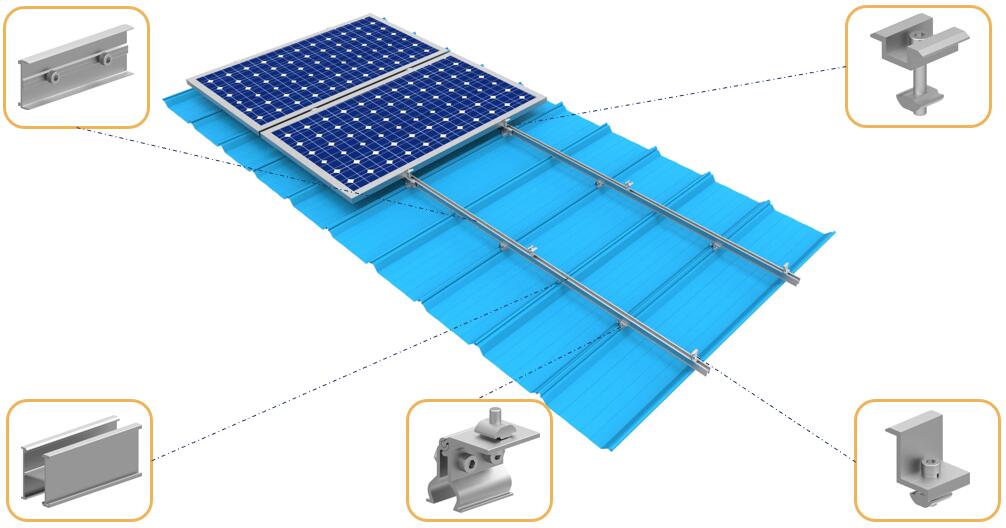

System Overview



light but strong aluminum rails

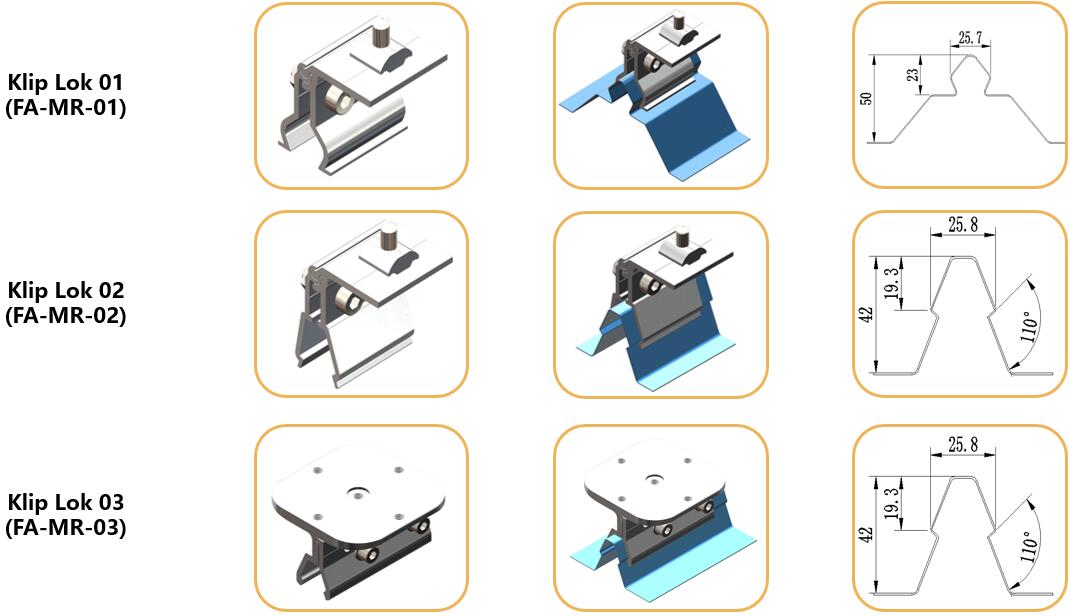

tin roof mounting bracket parts

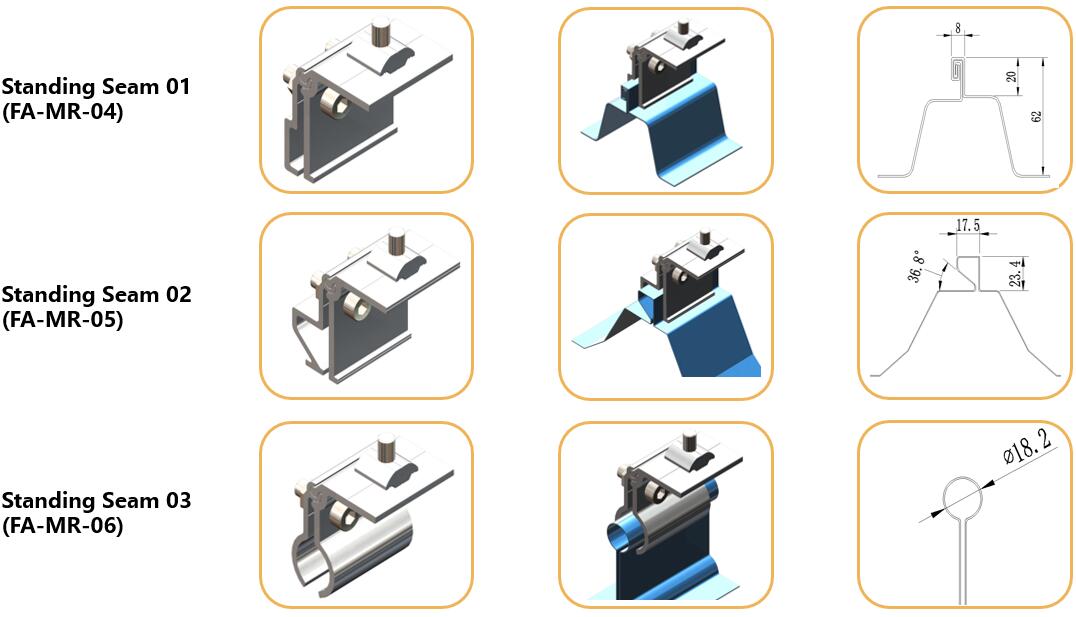

standing seam clips

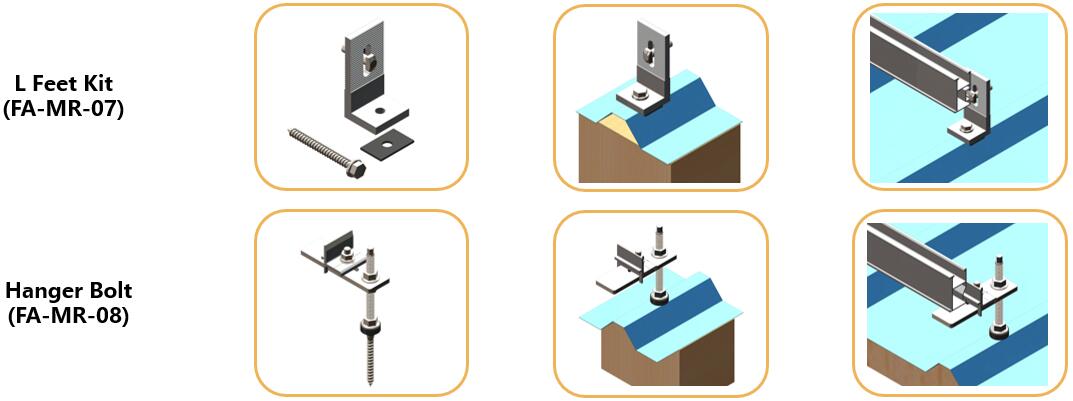

non penetrating L feet

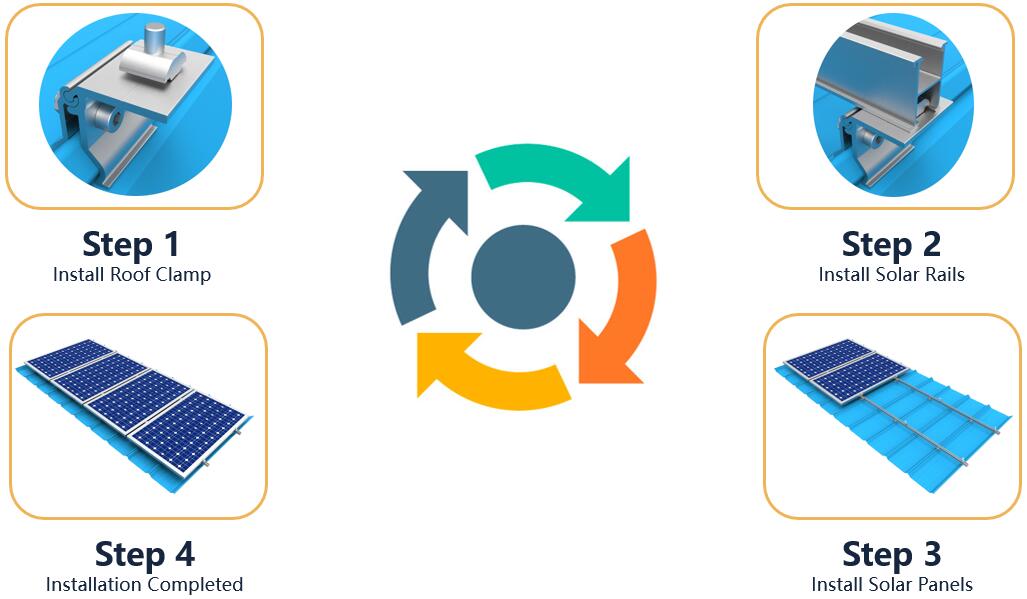

Highly pre-assembled before shipment ensure an quicker installation work


Check and test Structure strictly for the use in extreme weather condition


Simpler design and less components make the solution more competitive


15 years' warranty, 25 years' life span




stable standing seam clamp fixing
