MOV din rail surge protection device 380V

Type 2 AC power surge protector

In:60kA

Imax: 100kA

Low voltage Up

Internal disconnection, statue indicator, and remote signaling

IEC 61643-11

OEM acceptable



MOV din rail surge protection device 380V

AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.

Standard compliance: IEC61643-11, EN61643-11

IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods

Features:

* Reliable thermal tripping protection

* Status indicator: Transparent(normal) Red(Defect)

* Fast response: action within nanosecond

* Optional remote signaling

* Easy to mount

* Latest reflow soldering process, ensure product consistency

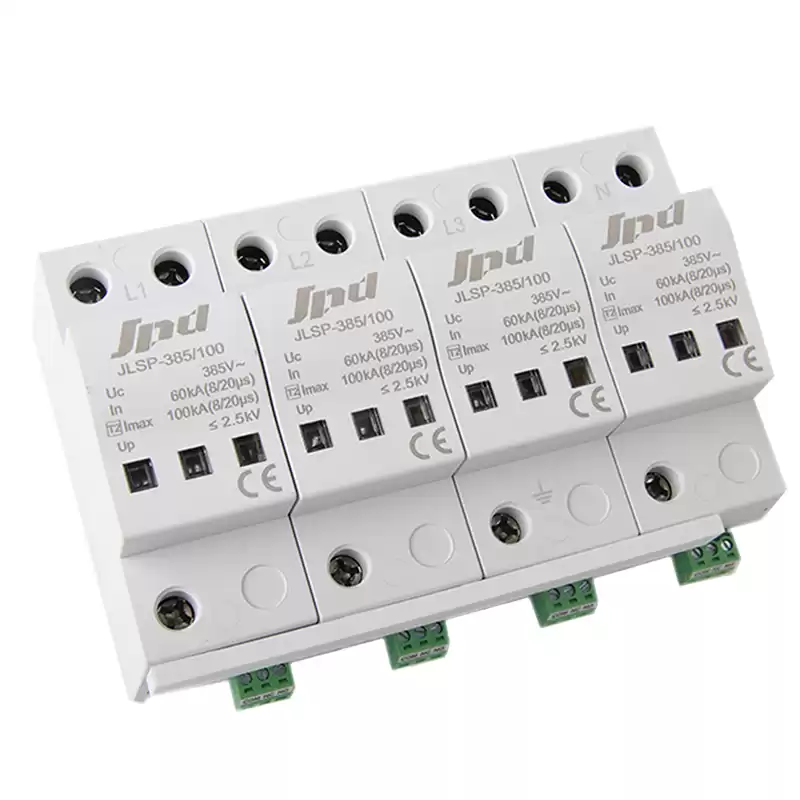

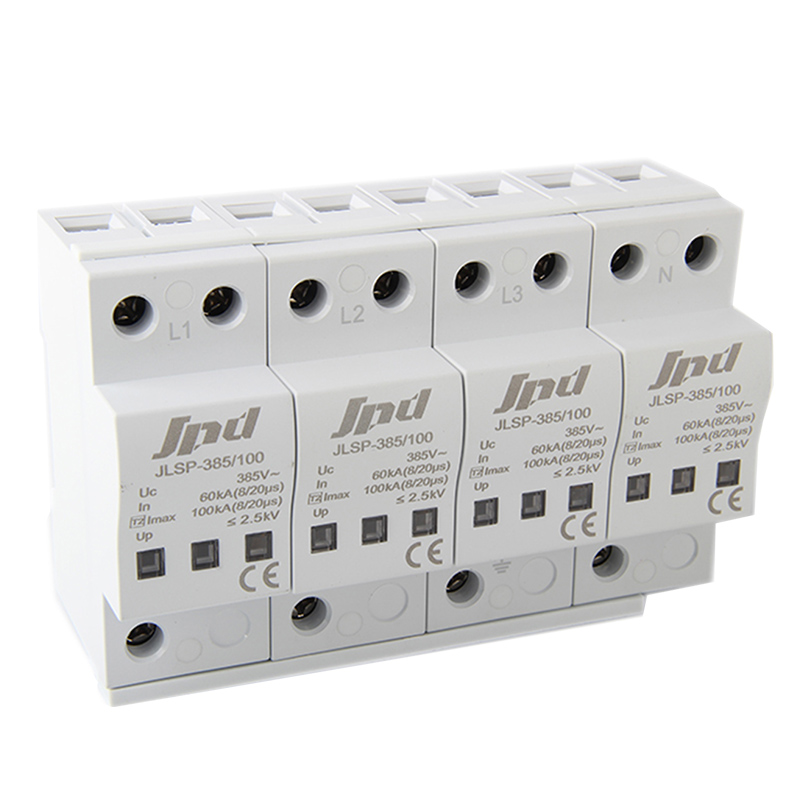

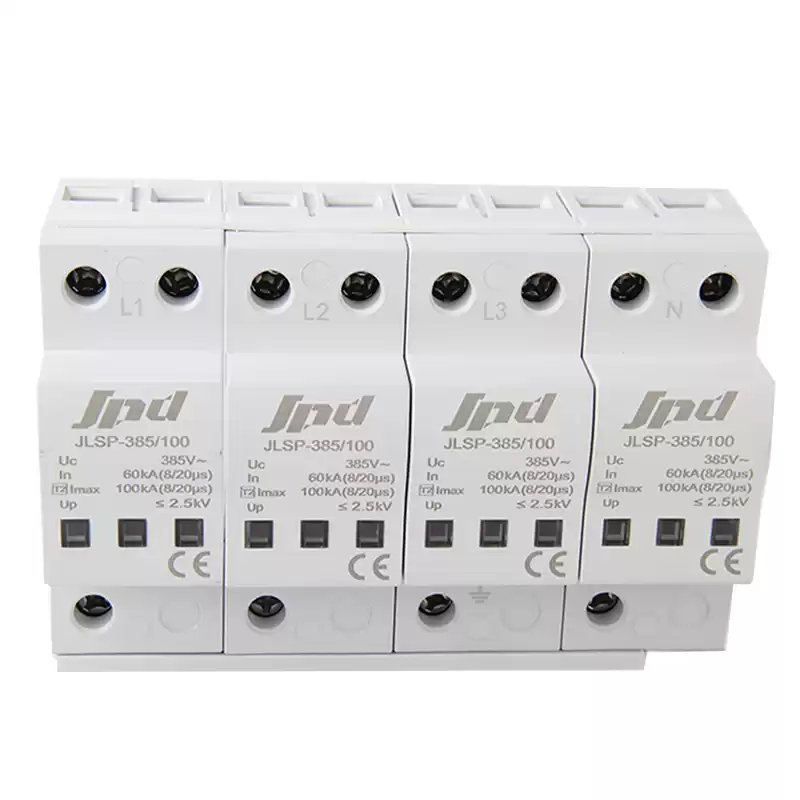

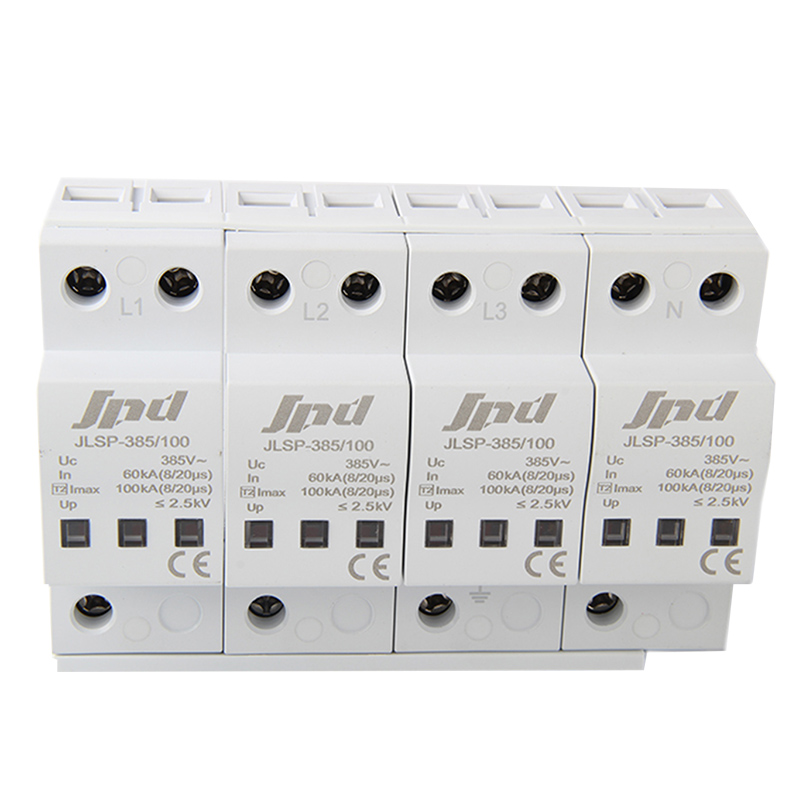

Model JLSP-385/100/4P
Descripition Type 2 AC  surge protector-4poles
Network 230/400,240/415V (TN/TT/IT)
Max. AC operating voltage (Uc) 385V
Nominal discharge current In(kA) 60kA
Max. Discharge current (kA) 100kA
Protection level Up (kV) ≦2.5kV
Dimensions 144*90*65MM
Protection rating IP 20
Response time tA (ns) ≦25
Oeprating temperature  -40/+85℃
Mounting  DIN Rail 35mm
Housing material Thermoplastic UL94-V0
Standards compliance IEC64643-11, GB/T18802.11
