BROAD moverable Power Track socket surface uses an excellent paintto be durable and not fade for long time.
Easy installation saves time and effort so can be widly used in the office,meeting room,hotels and other working places.
no clear line,more simple and safer,enhance the overall decoration taste.

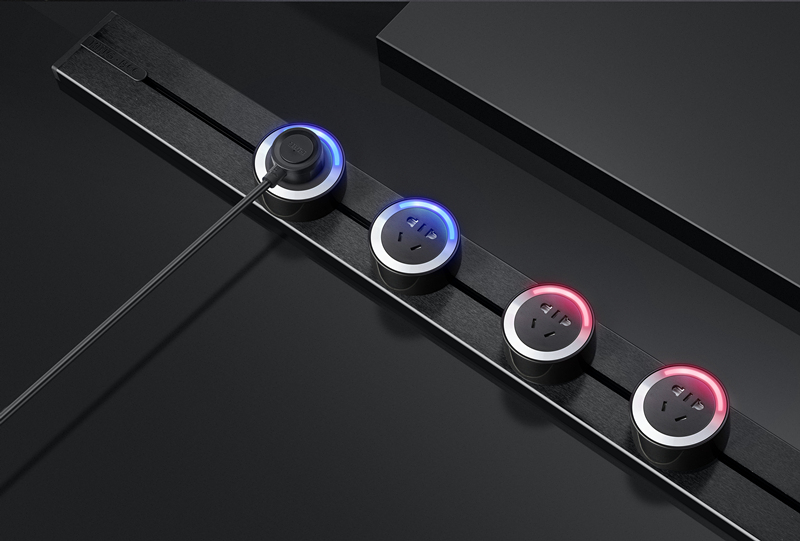

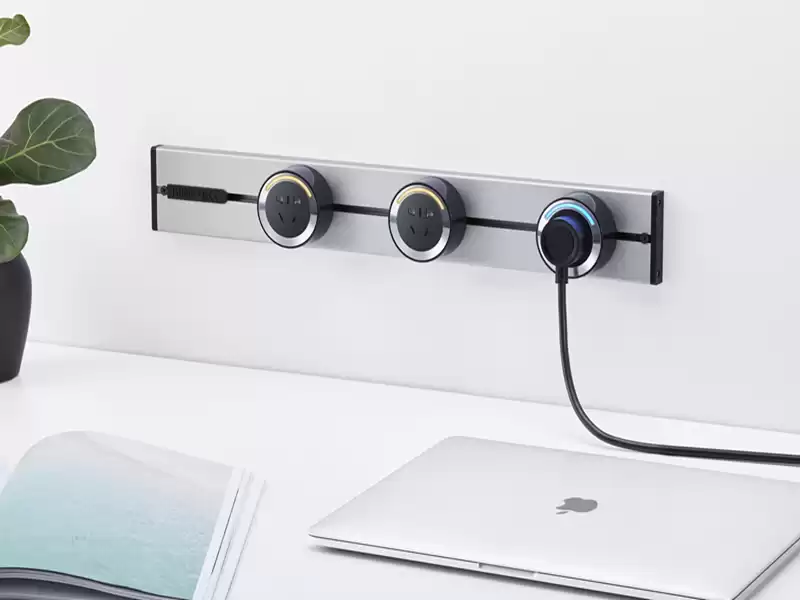

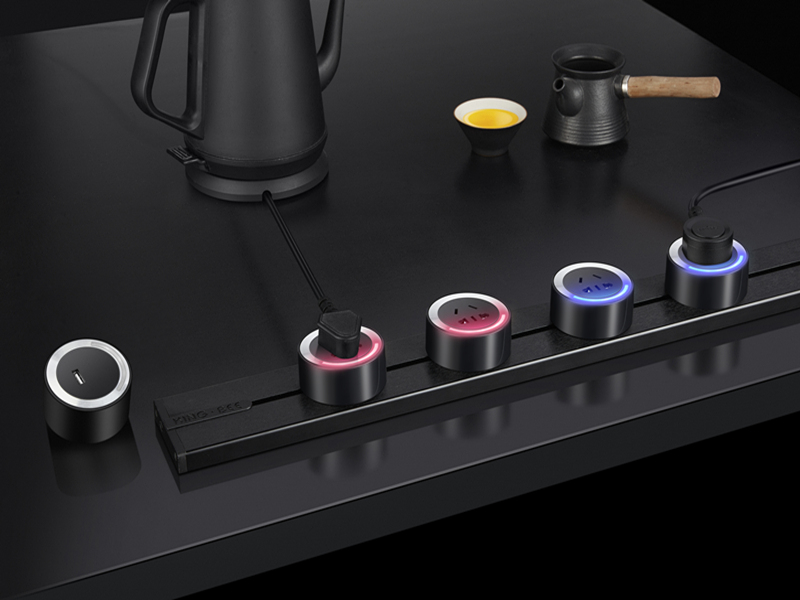

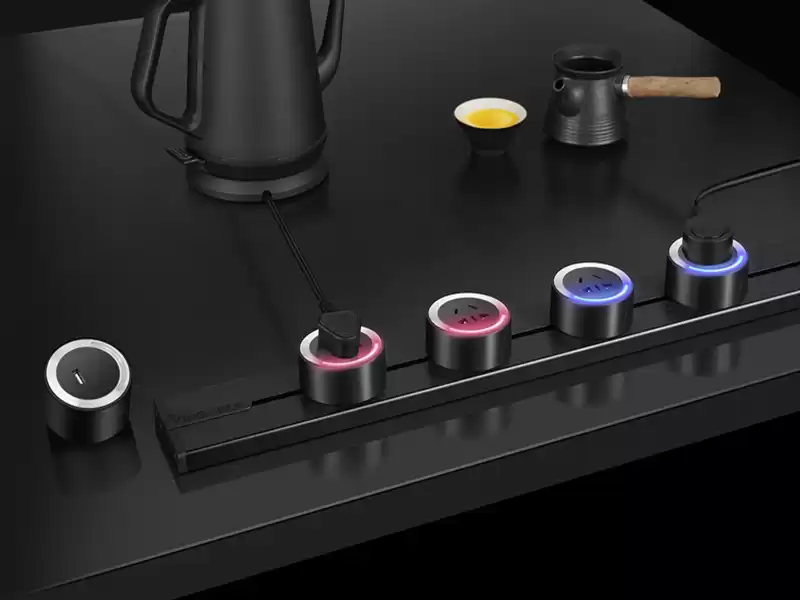

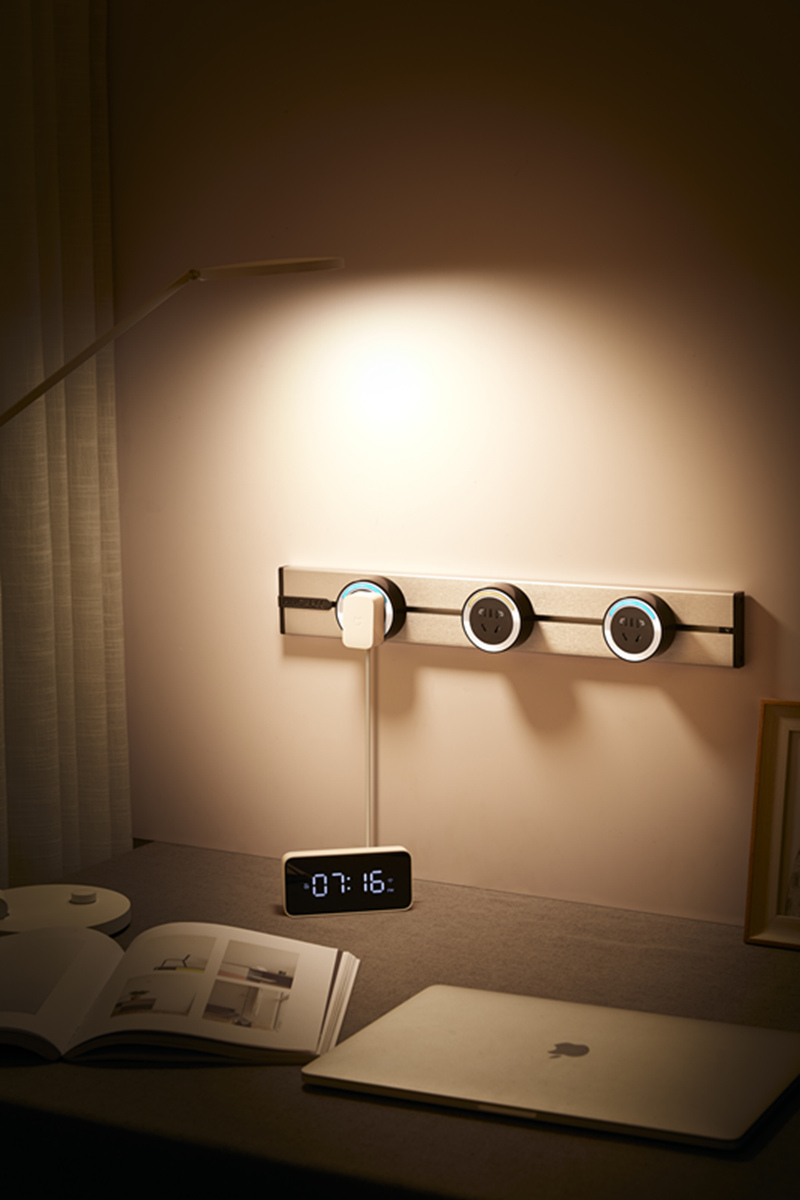

BROAD power track rail allows you to install or remove the device in seconds. You can also move the device along it, achieving a certain positioning. The rail allows you to mount one, two, three or more devices in the desired sequence with the length to be customized.
Overview
Futures
Power rail Socket/Power Track /Power Track Socket
|
Power Track Socket Technical Specification
|
|
Track
|
|
|
Rated voltage
|
250V
|
|
Rated current
|
32A
|
|
IP code
|
IP30
|
|
Specification length
|
500
|
750
|
1000
|
1400
|
2000
|
|
Actual length（mm）
|
505
|
750
|
995
|
1415
|
2010
|
|
Colour
|
Blue
|
Rose gold
|
Black
|
Silver
|
|
|
Width x Thickness
|
80.5mmx20mm
|
|
Installation
|
Surface installation:KB-001-1
|
|
|
Recessed:KB-001-2
|
|
|
Track shell material
|
Aluminum alloy 6063-T5 + AAO
|
|
Insulation Materials
|
Flame retardant Class V-0 PVC
|
|
|
|
|

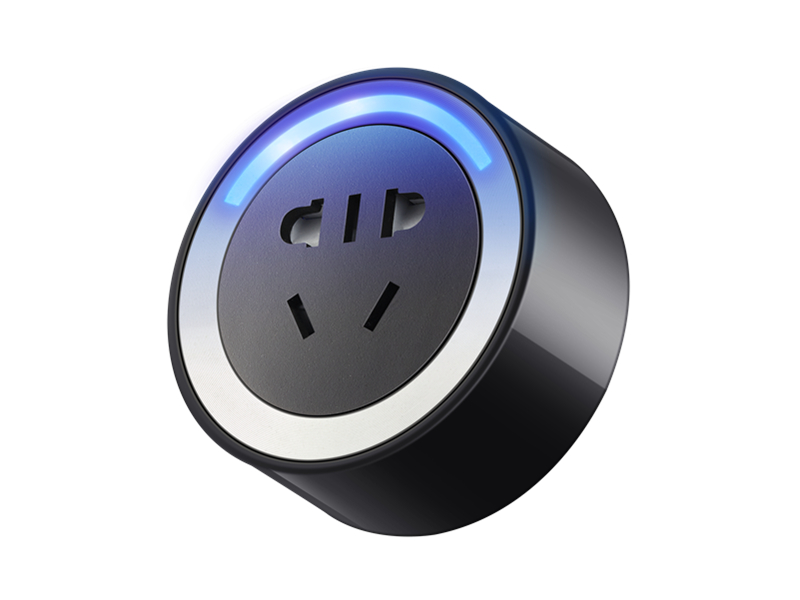

Socket
|
|
|
Rated voltage
|
250V
|
|
Rated current
|
10A
|
|
Jack type
|
2 holes & 3 holes (conforming to GB 2099.3-2015 standard)
|
|
|
|
|
|
Safety door
|
Yes
|
|
LED color
|
Blue
|
Red
|
Yellow
|
|
|
|
Colour
|
Blue
|
Rose gold
|
Black
|
Silver
|
|
|
Width x Thickness
|
62mmx13mm
|
Installation Steps
1. Install the module on the rail.
2. Press and hold the release button of the mechanism.
3. Turn the module clockwise.
Why to choose BROAD
-
Customized and freely combined for power track rail.
-
Line insulation design to be safe use.
-
