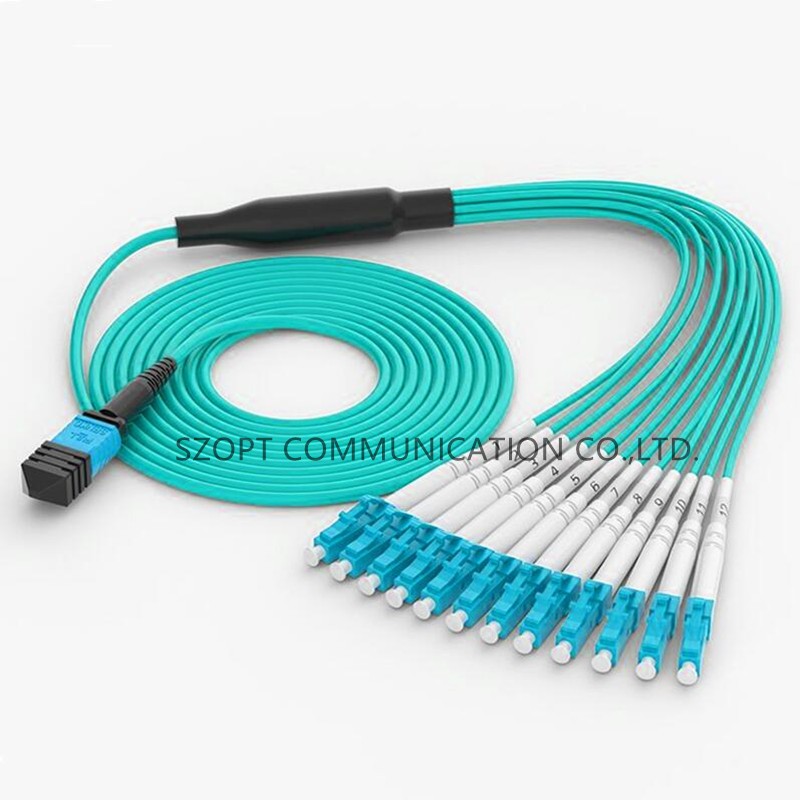

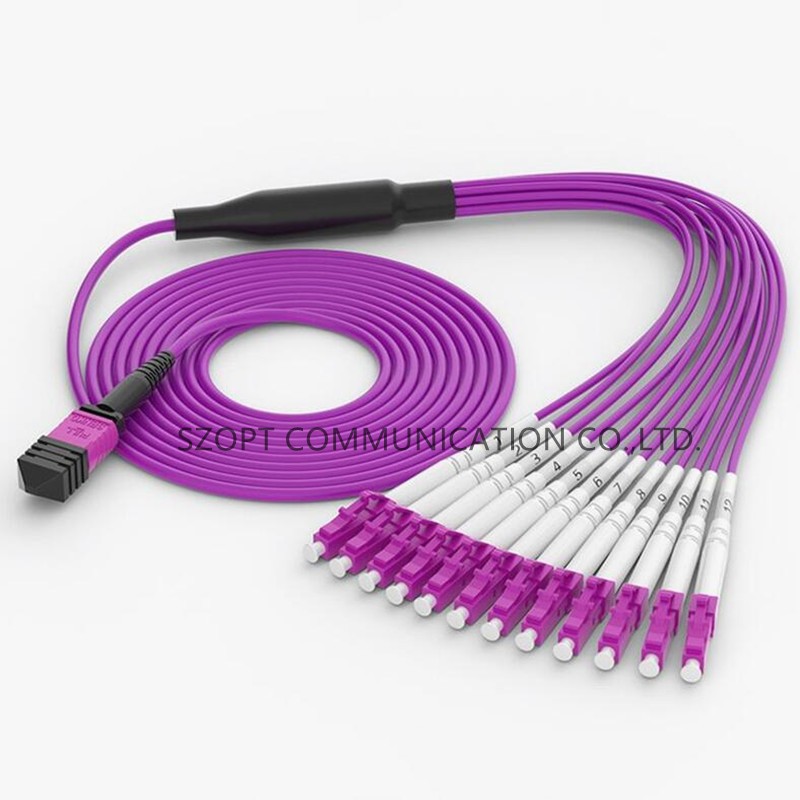

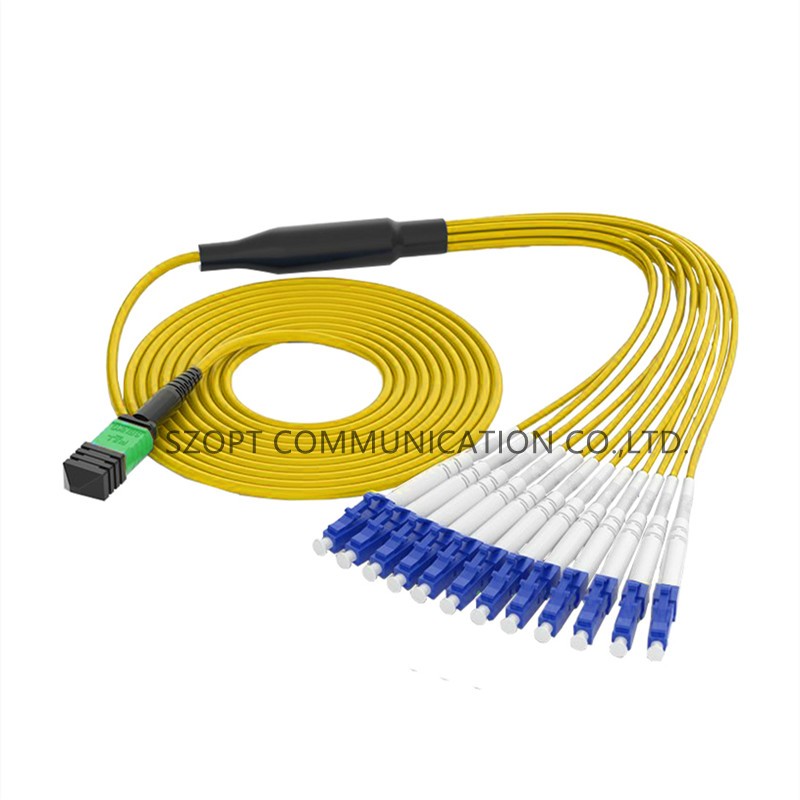

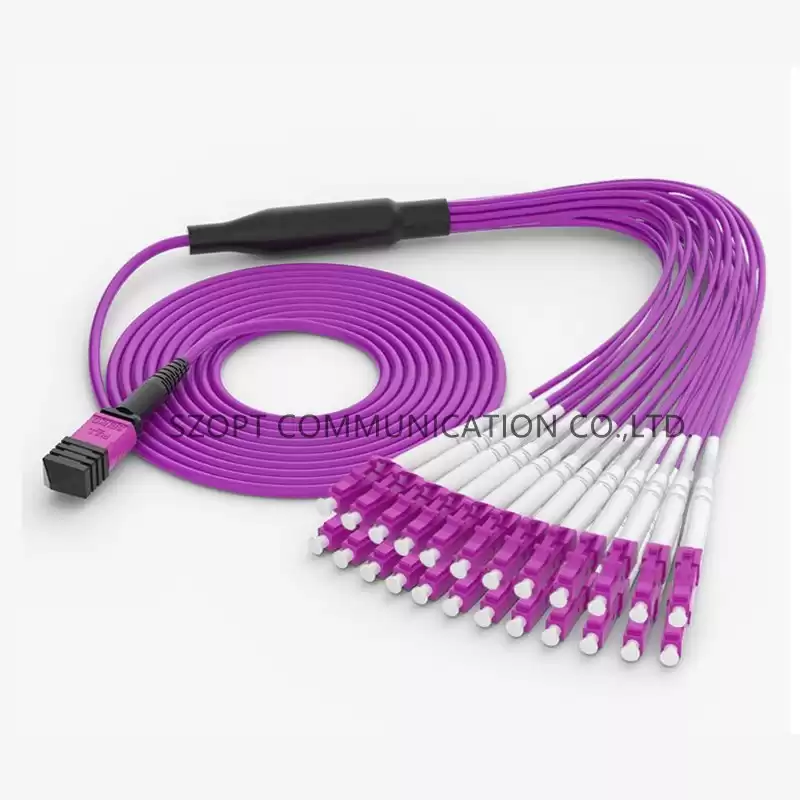

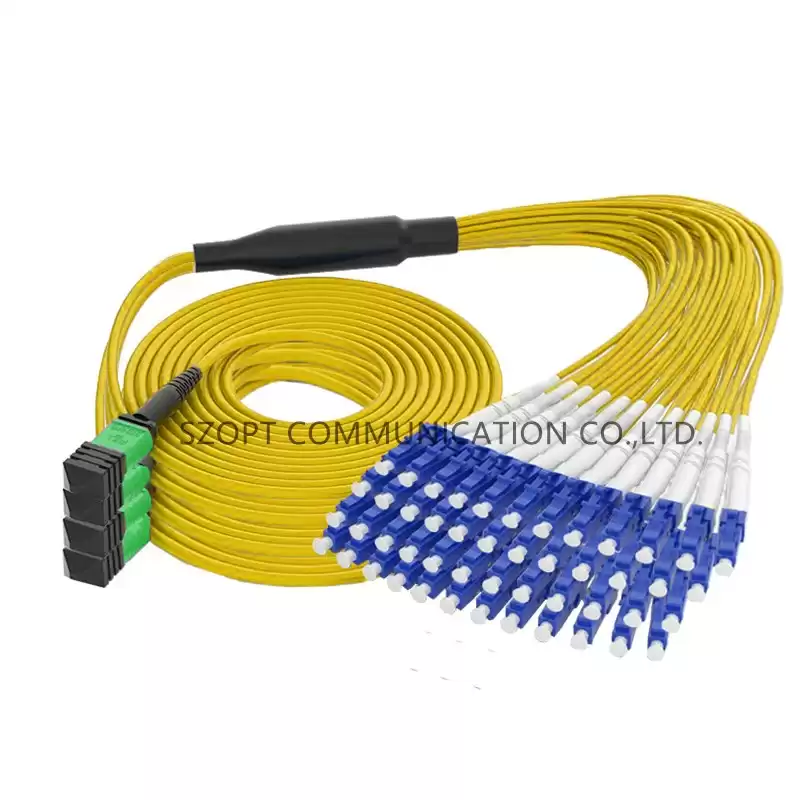

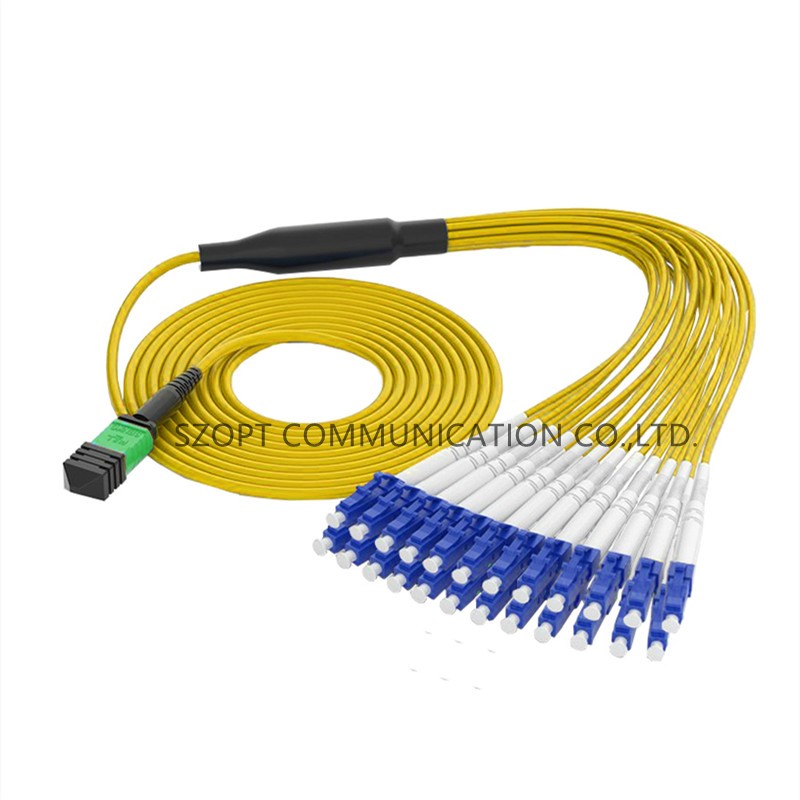

MPO/MTP-LC Harness Patch Cord SM MM OM3 OM4 OM5 8C 12C 24C 48C 96C

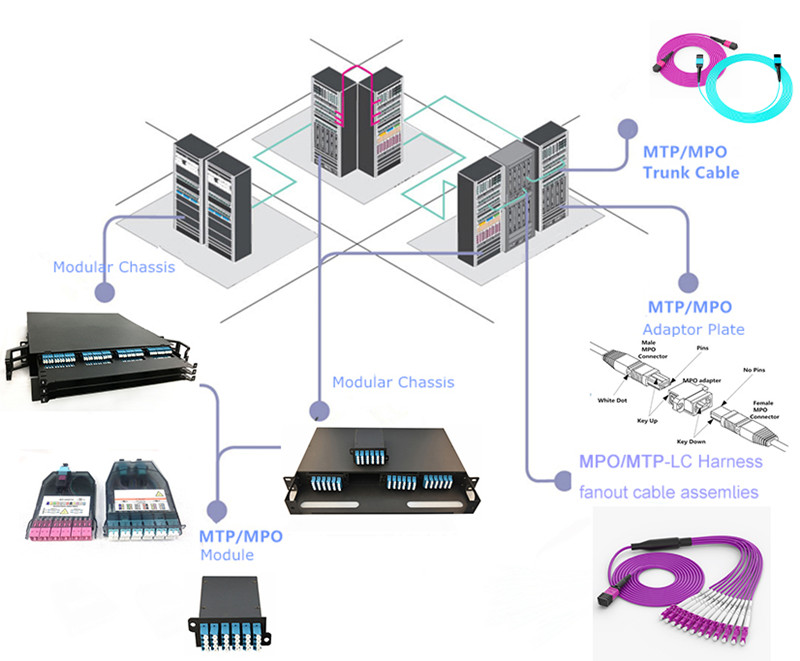

MPO/MTP to LC harness cables are used to fan out the multicore MPO/MTP fibers into generic connectors, usually it is MPO/MTP to LC, but SZOPT can also make it MPO/MTP to SC/ST/FC/MTRJ/E2000, etc. The MPO/MTP harness cable is used to transit from backbone trunk cables to fiber management racks, cable sheaths available are Mini-Core Plenum (OFNP), Mini-Core Riser (OFNR), Mini-Core Low Smoke Zero Halogen (LSZH), typical optical fiber types are single mode OS2, multimode OM1, OM2, OM3, OM4, OM5. The MPO/MTP to LC harness cables are usually 3mm ruggedized furcation legs in customized length, this will hep make it more rugged.



MPO/MTP-LC Harness Patch Cord SM MM OM3 OM4 OM5 8C 12C 24C 48C 96C


From raw materials such as cables,housings,zirconia ferrules,etc.we take a strict quality control system,throughout production process,inspection and packing,etc. to ensure all the finished products are 100% qualified before exporting . We never let any defect out of factory.


Duplex OM4 Patch Cord 16 core

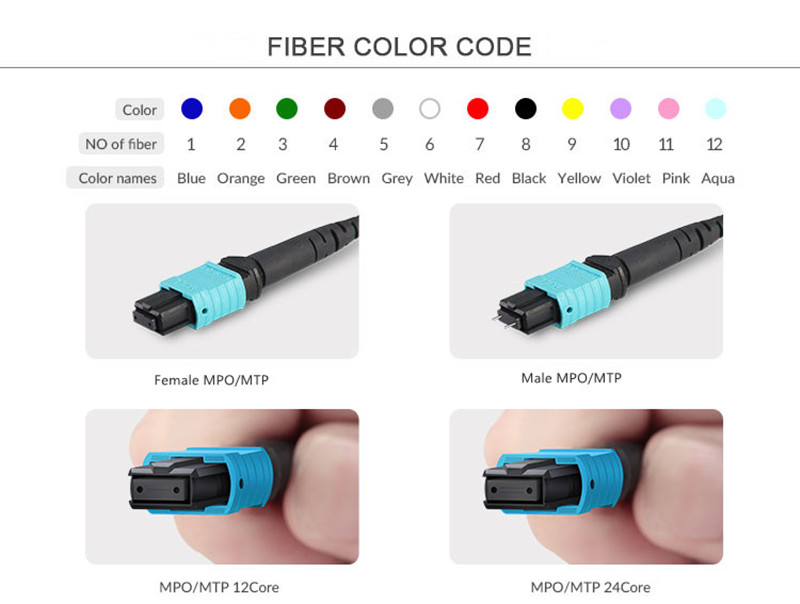

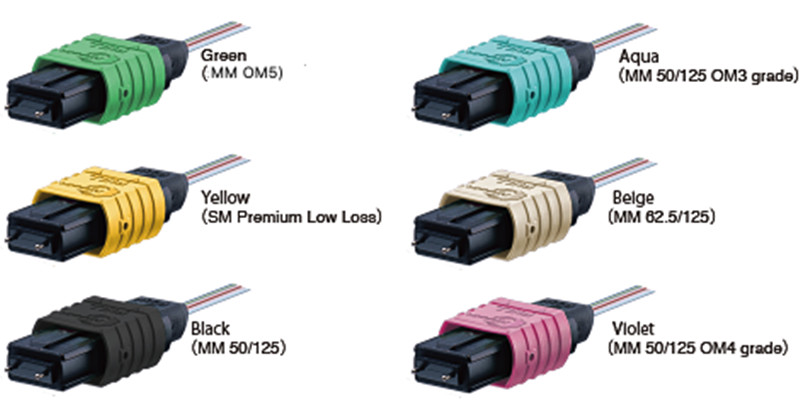

Different MPO MTP Connectors

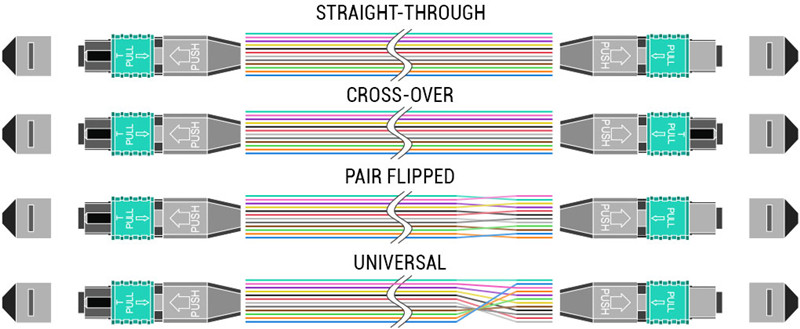

MPO MTP Polarities

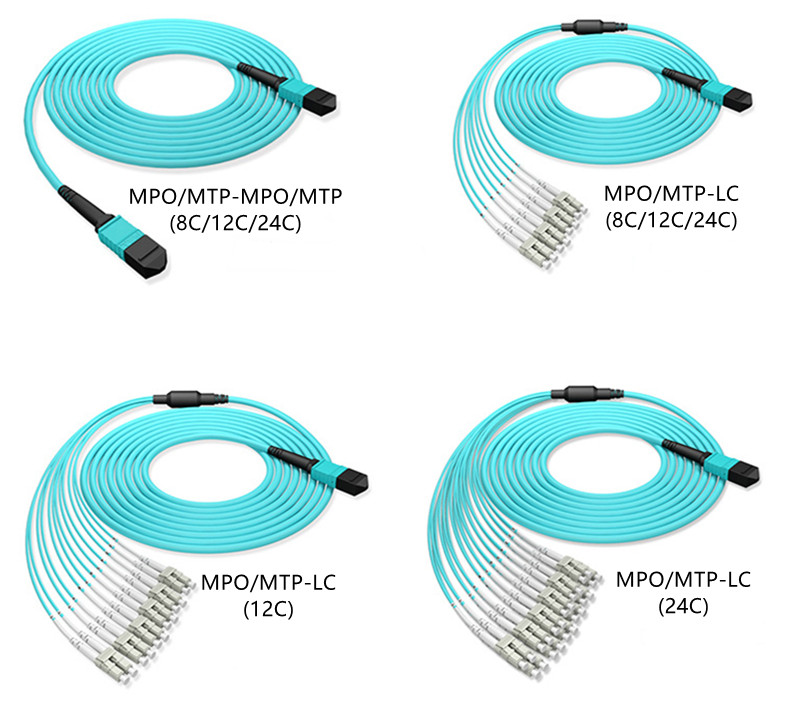

MPO MTP Cables assemblies


Test of patch cables

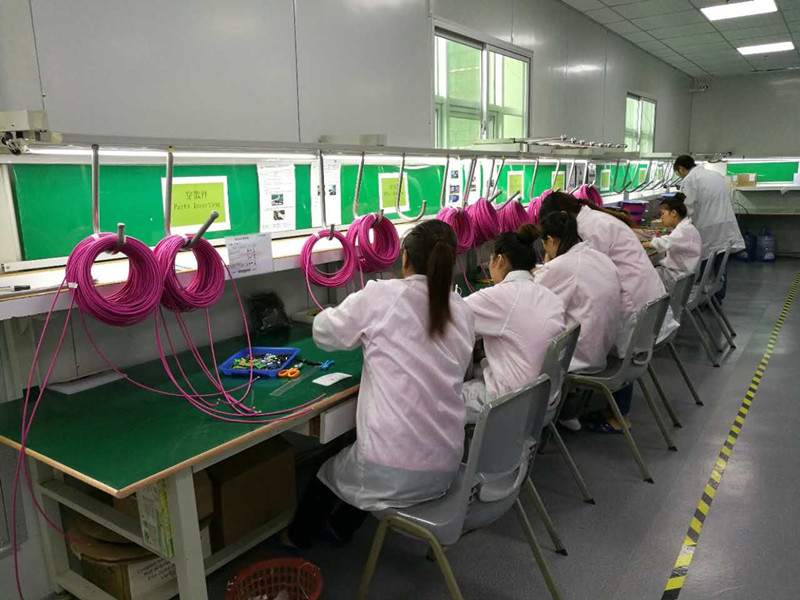

MPO MTP Workshop

MPO MTP Appliance

Goods ready to ship


Application:

Telecommunication System

Testing Equipment

CATV System

LAN System


Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom


Package:

Each piece in a small PE bag,then 10pcs or 20pcs in a big bag,finally put into carton box.


Specification

Connector

Fiber Mode

Endface

Standard

Elite(Premium)

IL(max) (dB)

RL(min) (dB)

IL(max) (dB)

RL(min) (dB)

MPO/MTP

Singlemode

APC

≤0.75

≥60

≤0.35

≥60

Multimode

PC

≤0.60

≥20

≤0.35

≥20
