Products Feature:
1. Battery temperature sensor (BTS) automatically provides
temperature compensation
2. Automatic battery voltage detection
3. Support wide range of lead-acid batteries including wet,
AGM and gel batteries
4. Integrated intelligent slot compatible with SNMP/MODBUS communication
Data Sheet
|
Model
|
SCCM4548
|
|
Maximum Solar input Voltage
|
145V
|
|
Nominal System Voltage
|
12,24,48VDC(Auto detection)
|
|
Maximum Battery Current
|
45A
|
|
DC Array MPPT Volage Range
|
12VDC/24VDC/48VDC
|
|
PV Array MPPT Volage Range
|
15-115VDC/30-115VDC-60-115VDC
|
|
Maxinmum input Power
|
12Volt-625Watts
|
|
24Volt-1250Watts
|
|
48Volt-2500Watts
|
|
Charging Algorithm
|
3-Step
|
|
Charging stages
|
Bulk,Absorption,Float Bulk,Absorption,Float
|
|
Temperature compensation coefficient
|
-5mV/℃/cell(25℃ref.) -5mV/℃/cell(25℃ref.)
|
|
Temperature compensation range
|
0℃ to +50℃ 0℃ to +50℃
|
|
Temperature compensated set points
|
Absorption,Float Absorption,Float
|
|
Charging Set points
|
Absorption Stage Absorption Stage Float Stage
|
|
Flooded Battery
|
14.6V/29.2V/58.4V 14.6V/29.2V/58.4V 13.5V/27V/54V
|
|
ARG/Gel Battery（Default)
|
14.1V/28.2V/56.4V 14.1V/28.2V/56.4V 13.5V/27V/54V
|
|
Overcharge voltage
|
15V/30V/60V 15V/30V/60V
|
|
Overcharge restart voltage
|
14.5V/29V/58V 14.5V/29V/58V
|
|
Battery discharge voltage
|
8.5V/17V/34V 8.5V/17V/34V
|
|
Battery overdischarge voltage
|
9V/18V/36V 9V/18V/36V
|
|
Product size(H*W*D,mm)
|
283*160*105 mm
|
|
Product weight(Kg)
|
4.0kg
|
|
Ambient Temperature Range
|
0℃ to +55℃
|
|
Storage Temperature
|
-40℃ to 75℃
|
|
Humidity
|
0%-90%RH(No condensing)
|
|
Enclosure
|
IP31(indoor&vented)
|

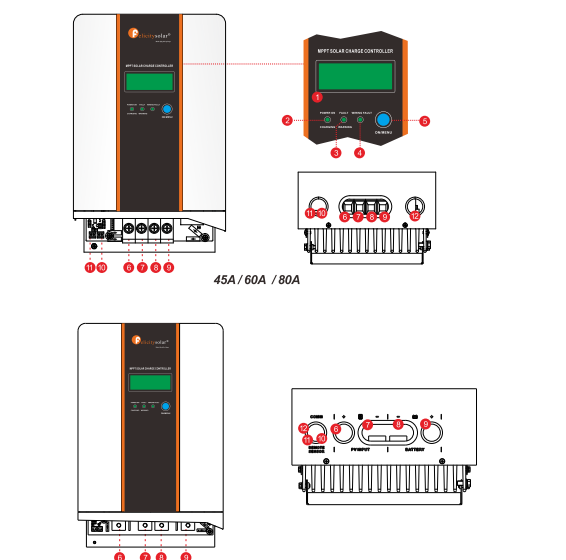

Product overview
1. LCD display
2. Power On/Charging indicator
3. Fault and warning indicator
4. Wiring fault indicator
5. Operation button
6. PV Positive +
7. PV Negative -
8. Battery Negative -
9. Battery Positive +
10. Battery voltage sense terminal
11. Remote temperature sensor terminal
12. Communication Port
