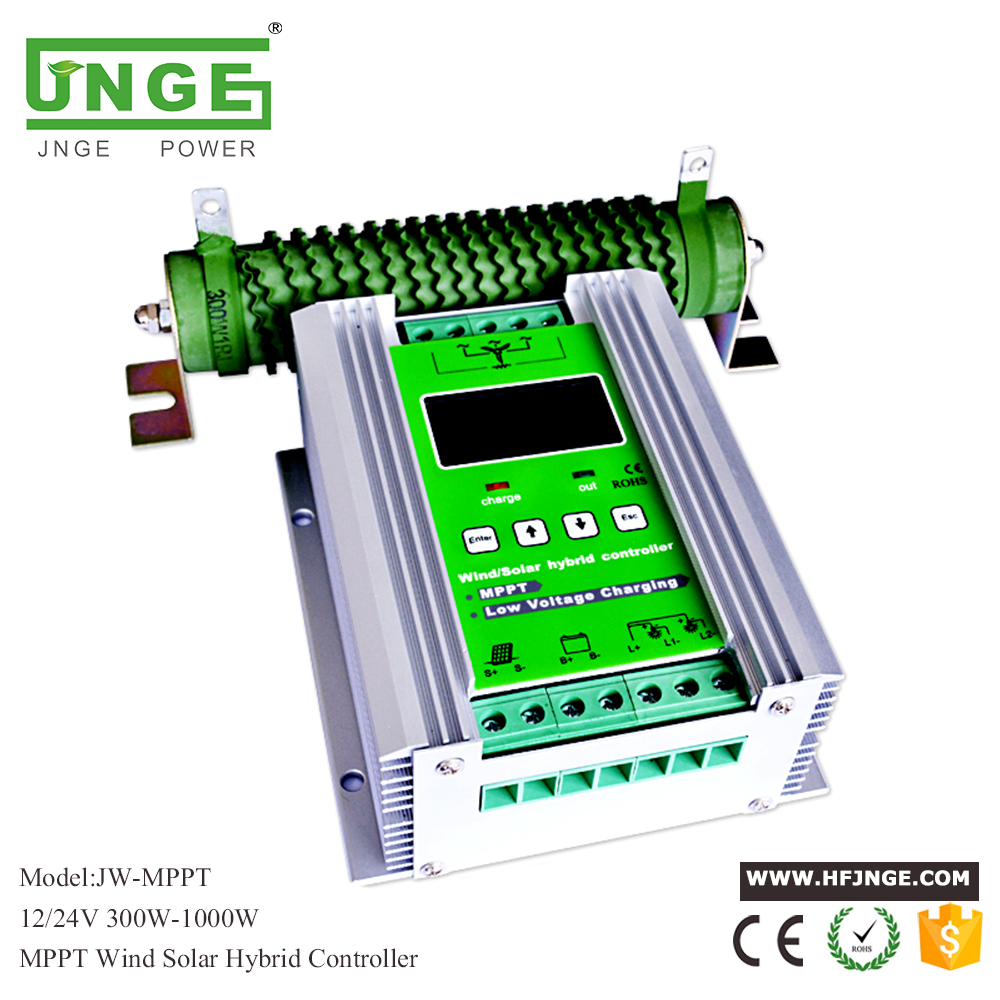

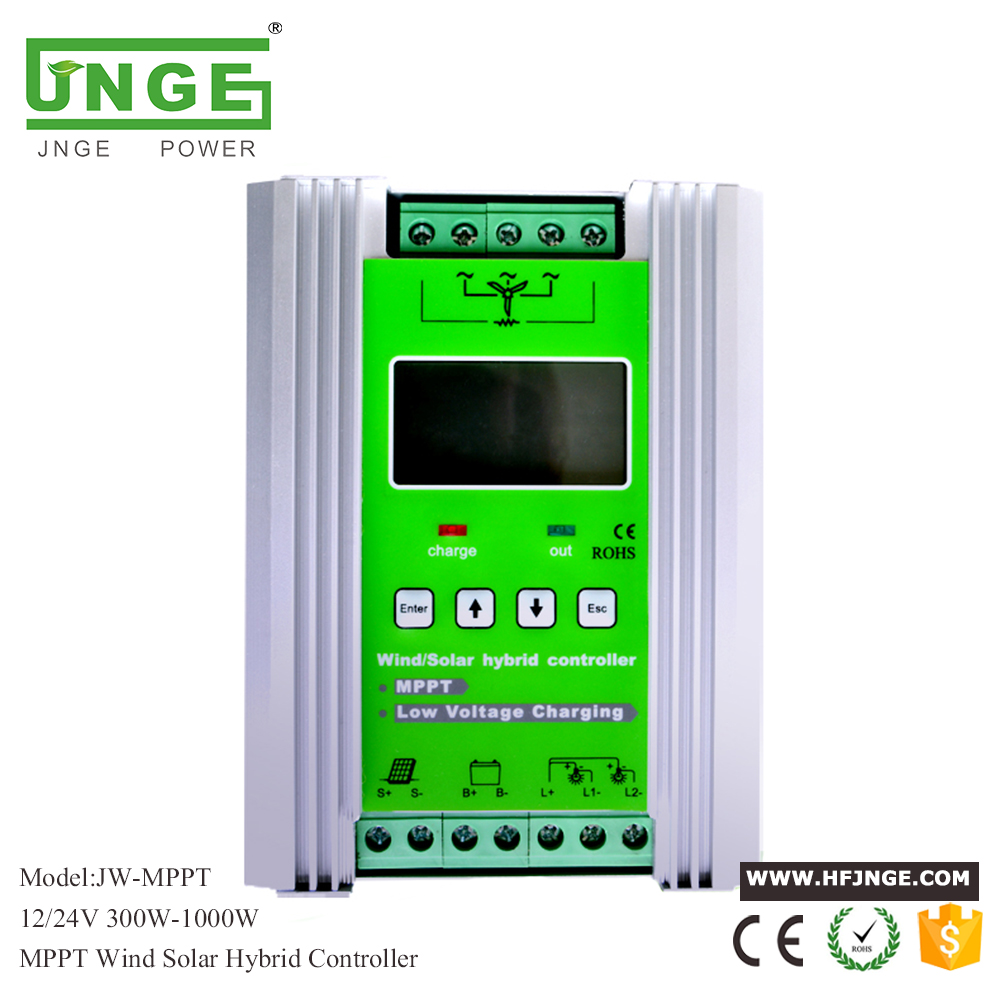

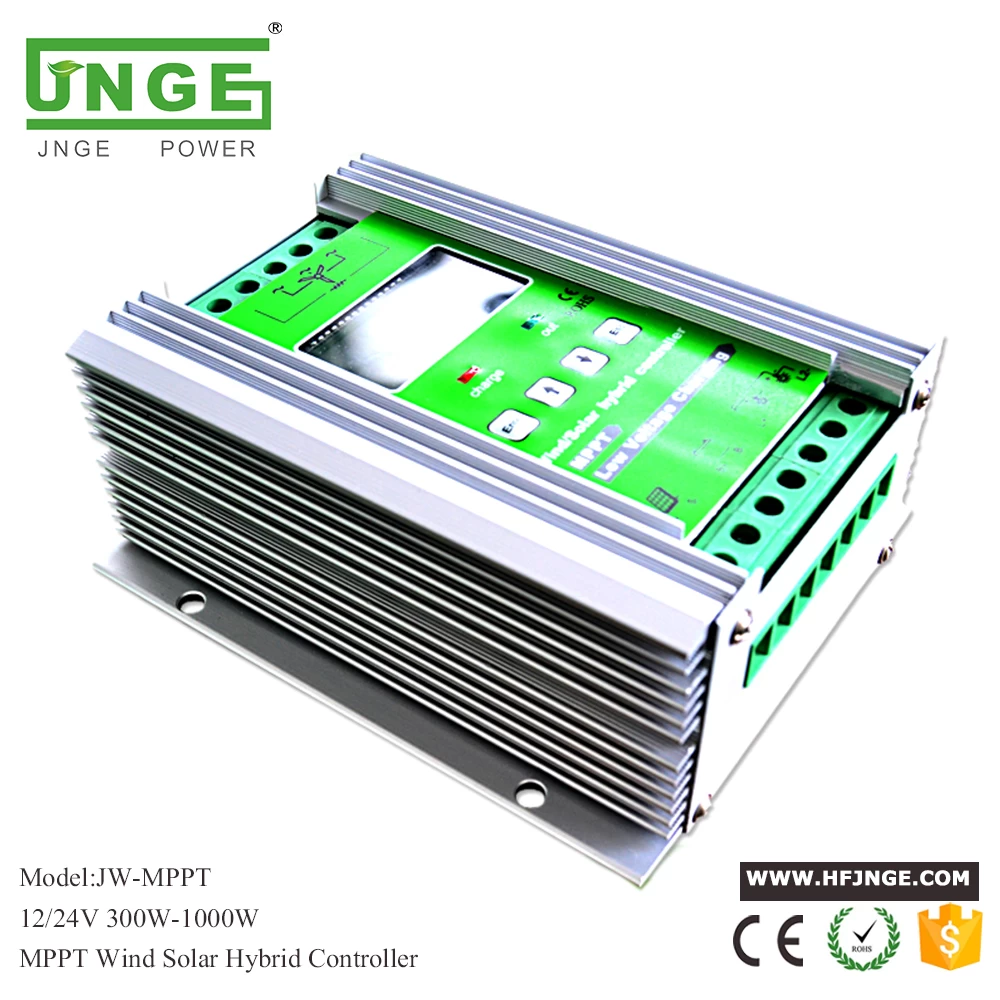

Off Grid MPPT Wind Solar Hybrid Charge Controller Design for Max 800W Wind with Max 600W Solar Panel with Booster Function
Product Features:
1. Intelligent design, simple structure,control powerful,stable performance,safety and reliability
2. Choose MPPT fan charging ways, efficiency is much better
3. Booster charge function, low wind speed can charging
4. LCD display, all parameters are visible directly
5. Liquid crystal display battery charging electric current and voltage
6. Digital intelligent control.
Product Parameters:
|
Model
|
JW-MPPT1230
|
JW-MPPT2440
|
JW-MPPT2450
|
JW-MPPT2460
|
JW-MPPT2460-1
|
JW-MPPT2480
|
JW-MPPT2480-1
|
|
Rated Voltage
|
12V
|
24V
|
24V
|
24V
|
24V
|
24V
|
24V
|
|
Wind Turbine Power
|
300W
|
400W
|
500W
|
600W
|
600W
|
800W
|
800W
|
|
Solar Panel Power
|
200W
|
200W
|
300W
|
400W
|
600W
|
400W
|
600W
|
|
Charging Mode
|
MPPT charging for wind turbine
PWM charging for solar panel
|
|
Display
|
LCD
|
|
Feature
|
boost charge
|
|
Battery Type
|
AGM, Gel, Lead-Acid
|
|
LCD Display
|
remark voltage,charge current,battery volumetric
|
|
Heat Emanation Way
|
built-in raditor
|
|
Controller Dimension
|
162*140*64mm
|
|
Net Weight
|
1.2KG for controller, 1KG for dump load
|
|
Package
|
1pc controller+1pc dump load+1pc English user manual
|
The controller is designed specifically for wind solar hybrid system, can make the wind solar hybrid system of various resources to achieve the best configuration.
The Fan charging part and Solar charging part are independent of each other, can make fan controller or solar controller using independent (As a fan controller cannot use light control function).Fan charging adopted booster MPPT technology, which makes under low wind speed, the fan's electricity can still be used;In the high wind speed or the fan of power is beyond the scope of the battery and load absorption, the controller immediately launched the step-less unloading function (this function detailed description in later) protection system of the equipment.Solar charging using in series MOS tube PWM technology, which makes the controller power consumption is small, the system more stable.
Discharge part working mode can be set,light control mode,Period of time control function etc,The user can be set up according to the requirements on wind PV hybrid controller own combination.
Man-machine interface of the controller USES a custom LCD screen and four key operation mode, the user to use simple and easy to use, popular and easy to understand, convenient and quick.
The controllers with perfect protection function, including: lightning counter-attack, solar charger, over-voltage automatic braking, storage battery reverse connect and open protection, etc.
