240S Bike MTB BOOST Carbon Wheels
Key Features The Most High End MTB Carbon Wheels
Low profile design for the better impact distribution
Asymmetric design for the better wheel stiffness
Balanced spoke tension on drive side & non drive side
Ease of tubeless inflation and best tire bead retention
Ultra smooth rim inner wall technology for better strength
Thick side wall design for better impact resistance

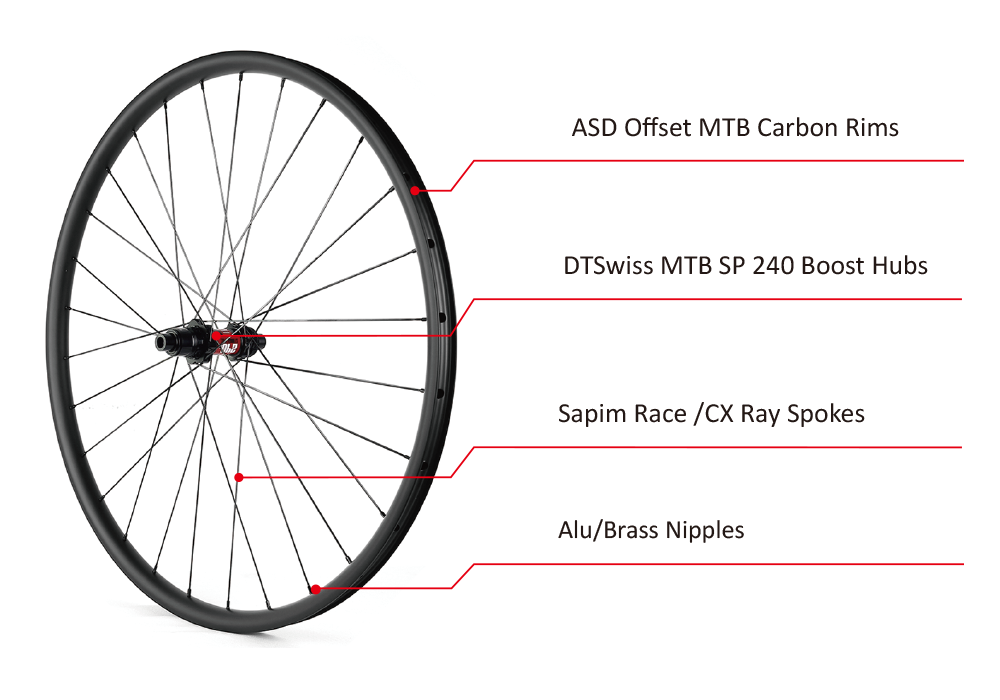

WHEELS SPECS
|
Rim
|
29ER ASD ASYMMETRY MTB RIMS
650B ASD ASYMMETRY MTB RIMS
|
|
Hub
|
240 Straightpull Boost hubs
Front 28h 15/110mm AT Rear 28h 12/148mm AT Shimano 11S, Sram XD, XTR SHIMANO 12S
|
|
Brake
|
Centerlock/ 6-Bolt Disc Brake
|
|
Spoke
|
Race 5.7g/CX-Ray 4.2g/PC
|
|
Nipple
|
External/internal alu nipples or brass nipples
|
|
Max.system weight
|
110-130 kg
|
|
Model (weight with CX Ray Spokes)
|
All Weight is w/t 5% tolerance
|
|
240MB-ASD730S-XC (1338g)
|
240MB-ASD733S-TRAIL (1468g)
|
240MB-ASD737S-AM (1508g)
|
240MB-ASD742S-PLUS (1528g)
|
|
240MB-ASD930S-XC (1378g)
|
240MB-ASD933S-TRAIL (1508g)
|
240MB-ASD937S-AM (1548g)
|
240MB-ASD942S-PLUS (1608g)
|
Hand-built High Precision Carbon Wheels
Wheel Building Technology
All wheels are built in high precision machines via spoke tension trueing by Holland Mechanics Pro Truer.
The perfect allocation of spoke tension in every single spoke in
combination with a comparatively high spoke tension gives many advantages:
- higher radial, lateral and torsional stiffness
- less spoke tension loss over time
- longer durability
- less maintanance efforts like retrueing
Wheel roundness tolerance: ≤0.3mm
Wheel lateral tolerance: ≤0.3mm
Wheel center tolerance: ≤0.3mm
