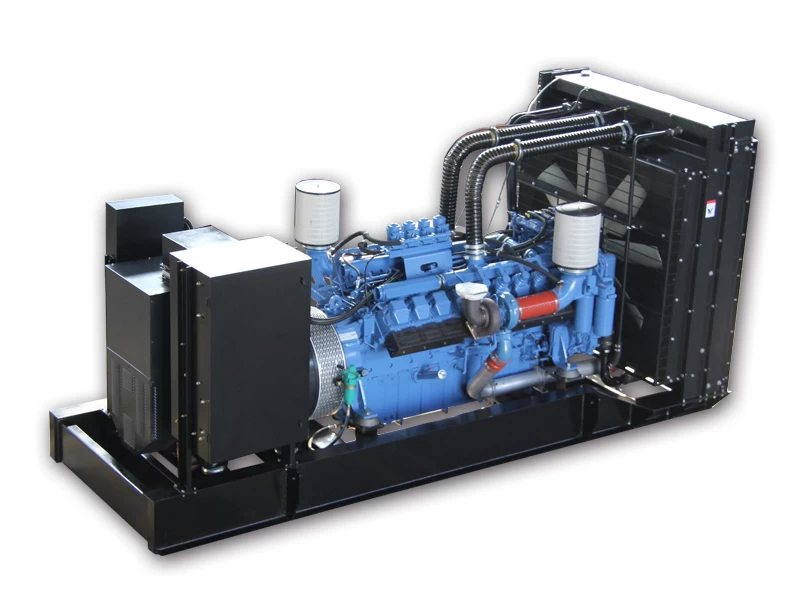

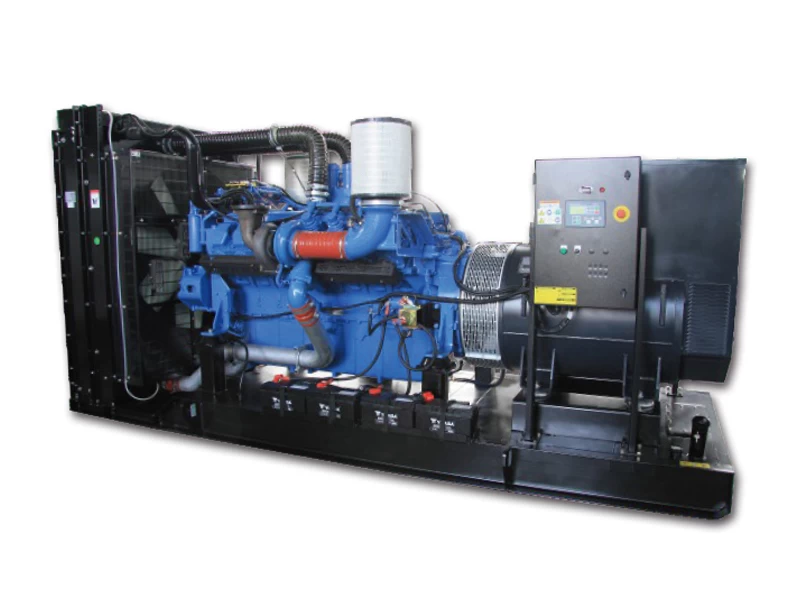

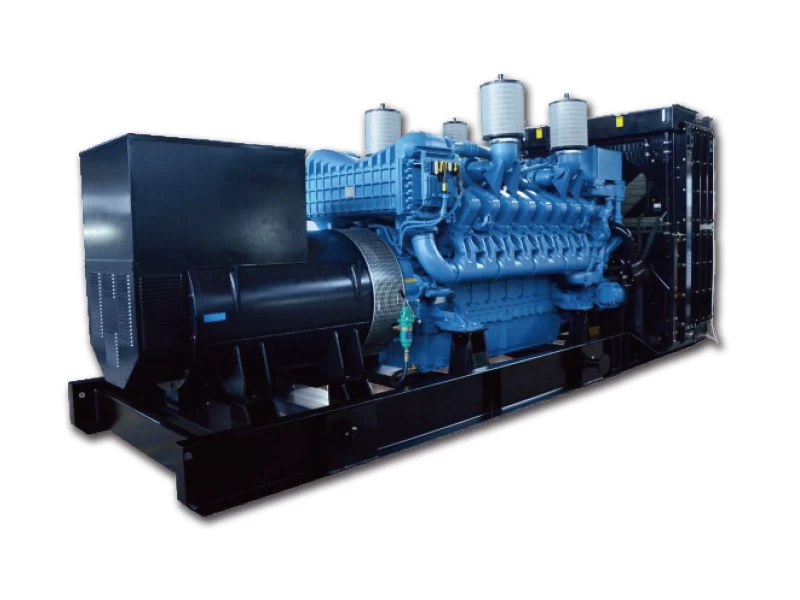

MTU Diesel Genset-Container Generator

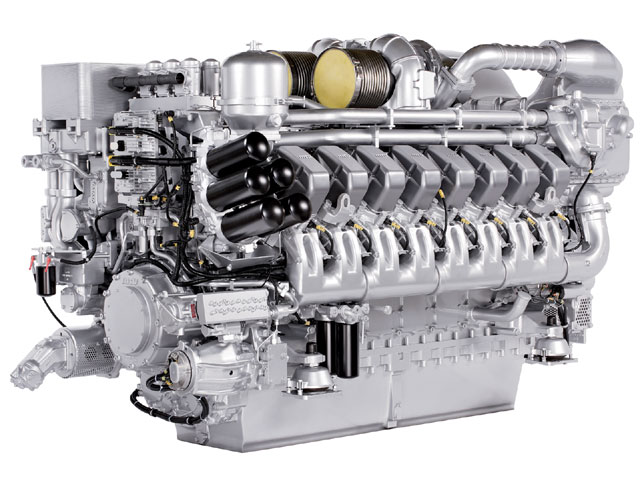

The MTU engine provides reliable power for large vessels, heavy agricultural and rail vehicles, and industrial applications. High reliability, long-lasting performance, compact size, easy to combine with generators, power range from 249kw to 3490, ideal for emergency, power generation and peaking power generation (common/standby: 50Hz/60Hz) selected. The engine remains stable and efficient even with constant load changes, frequent starts and high power output.



MTU is the engine of the whole system and power plant the largest German manufacturer.MTU Friedrichshafen GmbH joined DaimlerChrysler AG, has more than 30 years, a manufacturer of diesel engines in the United States the largest brand. MTU diesel engine can be used for petroleum, mining and agriculture industry. MTU diesel engine generator has been successfully used in the construction site based on. Railway and military equipment.

Advantages of MTU diesel generator sets
â–£ The ability to work round the clock at full load
â–£ Use and less elbow joint
â–£ A unique pressure injection system (1.5 atmospheres) equipped with a control jet and fuel pump. Because of the fuel pump in each cylinder, one of its outstanding features is its high reliability
â–£ The use of modern designed bearings and pistons has greatly increased the engine life
â–£ The maintenance cost of MTU. diesel engine is reduced
â–£ Long service life, high reliability, the design of equipment in more than 60000 hours
â–£ Equipment damage rate decreased by 5 times
â–£ A reduction in vibration and noise levels


Model 1500 rmp/400v 3P 4W/50HZ/0.8PF Engine Type Dimensions(LxWxH)&Weight DOWNLOAD
Prime Power Standby Power Open Genset Silent Genset
KVA KW KVA KW Dimension(mm) weight(kg) Dimension(mm) weight(kg)
MW-640T5 640 512 700 560 12V2000G25 3830*1580*2100 4960 6058*2438*2591 9950
MW-775T5 775 620 850 680 12V2000G65 3930*1580*2100 5160 6058*2438*2591 10130
MW-910T5 910 728 1000 800 16V2000G25 4380*1580*2250 6200 6058*2438*2591 11540
MW-1000T5 1000 800 1100 880 16V2000G65 4220*1580*2250 6600 6058*2438*2591 12190
MW-1138T5 1138 910 1250 1000 18V2000G65 4500*1910*2430 7230 6058*2438*2591 12200
MW-1250T5 1250 1000 1375 1100 18V2000G26F 4600*1850*2250 7550 12192*2438*2896 19000
MW-1375T5 1375 1100 1513 1210 12V4000G23R 5000*2130*2820 10000 12192*2438*2896 20000
MW-1650T5 1650 1320 1815 1452 12V4000G23 5100*2130*2820 10360 12192*2438*2896 20400
MW-1838T5 1838 1470 2021 1617 12V4000G63 5300*2130*2820 12000 12192*2438*2896 21700
MW-2088T5 2088 1670 2296 1837 16V4000G23 5800*2580*2960 12850 12192*3200*3200 24400
MW-2250T5 2250 1800 2475 1980 16V4000G63 6000*2580*2960 13850 12192*3200*3200 25400
MW-2500T5 2500 2000 2750 2200 20V4000G23 6750*2580*2960 17120 12192*3200*3200 29700
MW-2800T5 2800 2240 3080 2464 20V4000G63 6850*2580*2960 18300 12192*3200*3200 30800
MW-3000T5 3000 2400 3300 2640 20V4000G63L 7100*2580*2960 19180 12192*3200*3200 31700



Model 1800 rmp/480v 3P 4W/60HZ/0.8PF Engine Type Dimensions(LxWxH)&Weight DOWNLOAD
Prime Power Standby Power Open Genset Silent Genset
KVA KW KVA KW Dimension(mm) weight(kg) Dimension(mm) weight(kg)
MW-790T6 790 632 870 696 12V2000G45 3830*1580*2100 5000 6058*2438*2591 10000
MW-900T6 900 720 1000 800 12V2000G85 3930*1580*2100 5200 6058*2438*2591 10200
MW-1025T6 1025 820 1138 910 16V2000G45 4380*1580*2250 6200 6058*2438*2591 11540
MW-1138T6 1138 910 1250 1000 16V2000G85 4220*1580*2591 6600 6058*2438*2591 12190
MW-1250T6 1250 1000 1375 1100 18V2000G85 4500*1910*2430 7230 6058*2438*2591 12200
MW-1562ST6 N.A N.A 1562 1250 18V2000G76S 4600*1850*2250 7550 12192*2438*2896 19000
MW-1750T6 1750 1400 1925 1540 12V4000G43 5100*2130*2820 10360 12192*2438*2896 20400
MW-2000T6 2000 1600 2200 1760 12V4000G83 5100*2130*2820 11000 12192*2438*2896 21000
MW-2363T6 2363 1890 2600 2080 16V4000G43 5800*2580*2960 12850 12192*3200*3200 24400
MW-2663T6 2663 2130 2938 2350 16V4000G83 6000*2580*2960 13850 12192*3200*3200 25400
MW-2875T6 2875 2300 3163 2530 20V4000G43 6750*2580*2960 17120 12192*3200*3200 29700
MW-3425ST6 N.A N.A 3425 2740 16V4000G83L 6400*2580*2960 13850 12192*3200*3200 30000
MW-3181T6 3181 2545 3499 2800 20V4000G83 6850*2580*2960 18300 12192*3200*3200 30800
MW-3500T6 3500 2800 3850 3080 20V4000G83L 7100*2580*2960 19180 12192*3200*3200 31700
