China Sanitation road sweeper truck Dongfeng
Basic Description
China sanitation vacuum road sweeper truck DongFeng (also called as Road sweeper Dongfeng truck, street sweeper Dongfeng, road street washer sweeper truck, Mechanical road sweeping truck, road cleaner sweeper, waste collection sweeper truck, street cleaner sweeper) This Isuzu road sweeper truck has a simple and proper structure with four brushes in the middle and a suction port at the back part of the vehicle. The efficient suction system makes low noises when the vehicle is working. The whole vehicle is stable in performance.

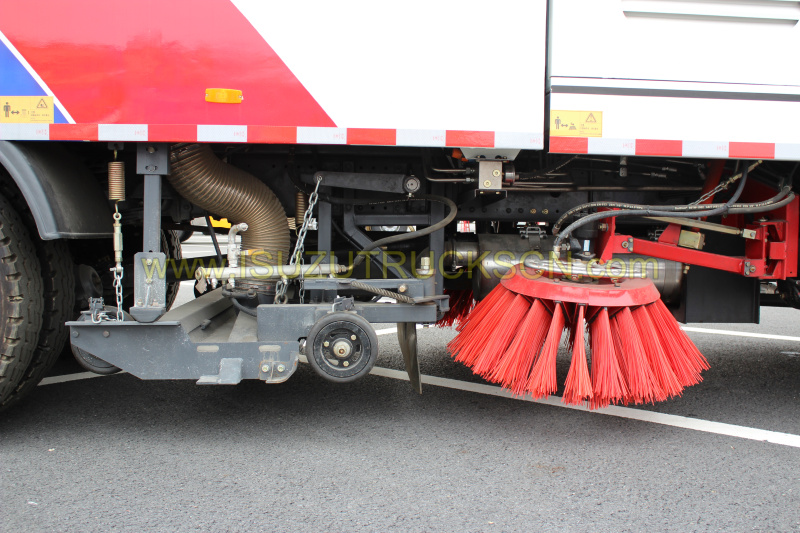

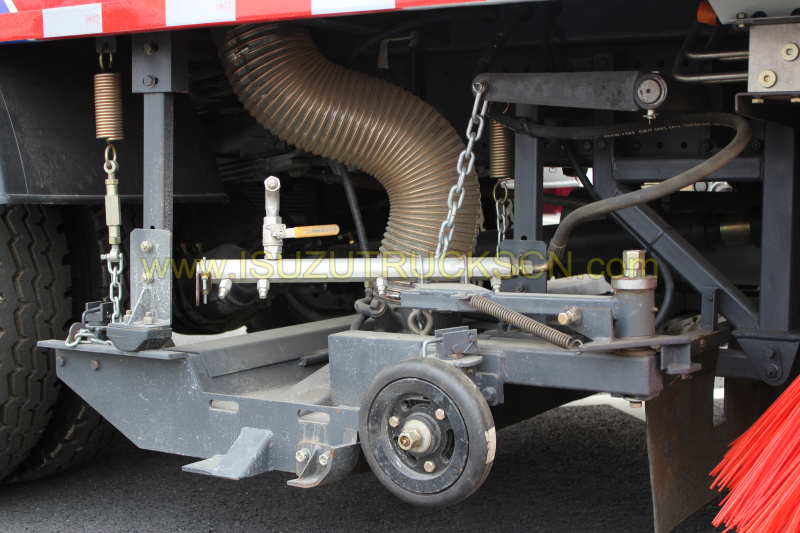

With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.

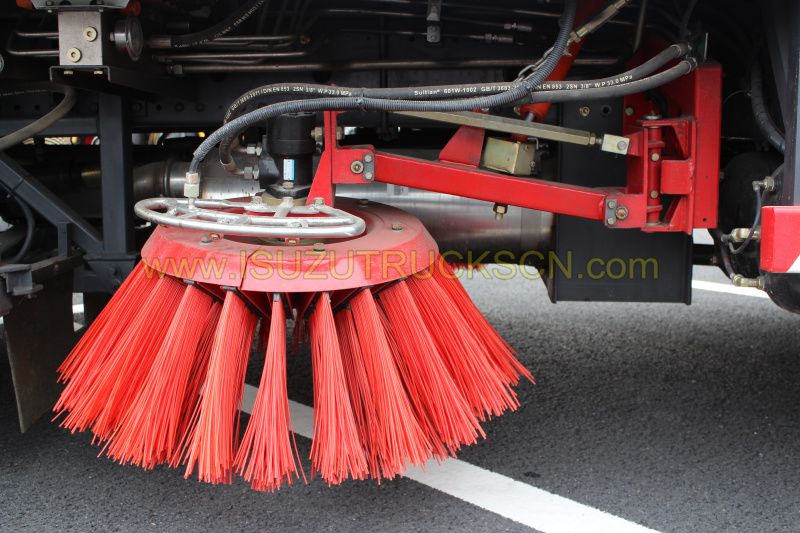

The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
Key Features
DONGFENG Chassis, Durable & Performance.
Sweeping, Sprinkling and garbage transportation
Stainless steeel garbage bin & Stainless water tank, longer service life
Fuel Dispenser, Flow meter, Level gauage can be optional
POWERSTAR 20 years’ experience on road sweeper truck exporting.
Main specifications
|
Model
|
PT5150TSL
|
|
Driving Type
|
4x2
(Left hand drive)
|
|
Wheelbase
|
4500 mm
|
|
Overall Dimension
|
8600X2500X3340 mm
|
|
Cab
|
Forward control over
engine, all-steel-welded construction
|
|
Sweeping System
|
Auxiliary
engine
|
Cummins tech engine
|
|
Stainless
Steel Hopper Effective Volume
|
8CBM
|
|
Stainless
Steel Water Tank Volume (L)
|
4000
|
|
Sweeping
Width (mm)
|
3200
|
|
Sweeping
speed (km/h)
|
6~50
|
|
Sweeping
Capacity (m2/h)
|
16500~82500
|
|
Blower
rated rotation speed (rpm)
|
1800
|
|
Blower
air capacity (m3/h)
|
8000
|
|
Blower
air pressure (Pa)
|
7000
|
|
Side
Brush Sweeping Brush Drive and Control
|
Electric
control lever and switch control, Hydraulic driving
|
|
Engine
|
Model
|
Cummins 6HK1
|
|
Type
|
Diesel,
turbo charged inter-cooled, 4 cylinder
|
|
Max.
Power
|
140 KW (190 HP)
|
|
Gearbox
|
6-shift, mechanical type, 6 forward and 1 reverse with
|
|
Tire
|
10.00-20
|
|
Color
|
Red (Any color & logos up to wish)
|
|
Max Speed
|
100
km/h
|
Customer build example:
 |
 |

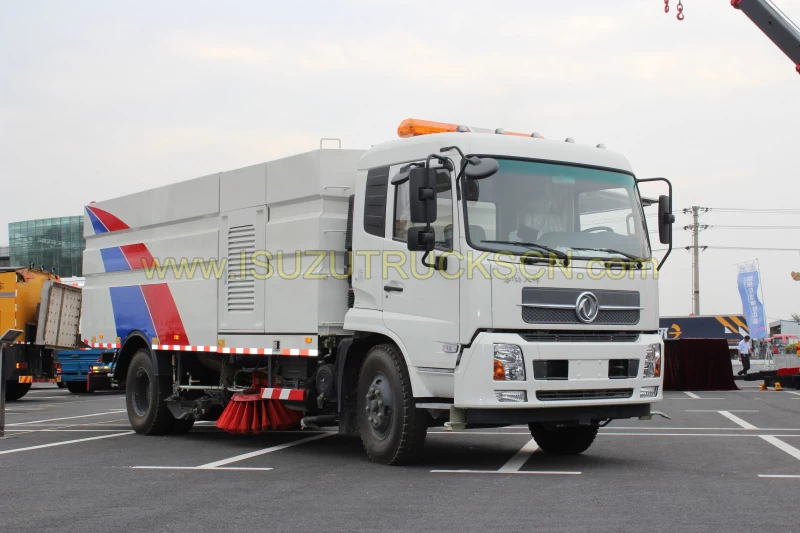

Front right view
|

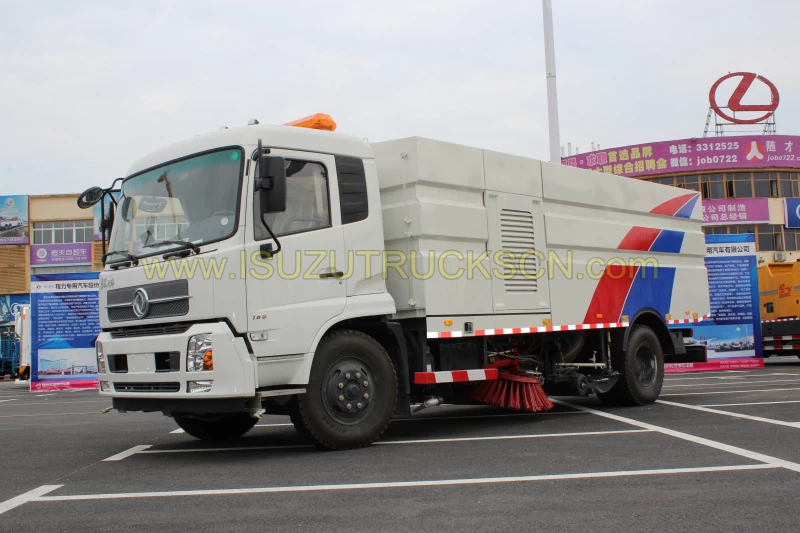

Front left view |
 |
 |

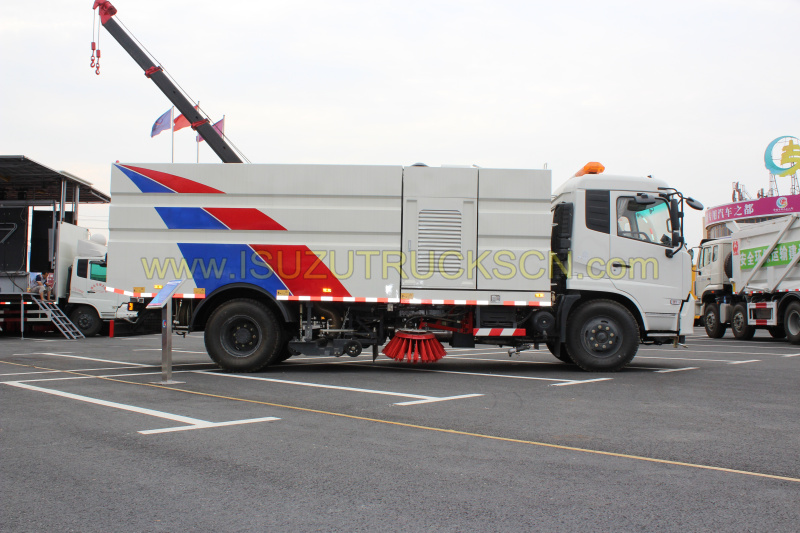

| Right side view |

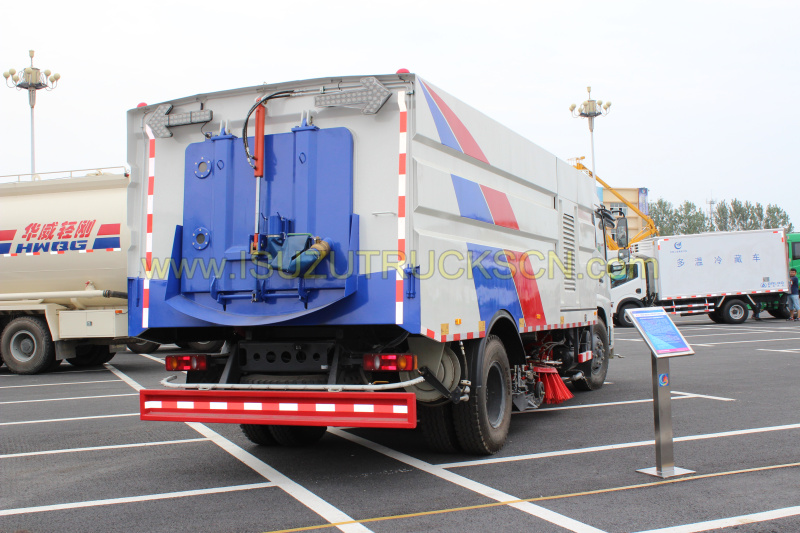

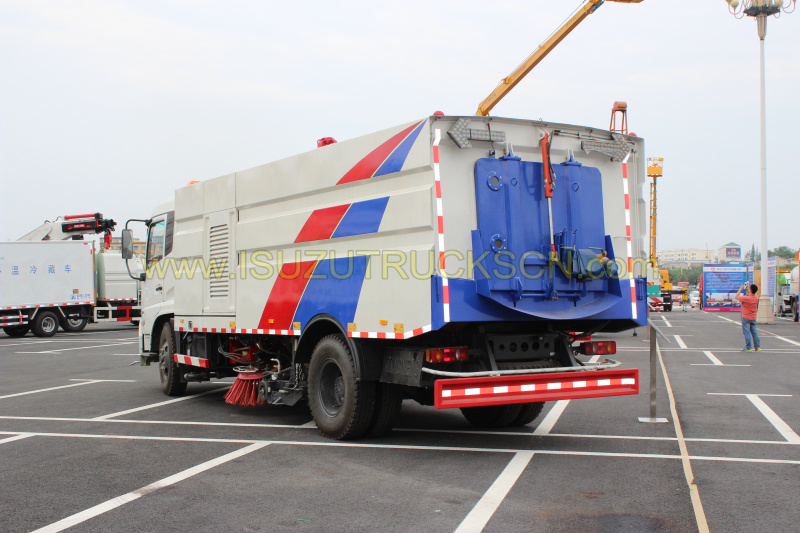

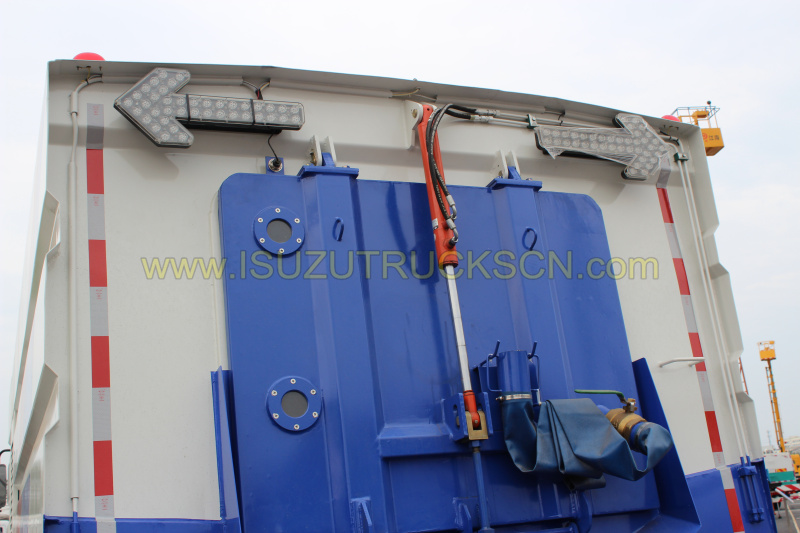

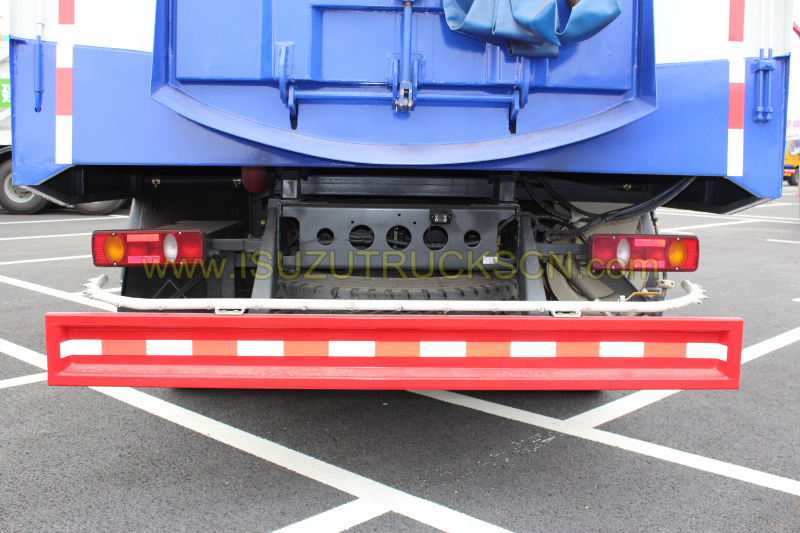

Rear right view
|
