Performance characteristics

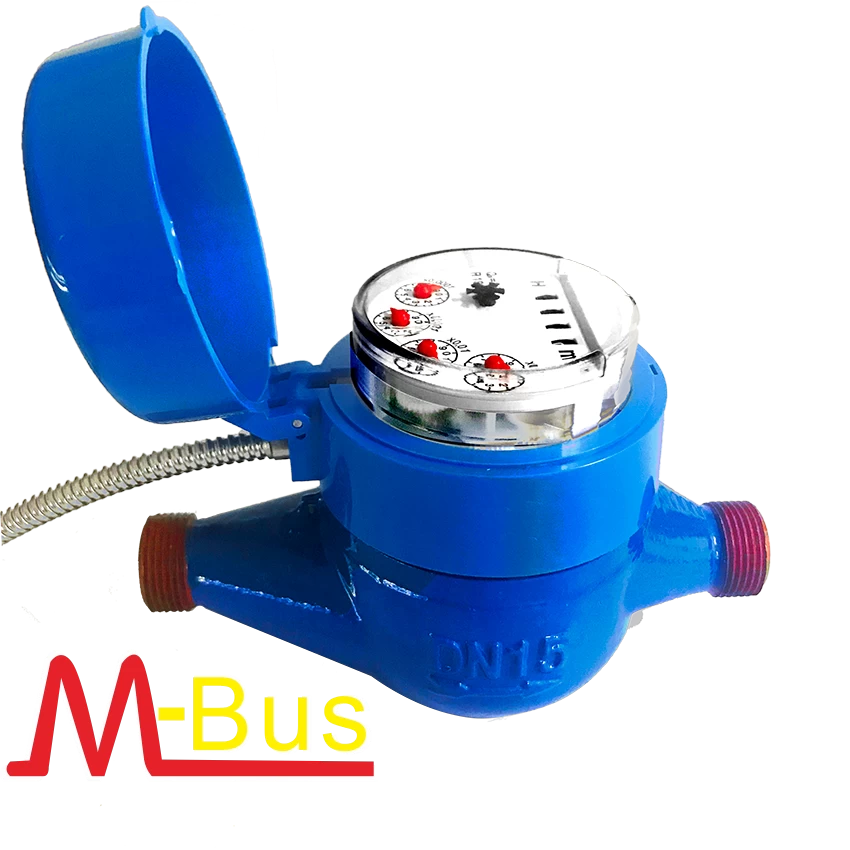

■ Dry dial register construction

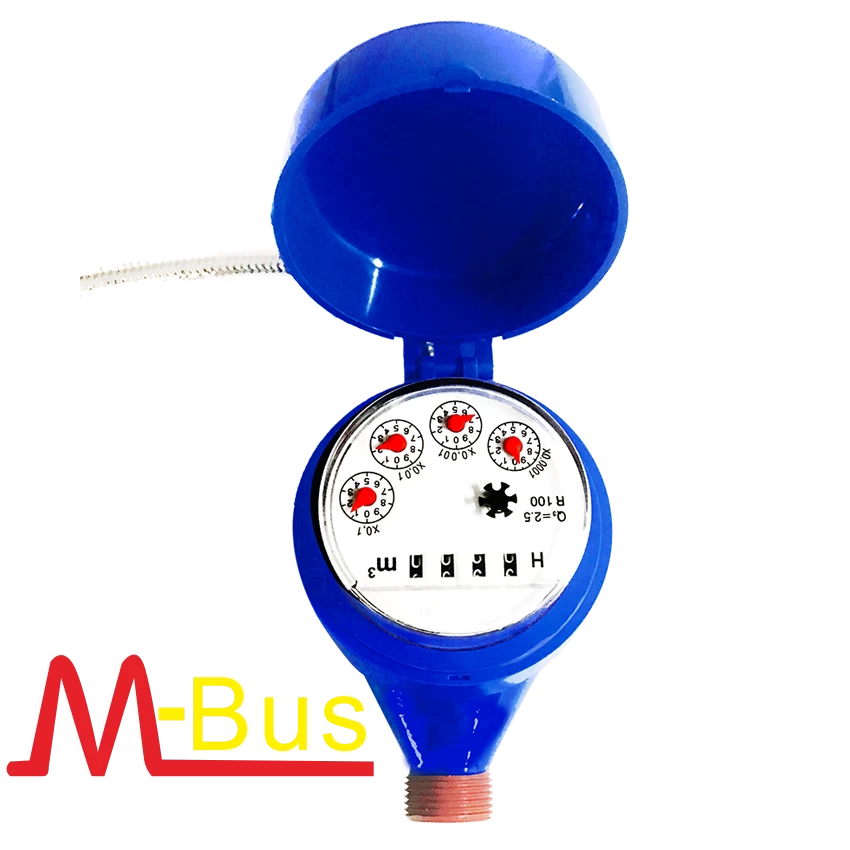

■ Specially protected encapsulated 4 digit rollers for m³, no cumulative error as
using photoelectric data gathering technology
■ Using 2-wire M-BUS Communication, Bus can transmit data & provide power,
field connection non-polarity.
■ In case power failure,the data can be reserved and when power
recovered,the data can be read 100% accurate
■ Mbus line can supply power and transmit data
■ With Internal strainer, inlet strainer

Technology advantage:

■ The use of ultra-low-power microcontrollers from Texas Instruments in the
United States significantly reduces static power consumption.
Using photoelectric direct reading technology, the daily meter reading does not
require power.
■ The meter reading is fast and reliable, and the water collection is completed
instantaneously (<0.3 seconds).
■ Directly read the digit rollers data to ensure the consistency of electromechanical data.
■ Using a non-polar two-wire bus technology that complies with international standards, the bus simultaneously transmits signals and      power to make communications reliable and easy to route.
■ High non-magnetic components, magnetic interference will not have any impact on the measurement data;
■ No battery, no memory, no battery life and no data loss

AMR &accessories options:

■ Wired Mbus
■ Handheld device optional
■ Bluetooth Mbus converter with app installed in mobile phone optional

Accessories

■ 2pcs couplings, 2pcs coupling nuts and 2pcs washers

Applications

■ For the consumption measuring of cold potable water up to 40° C
■ Water meter for horizontal and vertical installation
■ The maximum allowable working pressure (MAP) is 1 MPa; the pressure loss is≤ 0.1 MPa
