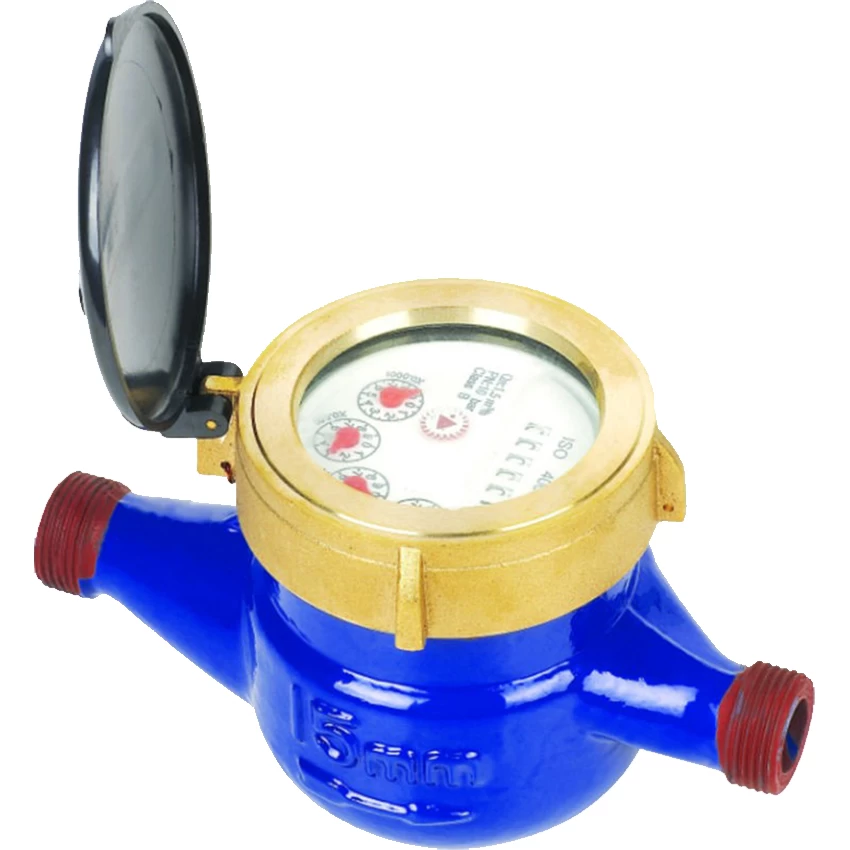

Multi jet water meter with remote reading optional

The water meter measures, registers and indicates the volume of water in cubic meters that passes through it. Compliance with standard: ISO 4064 Class B

Facebook Twitter Pinterest LinkedIn 分享
Multi jet water meter with remote reading optional

The water meter measures, registers and indicates the volume of water in cubic meters that passes through it. Compliance with standard: ISO 4064 Class B

Feature
  • Dry-dial, magnetic drive, Resistance to exterior magnet interference
  • Multi-jet
  • Selected high quality materials for steady&reliable characteristic
  • Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
  • Measuring accuracy conform to ISO 4064 class B Standard
  • universal Use. Easy For Interchange&maintenance
  • Cold water meter or hot water meter for option
  • The water meter is magnetically coupled and has anti-magnetic interference function;
  • Cast iron / Copper shell, generous appearance, intuitive reading, accurate measurement;
  • The product complies with the national standard GB/T778.1~3-2007 (ISO4064-1-3:2005);
  • Temperature class: T30 (cold water) Water temperature range is 0.3~30°C;
  • Maximum allowable working pressure:1.0Mpa;

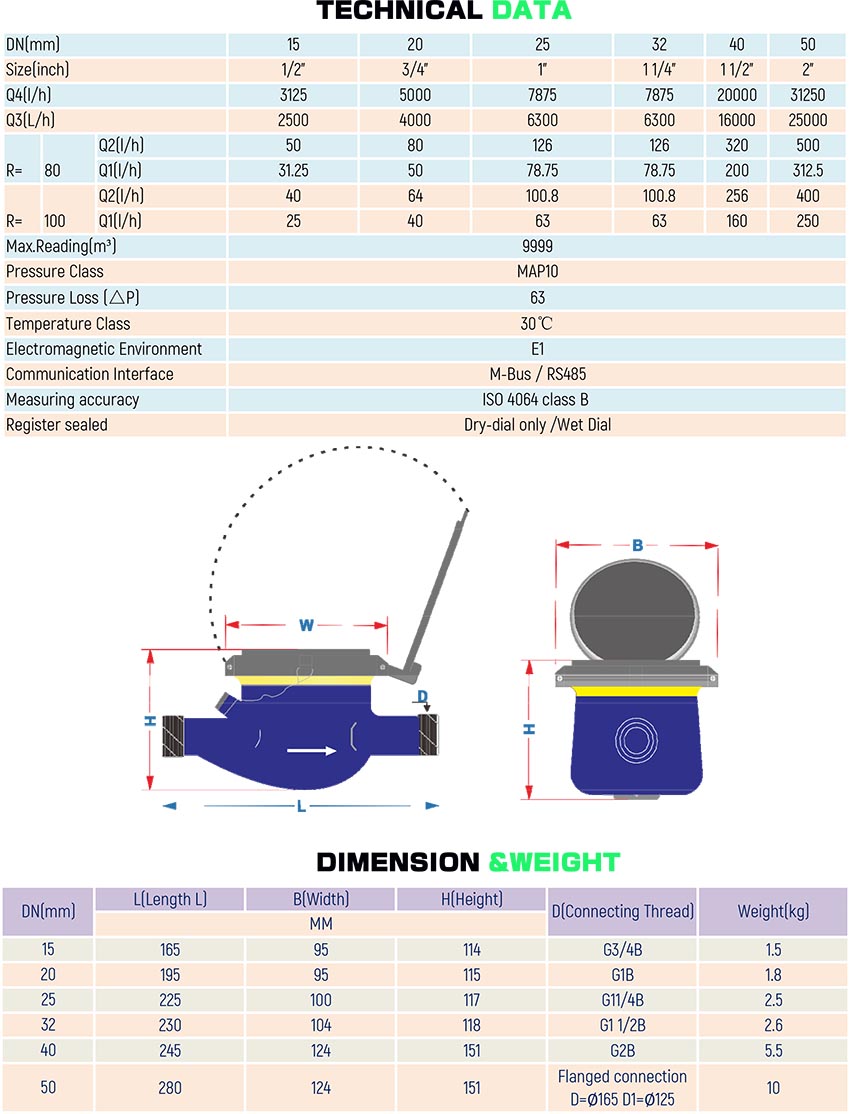

Indicating Error
At low zone is ±5% from Q1 to Q2
At high zone is ±2% from Q2 to Q4

The difference with a meter is that the meter is usually owned by the supplier company and is verified to ensure the correct measurement; whereas a meter is usually from a private individual or from a company. A meter is usually located at the beginning of the water network of the supply area; The meter can also be at the beginning, but they are usually distributed throughout the network to track consumption in a specific circuit.

How to save thanks to the water meter
The water meter allows to know the water consumption that we have had and, therefore, to evaluate if there are options for improvement or saving:
This equipment can help us detect possible leaks: if we suspect that we have more consumption than what we actually do, we can perform a simple analysis based on checking the meter register records the water consumption when all our consumer equipment is stopped. If it detects consumption, it can be a consequence of the existence of a leak somewhere in the network.
It also allows us to compare our consumption with the average per inhabitant to know if we are consuming more or less and change our habits towards more sustainable ones such as showering instead of bathing, closing the taps while you wash the dishes or not throwing garbage down the toilet .
Likewise, it allows us to evaluate the effectiveness of the saving measures carried out such as the installation of aerators or double push-buttons in the tanks.
Types of meters

There are different types of meters depending on their complexity or the amount of data that they want to measure:
Manual mechanical meter. They are the conventional fixed counters. Within these are those of direct reading and those of handles or meters

Remote reading meters.
They receive the reading information electronically. They facilitate the real consumption of water without the need for the technician to enter the home, or have to be at home at the time of reading.

How to read a water meter
If we as users want to facilitate the reading to the supplier, we must have very clear how the meters are read For direct reading counters, the digits that appear must be read from left to right and only the numbers in black.
If the counter is out of handles, take a value for each handle that indicates a different unit. That is, the first hand on the left is the value of the units of thousand, the second the hundred, the third hand would be the value of the ten and the fourth hand the units. In the latter case, one usually indicates directly to a single value. Therefore, the lower value of the two between which the handle is located is provided.cold water metermulti jet water meter
