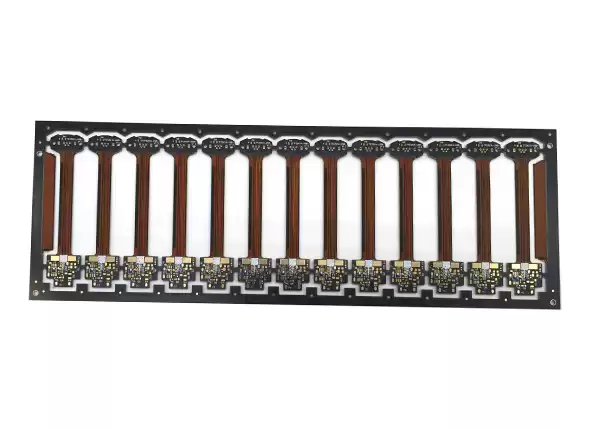

Multi-layers touch screen display Rigid flexible pcb



  • Solder Mask ColorGreen
  • Surface FinishENIG
  • Surface FinishCover Layer
  • Min Hole≥4mil(0.1mm)
  • Min Line Width/Space≥3mil(0.075mm)
  • Finished Copper thickness1oz
  • Finished Board Thickness0.5mm
  • MaterialPI
  • Layer6
  • Legend ColorWhite
  • ApplicationConsumer Electronics

Rigid-flexible printed circuits boards overview


  • The literal meaning of "rigid-flex" is combination the advantages of both flexible and rigid boards. It's seen as  two-in-one circuit is interconnected through plated thru holes. Rigid flex circuits enable higher component density while fitting into limited and odd shaped spaces.


  • Rigid-flex printed circuits boards consists of multiple flexible circuit inner layers selectively attached together using an epoxy pre-preg bonding film, similar to a mul-tilayer flexible circuit. Rigid flex circuits have been used in the military and aerospace industries for more than 20 years. In most rigid flex circuit boards.




ABIS Rigid-flexible PCB Manufacturing Capacity

Item

Speci.

Layers

1~8

Board Thickness

0.1mm-8.0mm

Material

Polymide, PET, PEN, FR4

Max Panel Size

600mm×1200mm

Min Hole Size

0.1mm

Min Line Width/Space

3mil(0.075mm)

Board Outline Tolerance

士0.10mm

Insulation Layer Thickness

0.075mm--5.00mm

Final Thickness

0.0024''-0.16'' (0.06-2.4.00mm)

Drilling Hole (Mechanical)

17um--175um

Finish Hole (Mechanical)

0.10mm--6.30mm

Diameter Tolerance (Mechanical)

0.05mm

Registration (Mechanical)

0.075mm

Aspect Ratio

16:1

Solder Mask Type

LPI

SMT Mini. Solder Mask Width

0.075mm

Mini. Solder Mask Clearance

0.05mm

Plug Hole Diameter

0.25mm--0.60mm

Impedance Control Tolerance

士10%

Surface finish

ENIG, Chem. Tin/Sn, Flash Gold

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Certificate

UL, ISO 9001, ISO14001, IATF16949

Special Request

Blind hole, Gold finger, BGA, Carbon ink, peekable mask, VIP process, Edge plating, Half holes

Material Suppilers

Shengyi, ITEQ, Taiyo, etc.

Common Package

Vacuum+Carton



How ABIS Handling the Flex-Rigid Circuit?


The capability to shape the final assembly of rigid and flexible PCBs to fit a product enclosure is the primary advantage of flexible circuits boards. Here are 2 tips to incorporate in your rigid-flex design project:


  • Increase trace reliability: The bending that flex circuits endure means that the copper is more likely to delaminate than on a rigid board. The addition of copper to the substrate is less than on an FR4 PCB as well.
  • Strengthen traces and vias with teardrops: If not controlled, bending the substrate can lead to delamination and product failure. Traces and vias can, however, be strengthened to prevent delamination, also produce better yield in manufacturing by giving more drilling tolerance.




Rigid-Flexible PCB Lead Time


Small Batch Volum

≤1 sq meter

Working Days

Mass Production

Working Days

Single-Sided

3-4

Single-Sided

8-10

2-4 layers

4-5

2-4 layers

10-12

6-8 layers

10-12

6-8 layers

14-18



ABIS Quality Mission

  • The pass rate of incoming material above 99.9%The number of mass rejection rates below 0.01%.
  • One-year warranty. if any quality problems, not caused by improper use or man-made, ABIS will replace it one by one.
  • ABIS certified facilities control all key processes to eliminate all potential issues before producing.
  • ABIS utilizes advanced software to perform extensive DFM analysis on incoming data, and uses advanced quality control systems throughout the manufacturing process.
  • ABIS performs 100% visual and AOI inspection as well as performing electrical testing, High Voltage testing, impedance control testing, micro-sectioning, thermal shock testing, solder testing, reliability testing, insulating resistance testing and ionic cleanliness testing.





Packaging & Delivery

ABIS CIRCUITS Company is not only trying to give customers a good product, but also pay attention to offering a complete and safe package. Also, we prepare some personalized services for all the orders.


-Common packaging:

  • PCB:  Sealed bag, Anti-static bags, Suitable carton.
  • PCBA:  Antistatic foam bags, Anti-static bags, Suitable carton.
  • Customized Packaging: The carton outside will be printed the name of the customer address, mark, the customer needs to specify the destination and other information.

-Delivery Tips:

  • For small package, we advise to choose by Express or DDU service is the quickest way.
  • For heavy package, the best solution is by sea transportation.



Business Terms
-Accepted Delivery Terms
FOB, CIF, EXW, FCA, CPT, DDP, DDU, Express Delivery, DAF


--Accepted Payment Currency
USD, EUR, CNY.


-Accepted Payment Type
T/T, PayPal, Western Union.


Quotation from ABIS

To ensure an accurate quote, be sure to include the following information for your project:

  • Complete GERBER files including the BOM list
  • Quantities
  • Turn time
  • Panelization Requirements
  • Materials Requirements
  • Finish requirements
Your custom quote will be delivered in just 2-24 hours, depending on the design complexity.

Please keep us informed for any interests!

ABIS cares every your order even 1 piece!
