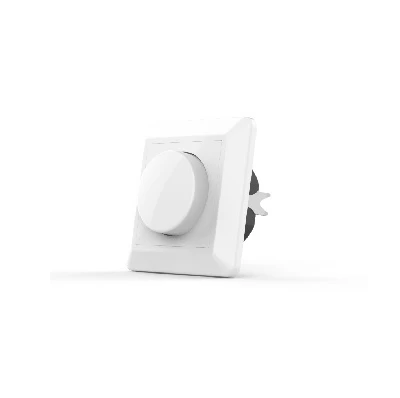

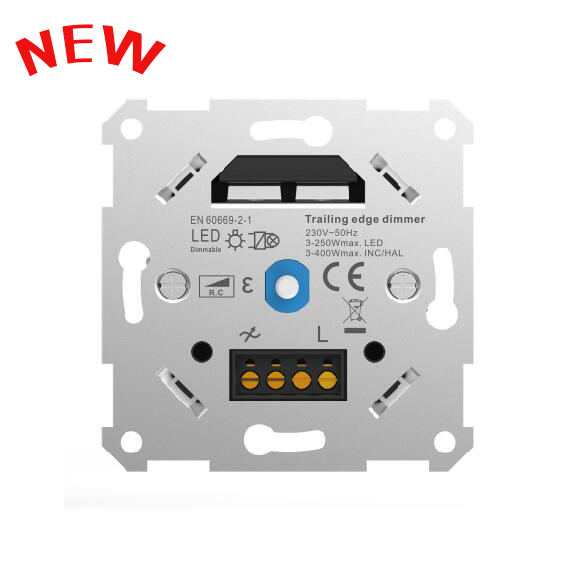

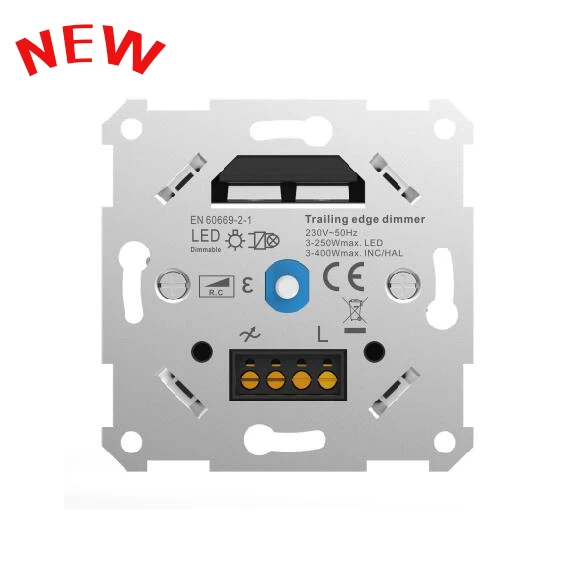

Multi-way smart LED Dimmer 400VA Features:
1. Suitable for commercial lighting control in multiple locations.
2. No neutral required, 2 wires.
3. Paralleled for synchronize control.
4. Overheating protection, automatic overload protection and short-circuit protection.
5. Dimmer type: trailing edge.
6. Control type: push.
7. Dimming: 360° rotary.
8. Minimum brightness adjustable.
9. Multi-way connection.

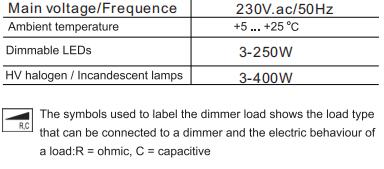

Technical Data:

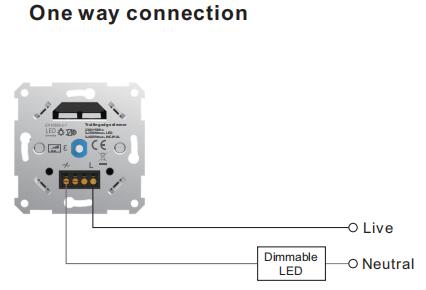

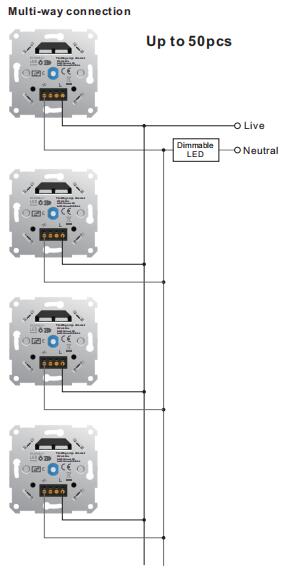

Wiring Diagram:
