Type
|
Name
|
Section Area(mm2)
|
No. of Core
|
Application Site
|
|
KVV
|
Copper Conductor,PVC Insulated and Sheathed Control Cable
|
0.75 1.0 1.5 2.5
|
2-16
|
Permanent installation indoors,in cable ditches or pipes
|
|
4 6
|
2-14
|
|
10
|
2-10
|
|
KVVP
|

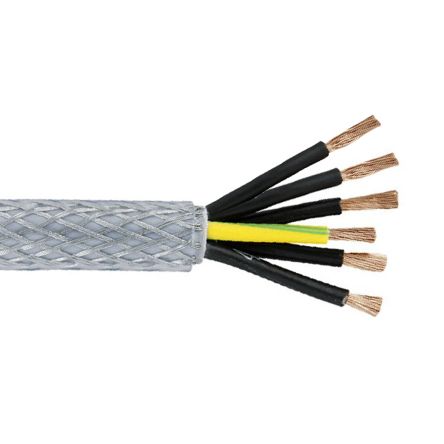

Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable
|
0.75 1.0 1.5 2.5
|
2-61
|
Permanent installation indoors,in cable ditches or pipes where shielding is required
|
|
4 6
|
2-14
|
|
10
|
2-10
|
|
KVVP2
|
Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable
|
0.75 1.0 1.5 2.5
|
4-10
|
Permanent installation indoors,in cable ditches or pipes where shielding is required
|
|
4 6
|
7-61
|
|
10
|
4-10
|
|
KVV22
|
Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable
|
0.75 1.0 1.5 2.5
|
7-61
|
Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force
|
|
4 6
|
4-14
|
|
10
|
4-14
|
|
KVVR
|
Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable
|
0.5-2.5
|
4-61
|
Installation indoors where flexibility and movability are required
|
|
KVVRP
|
Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable
|
0.5 0.75 1.0
|
4-61
|
Installation indoors where flexibility shielding and movability are required
|
|
1.5 2.5
|
4-48
|
|
KYJV
|
Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable
|
0.75 1.0 1.5 2.5
|
2-16
|
Permanent installation indoors,in cable ditches or pipes
|
|
4 6
|
2-14
|
|
10
|
2-10
|
|
KYJVP
|
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable
|
0.75 1.0 1.5 2.5
|
2-61
|
Permanent installation indoors,in cable ditches or pipes where shielding is required
|
|
4 6
|
2-14
|
|
10
|
2-10
|
|
KYJV22
|
Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable
|
0.75 1.0 1.5 2.5
|
7-61
|
Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force
|
|
4 6
|
4-14
|
|
10
|
4-10
|
|
KYJVP2
|
Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable
|
0.75 1.0 1.5 2.5
|
7-61
|
Permanent installation indoors,in cable ditches or pipes where shielding is required
|
|
4 6
|
4-14
|
|
10
|
4-10
|
|
KYJVR
|
Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable
|
0.5-2.5
|
4-61
|
Installation indoors where flexibility and movability are required
|
|
KYJVRP
|
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable
|
0.5 0.75 1.0
|
4-61
|
|
|
|
|
1.5 2.5
|
4-48
|
Installation indoors where flexibility shielding and movability are required
|
