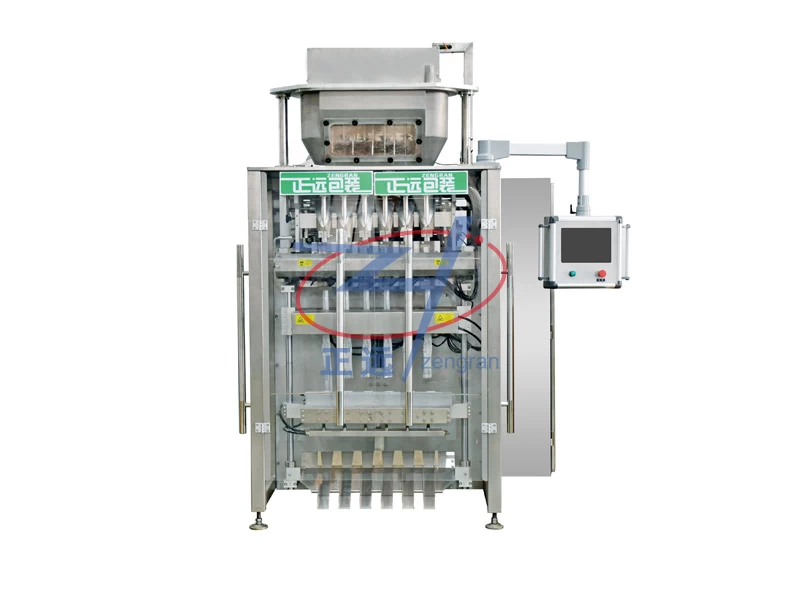

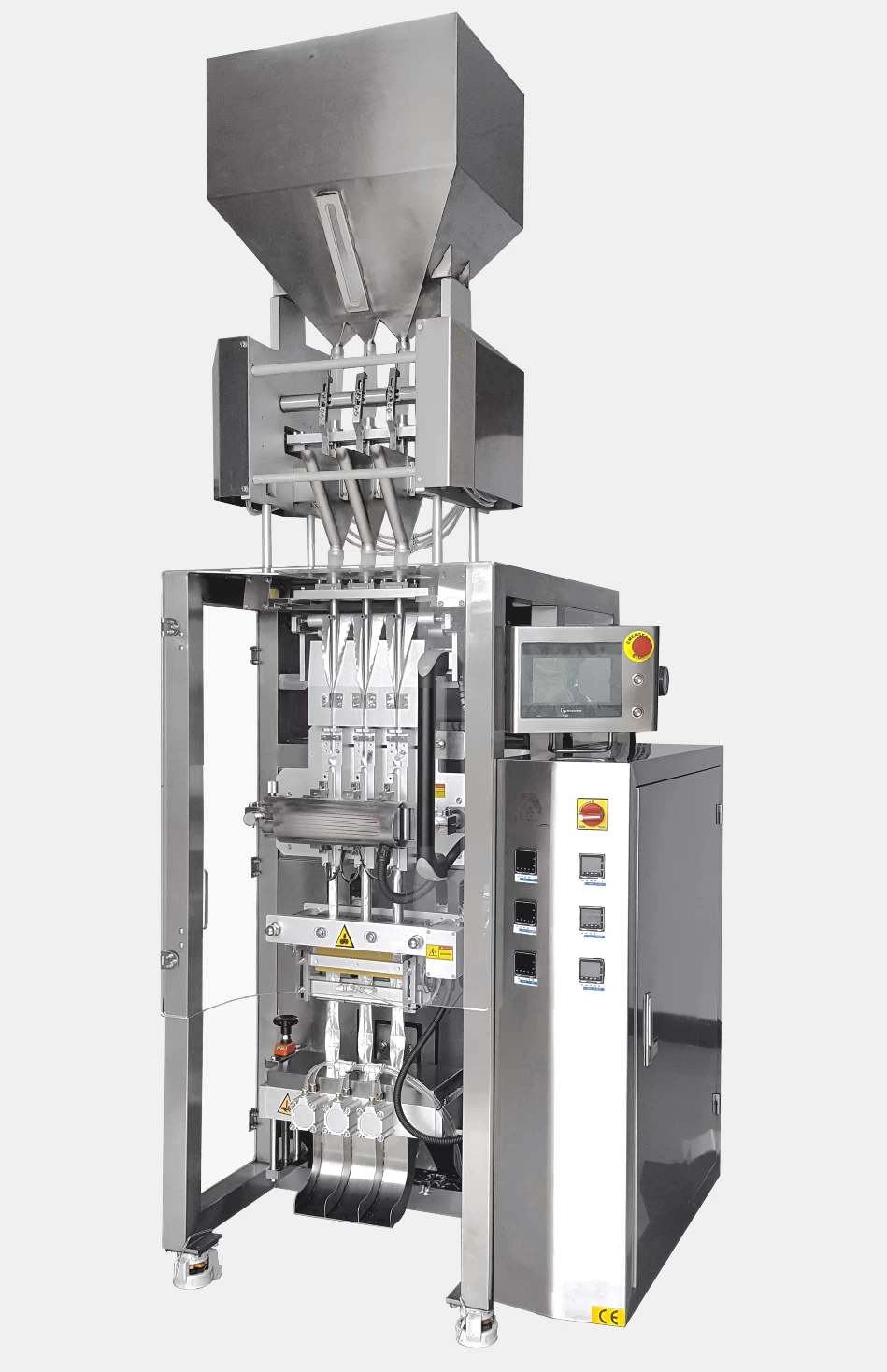

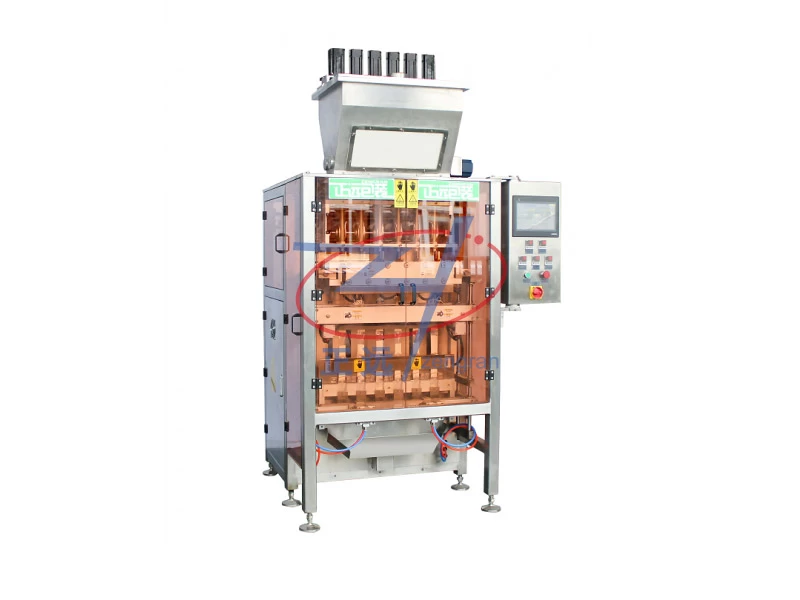

Multilane vertical packing machine

This model adopts advanced Siemens PLC control system and easy to maintain and operate. It can automatically finish the process, such as filling, measurement, bag making, sealing, cutting, date coding, counting.Normally for stick packing , doing checkweigher and then case packing.



MULTI-LINE PACKING MACHINE 6LANES

MULTI-LINE PACKING MACHINE

MULTI-LINE PACKING MACHINE

Introduction:

1. This multilane vertical packing machine integrates the functions of bag-making,filling,printing,sealing, punching and output.

2. Adopts servo motor for film pulling with automatic offset correction. Two types of drive, i.e. cylinder and servo can be adopted for transverse sealing (for convenient selection by the customer under different operating condition); there are two types of longitudinal sealing mechanism, i.e. center sealing type and platen press type (the user can choose according to specific material and the film roll).

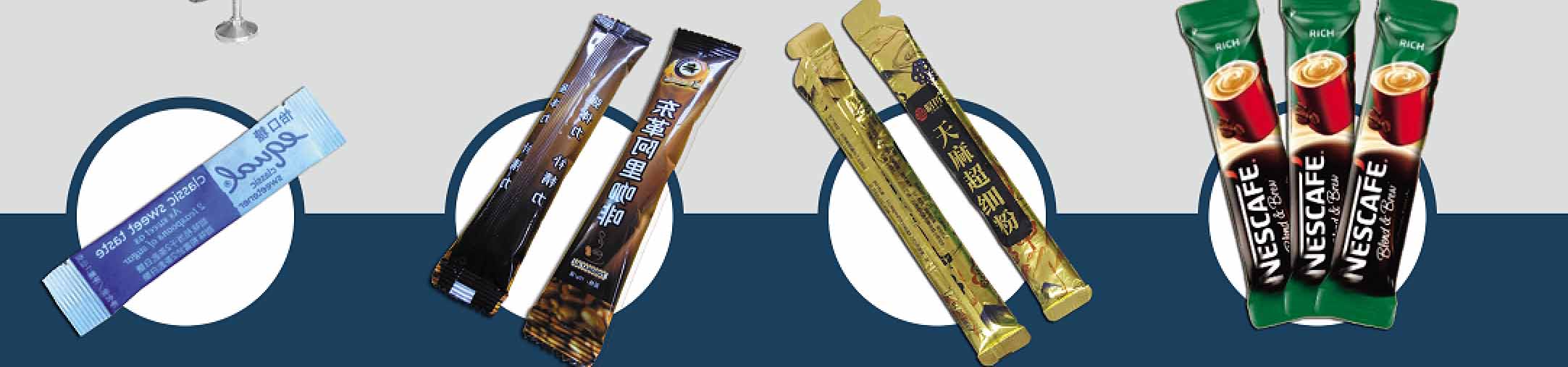

Application:

Solid

candy,peanut,green bean,pistachio,brown sugar,cake,daily commodities,cooked food,pickles,puffed food etc.

Granule

grain, granular drug, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts etc.

Powder

milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc.


Technicial details:

Packaging type

Plastic stick shape bag/ back side sealing;

Driven Type

Pneumatic

Measurement accuracy

<= +- 1%

Lanes quantity

6 lanes according to the film width.

Machine made of

SUS 304 (for parts contacted material)

Packaging material

Laminated roll film

Electric voltage

380V

Measurement device

Volumetric cups of groups

Machine size(estimated)

According to the detailed design.

Date coding

Ribbon printer(for chosen)
