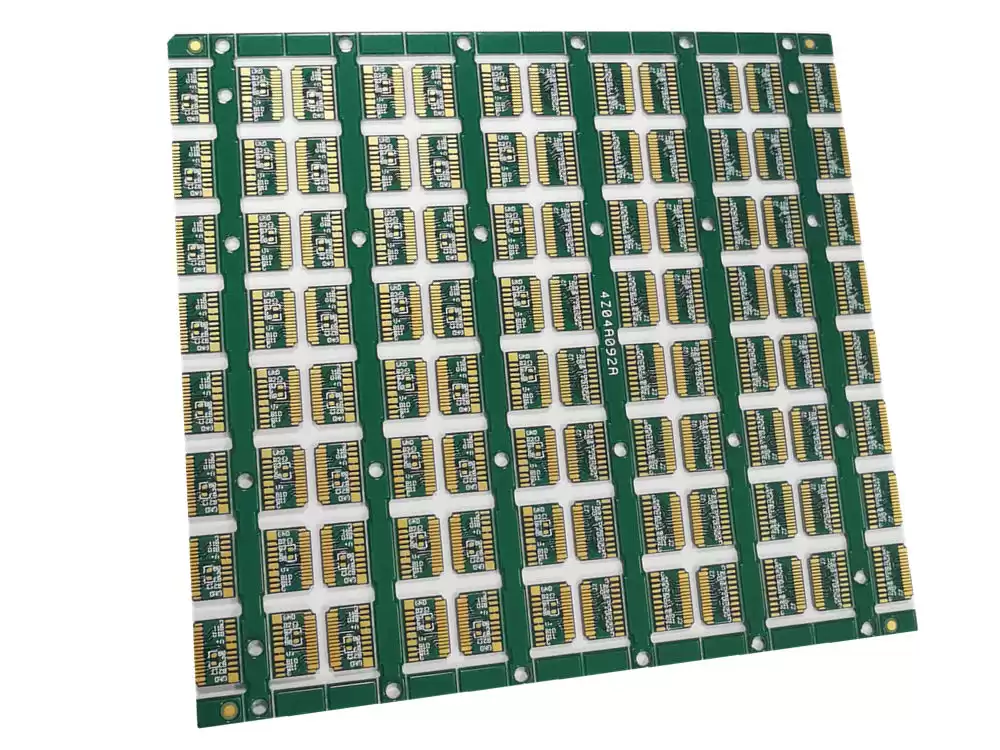

Multilayer PCB Board Halogen Free for Telecommunication

Base laminate we mainly used is KB,Shengyi brand.

Halogen free,High TG,CTI≥600 are available.

All materials are compatible with certificates UL,Rohs,Reach.



Specification:

  • Material: FR4 PCB Halogen-free
  • Layer count: 4 layers
  • Board thickness: 0.75mm
  • Finish copper thickness: 2.0 oz
  • Surface treatment: ENIG ( Immersion Gold ) Au 2U'', VIP+wrap copper plated
  • Application: Telecommunication, Type-connector


Our Capability:
Type of base laminate

FR-4(Tg135,Tg140,Tg170,Tg180), Halogen-free,

High CTI, Aluminum, CEM-1, 94V0, PTFE

Spec. of base laminate

41"*49"(1041*1245mm)

37"*49"(940*1245mm)

43"*49"(1092*1245mm)

86"*49" (2184*1245mm)

Spec. of prepreg

1080 RC63%/RC65%/RC67%

2116 RC50%/RC53%/RC55%/RC57%

7628 RC43%/RC45%/RC48%/RC50%

1506 RC43%/45%/RC48%

2213 RC58%


PCB Manufacturing Process Flow:

While PCBs for simple electronic devices with limited functionality typically consist of a single layer, more complex electronic devices, such as computer motherboards, consist of multiple layers. This is the so-called multilayer curcuit board. With the increasing complexity of modern electronics, these multilayer PCBs are more common than ever, and manufacturing techniques have allowed them to shrink significantly in size.


FAQ:

A. Why choose High Precision Technology as PCB supplier?
-- High Precision Technology specialises on PCB manufacturing since 2011 with rich experiences. We mainly use KB & Shengyi Brand laminiate, Rongda & Taiyo brand oil and strictly compliance to IPC-6012 class 2. In our Hunan new factory, all procedures are made in-house. The quality and price can be controlled effectively. If you are still looking for a suitable supplier of PCB fabrication, contact us, we will supply professional and flexible support.
B. What’s kind of certificates do you have?
-- We have certificate ISO9001, ISO14001, UL, TS16949 etc.

C. What's lead time?
-- The lead time can be negotiable to meet your demands.

D. What is MOQ (Minimum Order Quantity)?
-- There is no MOQ for new PN, sample is welcome.


E. What informations need to be supplied for quote?

-- Order quantity, Gerber file, PCB specification ( base material, layer, PCB finished thickness, base copper thickness, surface treatment, solder mask color, and others if you have )

F. Is the files for quote or manufacturing safer?

-- Yes, it is safe as we are professional PCB manufacturer and Non-disclosure agreement can be signed if you need. All documents from customers are never shared with any third parties.

G. When can the quotation be supplied?
-- All quotation can be supplied within 24 hours.


High reliability and product quality, excellent service, our pcb Board factory is your most trusted partner.


More enquiry,welcome to send us email.We will always give you professional service with 24H/7D online support.
