Myanmar 3tons ISUZU Rubbish Compressed Truck with 4KH1 engine

6 Wheeler ISUZU 5cbm Compressed GarbageTruck, Mini Garbage Compactor Truck,ISUZU 4*2 Euro IV Garbage Compactor Truck,ISUZU 13cbm Refuse Compactor GarbageTruck,4*2 Dump Type Compactor Garbage Truck,ISUZU Garbage Compress Truck 4X2 12cbmCompactor Truck,4X2 10cbm Foton Compression Garbage TruckGarbage Compactor Truck





Garbage Compactor Truck Isuzu 5CBM

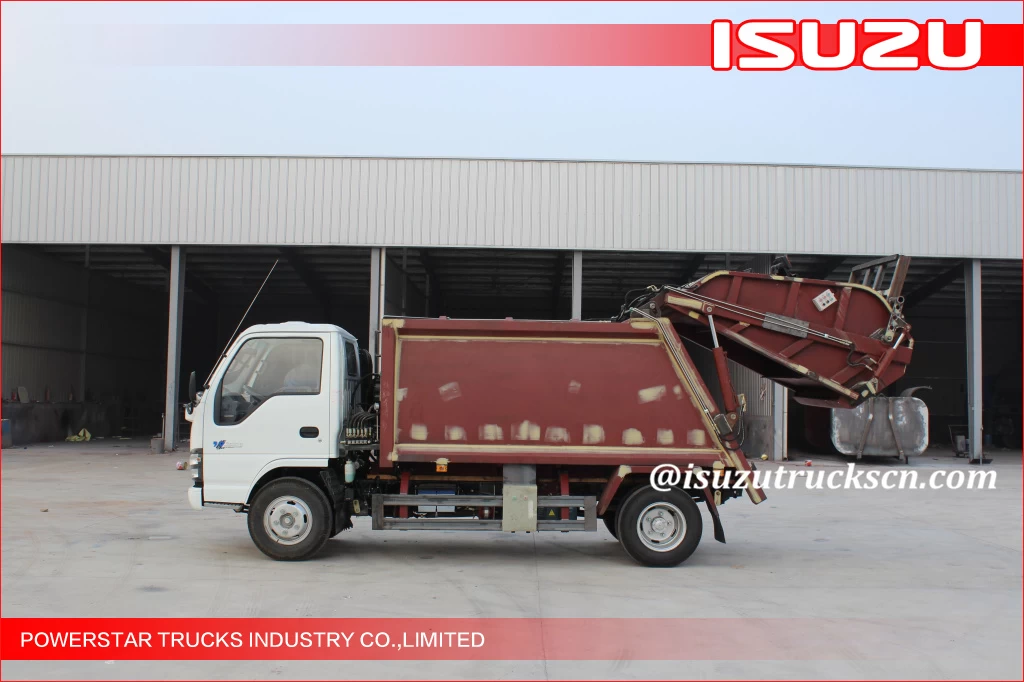

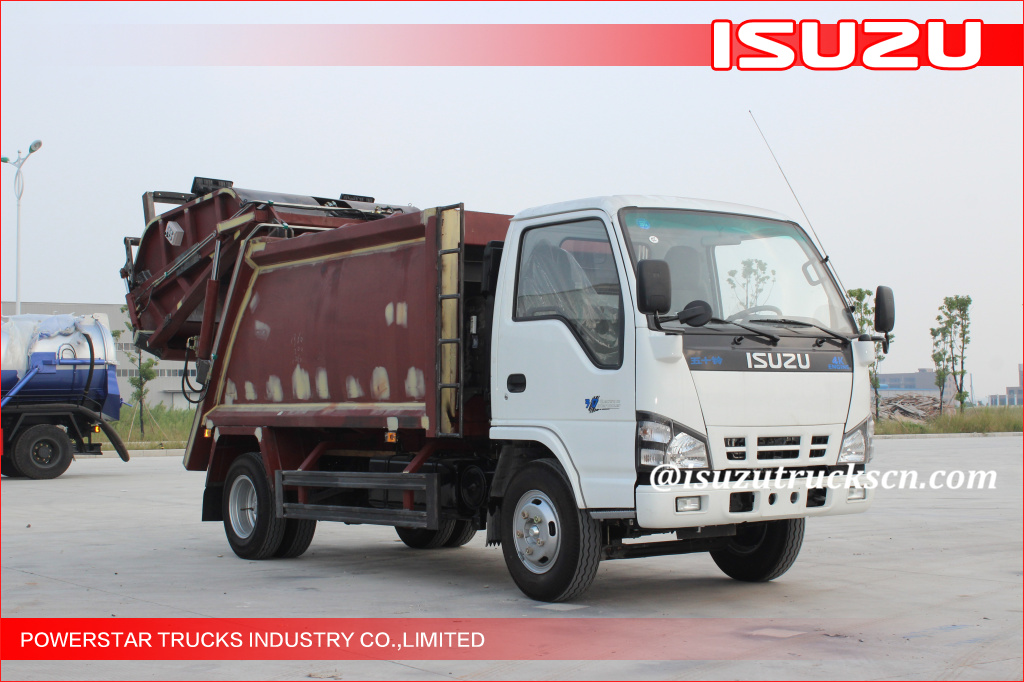

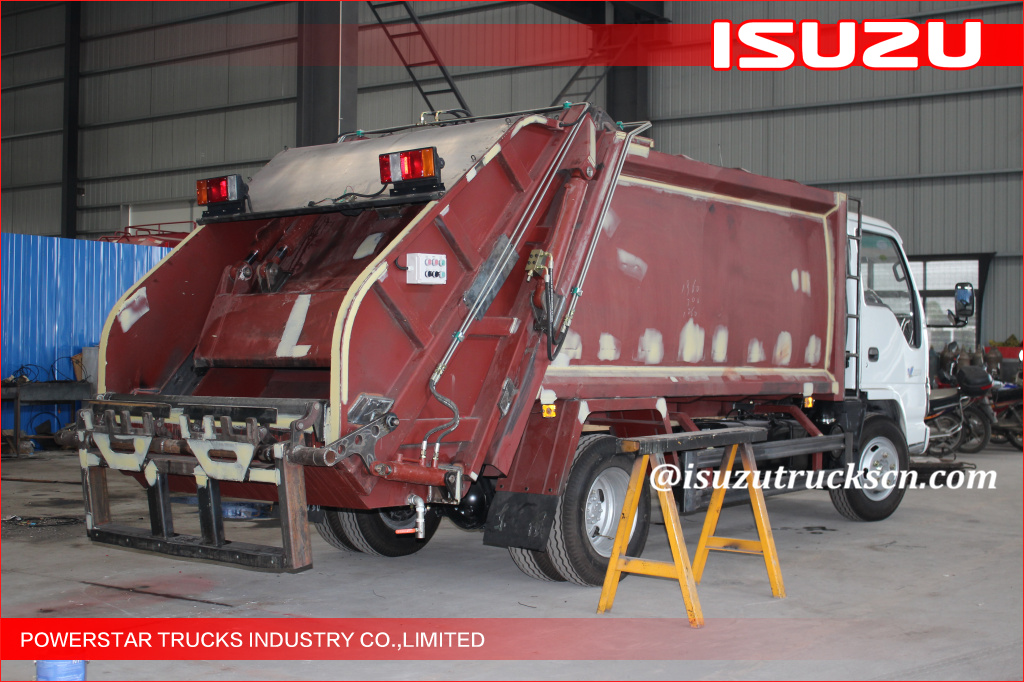

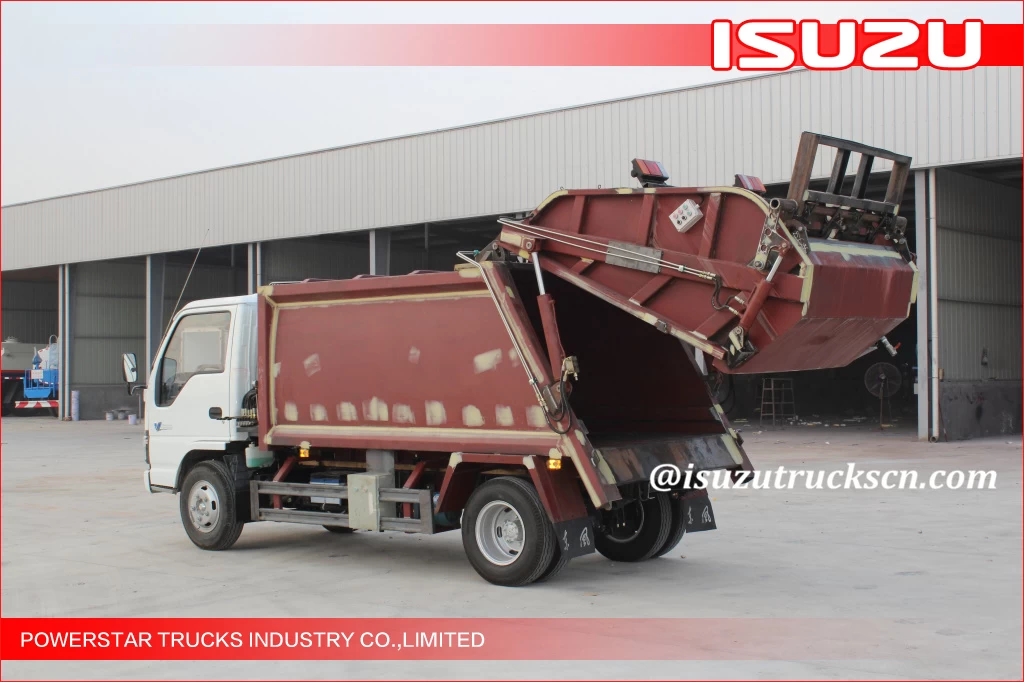

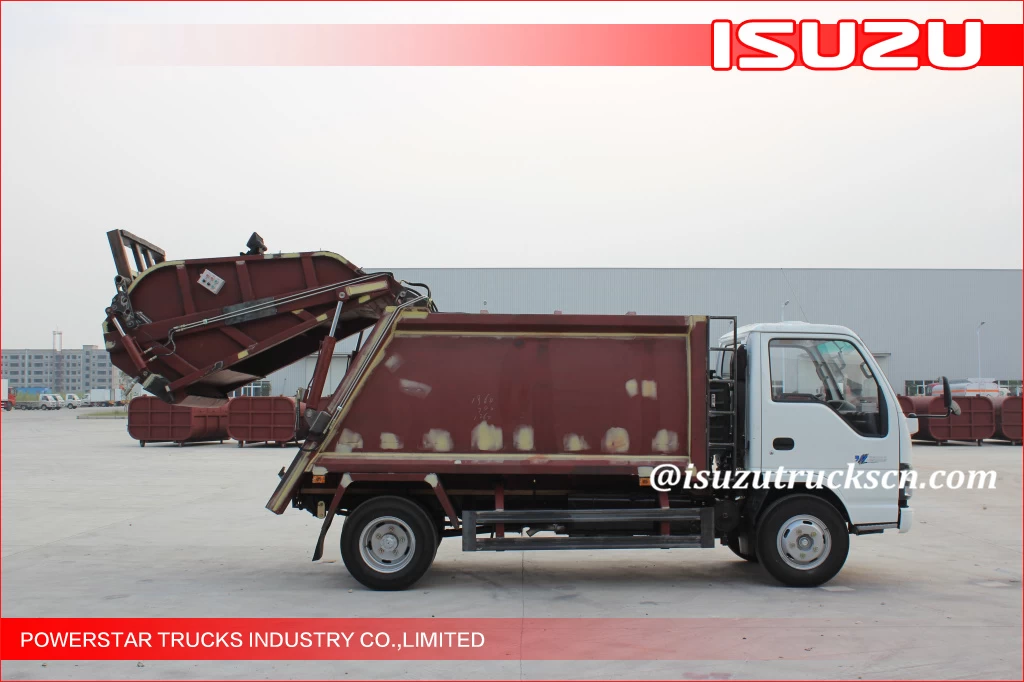

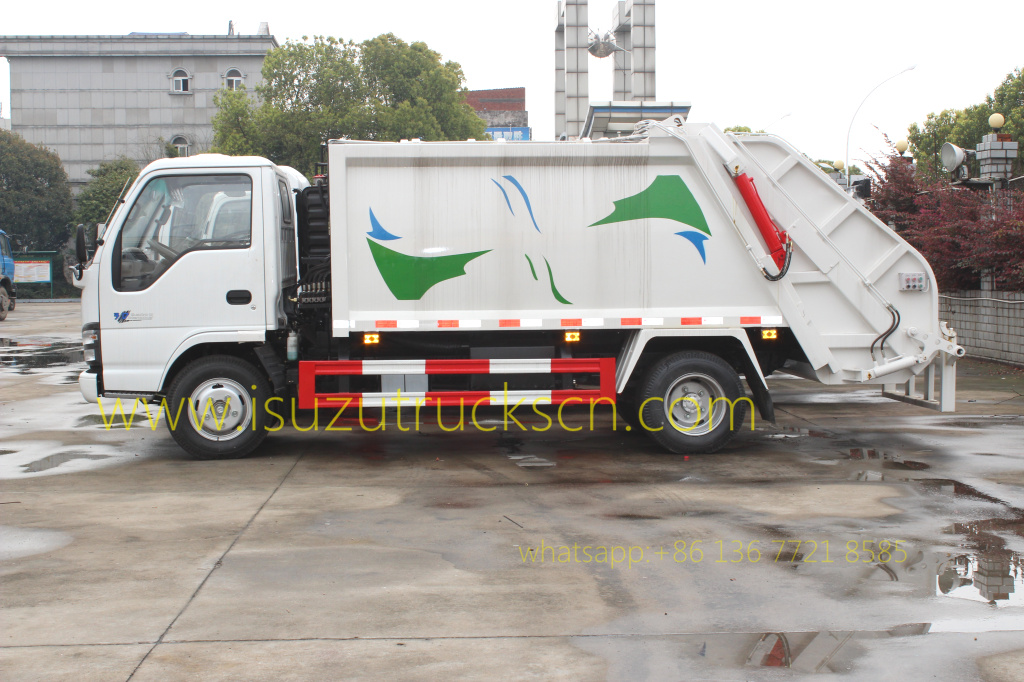

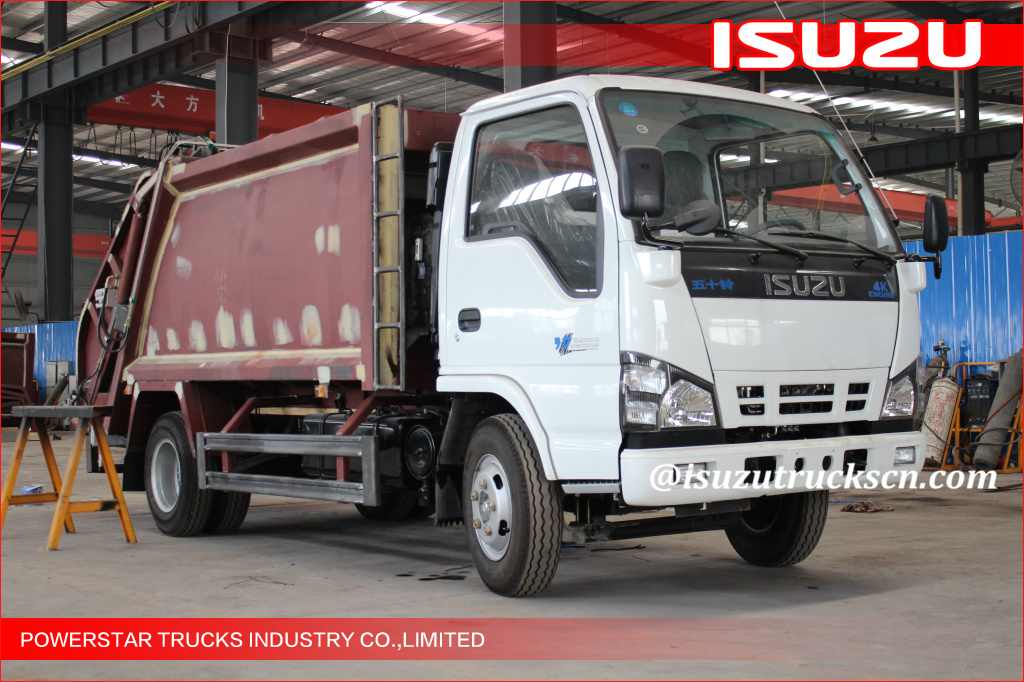

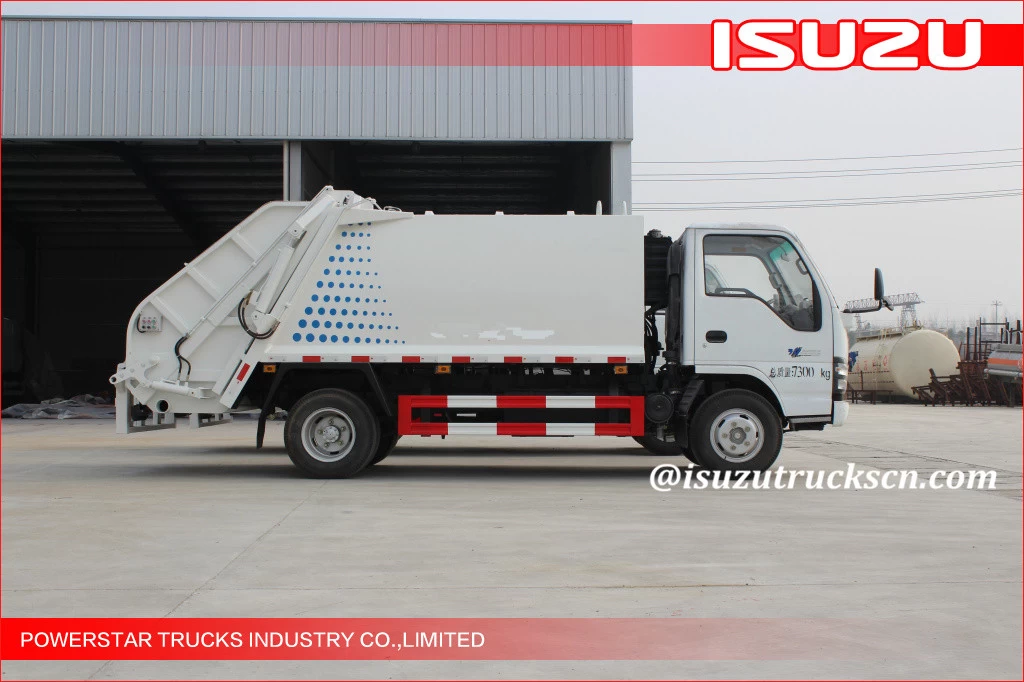

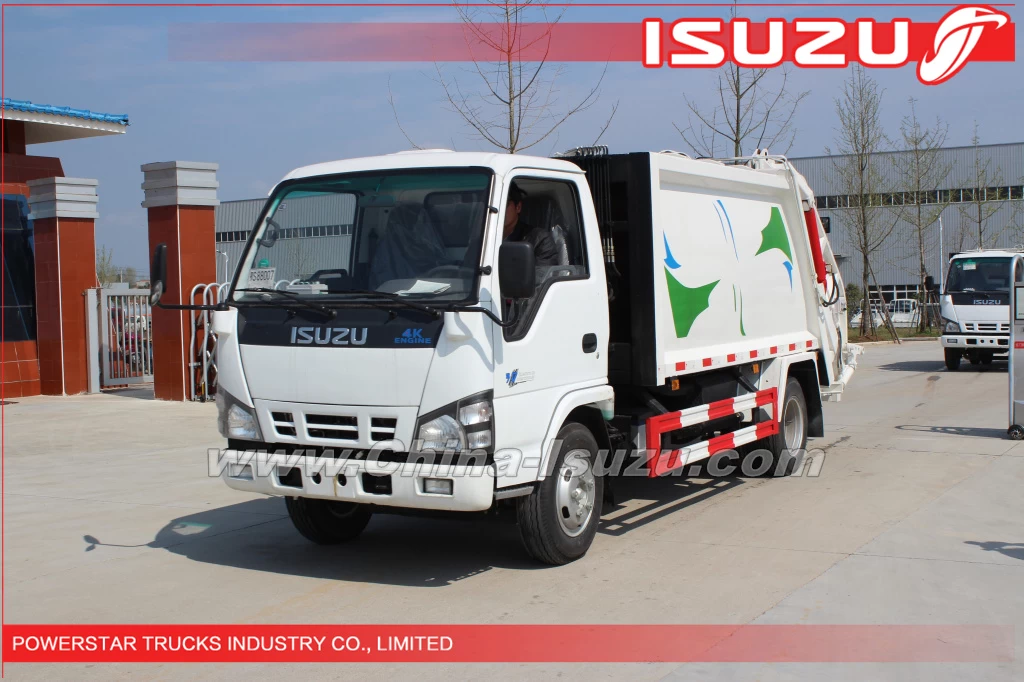

Garbage Compactor Truck Isuzu 3Tons pictures

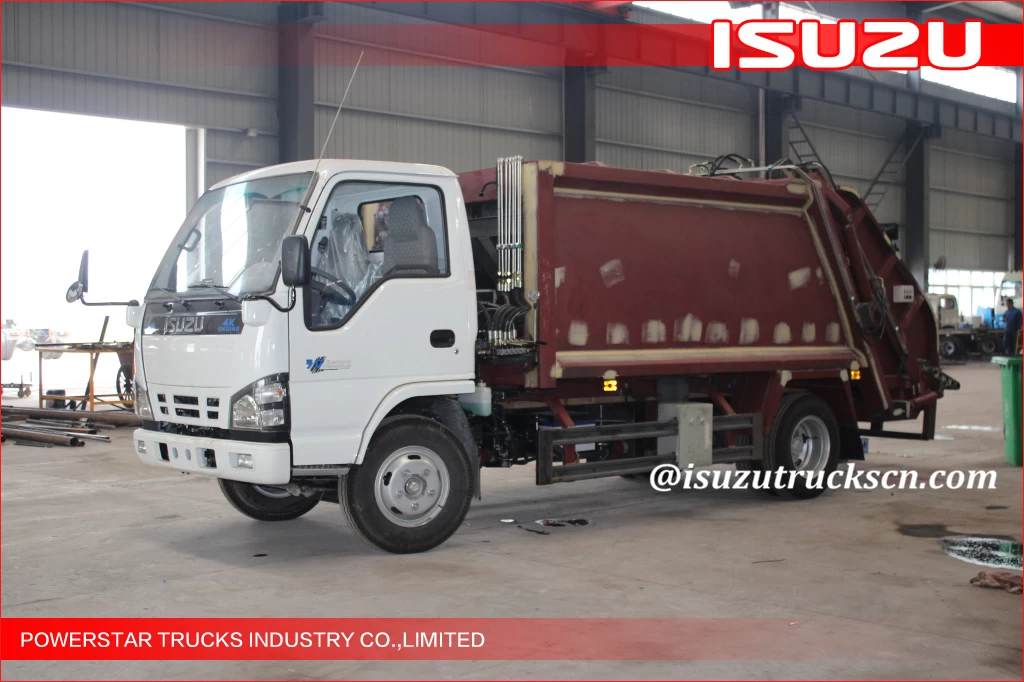

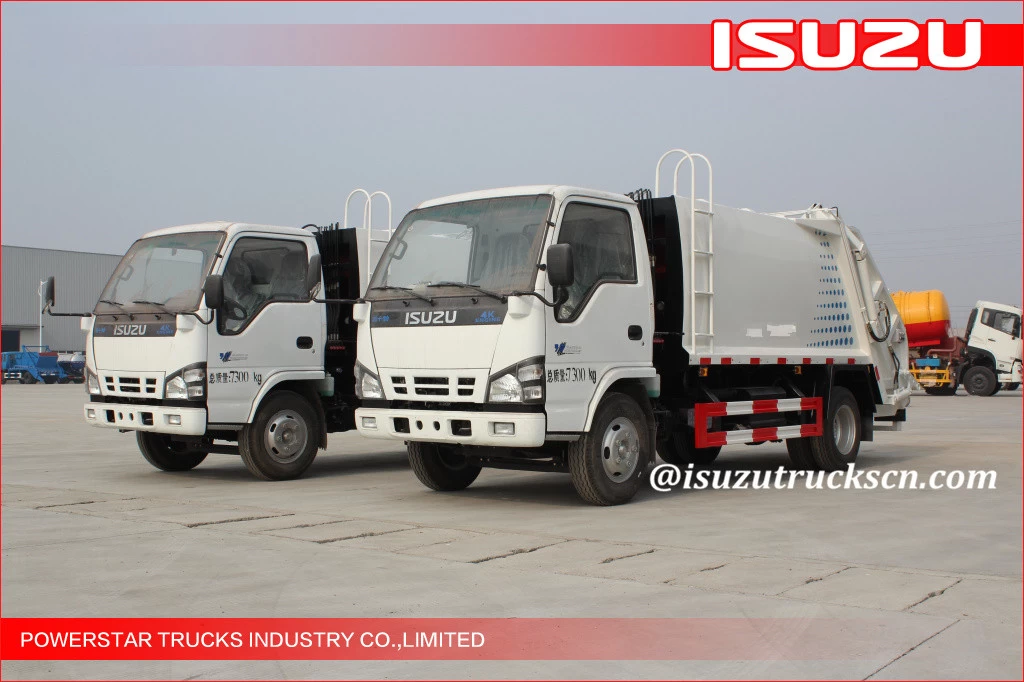

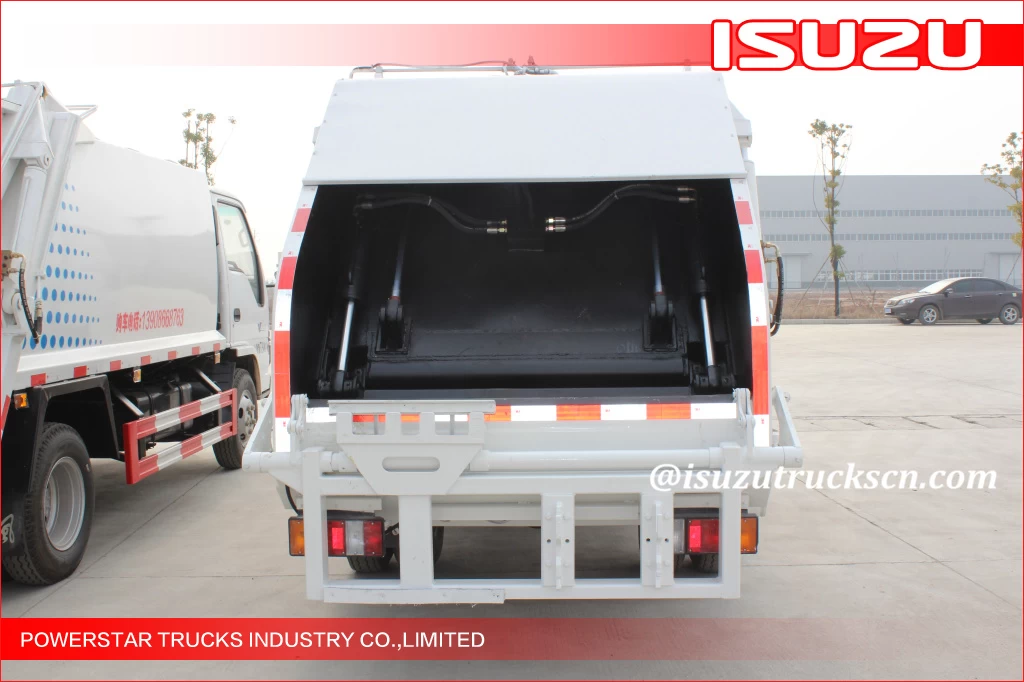

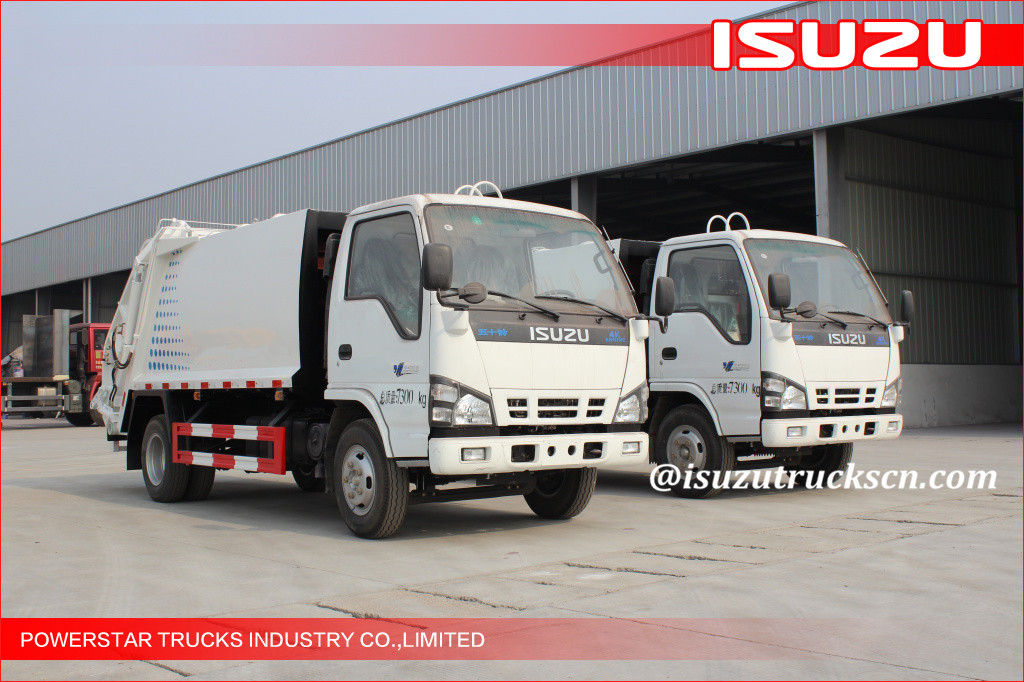

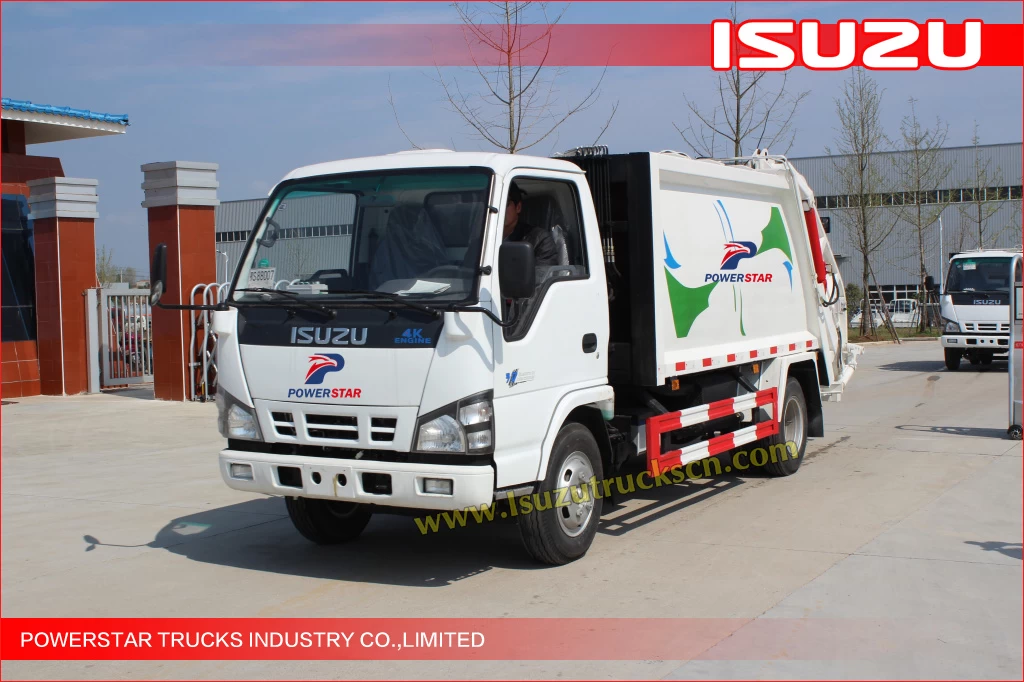

 photo for Garbage Compactor Truck Isuzu 3Tons    photo for Garbage Compactor Truck Isuzu 3Tons

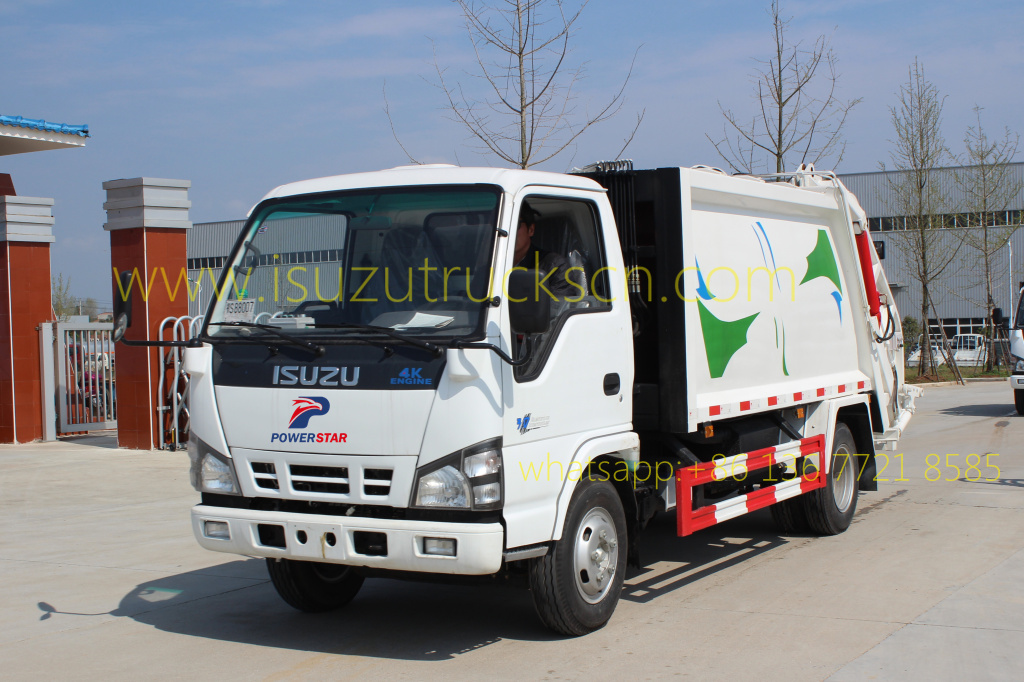

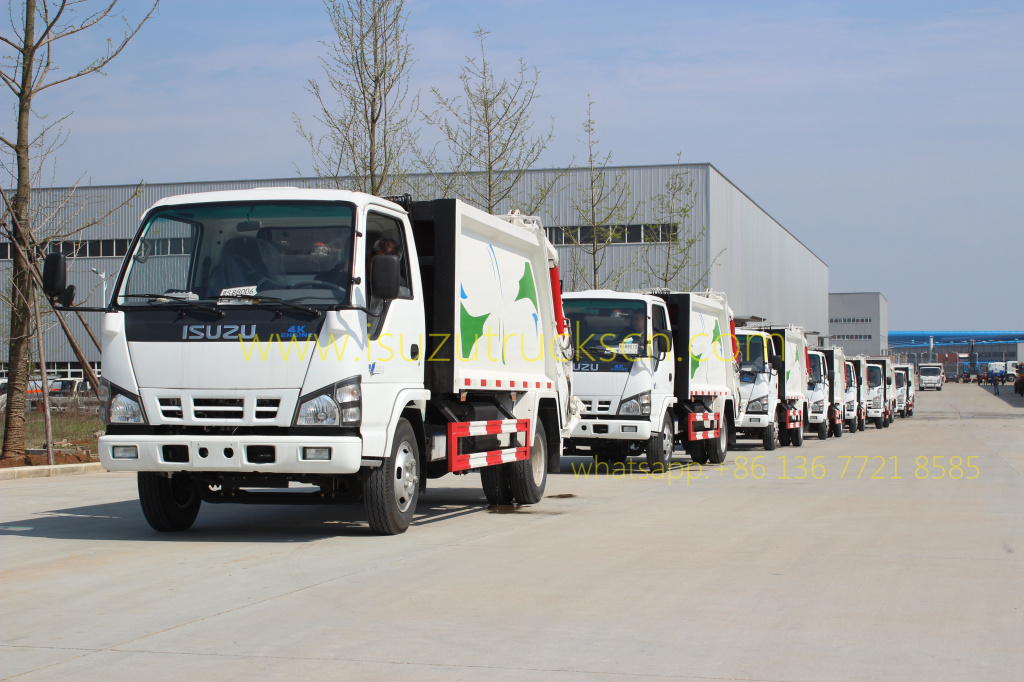

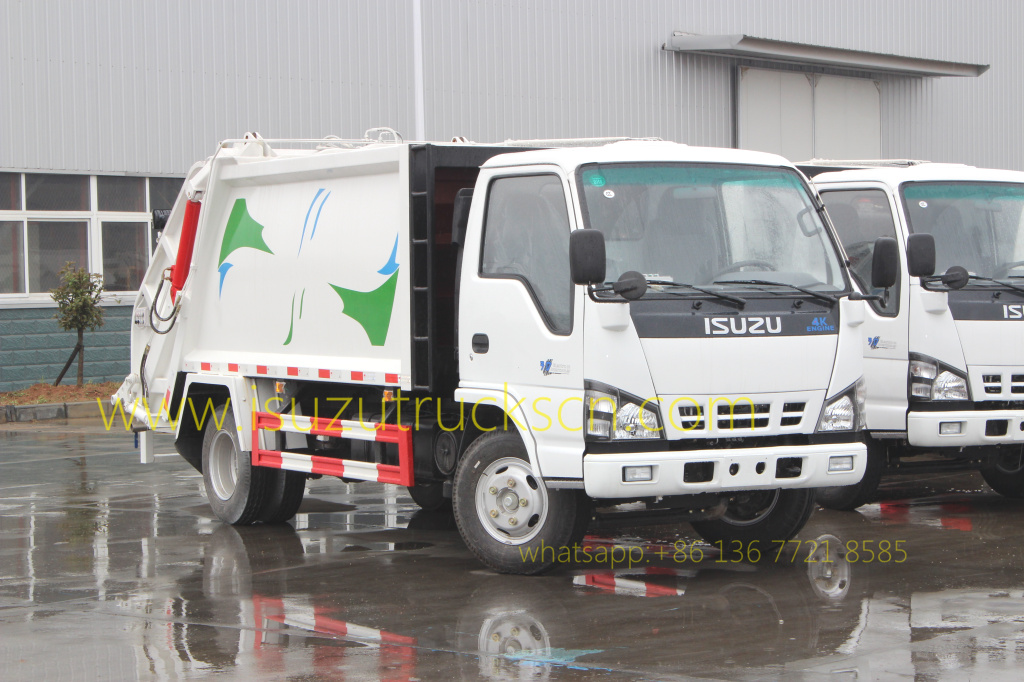

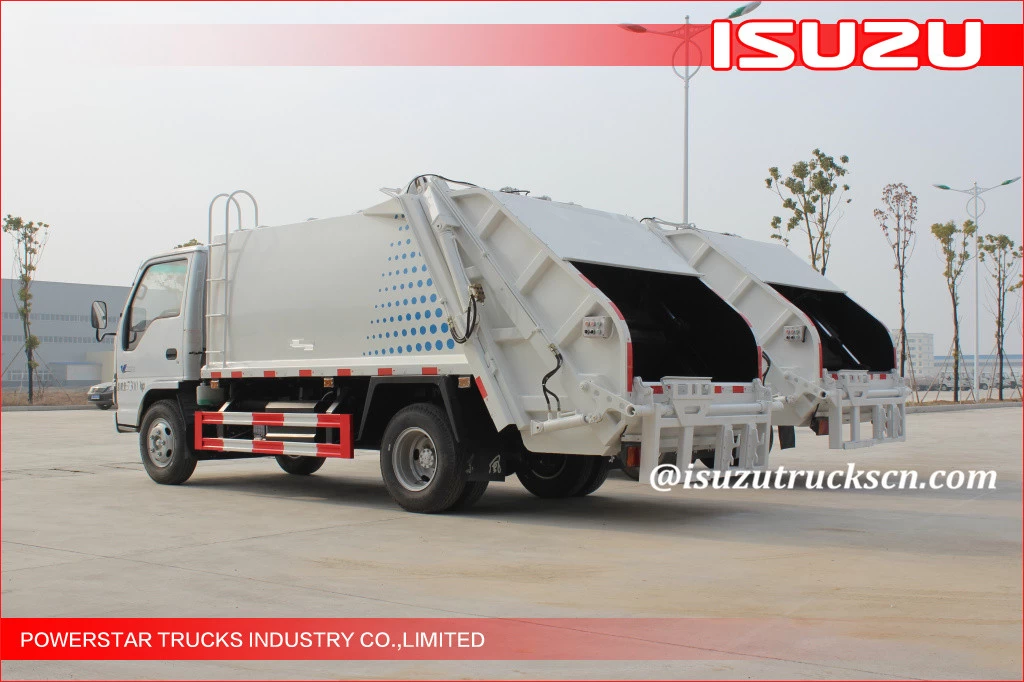

photo for Garbage Compactor Truck Isuzu 3Tons    photo for Garbage Compactor Truck Isuzu 3Tons



Function:

Garbage compactor truck Isuzu 3tons (also called as Urbin rear loaders, refuse collector truck, compactor refuse truck, hydraulic compressor garbage truck, garbage transport compactor truck, compressive garbage truck)  is widely used in daily rubbish transport in such living areas as all kinds of cities, large station, port and whart, airpot and densely-populated areas like industrical and mineral enterprises and military units.


All our compressed garbage truck optional hanging bucket or barrel tilting mechanism, automatic operating, simple and efficient garbage collection. It can be converted into various special garbage truck according to clients' special requirement.


Features:

---- ISUZU chassis, perfect performance.
---- Compression ration > 60%
---- Compression body capacity from 3 CBM TO 20 CBM
---- Sealed transportation avoid the second time pollution
---- Massive, durable, perfect performance

Specifications:



Garbage Compactor Truck Isuzu (5 CBM)

General

Vehicle Brand

POWERSTAR

Chassis Brand

ISUZU

Overall Dimension

6130 * 2000 * 2490 mm

GVW / Kerb Weight

8,000kg / 4,890kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

120 HP (88 KW)

Displacement

2999 ml

Emission Standard

Euro IV or V

Chassis

Drive Type

4X2, (left hand drive)

Transmission

ISUZU MSB 5 speed levers with 1 reverse

Wheelbase/No. of axle

3360 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body Capacity

5 CBM

Fill Hopper Capacity

0.8 m3

Sewager Tank volume

200 L

Body Material

Weather resisting steel

Filling work cycle time

20~25 s

Filling lift time

6~9 s

Filling lift capacity

8 Tons

Discharge time

18~22 s

Max compression force

12 Tons

Discharge model

Horizontal Ejection

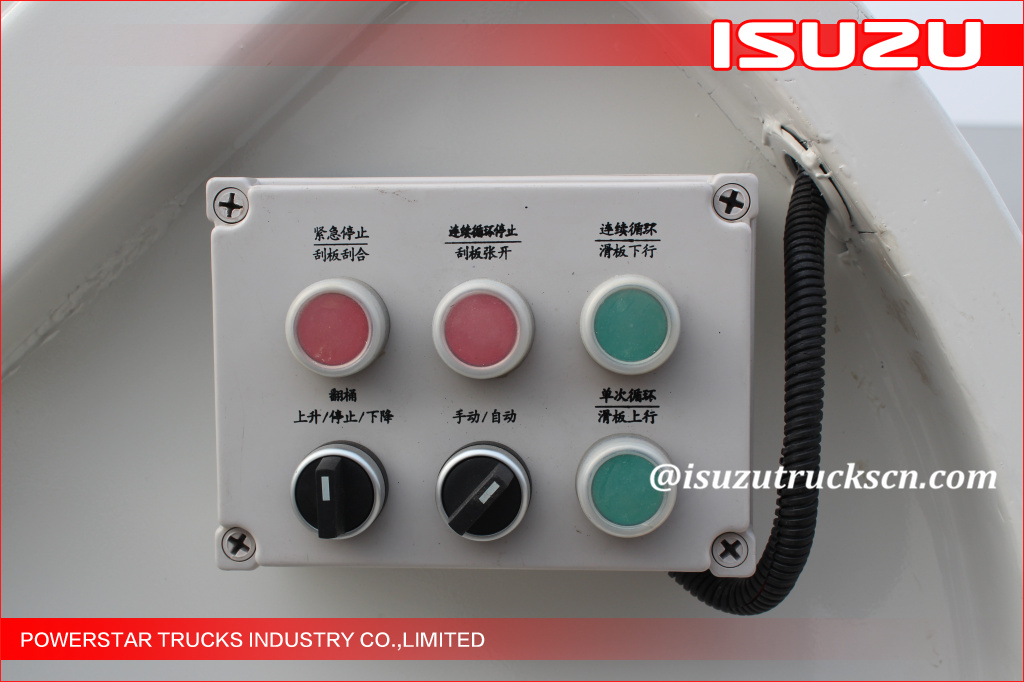

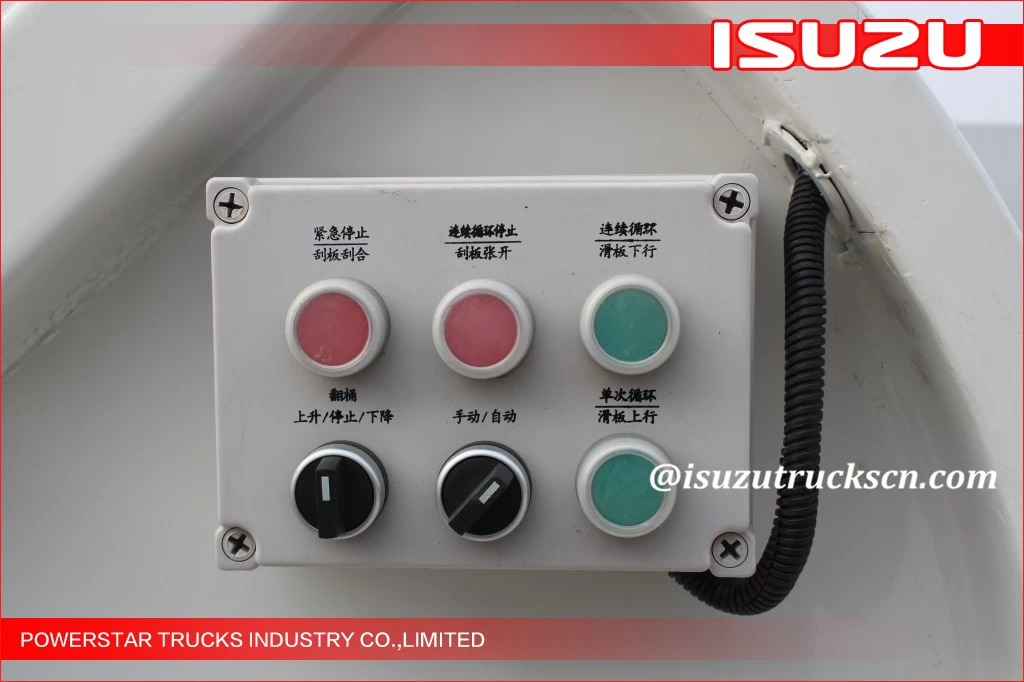

Control

Electrically Hydraulic control

Manual Hydraulic control

Emergency Stop Button

Hopper Both Sides

All standard accessories: Warning lights, music alarm, basic tool kit, English manual……

Optional

** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.

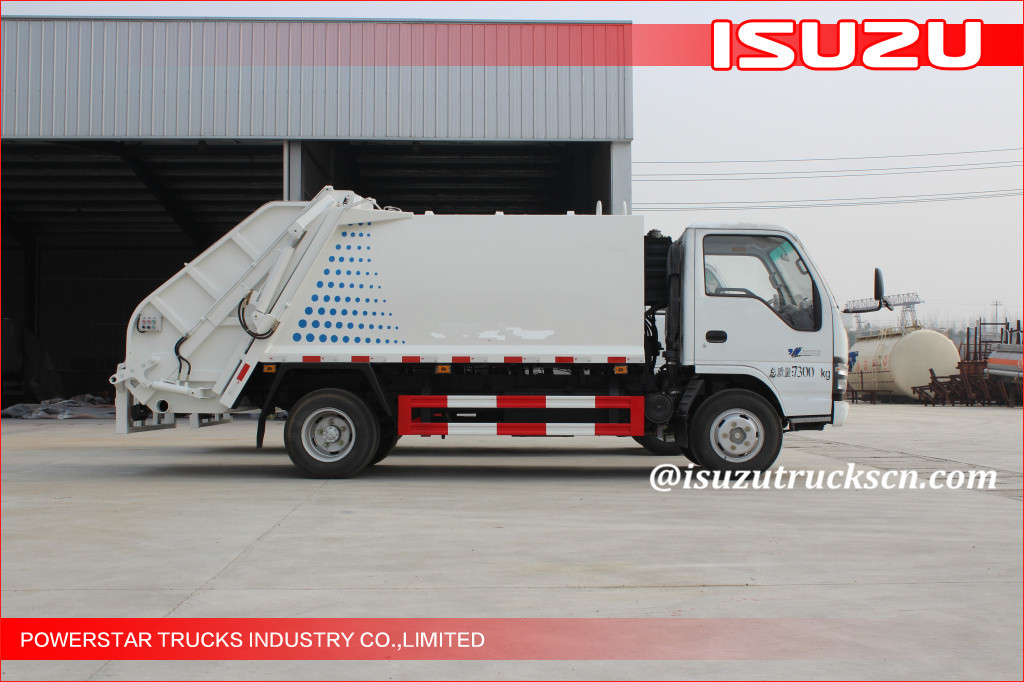

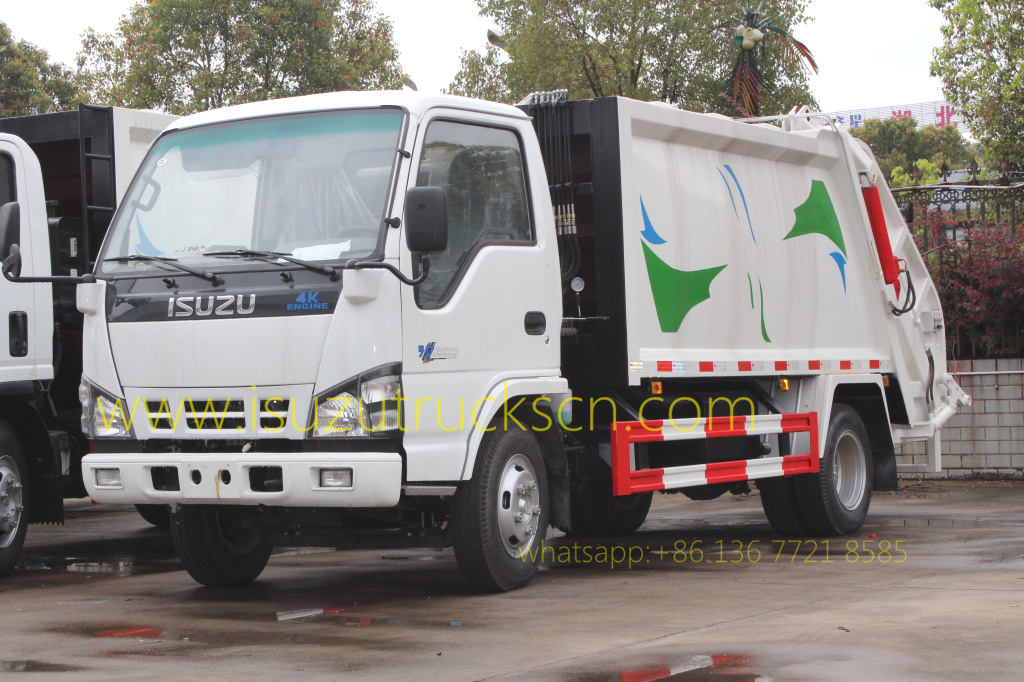

 Garbage Compactor Truck Isuzu 5CBM

Garbage Compactor Truck Isuzu 5CBM

technical drawing for 3 Ton Isuzu Garbage Truck With Compactor

Working Principles of Garbage Compactor

Technical drawing for Isuzu NPR Refuse compactor (Garbage compactor truck)

Different bin optional:

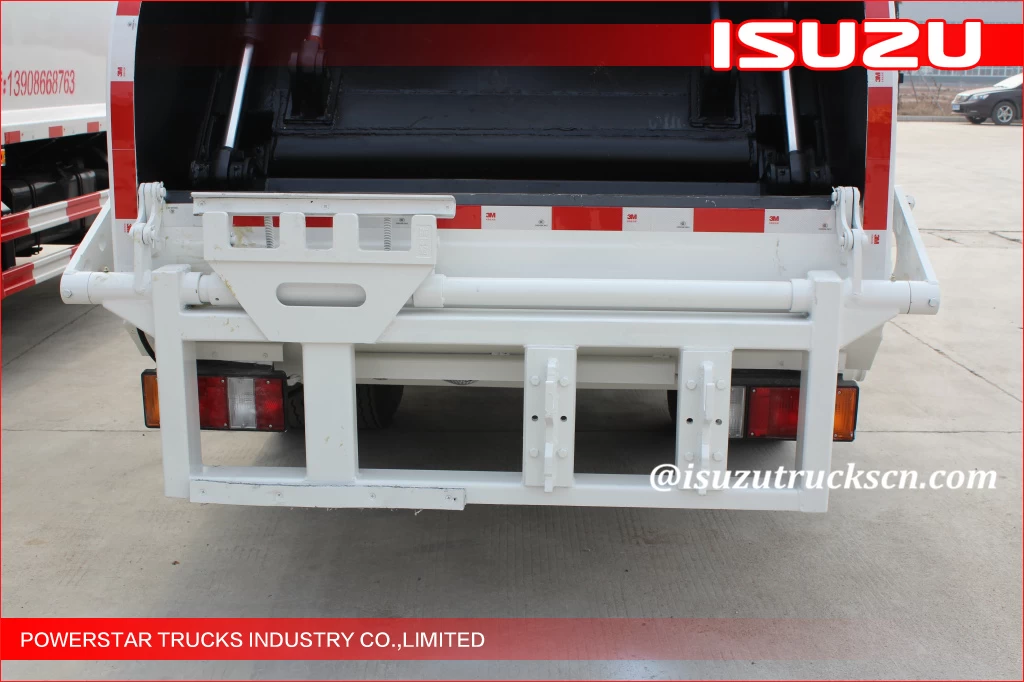

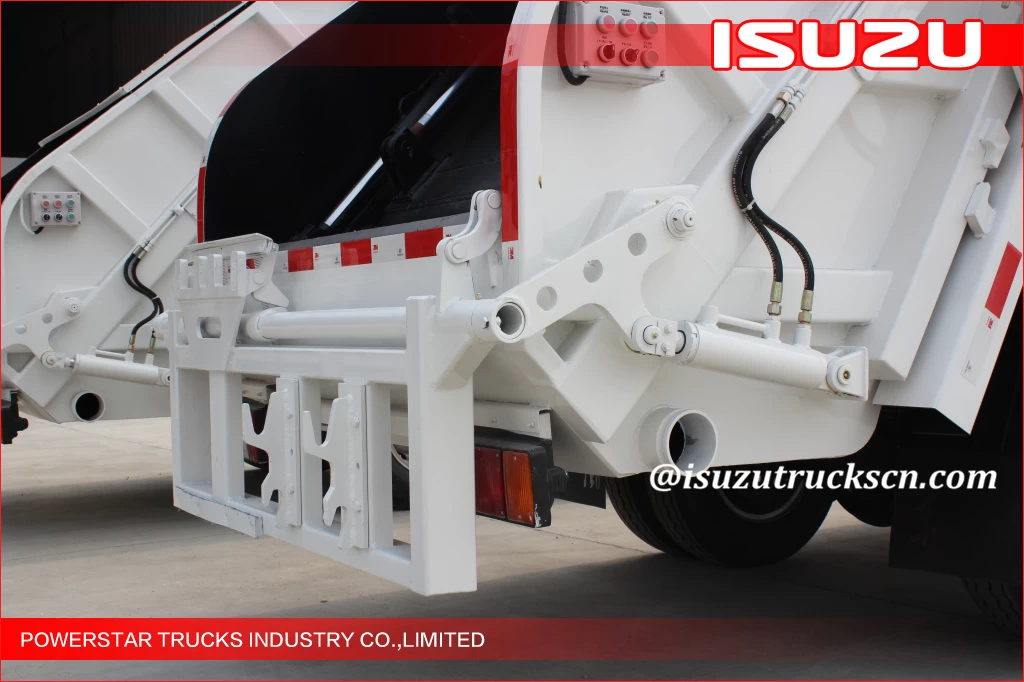

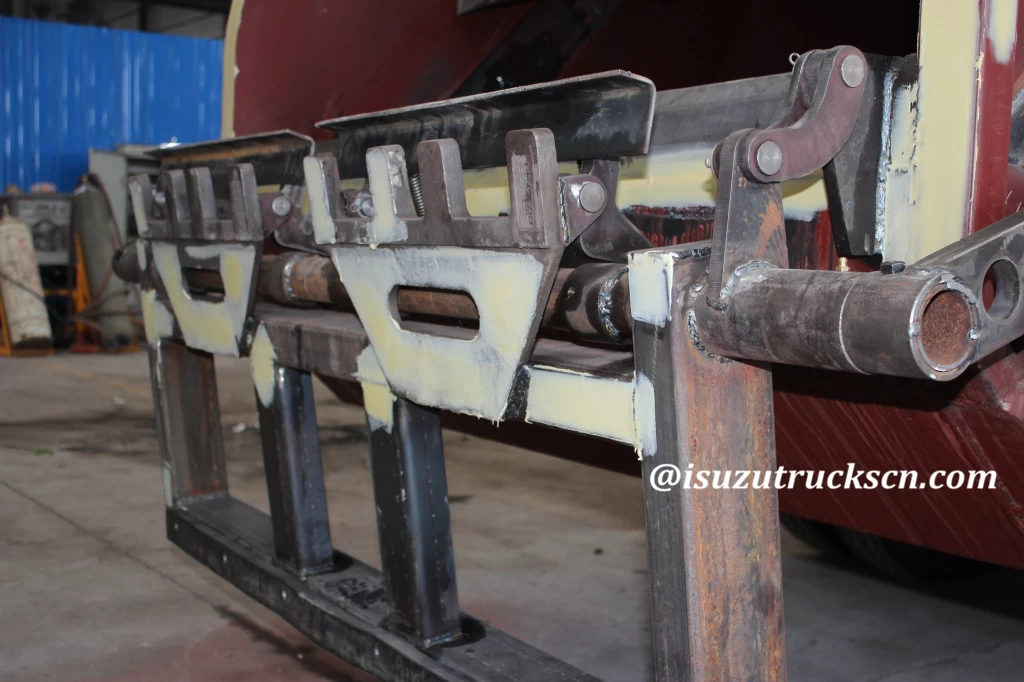

 bin hopper for garbage compactor truck

  bin hopper for garbage compactor truck

 bin hopper for garbage compactor truck    bin hopper for garbage compactor truck


Detail pictures:

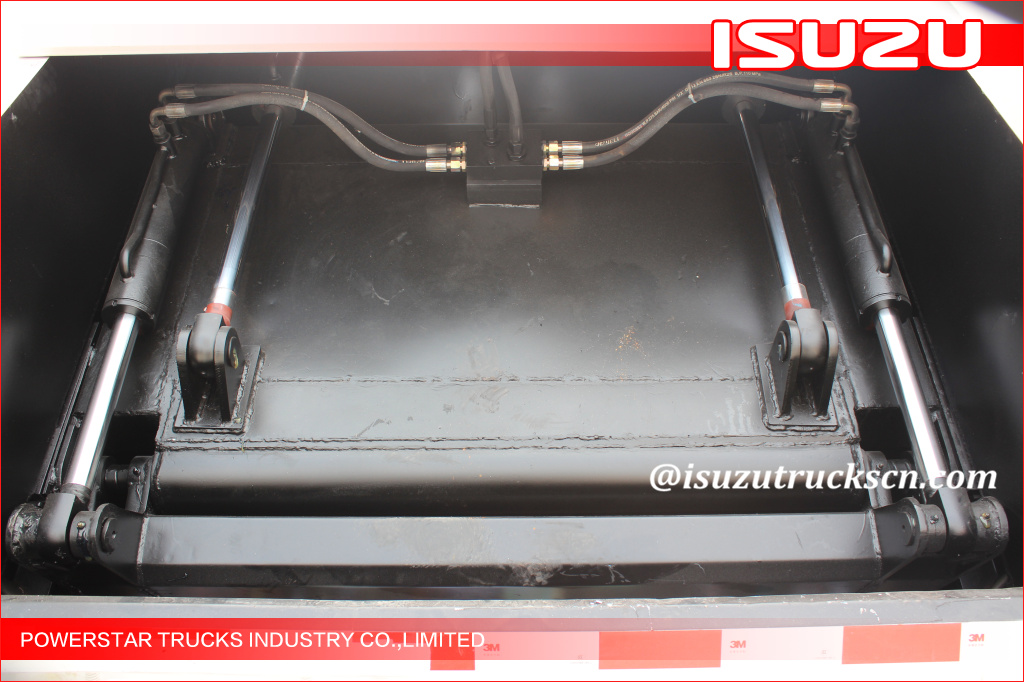

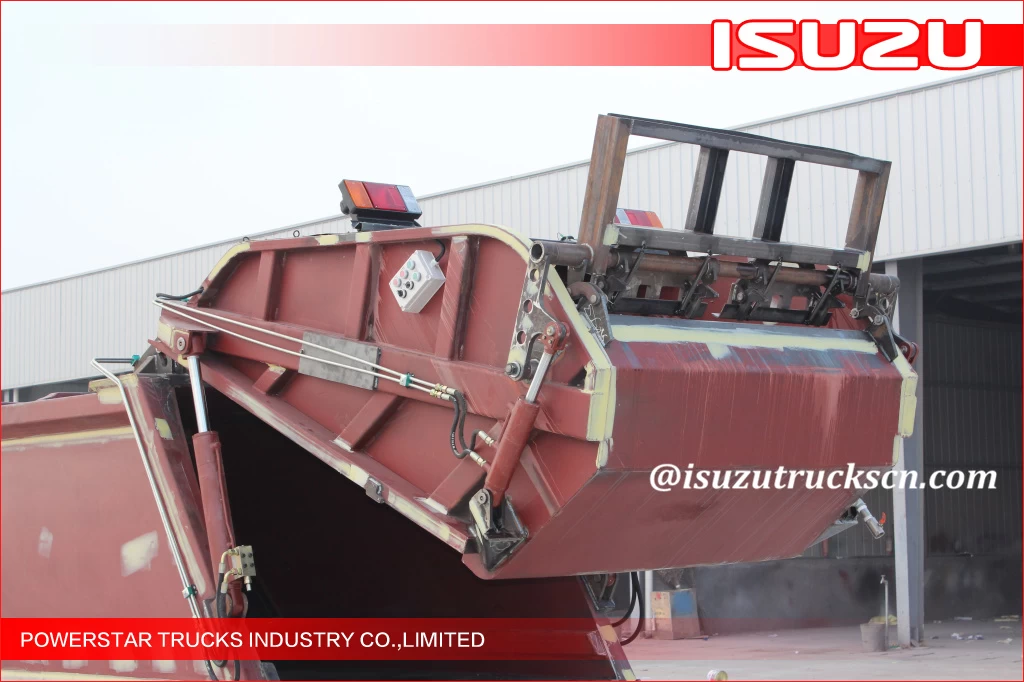

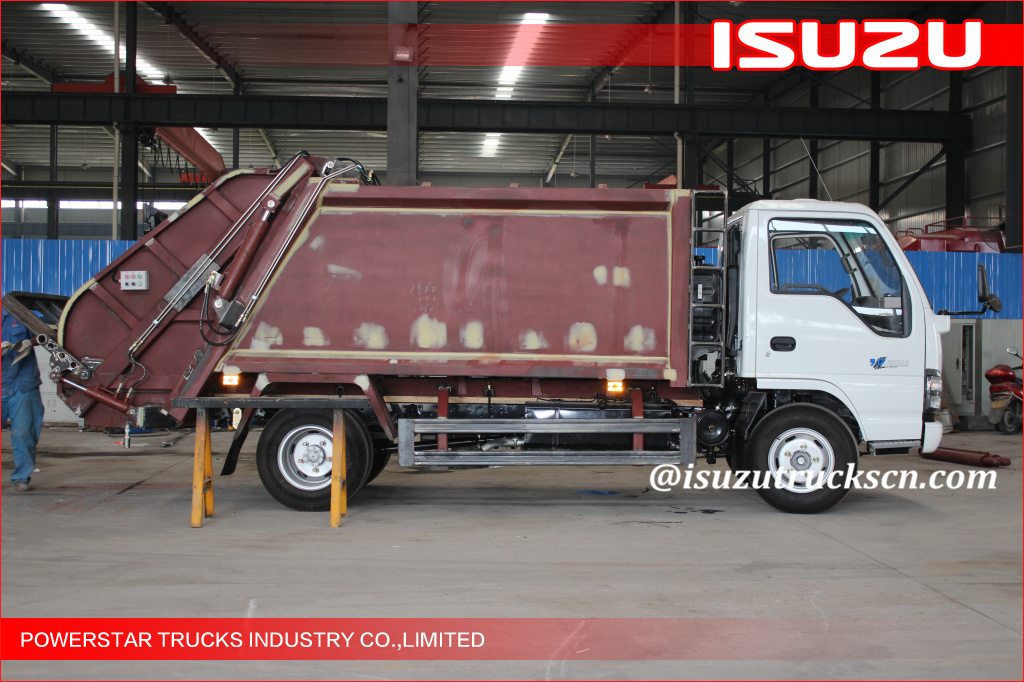

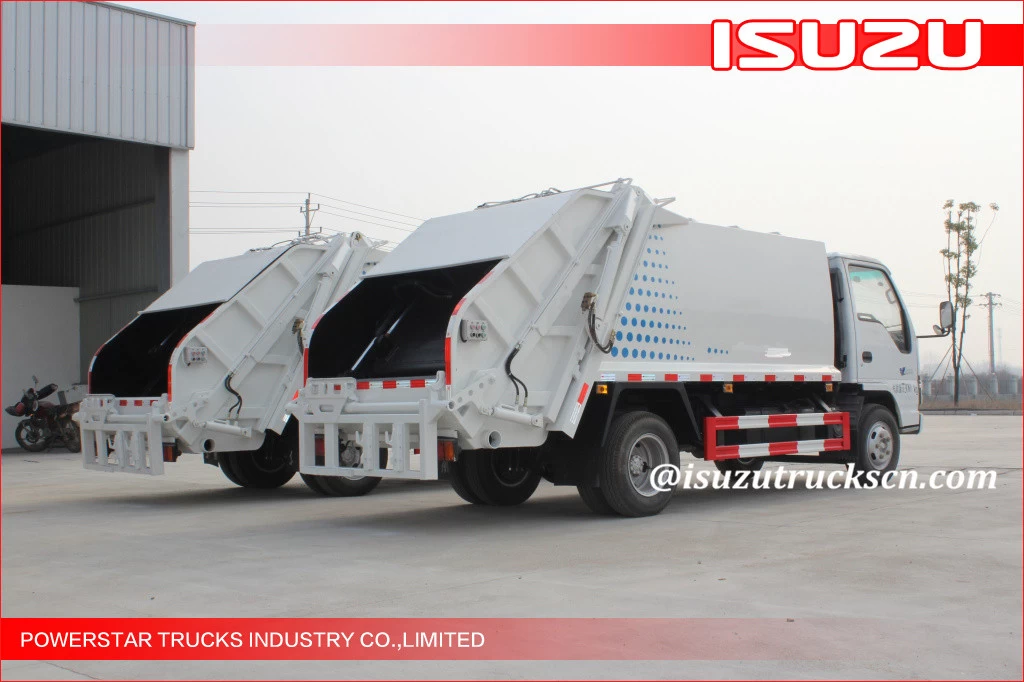

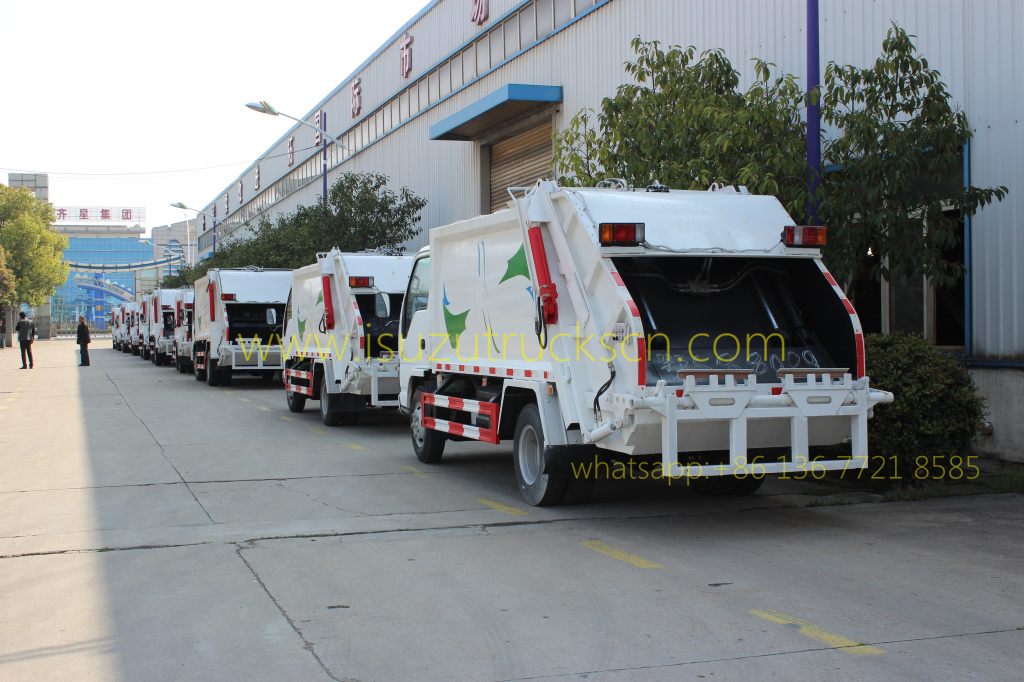

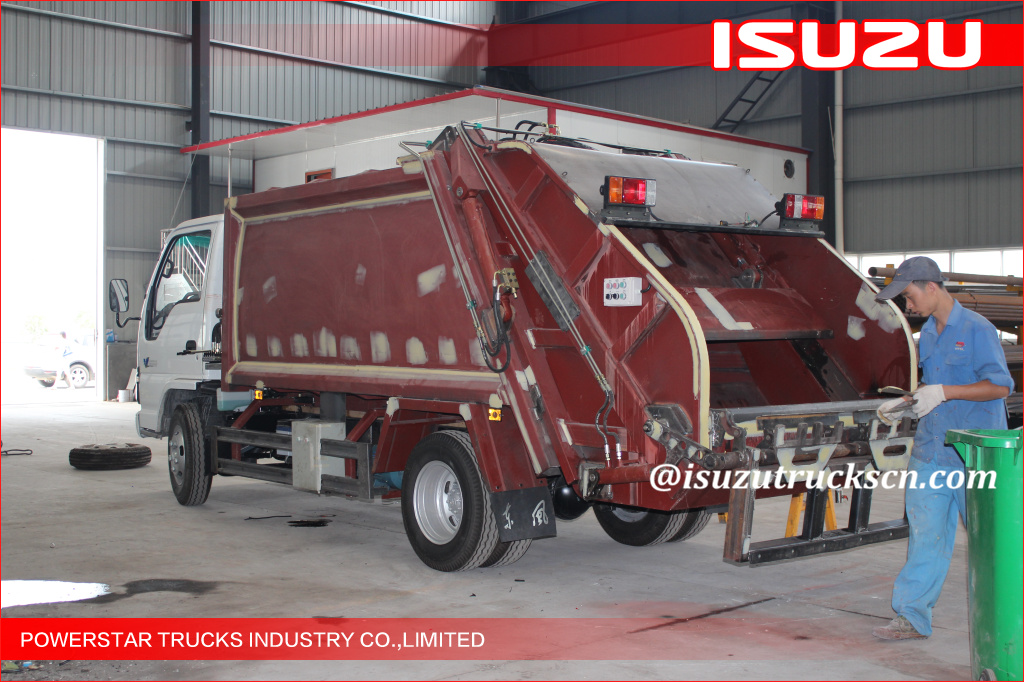

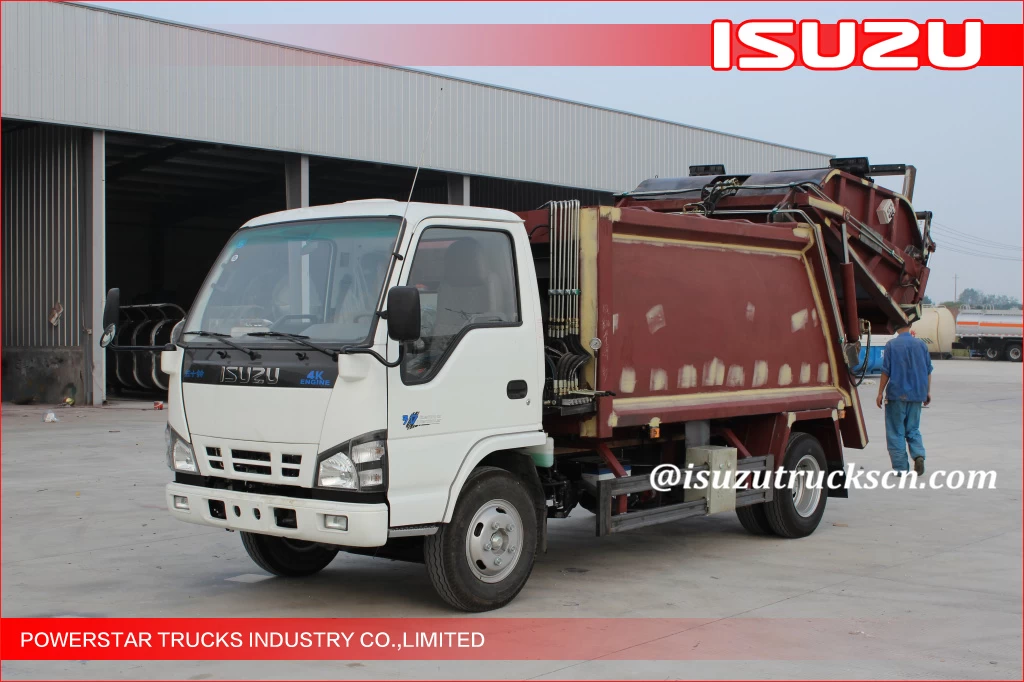

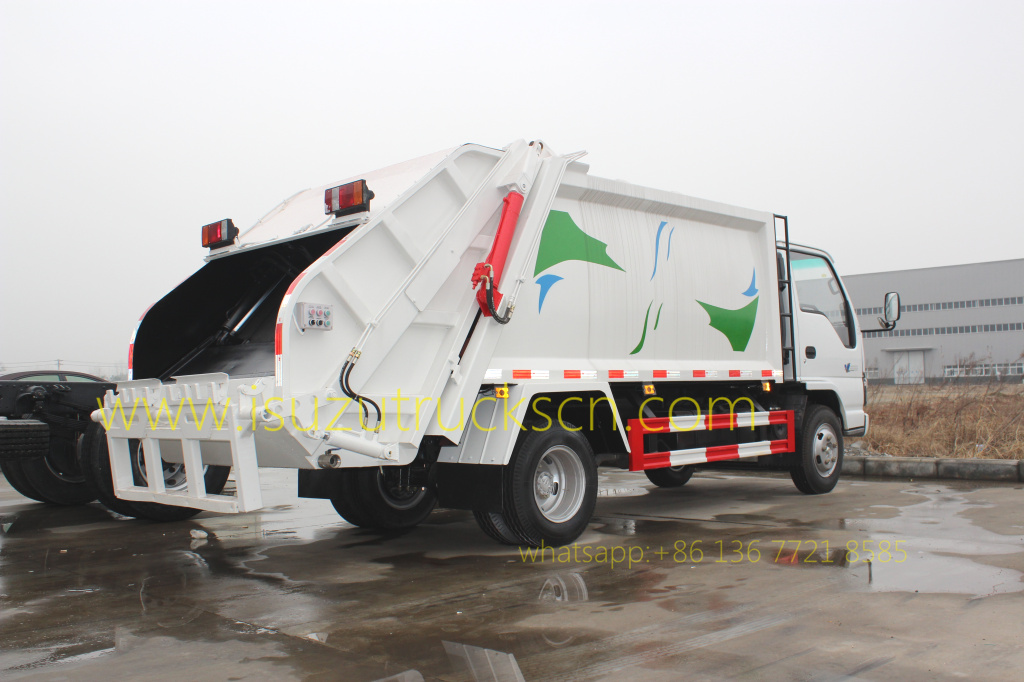

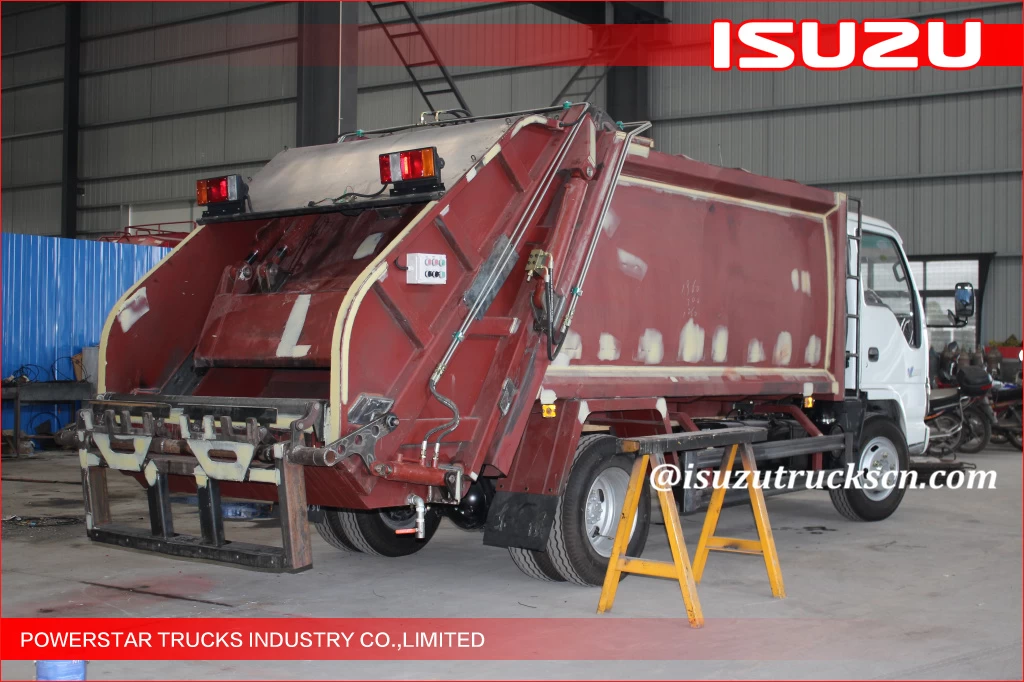

customer build garbage compactor truck Isuzu garbage trucks


customer build garbage compactor truck Isuzu garbage trucks


 how to operation garbage compactor truck?    how to operation garbage compactor truck?

 how to operation garbage compactor truck?    how to operation garbage compactor truck?


Operation manual for Isuzu refuse compactor garbage trucks


Operation manual for Isuzu refuse compactor garbage trucks
