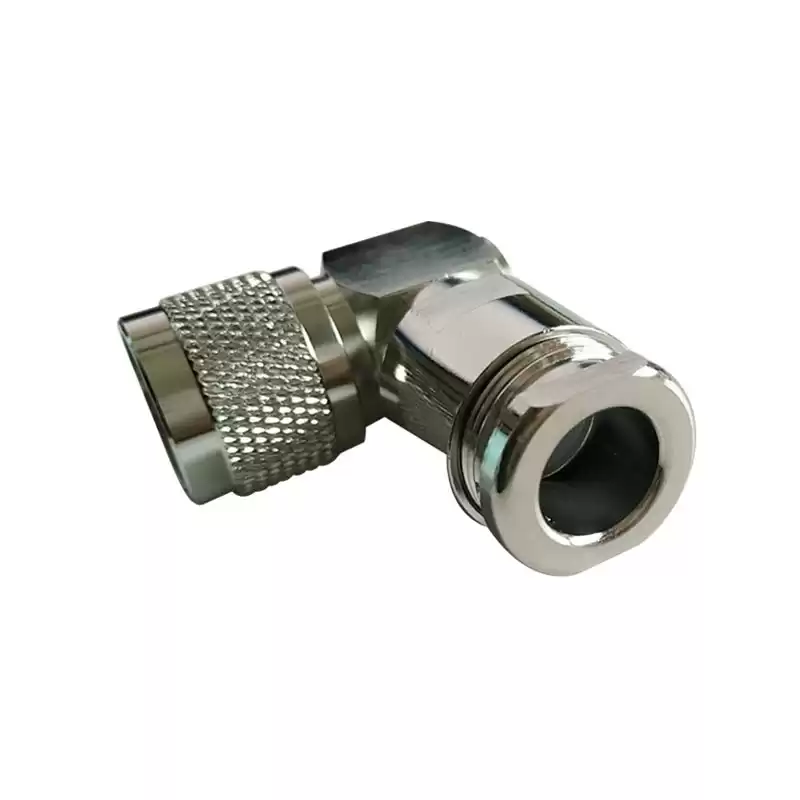

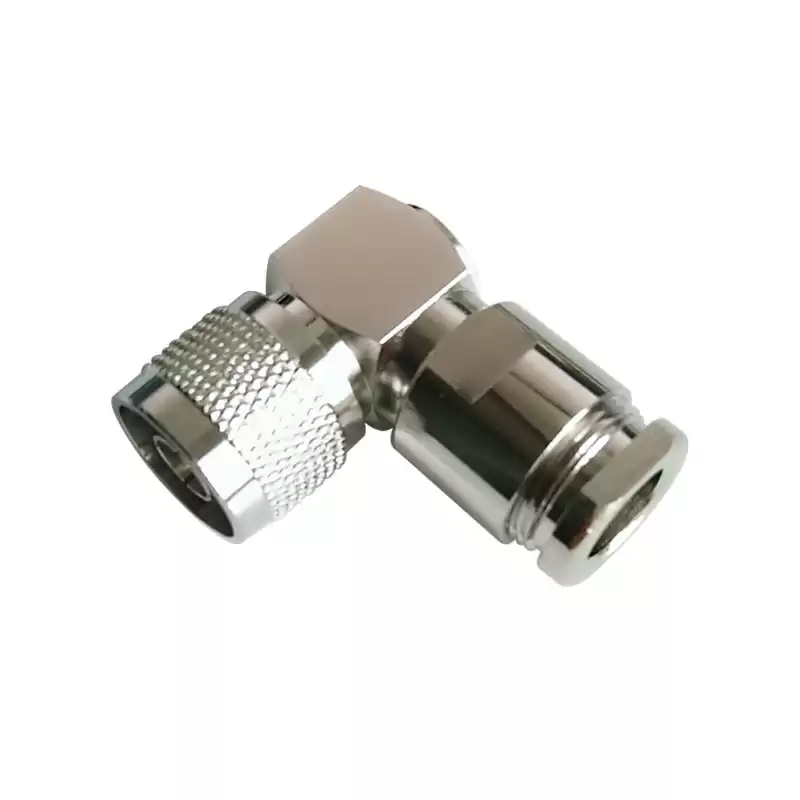

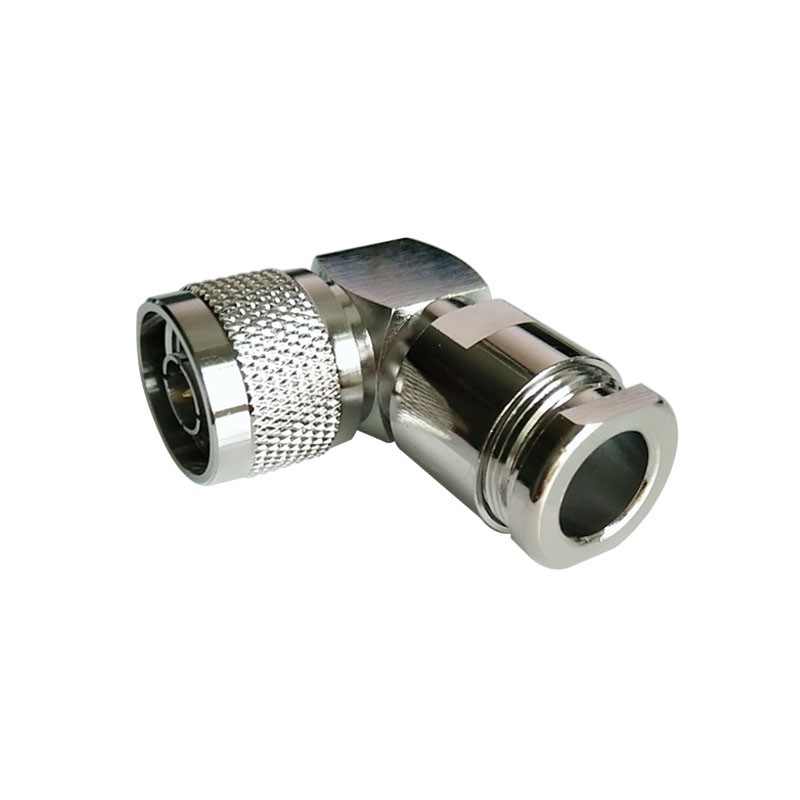

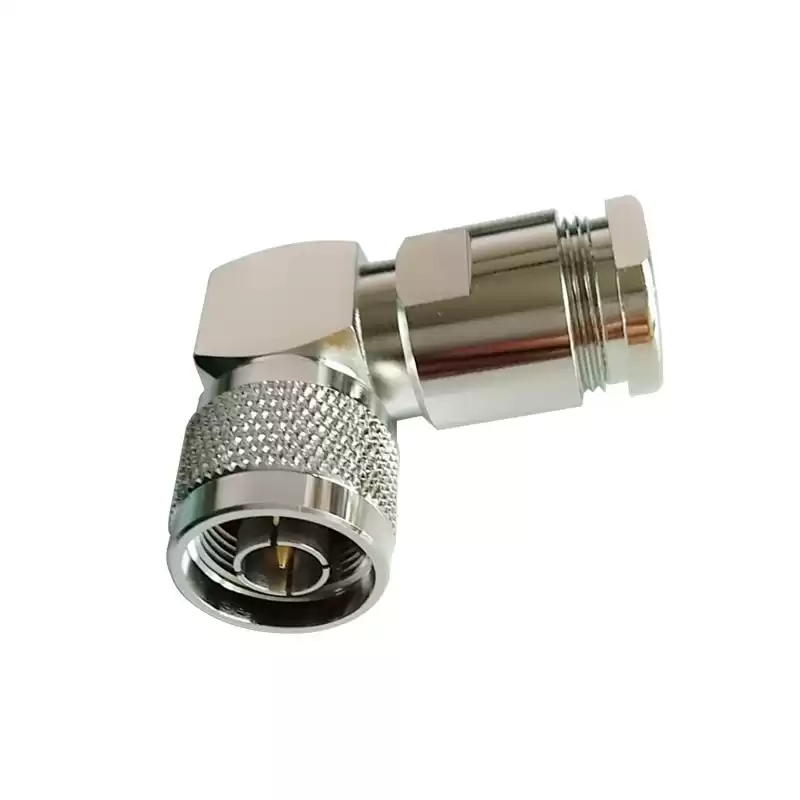

N Male Right Angle Connector Clamp Solder Attachment for RG213 RG214 LMR400 Cable

N type features

  • Can terminate to coax, PCB (printed circuit board) or terminal;
  • Can be male or female gender in standard polarity or reverse polarity threads, with 50ohm impedance;
  • Body can be straight or right angle;
  • Mount Method can be press in, bulkhead, 2 hole panel, 4 hole panel or mount-less;
  • Attachment methods include clamp/solder, clamp/solder (captive contact), crimp/solder, field replaceable, solder or solder/solder;
  • Body is brass or stainless steel.



N Male Right Angle Connector Clamp Solder Attachment for RG213 RG214 LMR400 Cable



The N type connector are designed to satisfy the need for a durable, weatherproof, medium-size RF connector, frequency max up to 11GHz; this type N male coaxial connector has an interface type of RG213 RG214 LMR400 and a 50ohm impedance, attachment method uses shield/contact clamp/solder, its straight body is brass with nickel plating.



Specifications

ELECTRICAL DATA
Impedance                                                                  50Ω
Max Frequency Range  11GHz
Withstand Voltage  2500V,50Hz
Working Voltage 1000V,50Hz (sea level)
Insulation Resistance 5000mΩ
Contact Resistance Inner conductor: 1.0mΩ
Outer conductor: 0.2mΩ
RF leakage(2-3GHz) Flexible: 90dB
3rd order  intermodulation 140dBc
MECHANICAL DATA
Coupling nut torque Recommended: 68Ncm--123Ncm / 6.0 in. lbs--10 in.lbs
Proof torque: 170 Ncm / 15.0 in.lbs
Proof torque 170Ncm / 15.0 in.lbs
Durability (matings) 500
ENVIRONMENTAL DATA
Temperature range -65°C  to +165°C
MATERIAL DATA
Bodies Brass--Nickel plating
Pin contacts Brass--Au/Ag plating
Socket contacts Copper beryllium alloy--Au plating
Crimp ferrules Brass--Ternary alloy plating
Insulator PTFE
Gaskets Silicone rubber



Applications

  • WLAN
  • Base Stations
  • Instrumentation
  • Satellite Systems
  • Antennas
  • Radar Systems
  • Broadcast
  • Surge Protection
