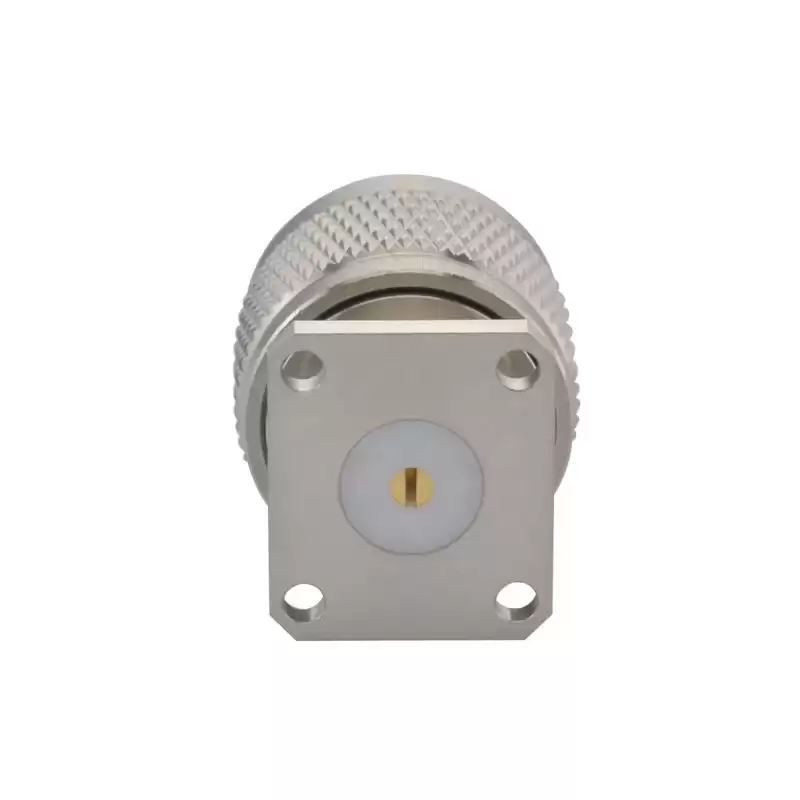

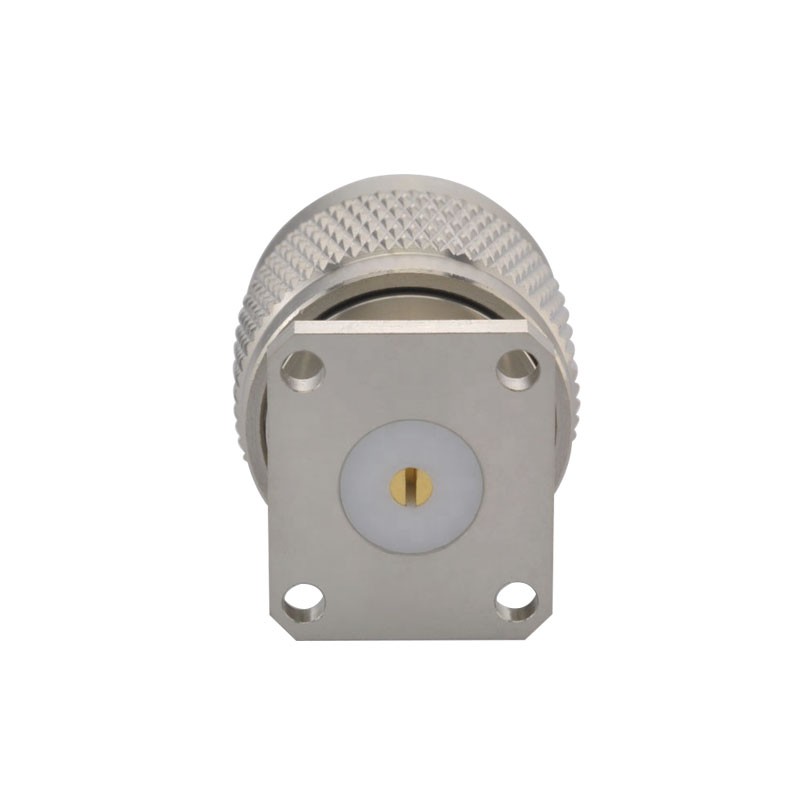

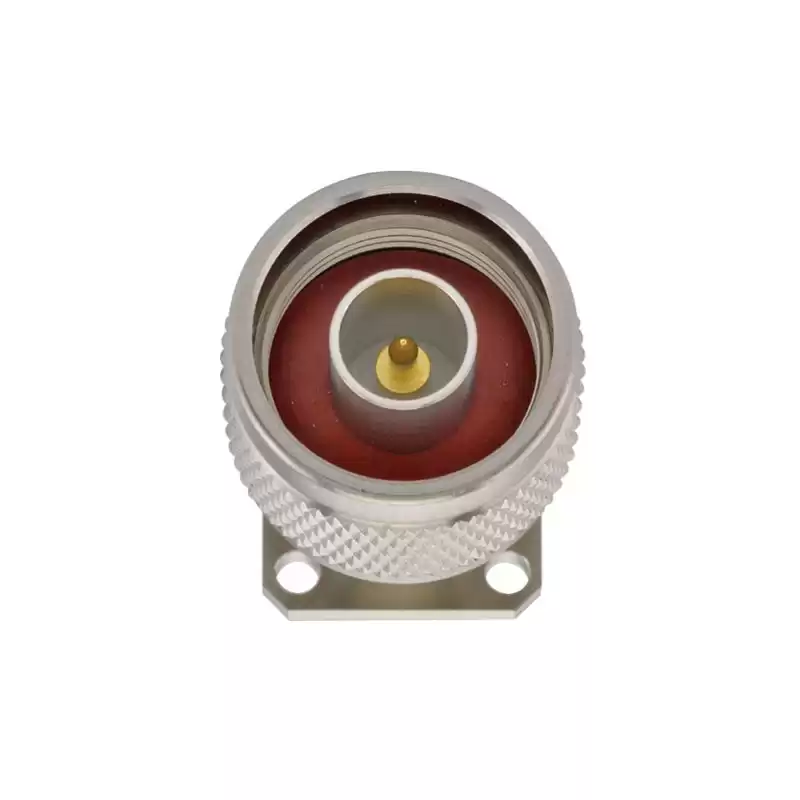

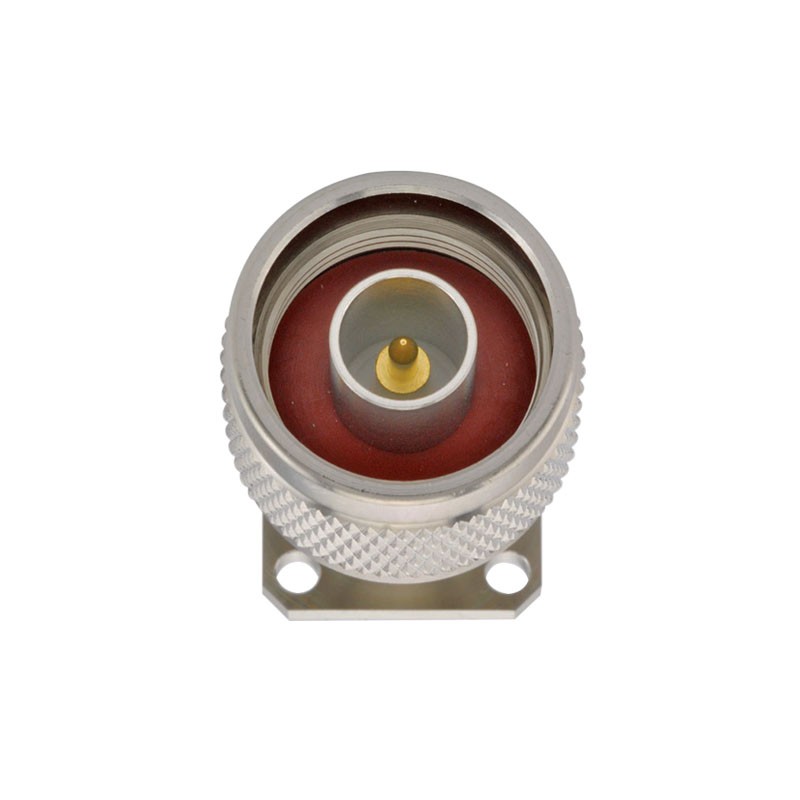

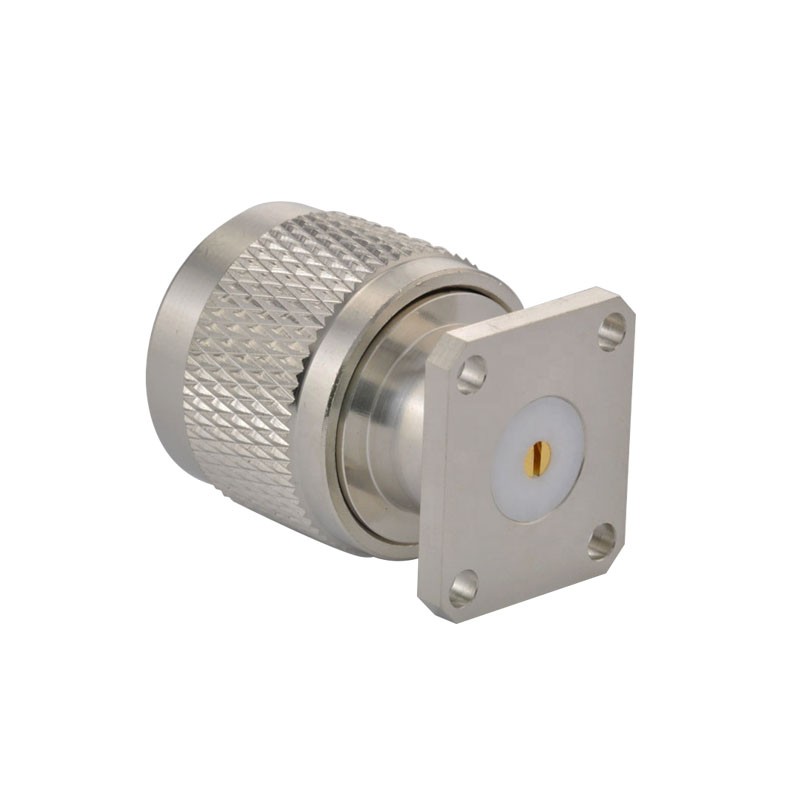

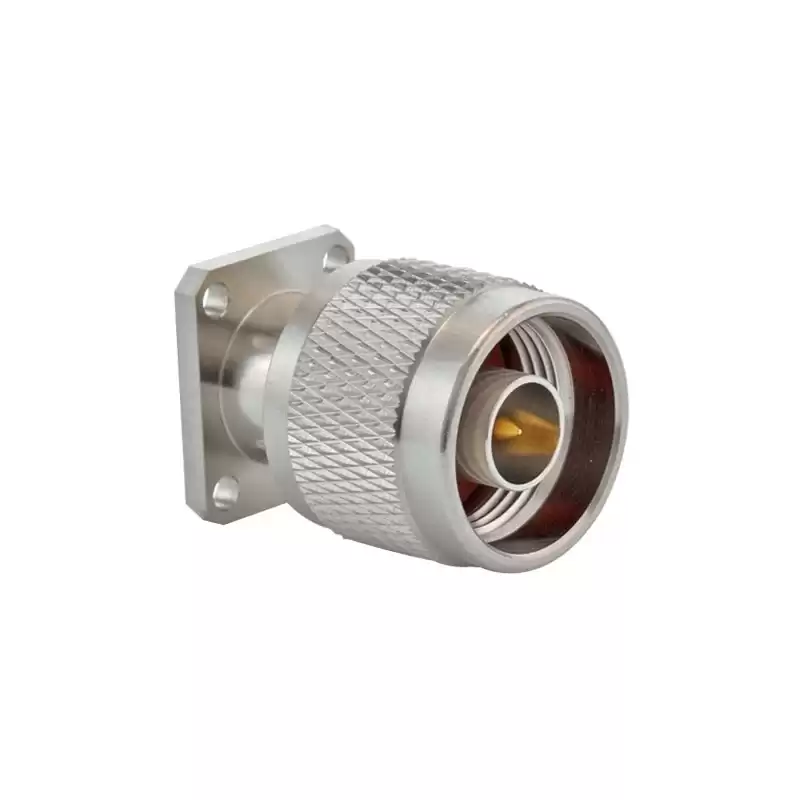

N Type Connector N RF Male Solder Attachment 4 Hole Flange Mount with Slot Terminal
The N type connector are designed to satisfy the need for a durable, weatherproof, medium-size RF connector, frequency max up to 11GHz; this type N male terminal connector with 4 hole flange has an interface type of solder slot and a 50ohm impedance, attachment method uses shield/contact solder, its straight body is brass with nickel plating.
Specifications
| ELECTRICAL DATA |
|
| Impedance |
50Ω |
| Max Frequency Range |
11GHz |
| Withstand Voltage |
≥2500V,50Hz |
| Working Voltage |
≤1000V,50Hz (sea level) |
| Insulation Resistance |
≥5000mΩ |
| Contact Resistance |
Inner conductor: ≤1.0mΩ |
| Outer conductor: ≤0.2mΩ |
| RF leakage(2-3GHz) |
Flexible: ≥90dB |
| 3rd order intermodulation |
≥140dBc |
| MECHANICAL DATA |
|
| Coupling nut torque |
Recommended: 68Ncm--123Ncm / 6.0 in. lbs--10 in.lbs |
| Proof torque: 170 Ncm / 15.0 in.lbs |
| Proof torque |
170Ncm / 15.0 in.lbs |
| Durability (matings) |
≥500 |
| ENVIRONMENTAL DATA |
|
| Temperature range |
-65°C to +165°C |
| MATERIAL DATA |
|
| Bodies |
Brass--Nickel plating |
| Pin contacts |
Brass--Au/Ag plating |
| Socket contacts |
Copper beryllium alloy--Au plating |
| Crimp ferrules |
Brass--Ternary alloy plating |
| Insulator |
PTFE |
| Gaskets |
Silicone rubber |
Applications
- WLAN
- Base Stations
- Instrumentation
- Satellite Systems
- Antennas
- Radar Systems
- Broadcast
- Surge Protection
