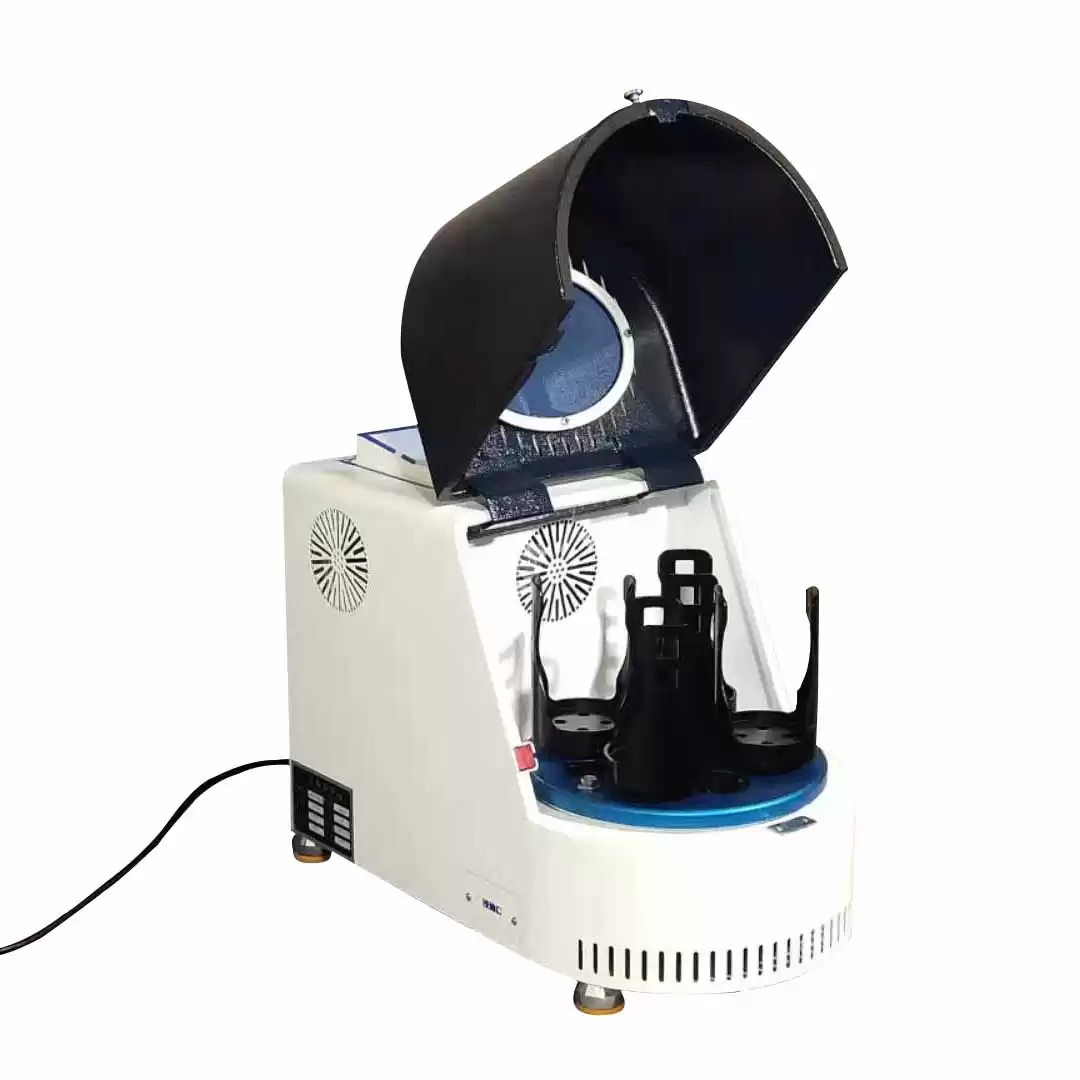

Nano Mill Scale Powder Making Planetary Ball Mill/Nano Grinding Mill For Lab / Small Ball Mill For Sale


Features

Planetary Ball Mill designed for mixing, fine grinding, and preparing small volume high-tech material production, which features with small volume, high efficiency, low noise and Lock clamps. If choosing with optional vacuum jar, it can grind samples under the vacuum condition or filled with inert gas. The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc.


Specifications

Model



Capacity



Specification of milling tank



XQM-0.2



0.2L



50ml

XQM-0.4



0.4L



50ml-100ml



XQM-1



1L



50ml-250ml



XQM-2



2L



50ml-500ml



XQM-4



4L



250ml-1L



XQM-6



6L



lL-1.5L



XQM-8



8L



1L-2L



XQM-10



10L



1L-2.5L



XQM-12



12L



1L-3L



XQM-20



20L



2L-5L



XQM-40



40L



5L-10L



XQM-60



60L



10L-15L



XQM-100



100L



20L-25L




Model

Planetary Ball Mill Machine

Grinding tank volume (L)

According to requirements



Grinding tank material

Maximum loading per tank

Material and grinding medium does not exceed two-thirds of the volume

Feeding material size

Soil material ≤ 10 mm, other materials ≤ 3 mm

Discharge material size

Min 0.1um

Rotating speed

Revolution 335r / min,

Rotation 670r / min

Speed ratio

 (revolution: rotation)

1:2

Speed mode

Frequency, programmable stepless speed regulation, manual, automatic timing forward and reverse

Transfer method

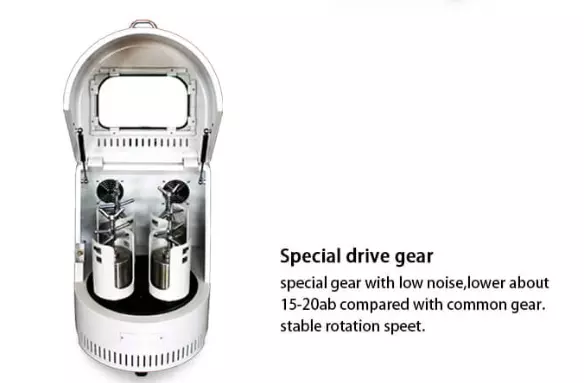

Gear drive

Working Voltage

220V

Way of working

Two or four tanks work at the same time

Maximum continuous operating time

72hours

Machine Size

750*470*564mm

Programmable control (electronic monitoring)

Ball mill using high-tech microcomputer chip control, can be set to forward and reverse alternately run(0-999min) and forward, pause, reverse, pause, forward (0-999min) alternate operation according to the procedure. Particularly suitable for cooling or intermittent operation.


Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

 Selection



Planetary Ball Mill









0.2L-200L total volume optional





















Pictures

 Link



 jar bal mill

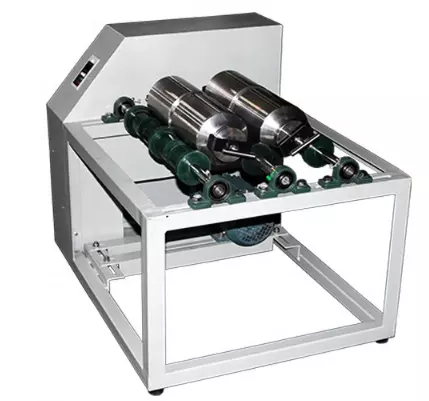

              Rolling Jar Mill



6L planetary ball mill

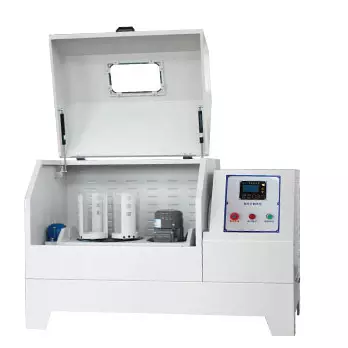

Vertical Planetary Ball Mill(Square )

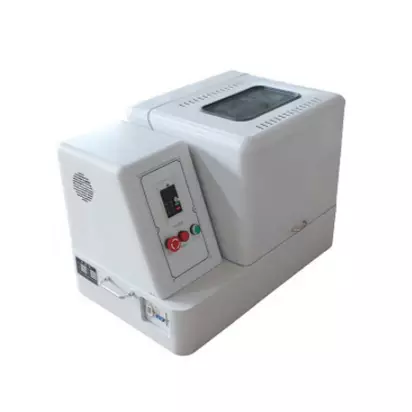

Square ball mill



Horizontal Planetary Ball Mill

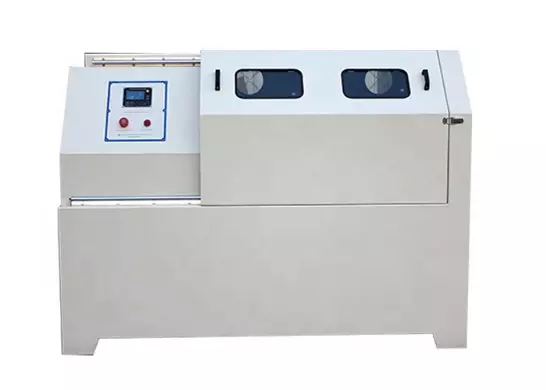

Production type ball mill

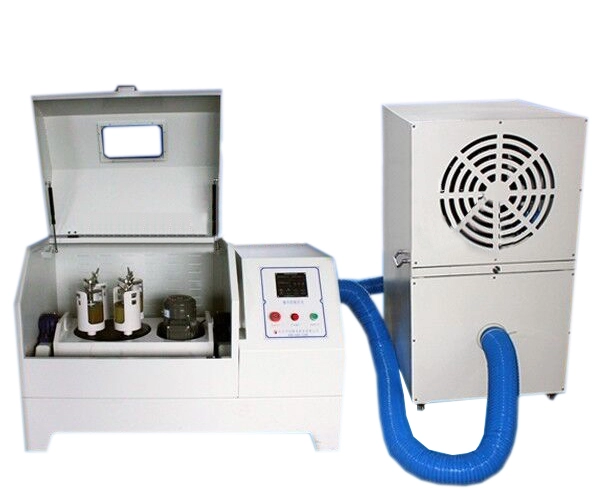

Air-cooling Function Planetary Ball Mill







0.2-200L Lab Compact Planetary Ball Mill Mixing/ Grinding Machine with Jars and Balls for Slurry and Powder Mixing





          Ball Mill for Production

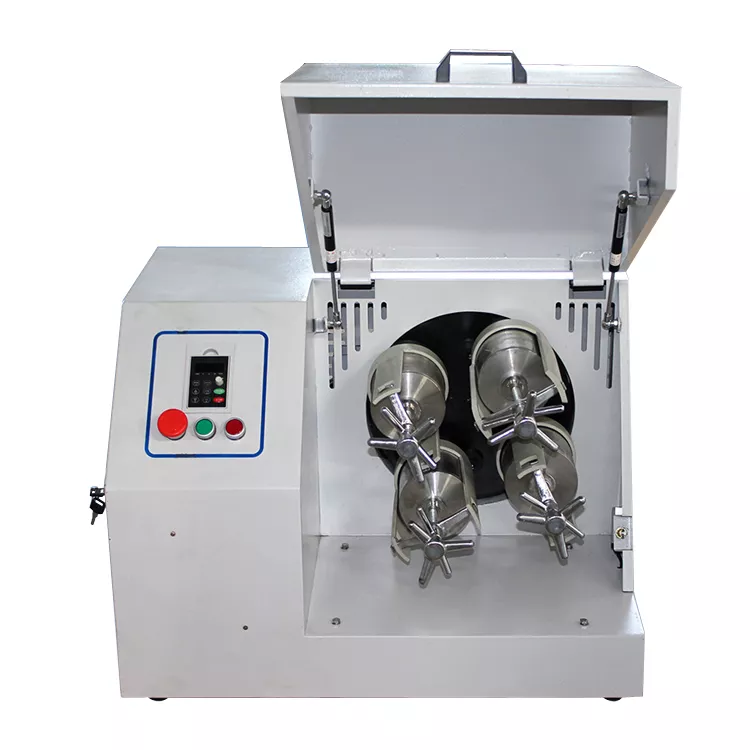

 full directional grinder





Full Directional Rotation Lab Scale Micron Fine Milling Powder Grinding Ball Mill

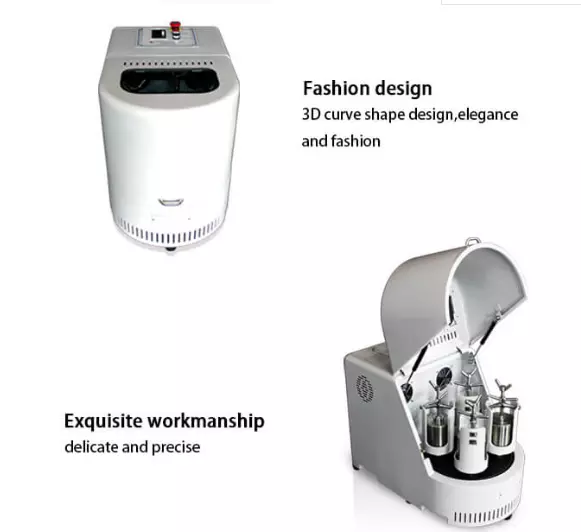

 Product Images

0.2-200L Lab Compact Planetary Ball Mill Mixing/ Grinding Machine with Jars and Balls for Slurry and Powder Mixing
