What Is a Nanocrystalline Core for Power?

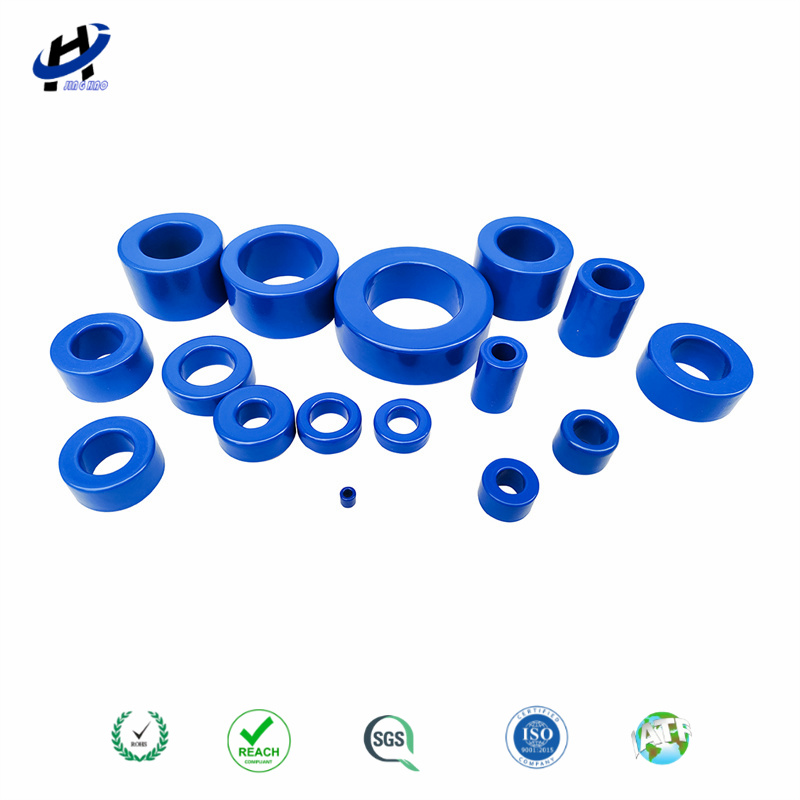

Our nanocrystalline magnetic cores are engineered for advanced power electronics, offering exceptional magnetic performance in compact form factors. Manufactured using Fe-based alloys with nanometer-sized crystalline structures, these cores combine ultra-high initial permeability, low coercivity, and outstanding thermal stability—making them ideal for high-efficiency and high-frequency power applications such as EV chargers, inverters, and EMI filters.
All cores are coated with high-insulation epoxy or customized paint layers to ensure reliable dielectric performance and corrosion resistance.
Material Characteristics
| Saturation flux density induction |
1.20T |
| Permeability @ 10KHz |
>80000 |
| Permeability @ 100KHz |
>20000 |
| Curie temperature |
570 °C |
| Stacking factor |
0.8 |
| Resistivity |
130 μΩ.cm |
| Working Temperature |
-40 ~ 140°C |
| Density |
7.2 g / cm3 |
| Ribbon Thickness |
12 ~ 25 μm |

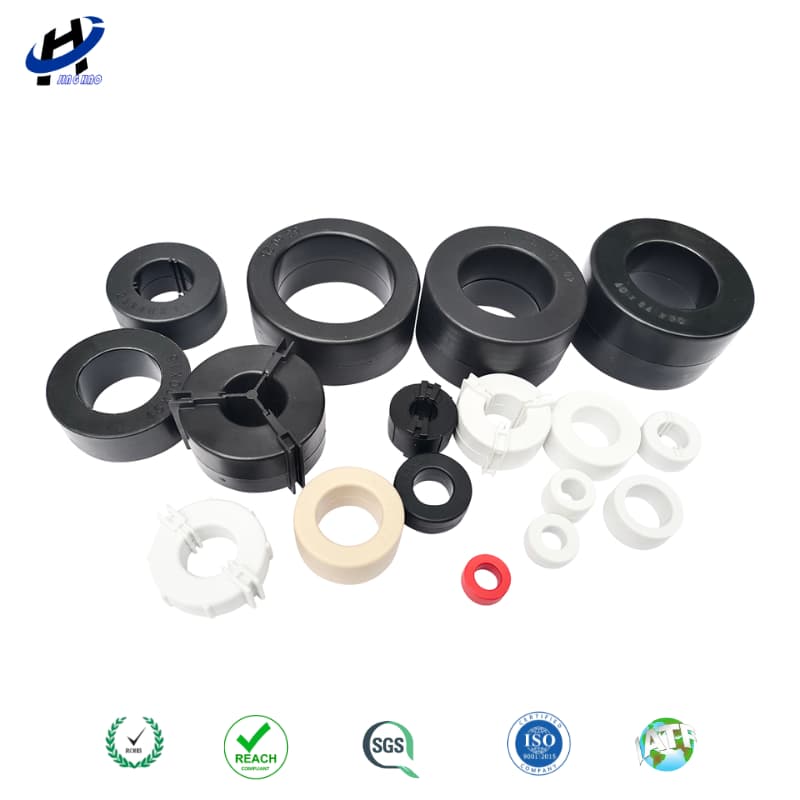

| Core shapes |

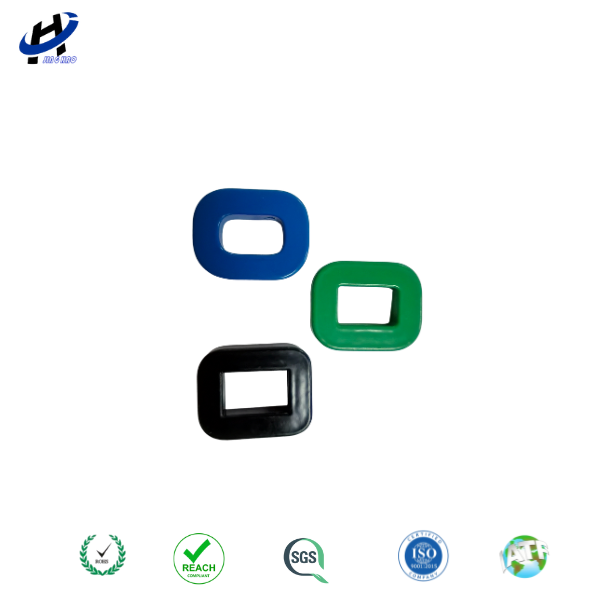

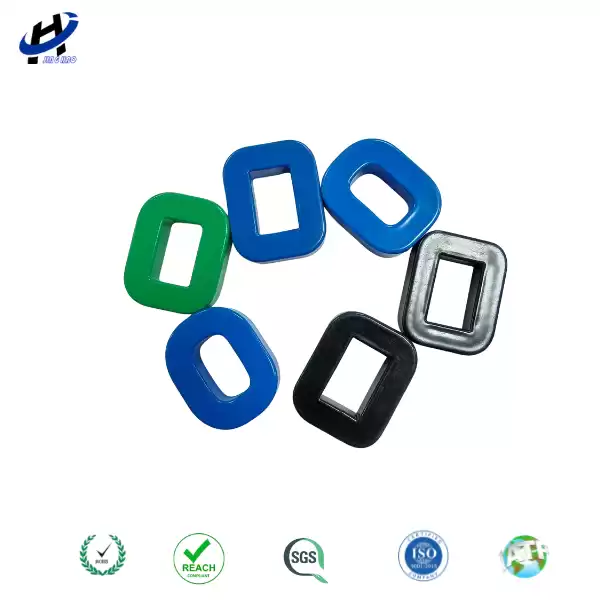

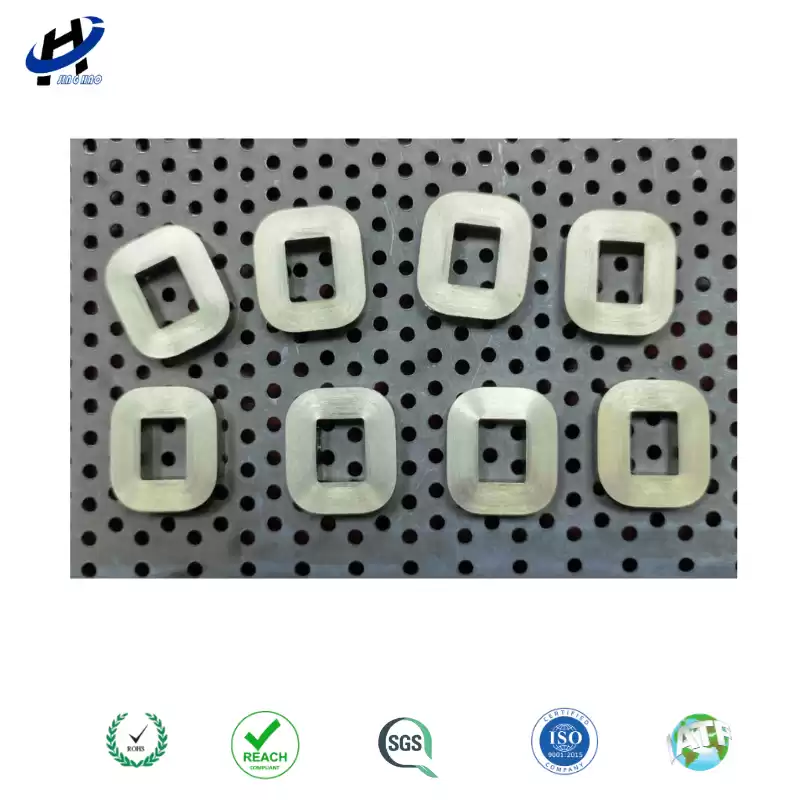

Troidal core / C Core / Customizable |
| Finish |
Coating / Casing / Customizing |
Key Features
-
High Initial Permeability (μᵢ > 80,000): Provides efficient magnetic flux conduction, enabling compact transformer designs without compromising performance.
-
High Saturation Flux Density (Bₛ ≈ 1.20 T): Enables the core to handle higher currents without reaching saturation, ensuring reliable operation in demanding applications.
-
Low Core Loss: Demonstrates minimal energy loss at high frequencies, contributing to improved efficiency and reduced heat generation.
-
Wide Operating Temperature Range (–40°C to +140°C): Maintains stable performance across a broad temperature spectrum, making it suitable for various environmental conditions.
-
Excellent Frequency Characteristics: Maintains stable permeability over a wide frequency range, ensuring effective noise suppression and consistent performance.
-
High Linearity and Precision: Offers excellent linearity and low distortion, making it ideal for high-accuracy metering applications.
Typical Applications
-
-
EV On-board Charger Input/Output Filters
-
High-frequency Common Mode and Differential Mode Chokes
-
Solar Inverter Output Stages
-
Switch Mode Power Supplies (SMPS)
-
EMI Suppression for Automotive, Railway, Aerospace, and Industrial Drives
-
Power Factor Correction (PFC) Circuits
Custom Options
| Parameter |
Specification |
| Outer Dimensions |
4 ~130 mm |
| Core Material |
Fe-based Nanocrystalline / Fe-based Amorphous |
| Inductance & Impedance |
Customizable upon request |
Customized sizes, inductance values, and coating types are available. Contact us for technical consultation and design support.
Why Choose Dongguan JH Amorphous Nanocrystalline Cores
-

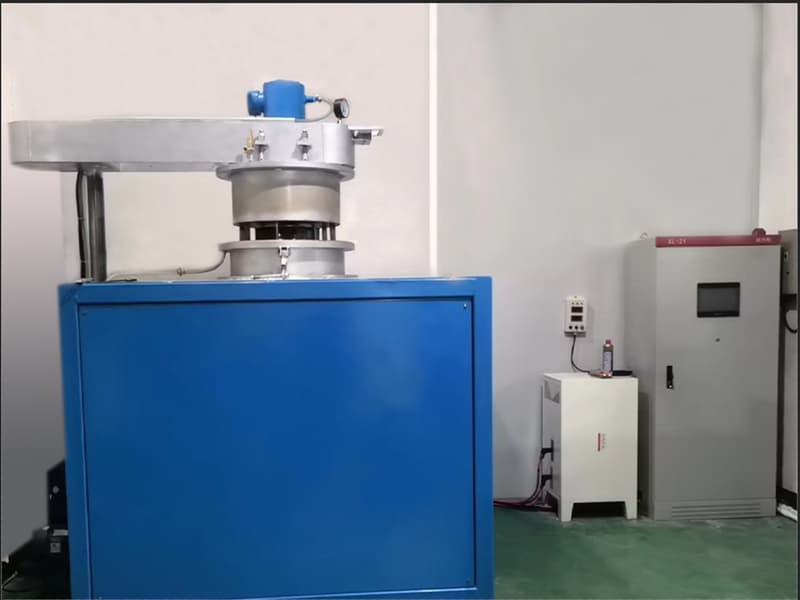

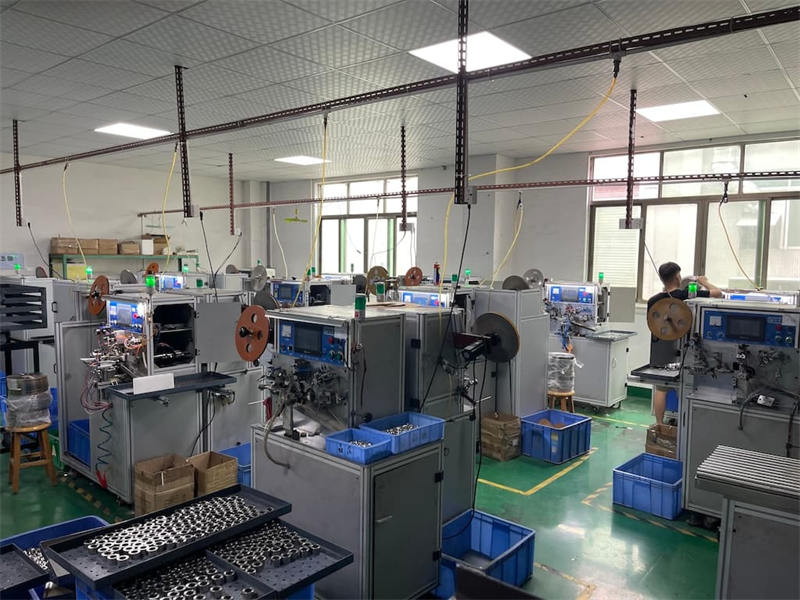

Precision manufacturing with consistent quality
-
Space-saving design optimized for modern electronic systems
-

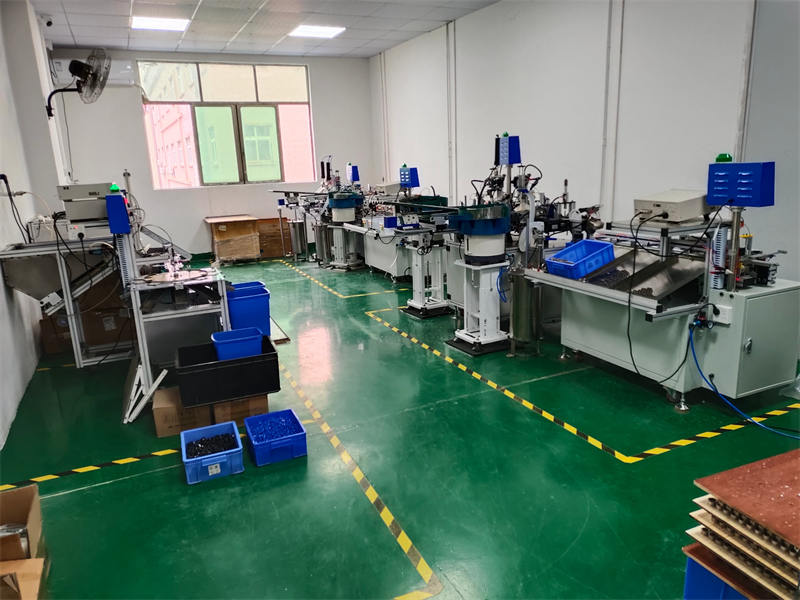

Rapid prototyping and flexible production scalability
-
Full compliance with RoHS/REACH environmental regulations
Certificates
Dongguan JH Amorphous, a leading professional one-stop amorphous cores manufacturer.
We offer magnet solutions from design to worry-free after-sales. Let talk about your distinct project now!
