What Is a Nanocrystalline Core?
A nanocrystalline core is a magnetic component made from an iron-based nanocrystalline alloy with a nanocrystalline microstructure. This structure imparts superior magnetic properties, including high permeability and low core losses, making them ideal for high-accuracy metering applications. Compared to traditional ferrite cores, nanocrystalline cores offer enhanced performance in terms of linearity, thermal stability, and compactness.
Material Characteristics
| Saturation flux density induction |
1.20T |
| Permeability @ 10KHz |
>80000 |
| Permeability @ 100KHz |
>20000 |
| Curie temperature |
570 °C |
| Stacking factor |
0.8 |
| Resistivity |
130 μΩ.cm |
| Working Temperature |
-40 ~ 140°C |
| Density |
7.2 g / cm3 |
| Ribbon Thickness |
12 ~ 25 μm |

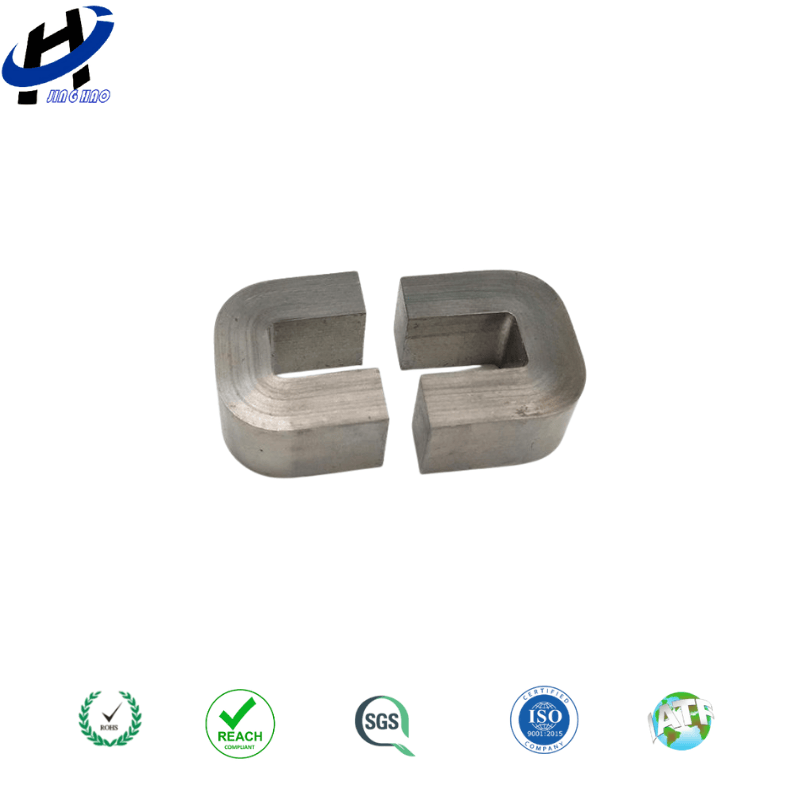

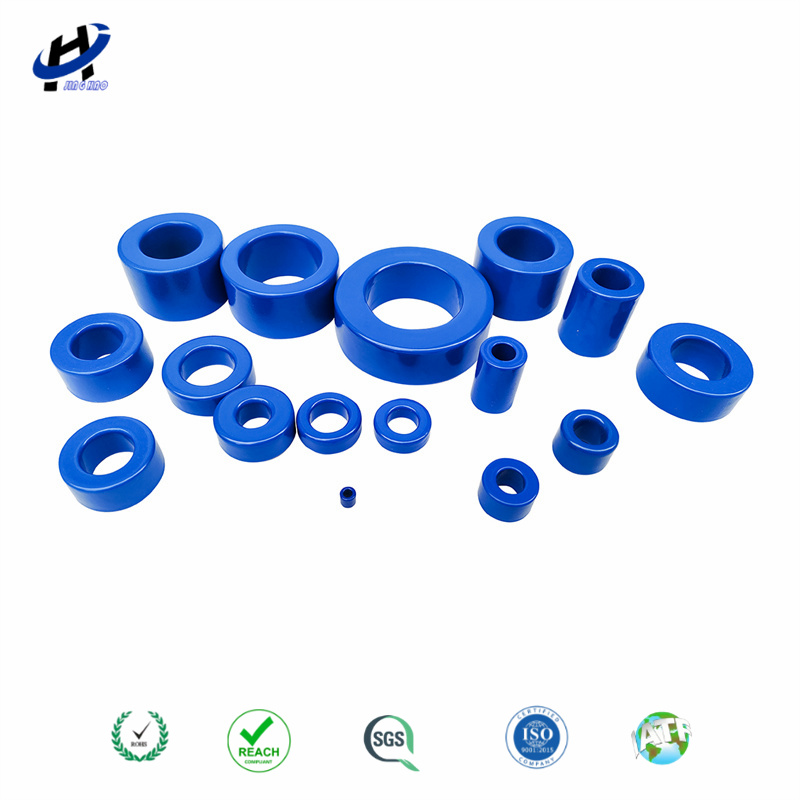

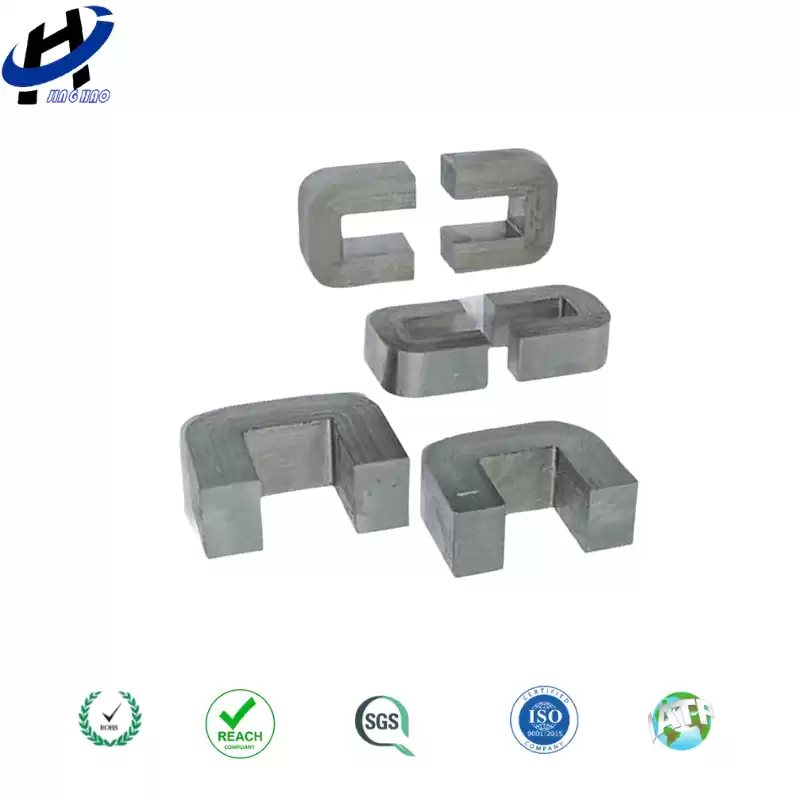

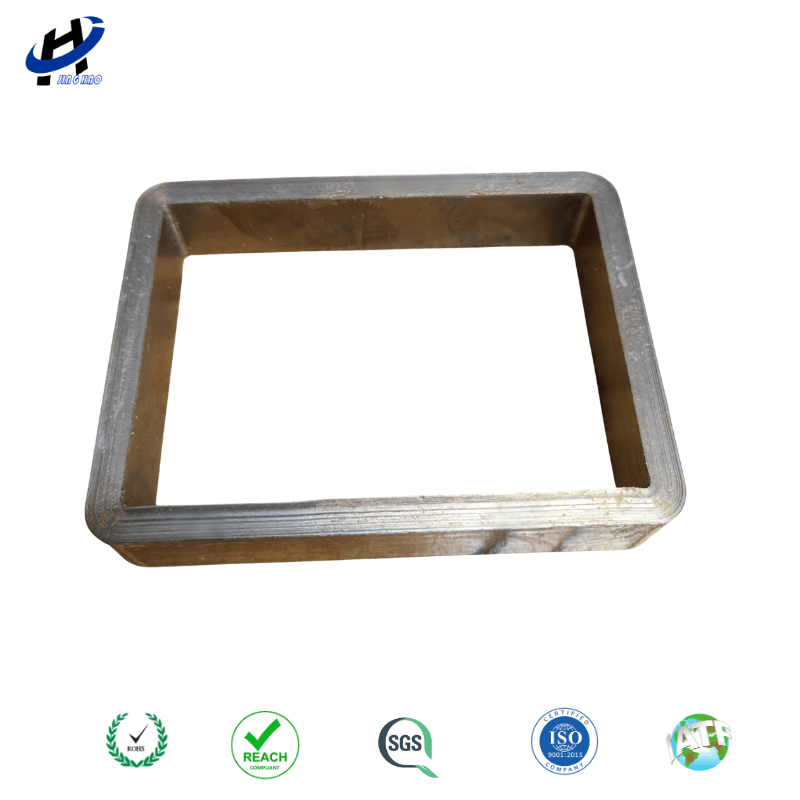

| Core shapes |
Troidal core / C Core / Customizable |

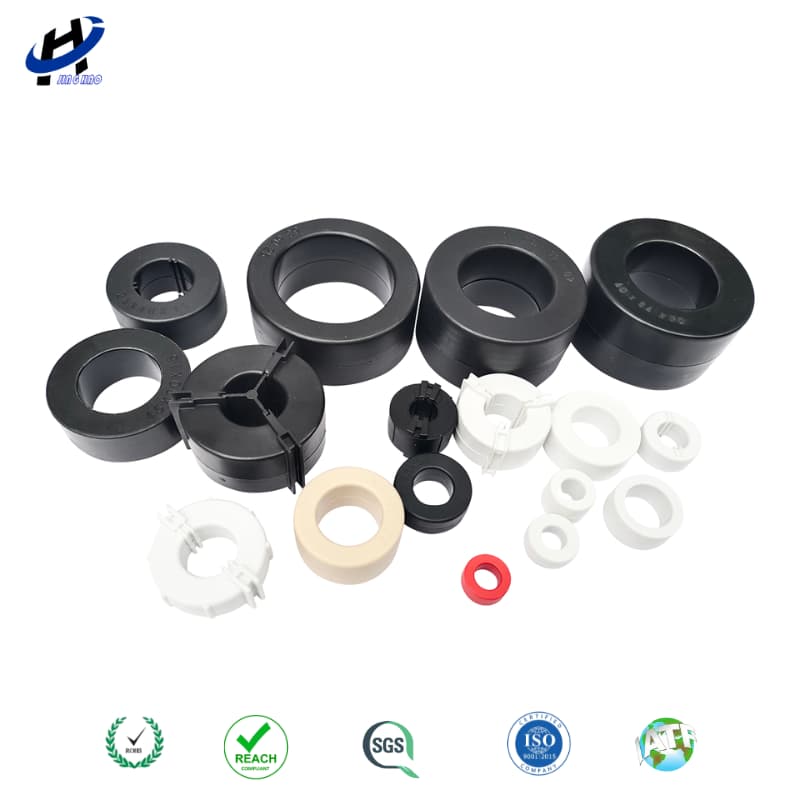

| Finish |
Coating / Casing / Customizing |
Key Features
-
High Initial Permeability (μᵢ > 80,000): Provides efficient magnetic flux conduction, enabling compact transformer designs without compromising performance.
-
High Saturation Flux Density (Bₛ ≈ 1.20 T): Enables the core to handle higher currents without reaching saturation, ensuring reliable operation in demanding applications.
-
Low Core Loss: Demonstrates minimal energy loss at high frequencies, contributing to improved efficiency and reduced heat generation.
-
Wide Operating Temperature Range (–40°C to +140°C): Maintains stable performance across a broad temperature spectrum, making it suitable for various environmental conditions.
-
Excellent Frequency Characteristics: Maintains stable permeability over a wide frequency range, ensuring effective noise suppression and consistent performance.
-
High Linearity and Precision: Offers excellent linearity and low distortion, making it ideal for high-accuracy metering applications.
Typical Applications
-
-
Solar Inverters: Used to convert DC power from solar panels to AC power efficiently, facilitating the integration of solar energy into the grid.
-
Wind Turbine Generators: Employed in wind energy systems to convert mechanical energy into electrical energy with minimal losses.
-
Energy Storage Systems: Integrated into battery storage solutions to enhance energy retention and stability.
-
Electric Vehicle (EV) Charging Stations: Applied in EV chargers to ensure efficient power delivery and reduce energy losses.
-
Power Conditioning Systems: Utilized in systems that manage and stabilize power flow in renewable energy setups.
Custom Options
| Parameter |
Specification |
| Outer Dimensions |
4 ~130 mm |
| Core Material |
Fe-based Nanocrystalline / Fe-based Amorphous |
| Inductance & Impedance |
Customizable upon request |
Customized sizes, inductance values, and coating types are available. Contact us for technical consultation and design support.
Why Choose Dongguan JH Amorphous Cores
-
Precision manufacturing with consistent quality
-
Space-saving design optimized for modern electronic systems
-
Rapid prototyping and flexible production scalability
-
Full compliance with RoHS/REACH environmental regulations
