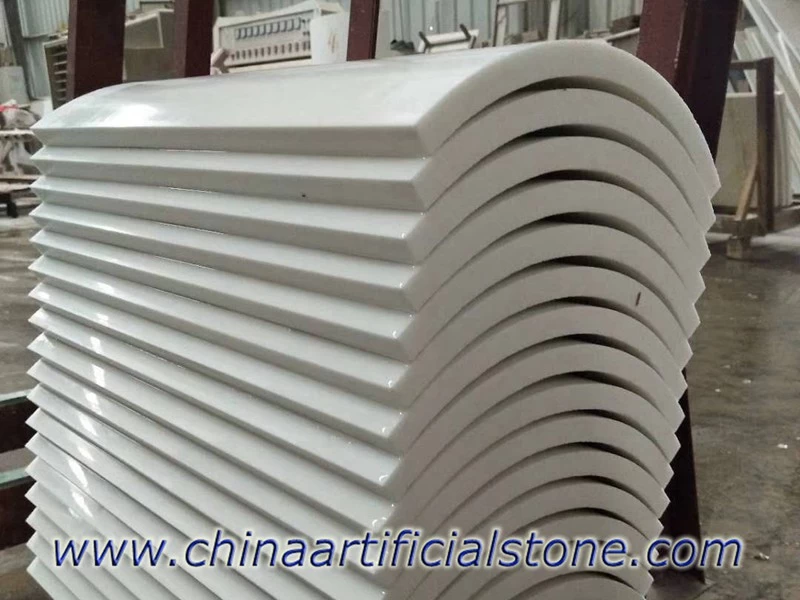

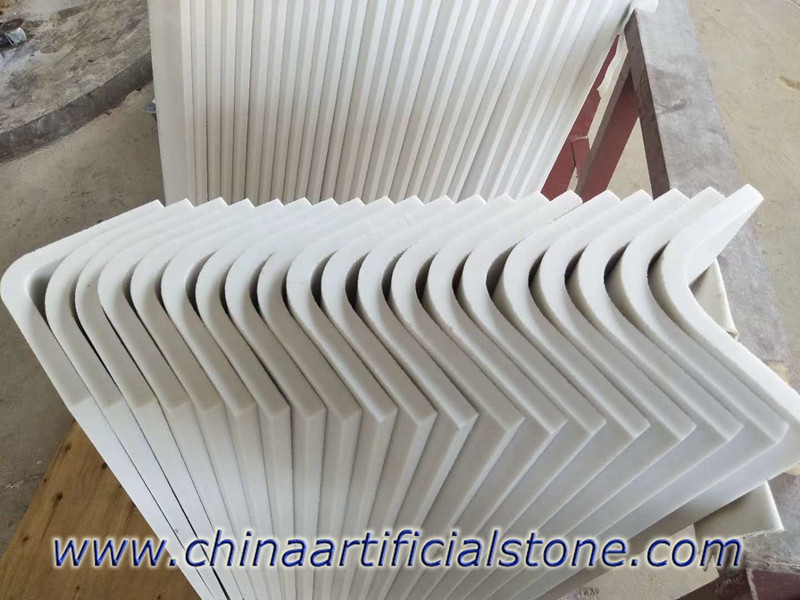

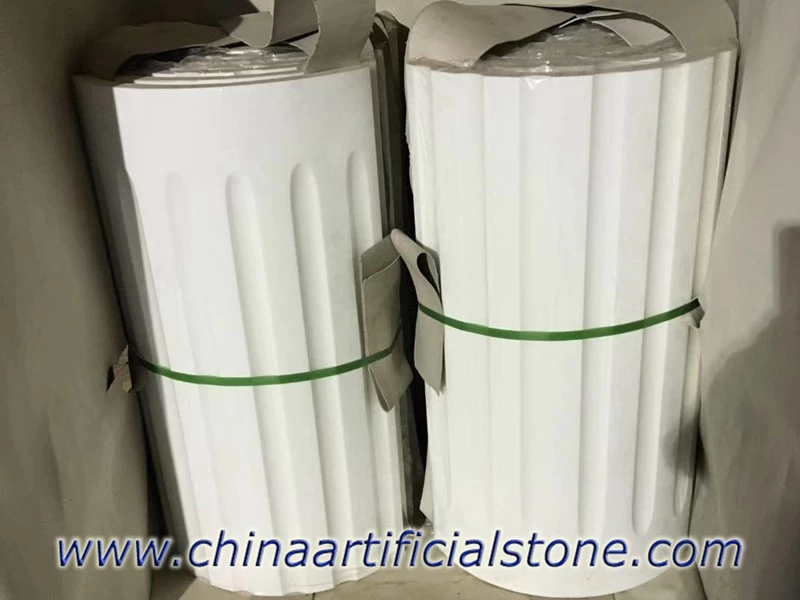

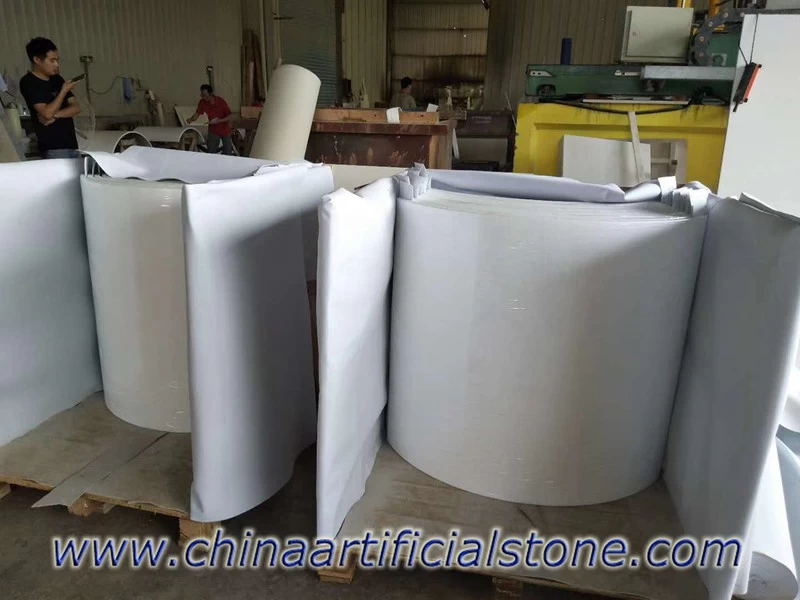

Nanoglass Pure White Nano Marble Granite Glass Columns. We are able to fabricate the Nanoglass slabs into curve shape panels by high temperature remold for Round Columns and Square column Pilaster with special shape borders or grooves.
Nanoglass is also called as Nano White Marble, Nano White Granite, Nano White Stone, it is a hard engineered Pure White Stone, Moh's hardness can reach 6.5. Nanoglass has better performance in respects of mechanical strength, anti-wearing, corrosive resistance, electricity isolation heat expansion coefficient, heat stability, temperature resistance etc. It is a competitive GREEN construction material in the 21st century. It is suitable for internal and external wall, floors, work tops and columns etc.
|
Color
Code:
|
CN-003
|
|
Color Name:
|
Nanoglass Pure White Nano Marble Granite Glass
|
|
Color Tone:
|
Super White
|
|
Finish:
|
Polished,
Bushhammered
|
|
Slab Size:
|
2800x1500mm,
2800x1600mm etc.
|
|
Tiles Size:
|
300x300, 300x600,
600x600, 600x1200mm etc.
|
|
Thickness:
|
18mm normal
thickness, 12mm, 20mm, 30mm special thickness
|
|
HS Code:
|
701690900
Crystallized Glass Slabs
7006000090 Crystallized Glass Countertops / Columns etc.
|
|
Application:
|
Interior and Exterior White Nano Crystal Glass Work tops
application:
Kitchen Countertops, Backsplash, Work Tops, Bench tops, Table Tops, Bathroom Shower Wall, Vanity tops;
Exterior and Interior White Nano Crystal Glass
Flooring Tiles;
Exterior and Interior White Nano Crystal Glass Wall Facade Tiles;

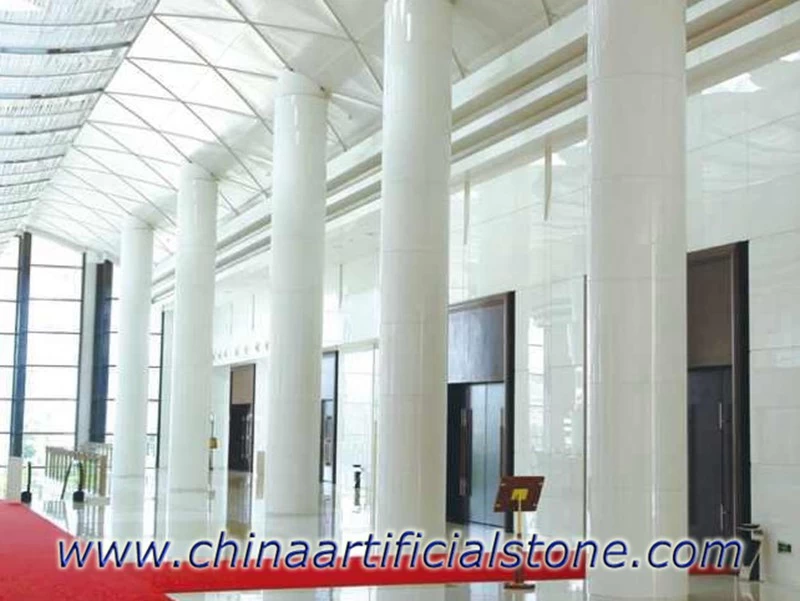

Exterior and Interior White Nano Crystal Glass Column Shafts;
|
Nanoglass Pure White Nano Marble Granite Glass
|
Test Report
|
|
|
|
|
|
|
|
|
|
Material
Name: Nanoglass CN-003
|
Center Ref No.:
WT2016B02N00620
|
|
|
Manufcacturer:
Enming Art Stone Co., Ltd.
|
Report Date: March
23th., 2016
|
|
|
|
|
|
|
|
|
|
|
No.
|
Test Items
|
Standard Index
|
Test Results
|
Individual
Conclusion
|
Test Standard
|
|
1
|
Specular Gloss
|
High
Class Products≥85
|
86
|
Pass
|
JC/T872-2000
|
|
2
|
Flexural Strength
|
|
71.5MPa
|
Pass
|
|
3
|
Mohs' Hardness
|
Grade 5 to Grade 6
|
Grade 6
|
Pass
|
|
4
|
Thermal Shock Resistance
|
No Crazing
|
No Crazing
|
Pass
|
|
5
|
Radionuclides(Class A)
|
Internal
Exposure Index
|
A
class:≤1.0
|
0.1
|
A Class
|
GB6566-2010
|
|
External Exposure Index
|
A
class:≤1.3
|
0.11
|
A Class
|
|
6
|
Water Absorption
|
-----------
|
0.003%
|
-----------
|
GB/T3810.3-2006
|
|
7
|
Apparent Relative Density
|
-----------
|
2.580%
|
-----------
|
|
8
|
Abrasion Resistance
|
-----------
|
1.1x10-3g/cm2
|
-----------
|
Refer
to SN/T0308-93
|
|
9
|
Point Impact
|
-----------
|
The
unit Showed no Cracks and Chips after 1kg steel ball droped from a height of
50cm
|
-----------
|
|
10
|
Compression Strength
|
-----------
|
505MPa
|
-----------
|
Refer
to JC/T262-93
|
|
11
|
Impact Toughness
|
-----------
|
3.5KJ/m2
|
-----------
|
Refer
to JC/T259-93
|
|
12
|
Linnear Thermal Expansion
|
-----------
|
8.8x10-6。C-1
|
-----------
|
Refer
to GB/T 3810.8-2006
|
|
13
|
High Tempture. Resistance
|
-----------
|
No
Cracking, Crazing, Blistering, No Color Differences
|
-----------
|
Refer to JC/T 908-2013
|
|
14
|
Load Test
|
-----------
|
No
Cracking (Residual deflection is 0.02mm)
|
-----------
|
|
15
|
Chemical Resistance
|
-----------
|
The
surface finish is unaffected
|
-----------
|
|
|
|
|
|
|
|
|
|
Test
by: National Research Center of Testing Techniques for Building Materials
|
|
|
Add：South Building,China Building
Material Center, Guan Zhuang, Chaoyang District, Beijing China.
|
