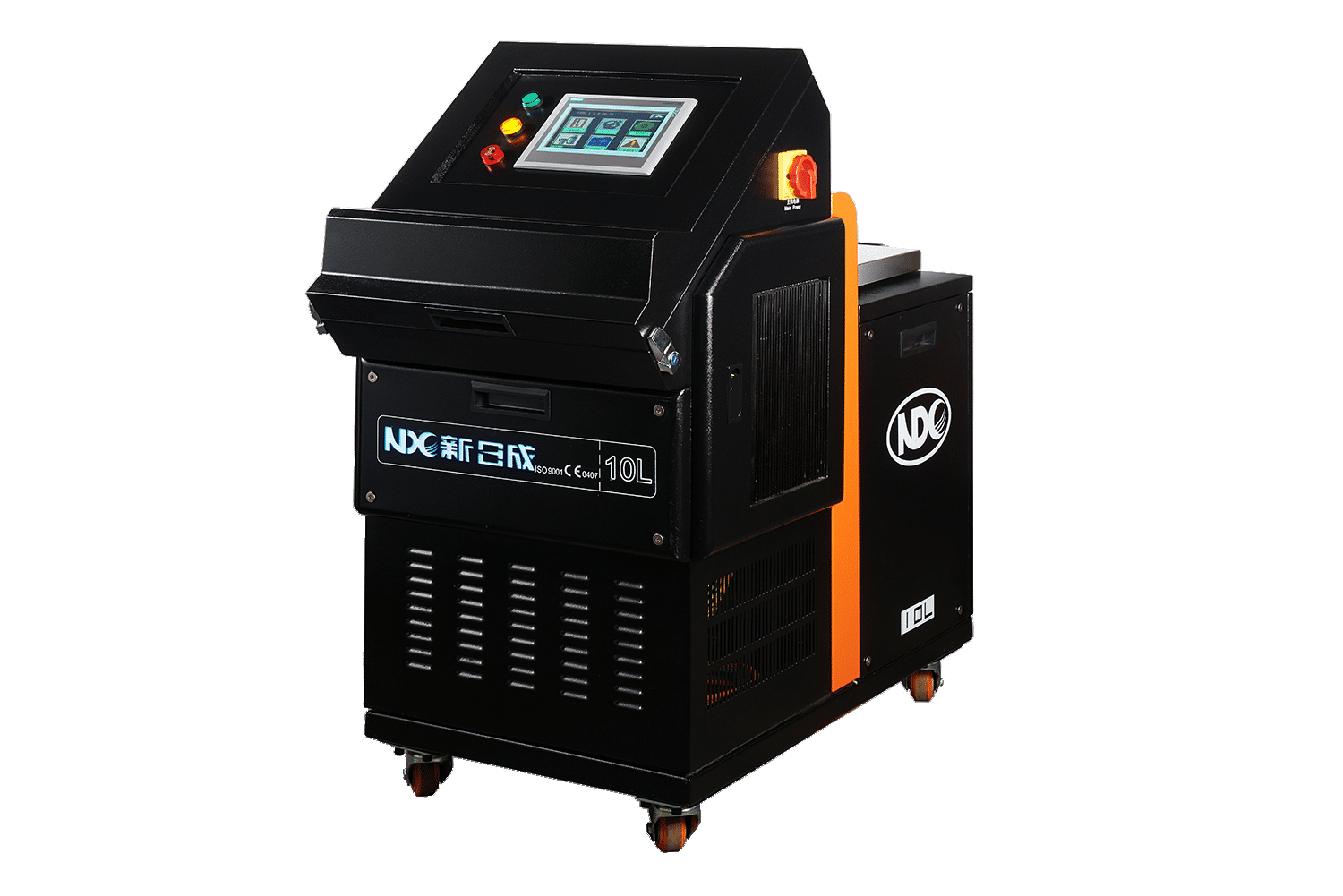

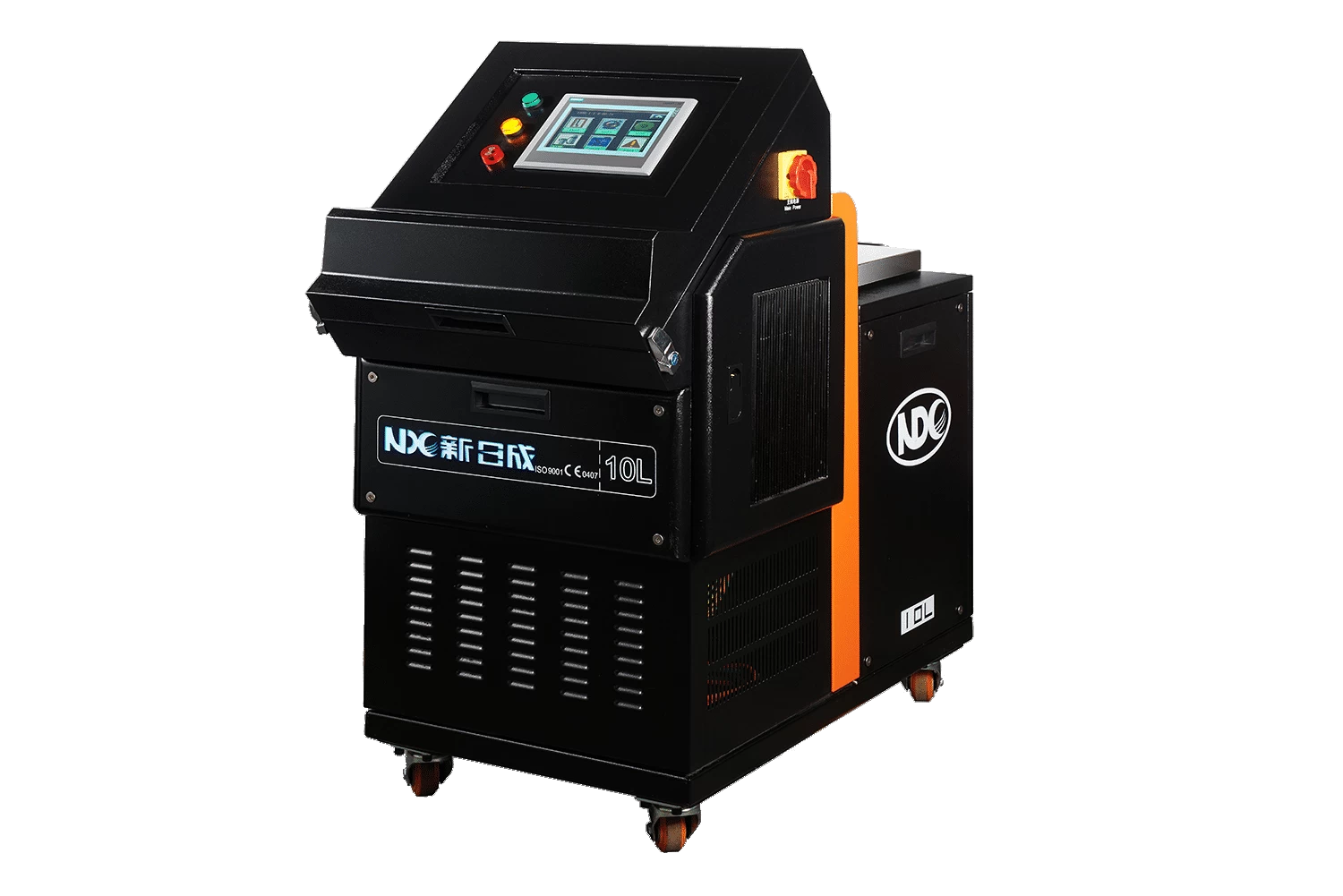

NDC NEW RISE Series Melter

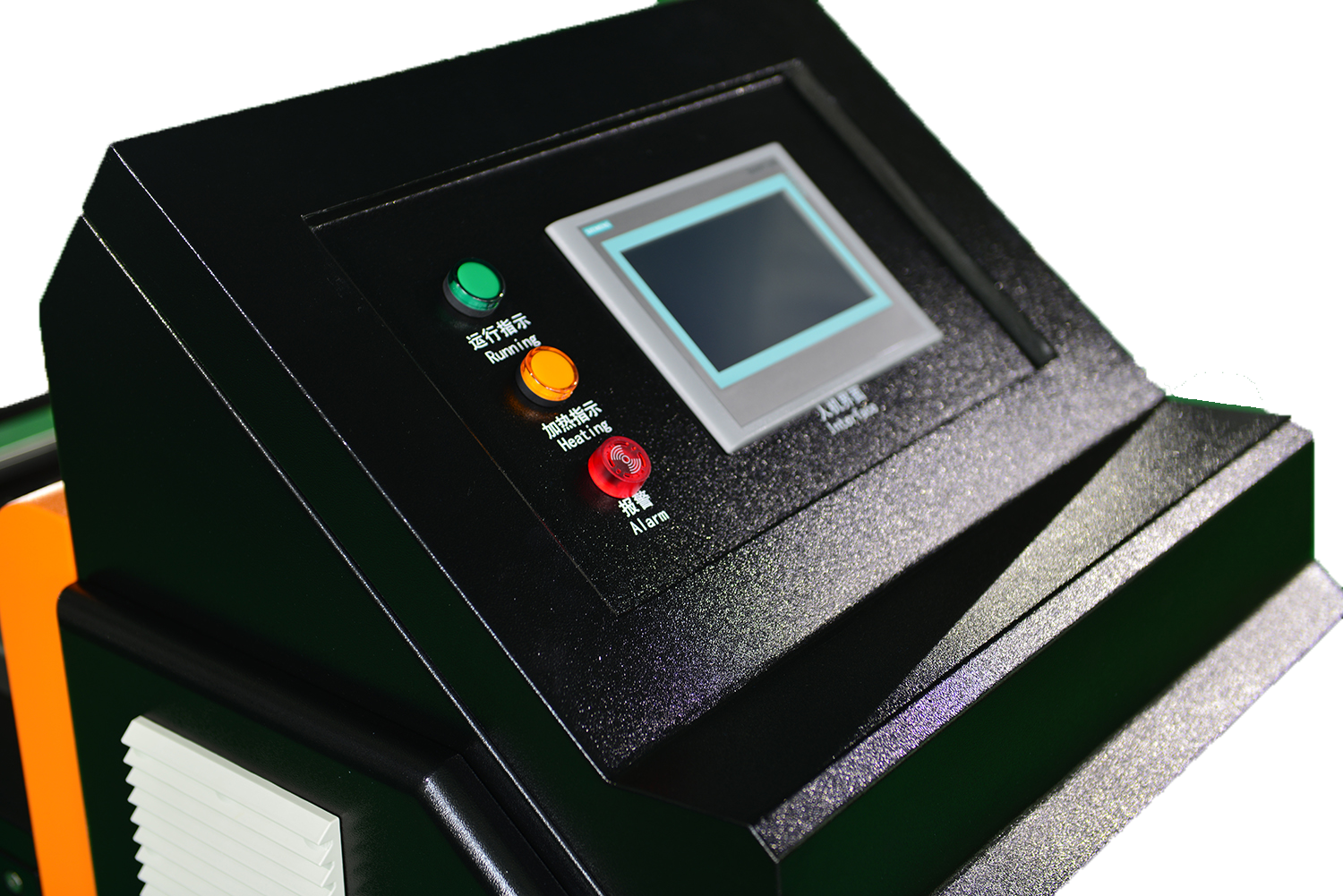

With Simens PLC control system, it provides fully control and operation.

Stable system & Precise control

main electronic components adopts international famous brand to ensure the stability of the system and control accuracy.

4L-1000L are optional.

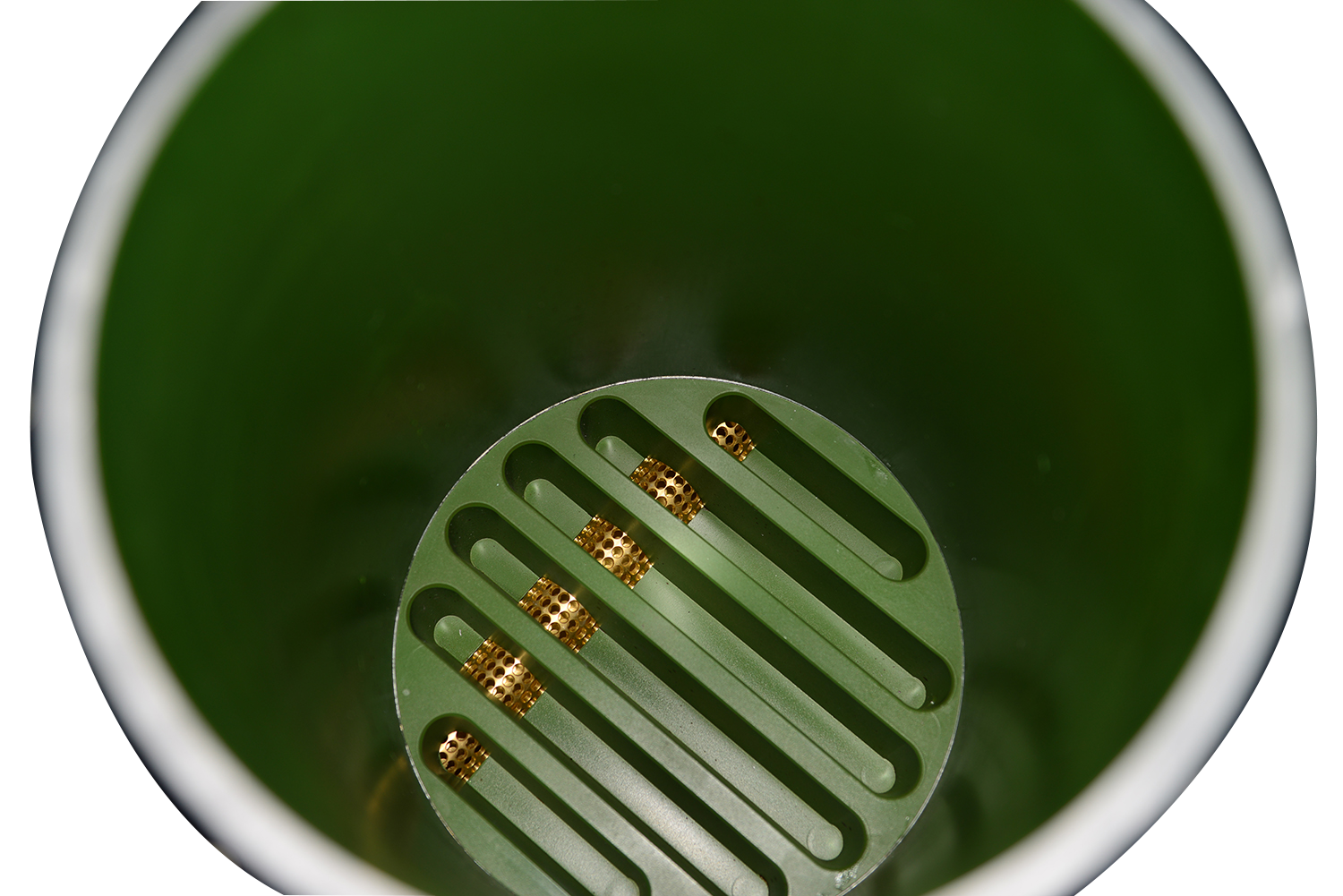

NDC melting tank with Teflon coating can prevent carbonation

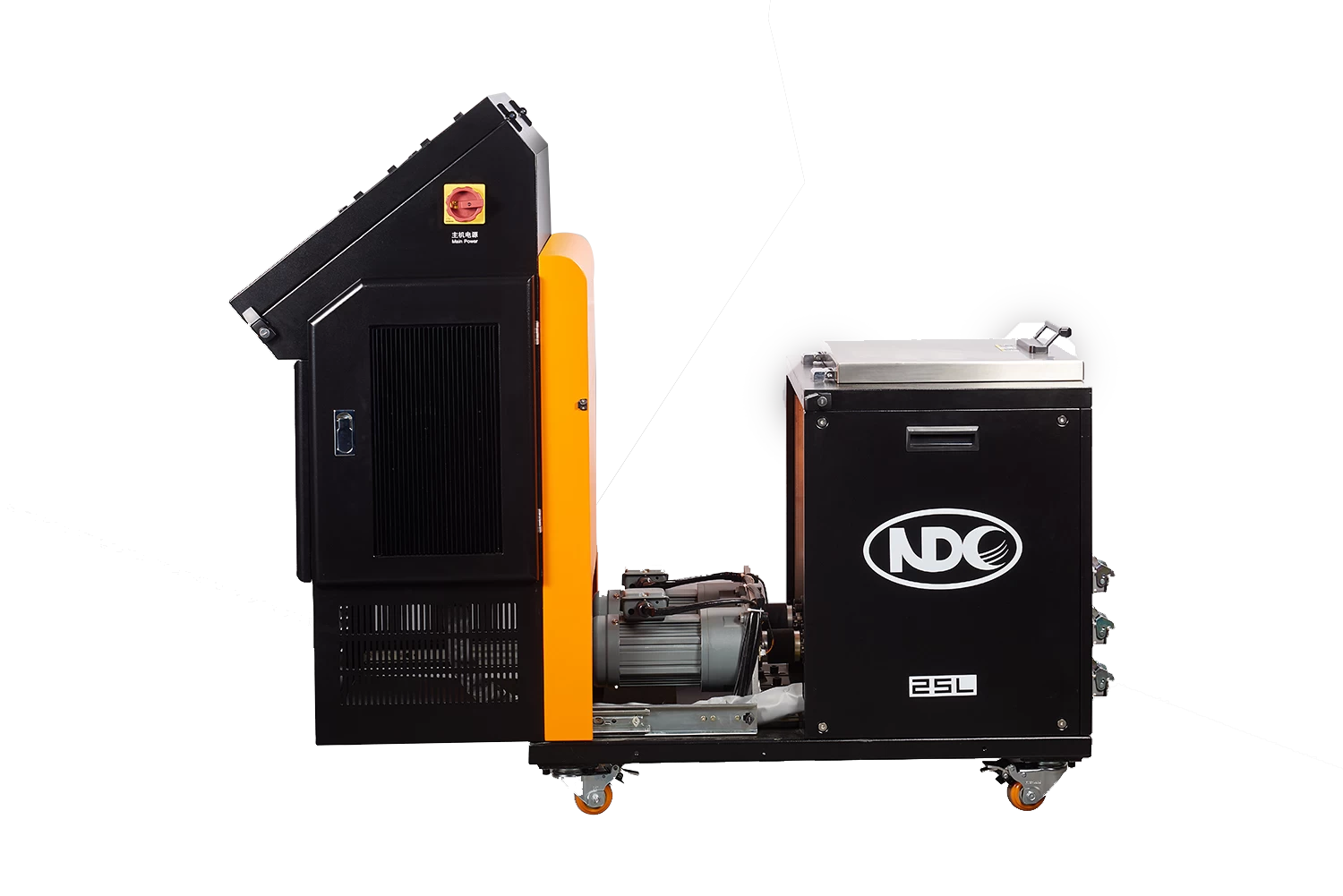

With cylinder tank design and uniform heating mode of under pan of the melter, it can avoid high local temperature and reduce carbonation.


Special design of thermal insulation construction can achieve the energy-saving and efficient operation. With Heat Insulation design for electrical cabinet, it can ensure effective heat insulation and heat preservation for electric control system and tank and guarantee electric control system work in good condition.

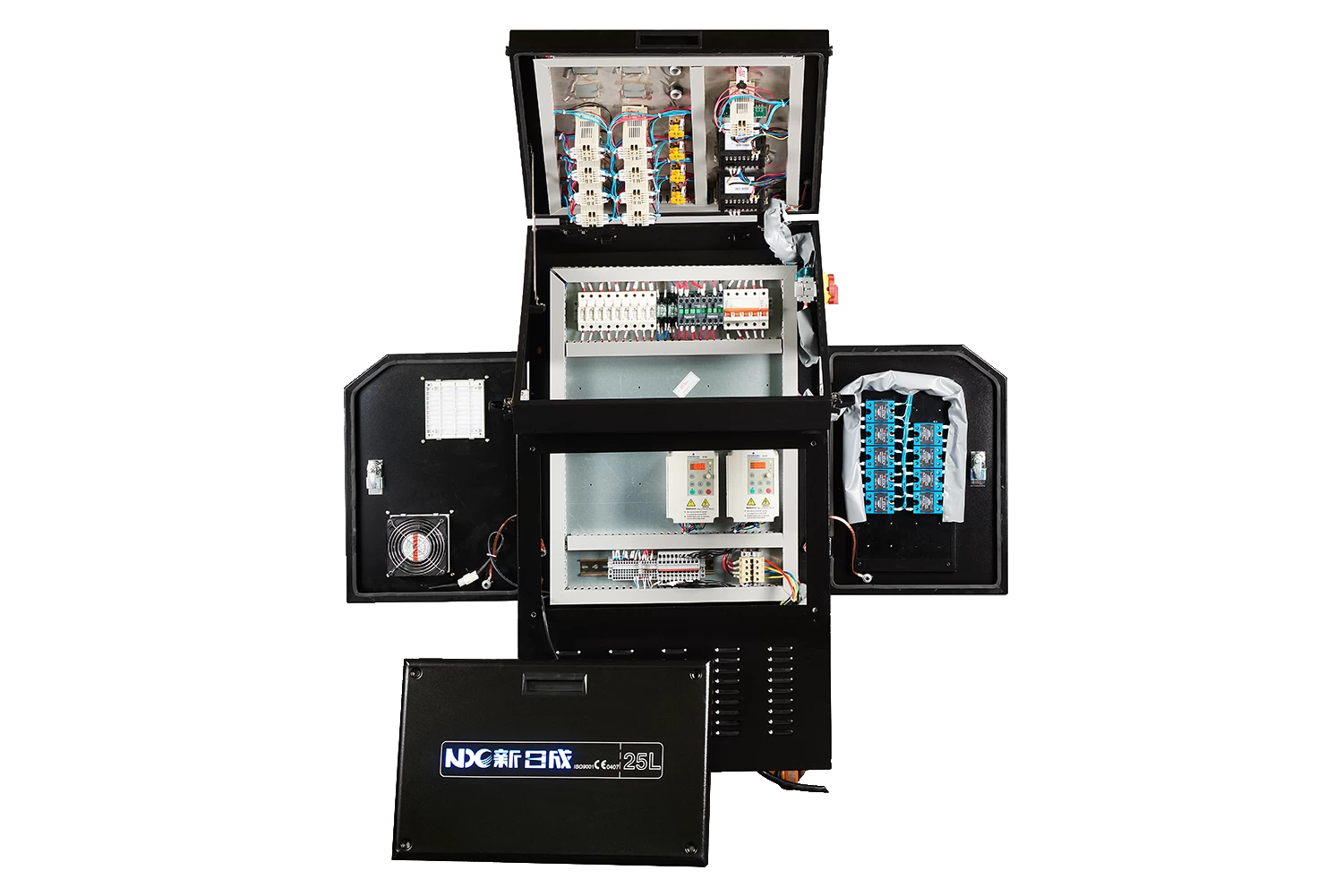

The push-pull design is adopted to electric control cabinet. Standard and modular design is convenient for maintain and upgrade, with great stable operation performance is more convenient to adjust and set parameters of the machine.


Equipped with alarm and protection switch for the over temperature issue. And the low temperature protection switch can prevent damage for gear pump and motor for low temperature start.


Melter tank with external radiation uniform heating code can much reduce carbonation.


Equipped with high precision filterit improves filtration precision and prolongs its service life.

Using high power electrical connector greatly improves safety and reliability of connector and communication.


Basic parameters

Name

Main Technical Specification

Capacity/L

4\10\18\25\50\100\200\500-1000

Max. output  g/min



Hose quantity

1-6(as needed by contract)

Temp.range℃

Tank



30-220 Adjustable

Hose

Glue gun

Max operating pressure/MPA

7

Control mode

Traditional electrical control; fully integrated SCM control; PLC automatic control.

Programming mode

Fully integrated SCM and PLC automatic control withoff-line programming mode

Structure of gear pump

Single or double layers

Power source

A.C Single-Phase,50/60Hz, 220V or A.C Three-Phase four-wire system, 50/60Hz,380V
