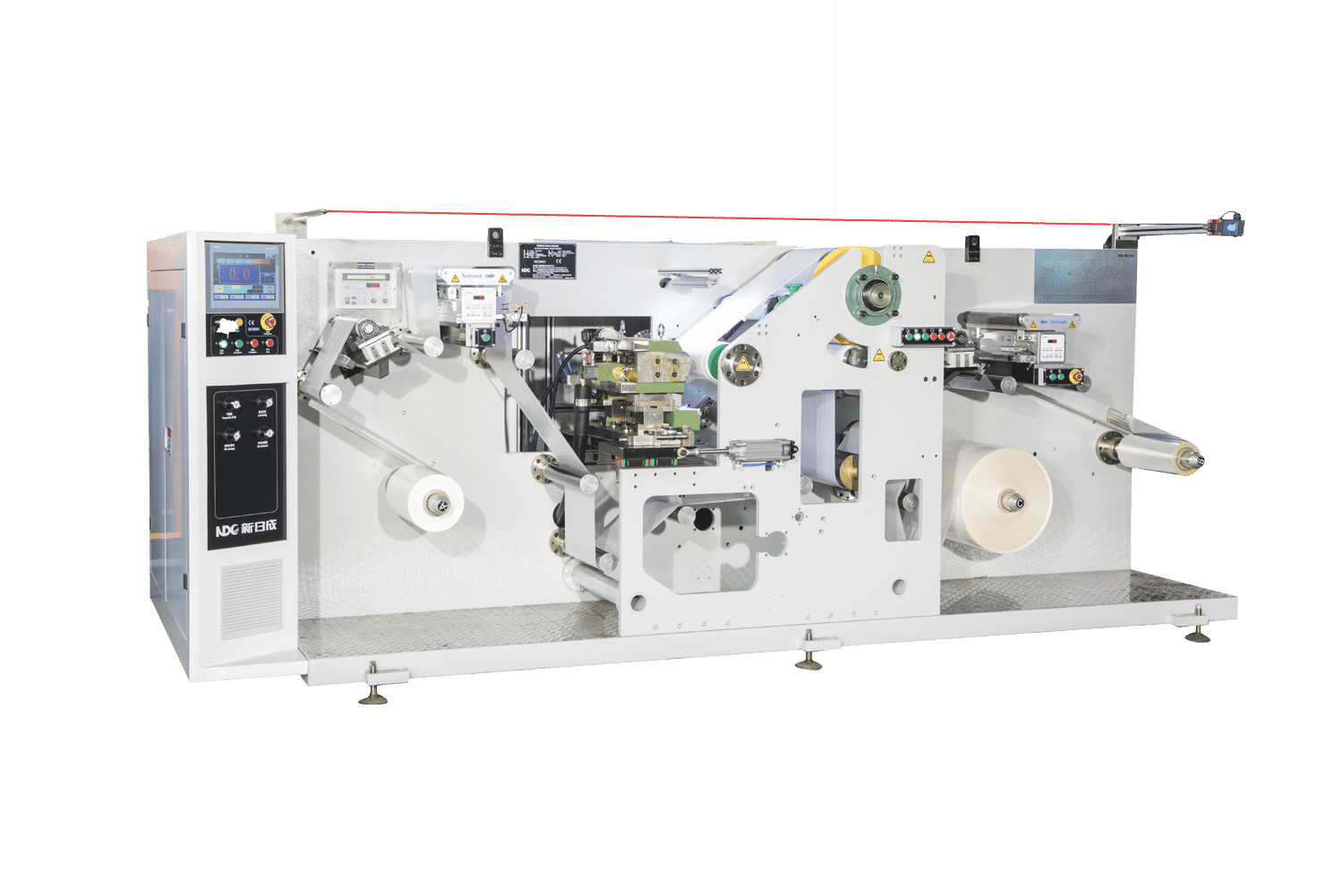

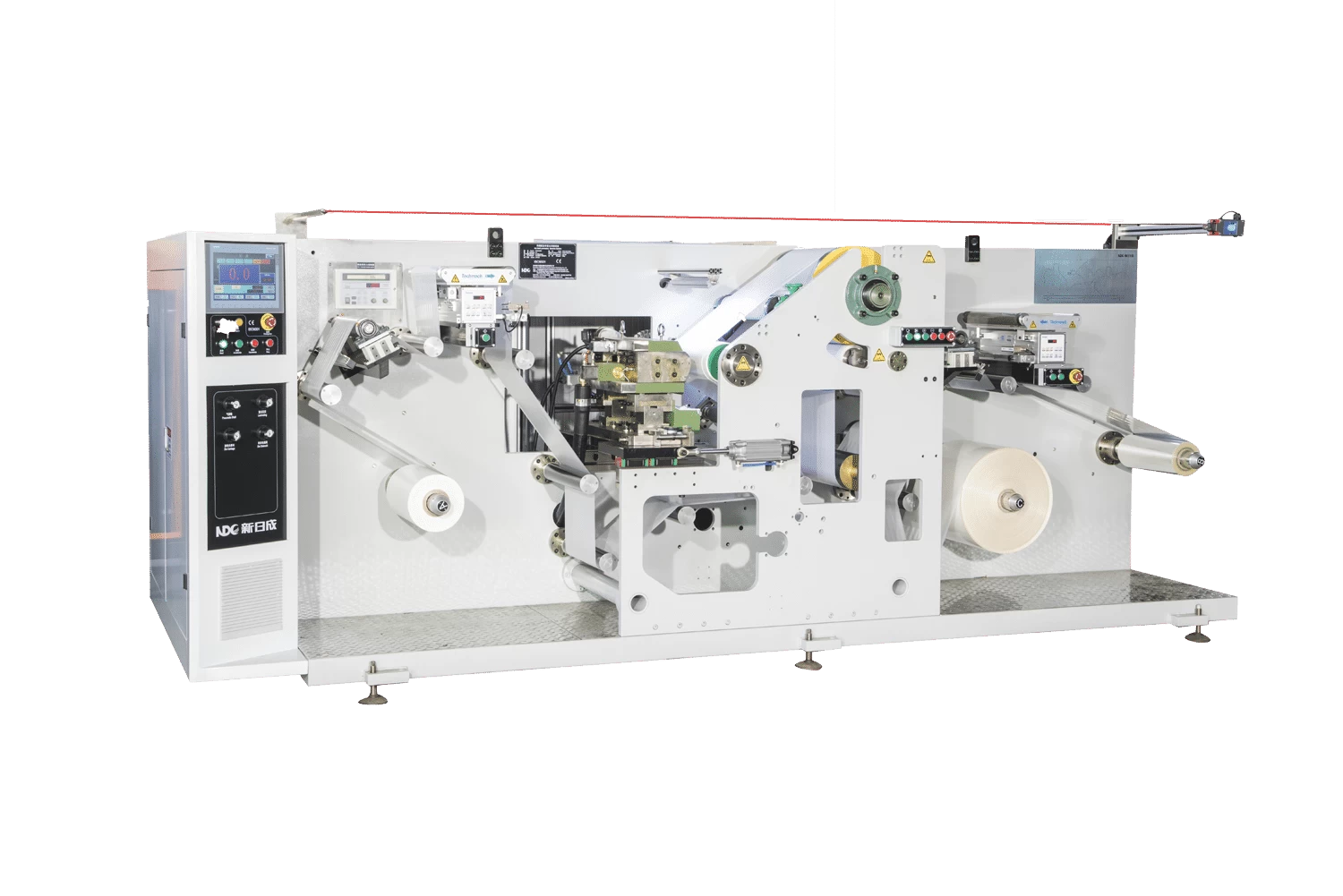

NDC Narrow Web Hot Melt Coating Machine
This machine is constructed with unwinding and rewinding units, laminating unit, coating system ,driving system, Siemens PLC-control system,pneumatic system and web guider. Which designed scientifically and logically for the convenience of maintenance and upgrade with excellent quality.
|
1
|
设备名称: NTH400 热熔胶涂布设备
Device
Name:NTH400 Hot Melt Coater
|
13
|
电控系统：西门子
Electrical control system: Siemens PLC
|
|
2
|
电源:AC380V，3 相，4 线 60HZ
Power:AC380V,3-phase, 4-wire 60HZ
|
14
|
胶机：100L
1台 喉管：1条
Hot Melter：100L*1set
Glue hose: 1pc
|
|
3
|
最大材料宽幅:380mm
Max. Material Width:380mm
|
15
|
墙板厚度30mm
Wall Panel Thickness: 30mm
|
|
4
|
涂布宽幅:250-370mm
Coating width:250-370mm
|
16
|
最大放卷直径：
Max. Dia.of Unwinding: 800mm
最大收卷直径：
Max. Dia.of Rewinding: 800mm
|
|
5
|
设备最高速度：
Design
speed：150m/min
生产速度：
Production
rate：150m/min
|
17
|

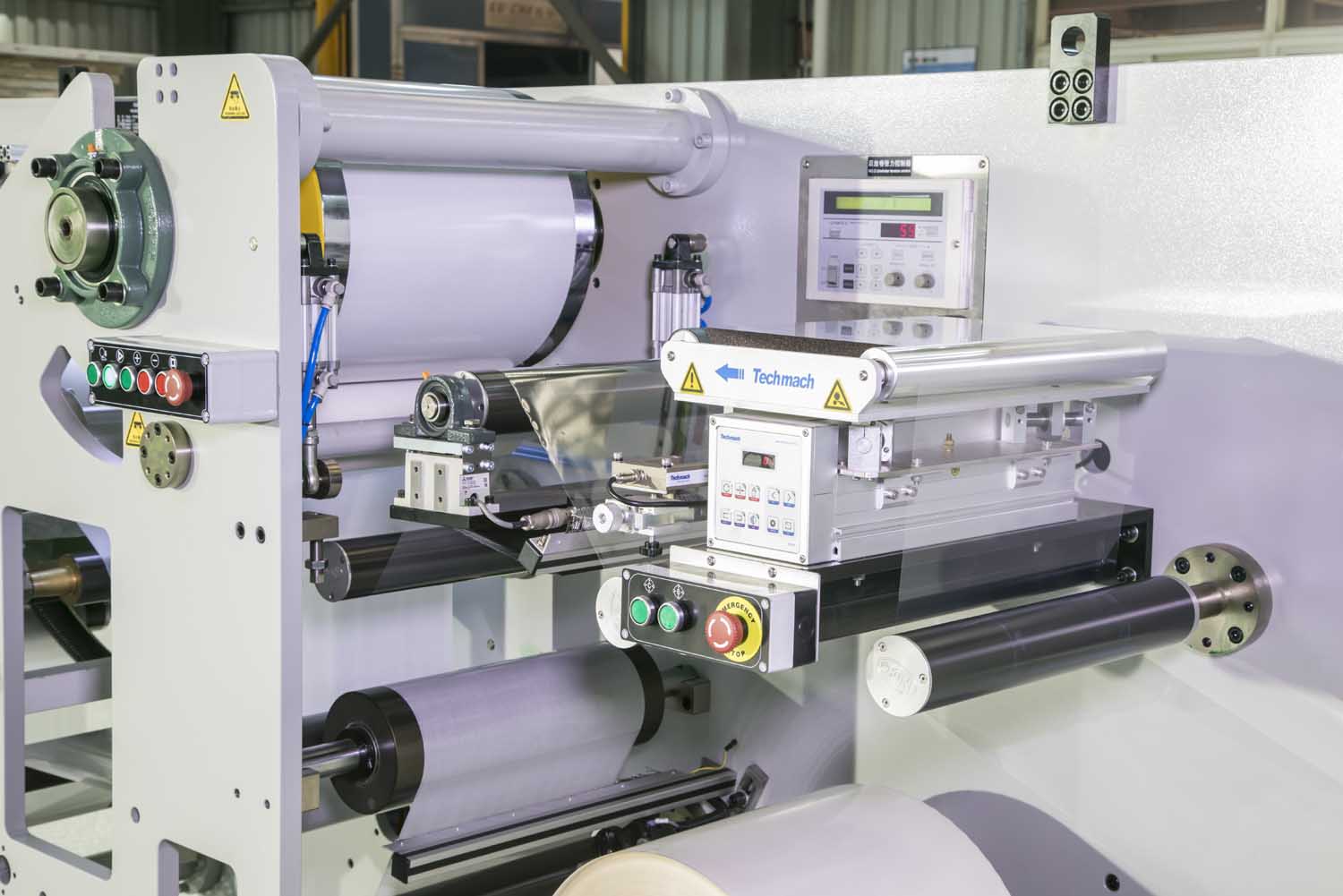

纠偏：钛玛科
Web Guider: Techmach
|
|
6
|
胶水类型:热熔压敏胶，食品级热熔胶
Adhesive: HM
PSA, HM FDA
粘度Viscosity:10,000CPS
|
18
|
回水装置：无（可以选配）
Moisture:（optional）
|
|
7
|
涂布头工作温度150 ºC-180 ºC
Working temp.of Coating Die：150
ºC-180 ºC
|
19
|
放卷张力控制:三菱张力闭环控制
放卷:单轴2套 适合-3#纸芯
Unwinding Tension Control: Mitsubishi
tension close loop control. Unwinding:
Single Shaft, 2*set-3# paper core
|
|
8
|
基材:白色牛皮纸87克，PE 45克
Production: white kraft paper 87gsm, polyethylene 45gsm
|
20
|
收卷张力控制: 西门子电机控制
收卷:单工位1套 适合3#纸芯
Rewinding Tension Control: Siemens motor control. Rewinding: Single Shaft, 1*set- 3# paper
core
|
|
9
|

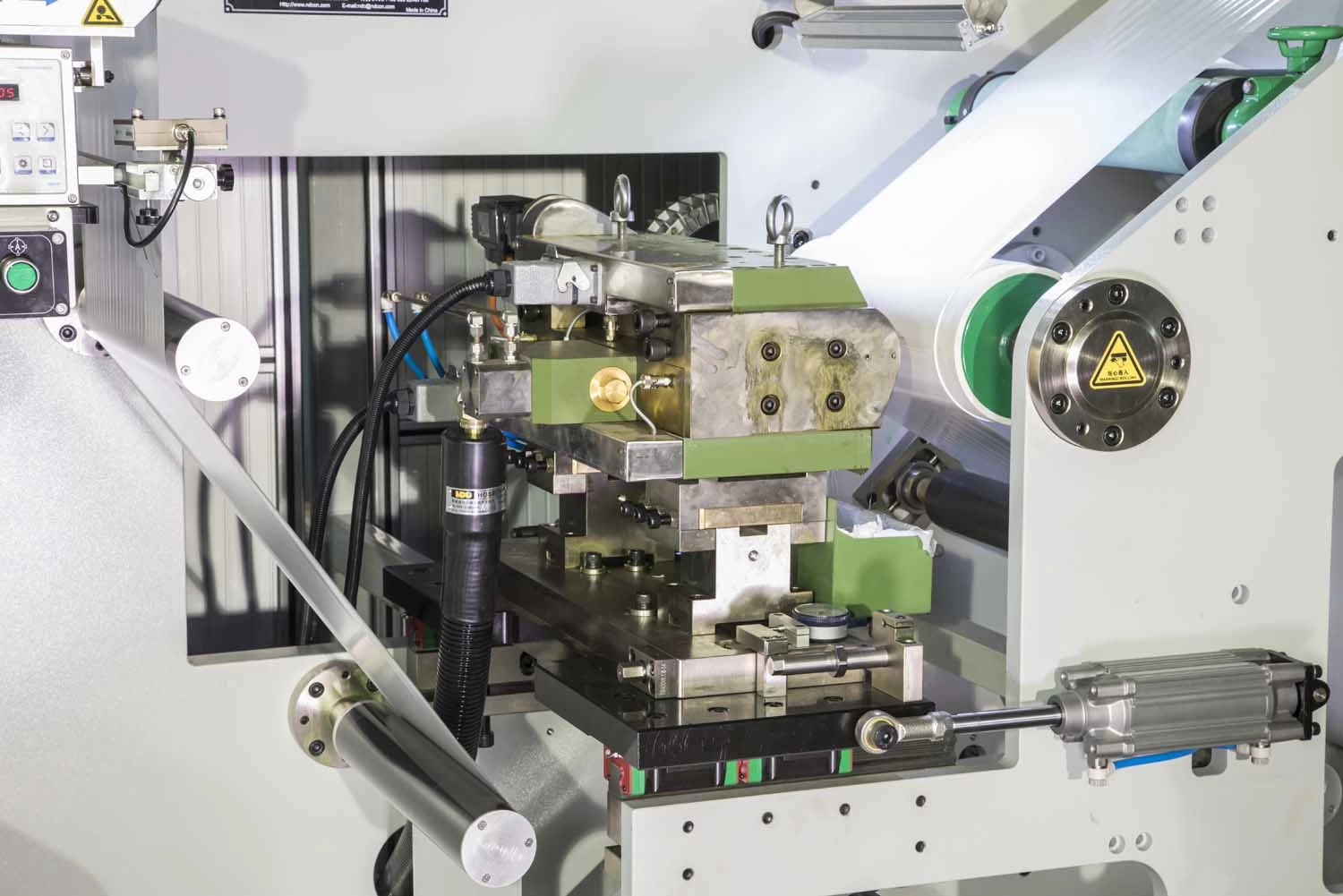

涂布方式: 无刮痕 ●
Coating Die:
Non-streak Coating(Slot Die With Smooth Bar)
|
21
|
电缆架设 电柜与主机一体
Operation Side：The
electric cabinet is integrated with the main machine
|
|
10
|
发货:海运
Delivery: By Sea
|
22
|
设备外观尺寸 Machine Dimension:
4350*1600*1700mm
|
|
11
|
常用涂布克重及其生产速度
Regular Coating Weight and Speed：20gsm（150m/min)
60gsm（50m/min)
|
23
|
整机重量: 5T
Total Weight:5T
|
|
12
|
主机颜色: 浅灰色RAL7035
Color of
Framework and Unit：RAL7035
light grey
|
|
|
