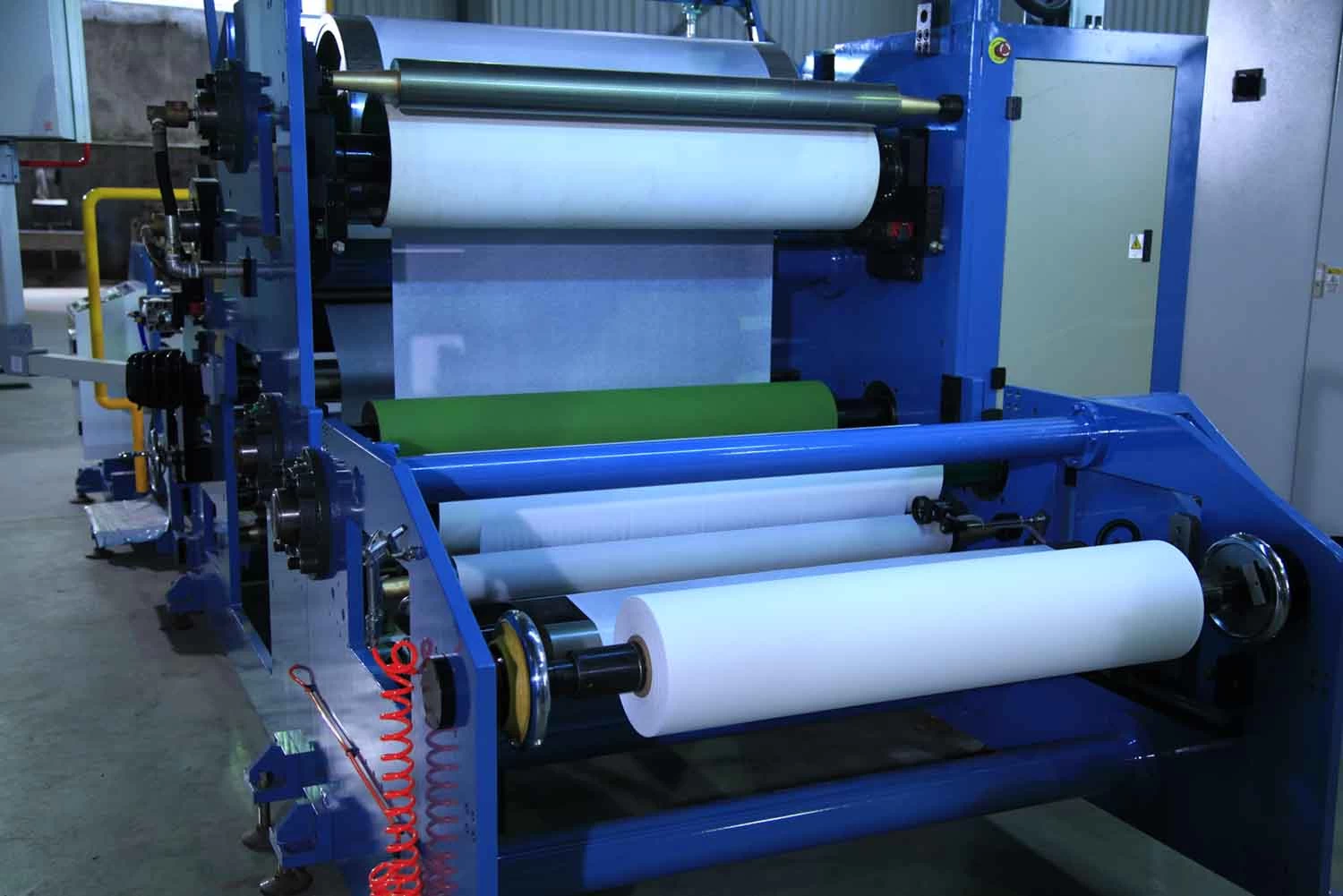

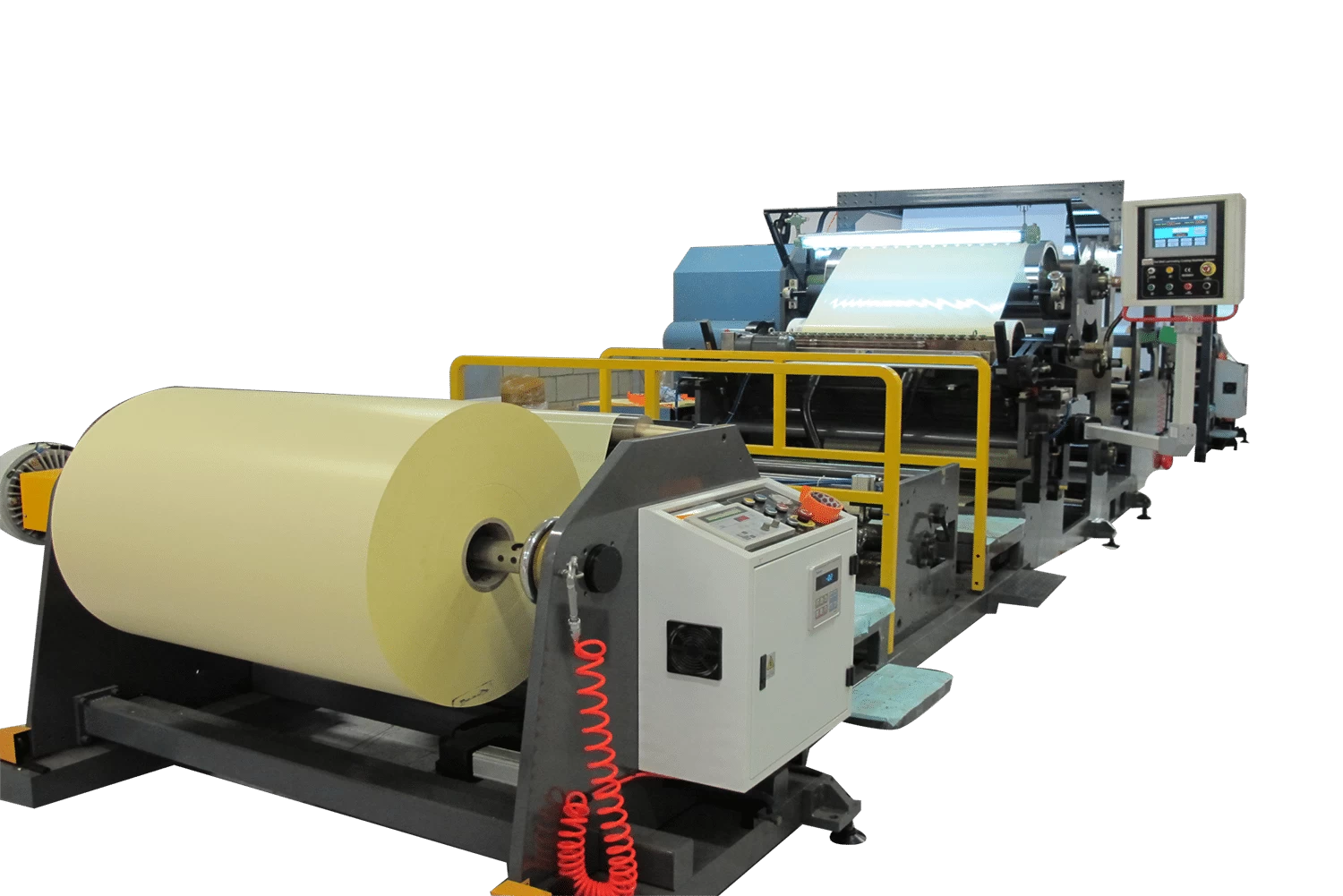

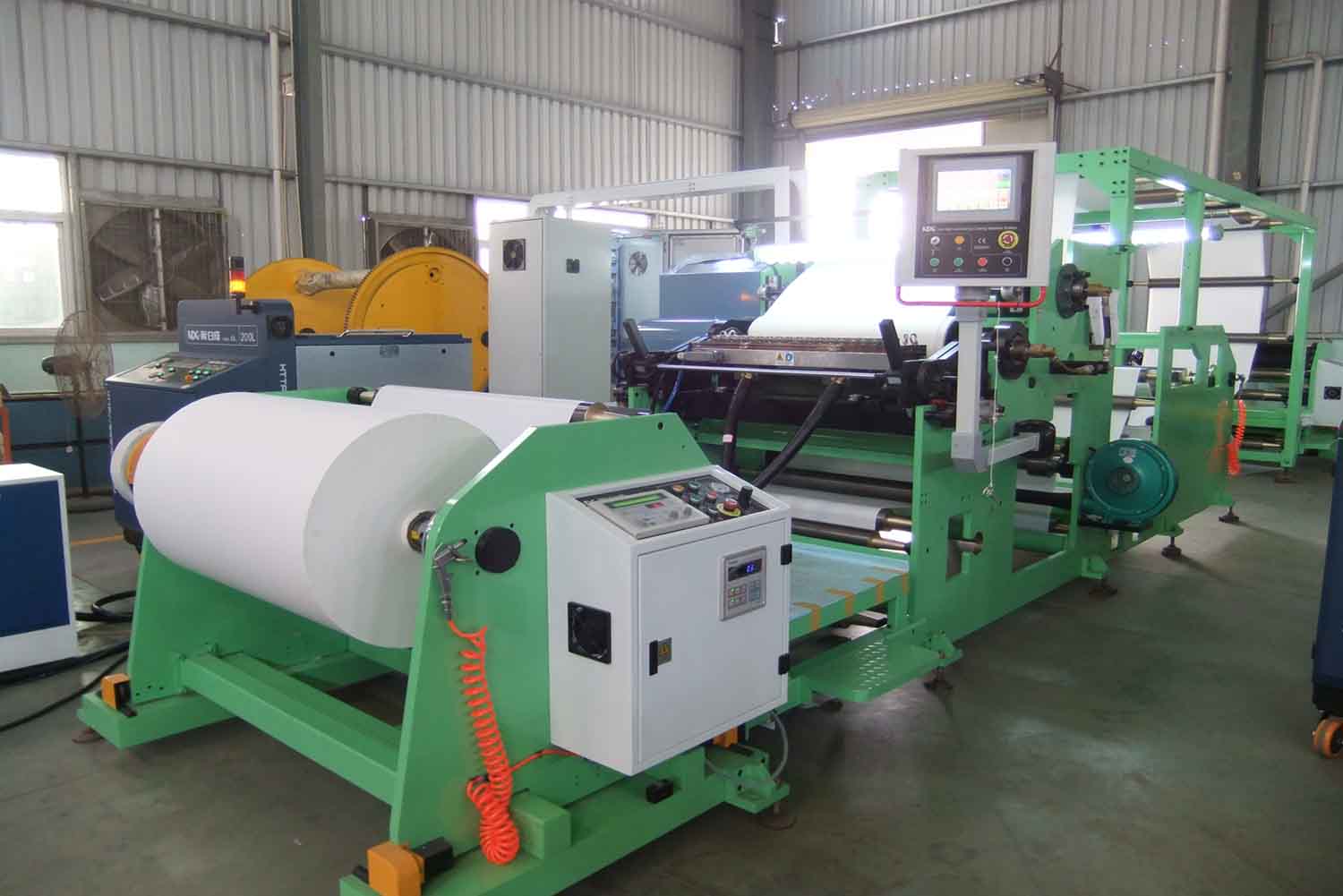

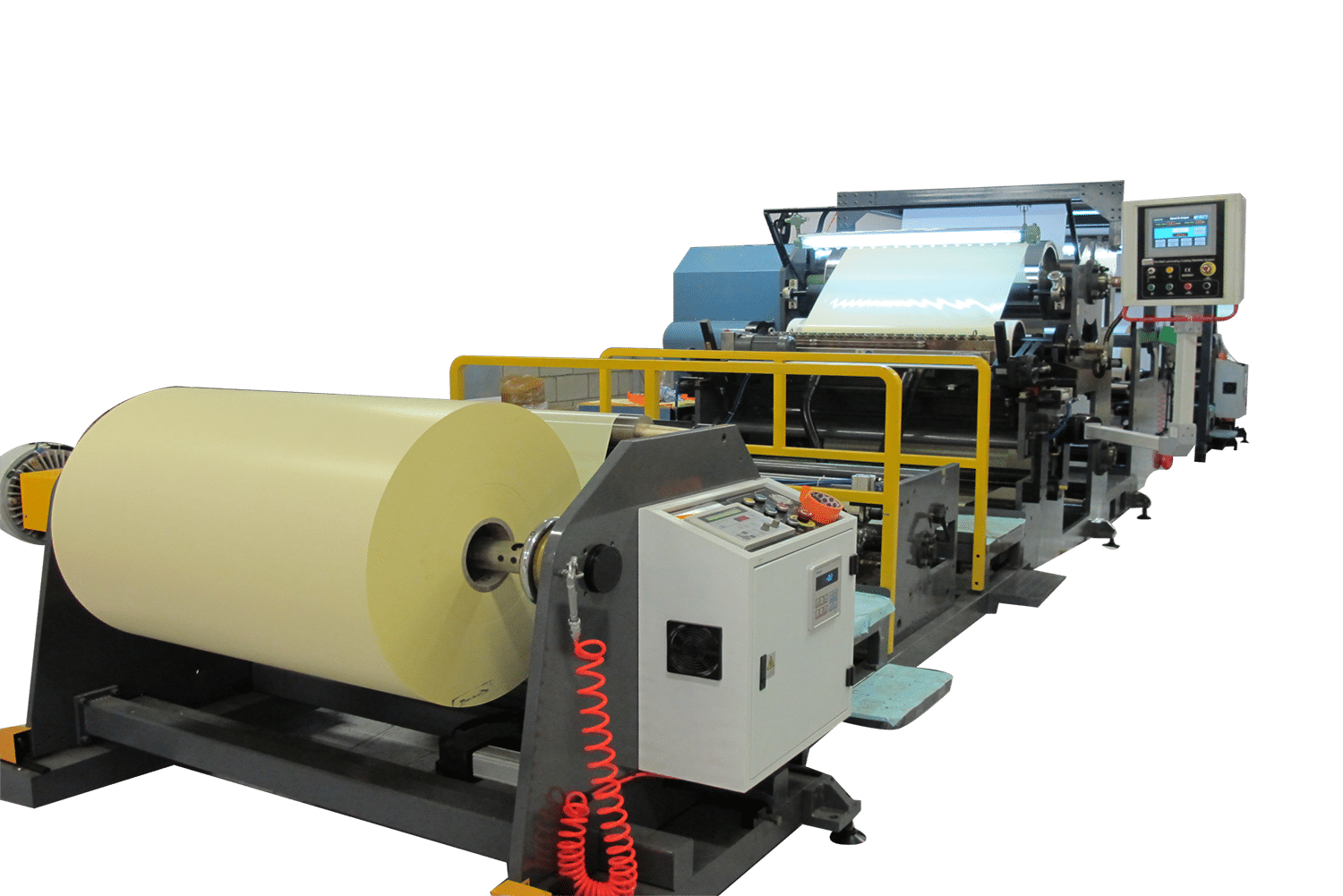

NDC Rotary Bar Die Hot Melt Coating Machine

Paper or Film Coating and Lamination



Basic Info

Model NO.: NTH1200

Customized: Accepted

Effective Coating Width: 1300 mm or as Required

Unwinder: Turrets/Single Unwinder

Rewinder: Turrets/Single Rewinder

Hot Melt Application: Paper or Film Coating and Lamination

Certificate: Ce,ISO Certificates

Coating Type: Non-Streak Coating(with Rotary Bar)

Samples Testing: Free

Unwinder Diameter: 1200mm

Rewinder Diamer: 1100mm

Trademark: NDC

Transport Package: Coating Machine Packed in Cartons

Specification: 15000mm x 6000mm x 2600mm

Origin: China

HS Code: 84778000



Product Description

Device Name

Rotary bar die hot melt coating machine hot melt coater

Power

AC380V,  3-phase, 4-wire  As required

Max. Web Width:

1300mm

Coating width:

1300mm

Design Speed

300m/min

Production Rate

250m/min

Adhesive

SIS

Viscosity

10000CPS

Working temp.of Coating Die

120 ºC-180 ºC

Application in

Adhesive Label and Tape/ Paper and Film Coating

Coating Die

Non-streak Coating(Slot Die With Smooth Bar)

Delivery

By Sea

Dimension:  15000mm x 6000mm x 2600mm

Color of Framework and Unit

ivory-white (No.RAL0015)

Operation

Touch Screen

Cable

Cable Bridge frame

Total Weight

35T


Main characteristic

1,This hot melt coating machine is constructed with 80mm wall panels & steel links and processed by CNC boring & milling machine center with fine appearance and high precious strength.

2,This hot melt coating machine is equipped with turrerts unwinders and rewinder, laminating unit, coating system ,driving system, auto-control system,pneumatic  system and web guidance and  designed scientifically and logically for the convenience of maintenance and upgrade with excellent quality.

3, PLC Control system with touch screen makes operation more easier and accurate.

4,High quality advanced hot melt coating/spary coating applicator. External aluminum alloy heating module design for coating die can prevent carbonation from local high temperature.

5,Unwinder diameters:1200mm, Rewinder diameters:1100mm.

6,Electrical control system (With CE Standard)
