Needle flame Tester

ZLT-ZY2, the instrument is designed to conform to the IEC60695-11-5, IEC60695-2-2



Needle Flame Tester


Product details: Model ZLT-ZY2.

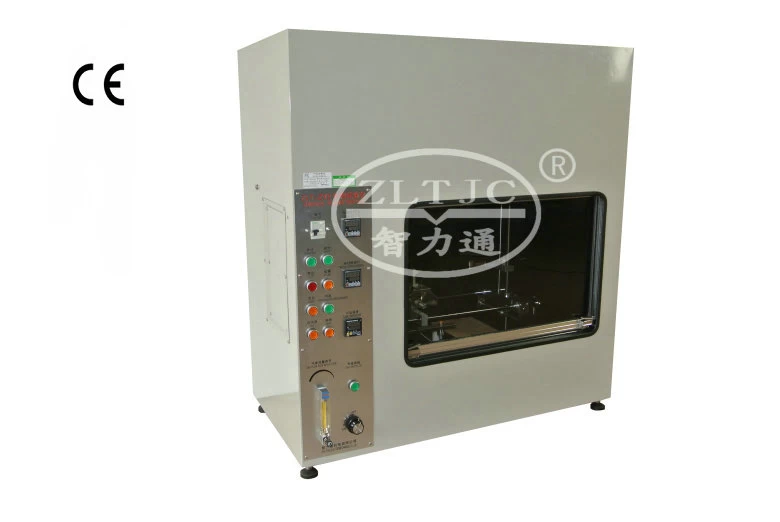

The ZLT Needle Flame Tester is a fully automatic instrument contained in its own cabinet to maximize the safety of the operator. The Needle Flame Tester consists of a Ф0.9mm needle burner that tilts to 45° from the vertical and is fueled with butane gas.

The test time for the temperature of the standard copper block to increase from 100°C ±5°C to 700°C ±3°C shall be 23.5s ±1.0s. Test flame height is adjusted 12mm ±1mm.The fire hazard of the specimen is assessed by measuring the burning duration of the specimen, and any ignition of the wrapping tissue and white pine board below the specimen.  It consists of a tube with a bore 0.5/font> 0.1mm and gas-flow regulating valve for adjustment of the flame height. It shall be used with a  pressure regulator.


The instrument is designed to conform to the IEC60695-11-5, IEC60695-2-2 and other most commonly used standards in the market.


Specifications:

Needle Burner stainless steel bore: ф 0.5mm±0.1mm, Outer diameter <ф 0.9mm,length>35mm.
Thermocouple Type K (Ni/Cr - Ni/Al), 200°~1000°
Thermocouple Size O/D 0.5 mm
Timing Device Tolerance of not more than 0.5S
Standard Copper Block 4mm±0.01mm, weight: 0.58g±0.01g before drilling. Cu-ETP
Time for Temperature to Increase From 100°C±5°C to 700°C±3°C; 23.5s±1.0s (preset)
Flame Height 12mm±1mm (adjustable)
Gas Supply Butane gas, min. 95% purity
Input Power 220 V 50 Hz 3A or 115 V 60HZ  Optional
Volume Of Chamber >0.5m³, black interior
Outer Dimensions W*D*H=1100mm*550mm*1100mm
Conform to standard IEC60695-11-5, IEC60335-1, IEC60598-1, IEC60884, IEC60745


Includes:
A  white Pine Test Board and five Sheets of Tissue Paper
A  flame height gauge
Consumables:
White Pine Test Board and Tissue Paper

Thermocouple Type K and Copper Block

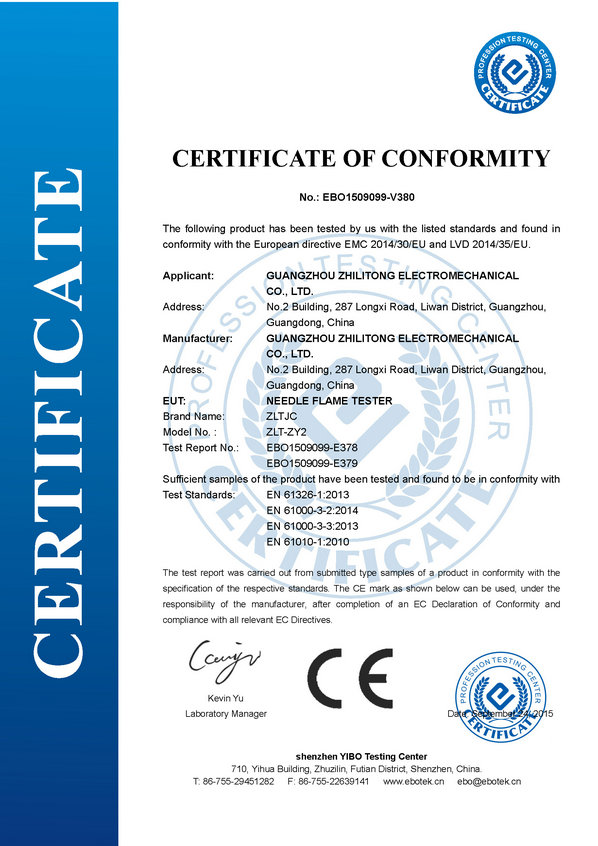

CE Certificate for Needle Flame Burner


Order info:
Product Type:
Place of origin: Guangzhou, China
Price Terms: FOB, CIF, EXW
Payment Terms: T/T
Package: wooden case
Minimum Order: 1
Delivery Time: 20 working days
OEM: Yes
