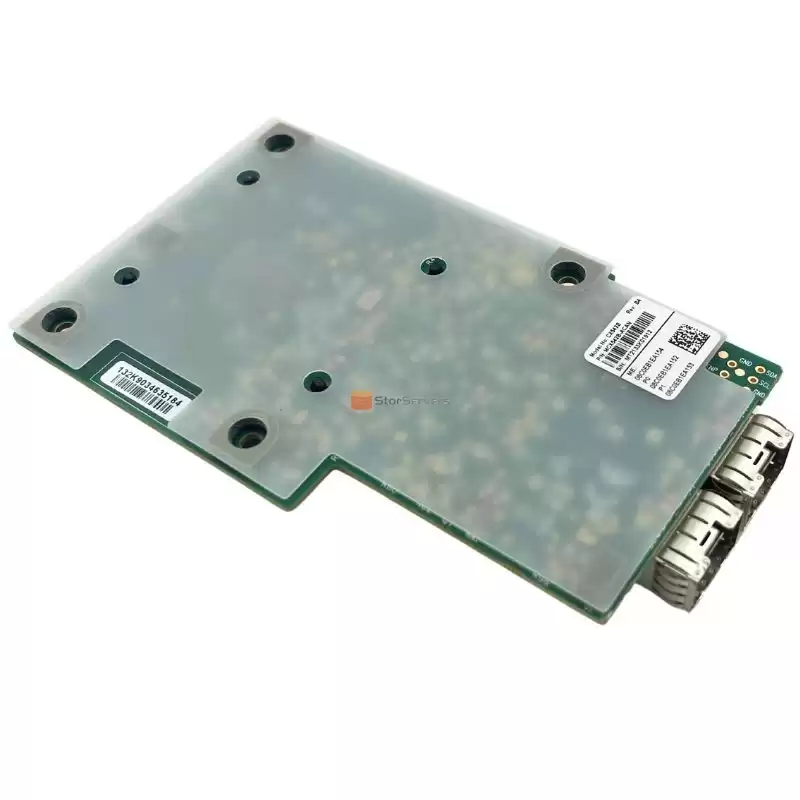

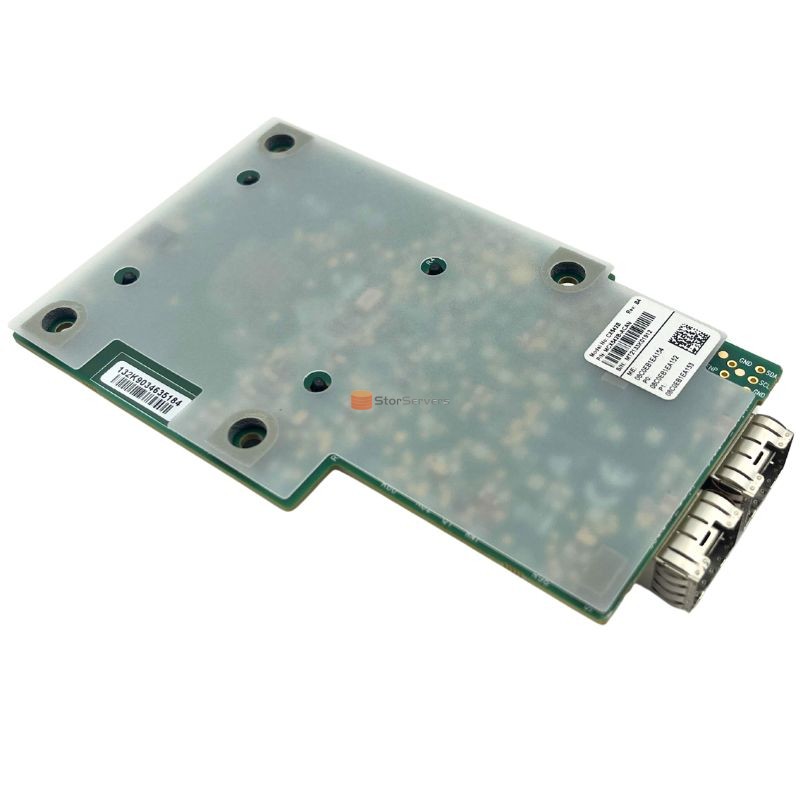

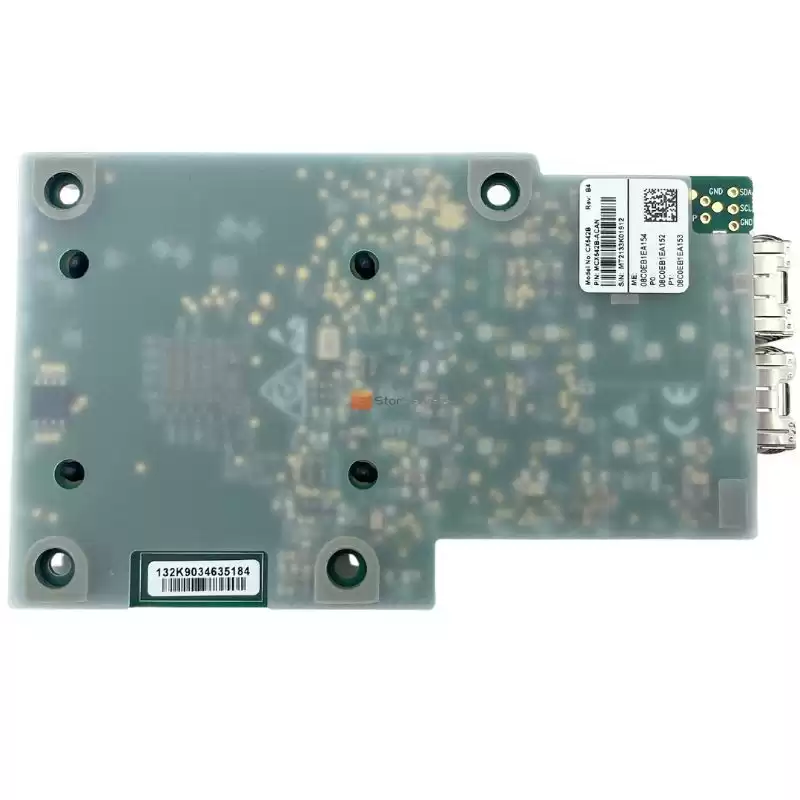

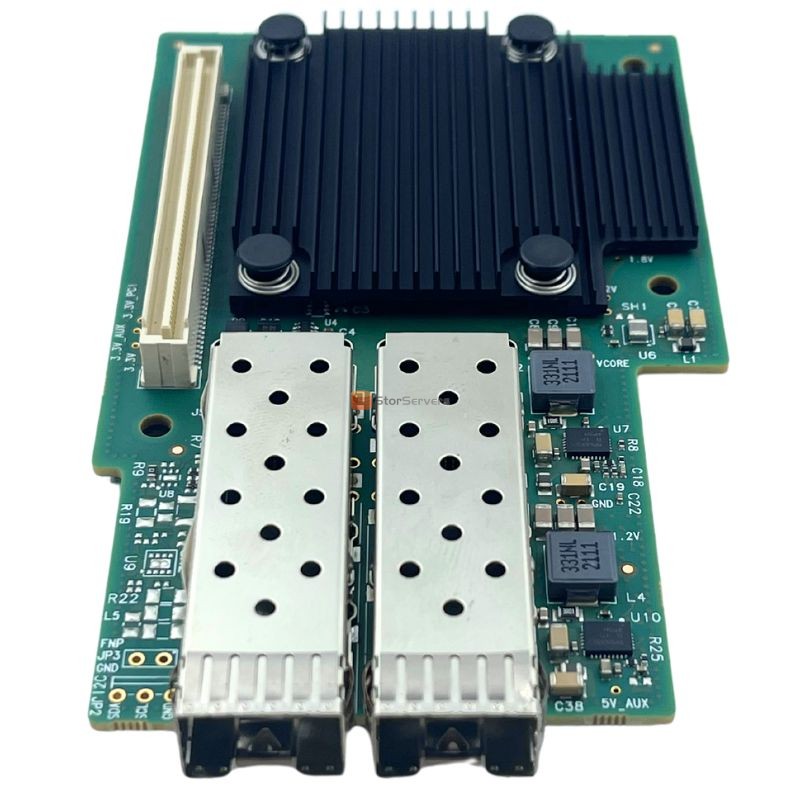

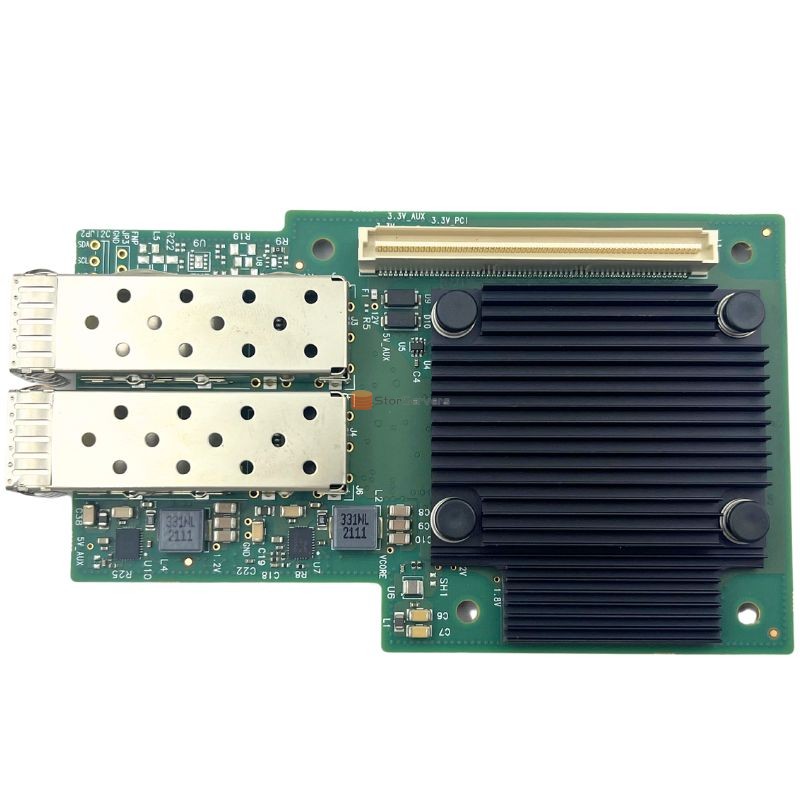

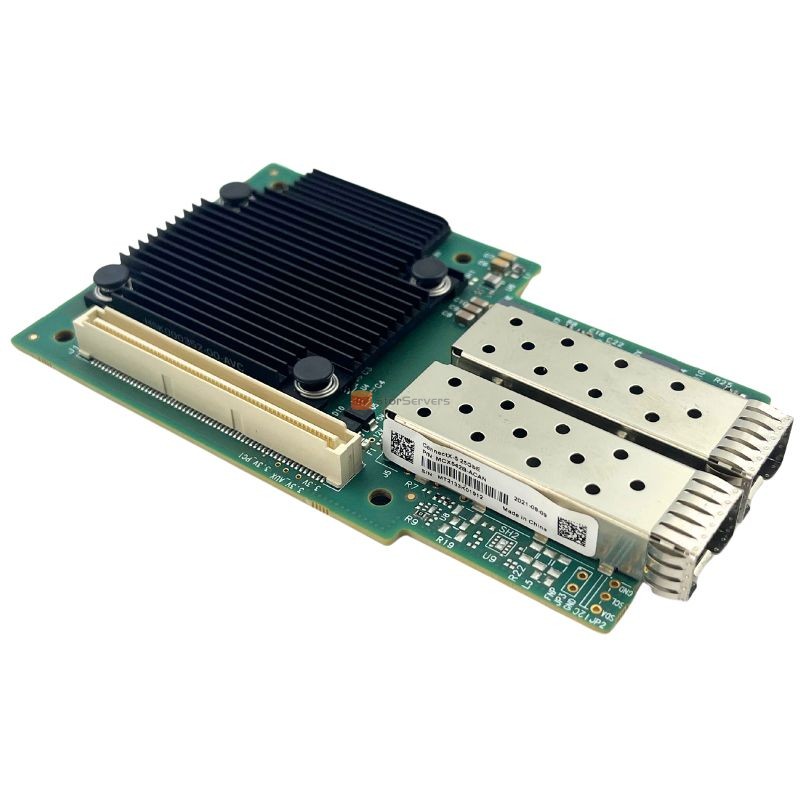

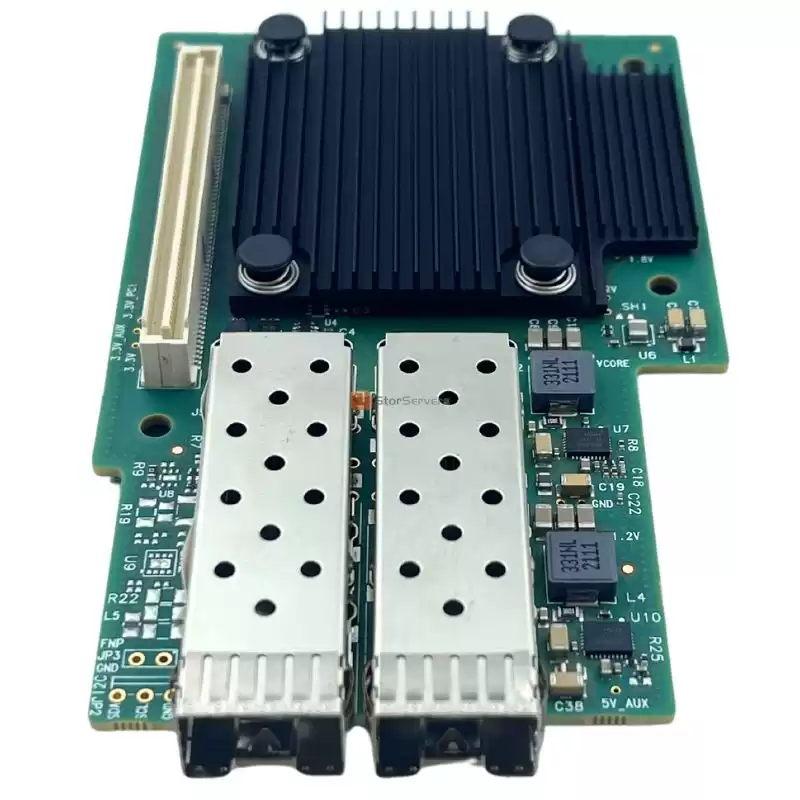

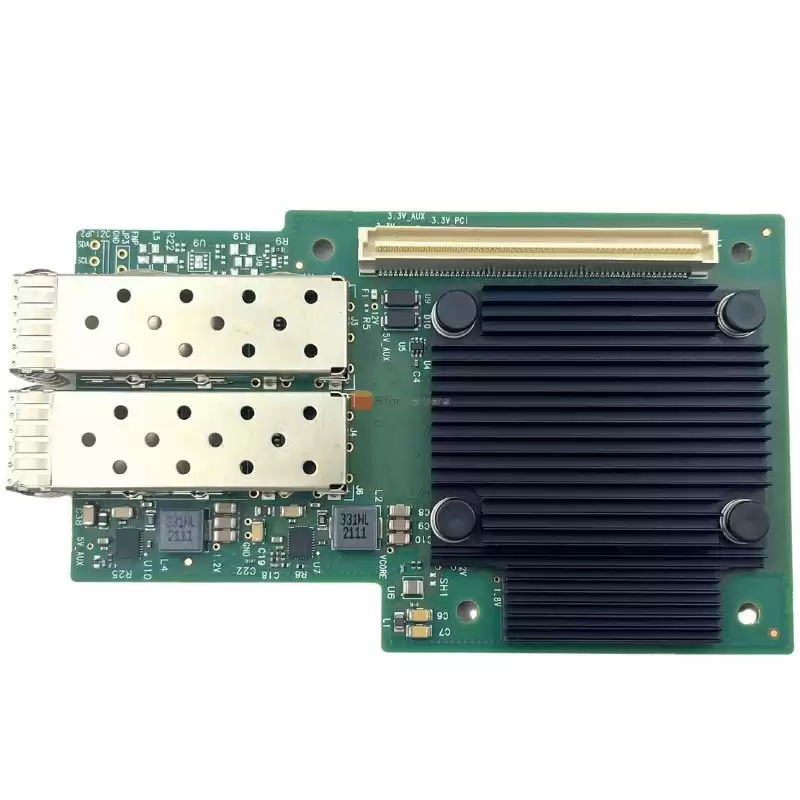

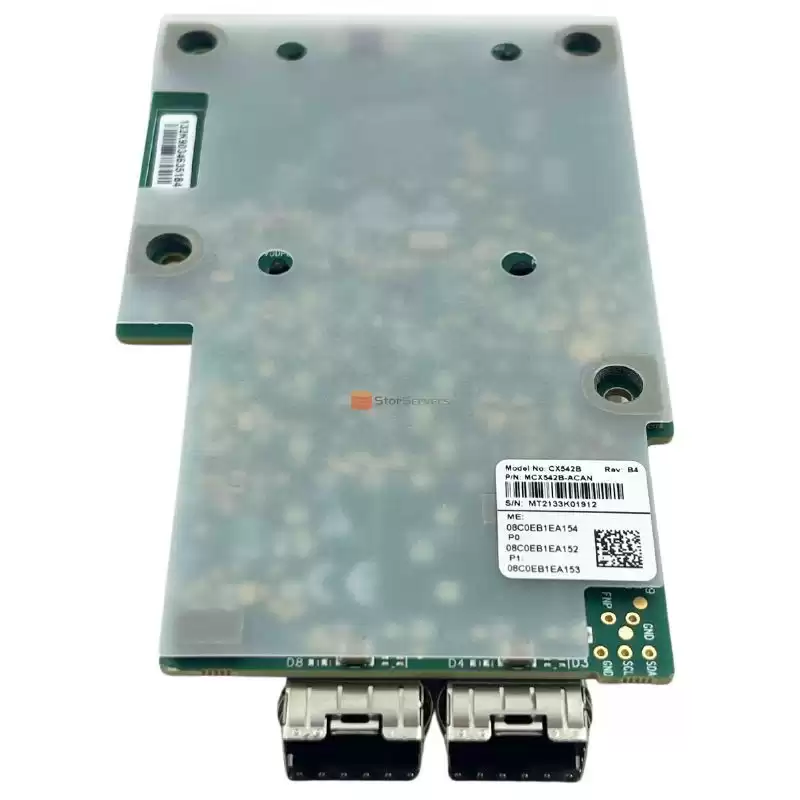

Network interface card SFP28 MCX542B-ACAN
FEATURES
Host interface: PCIe 3.0 x8
Maximum transfer speed: 2x 25GbE
Model: MCX542B-ACAN
Applicable network type: 25GbE/10GbE/1GbE
Main chip: ConnectX®-5 EN
Bus type: PCI-E
Number of network ports: 2
Interface type: SFP28/SFP+/SFP
BENEFITS
ConnectX-5 MCX542B-ACAN Ethernet network interface cards provide high performance and flexible solutions with up to two ports of 25GbE connectivity, 750ns latency, up to 200 million messages per second (Mpps), and a record setting 197Mpps when running an open source Data Path Development Kit (DPDK) PCIe (Gen 4.0). For storage workloads, ConnectX-5 delivers a range of innovative accelerations, such as Signature Handover (T10-DIF) in hardware, an embedded PCIe Switch, and NVMe over Fabric target offloads. ConnectX-5 adapter cards also bring advanced Open vSwitch offloads to telecommunications and cloud data centers to drive extremely high packet rates and throughput with reduced CPU resource consumption, thus boosting data center infrastructure efficiency.
ConnectX-5 adapter cards are available for PCIe Gen 3.0 and Gen 4.0 servers and provide support for 1, 10, 25, 40, 50 and 100 GbE speeds in stand-up PCIe cards, OCP 2.0, and OCP 3.0 form factors. ConnectX-5 cards also offer advanced Multi-Host and Socket Direct technologies.
Specification
| Model |
MCX542B-ACAN |
| Ports |
Dual-port |
| Interface type |
SFP28 |
| Data Transfer Rates |
25GbE |
| Technology |
Ethernet |
| I/O Controller |
Mellanox Technologies MT28800、ConnectX-5 |
|
Network Speed Supported
|
1 Gb/s10 Gb/s25 Gb/s |
|
Cabling type
|
SFP28 Optical module,DAC and AOC |
| PCI Express interface data lanes |
x8 |
| Availability |
In Stock |
| Warranty |
3 Years |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To |
