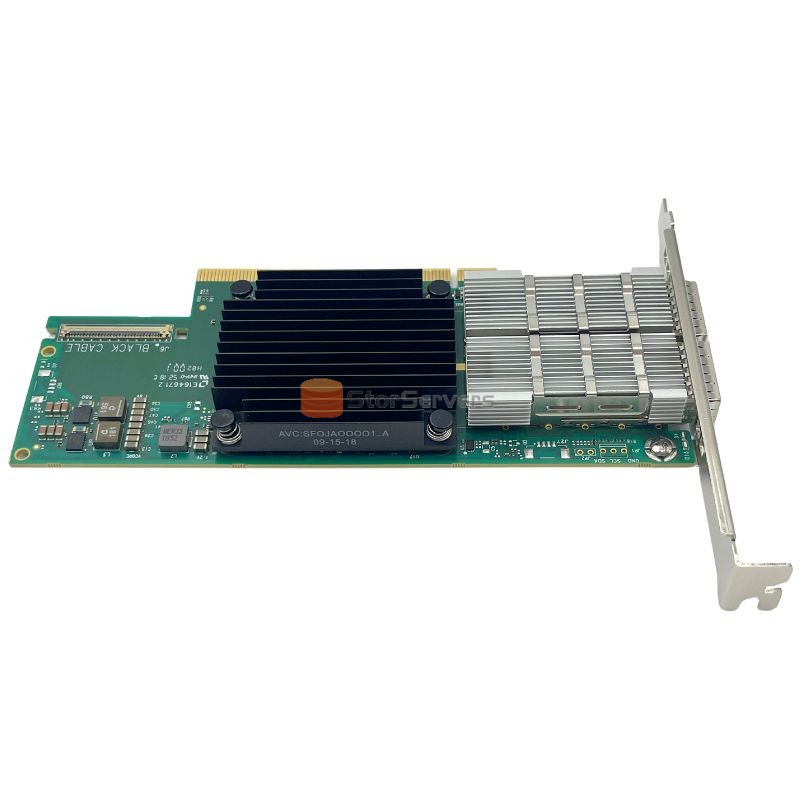

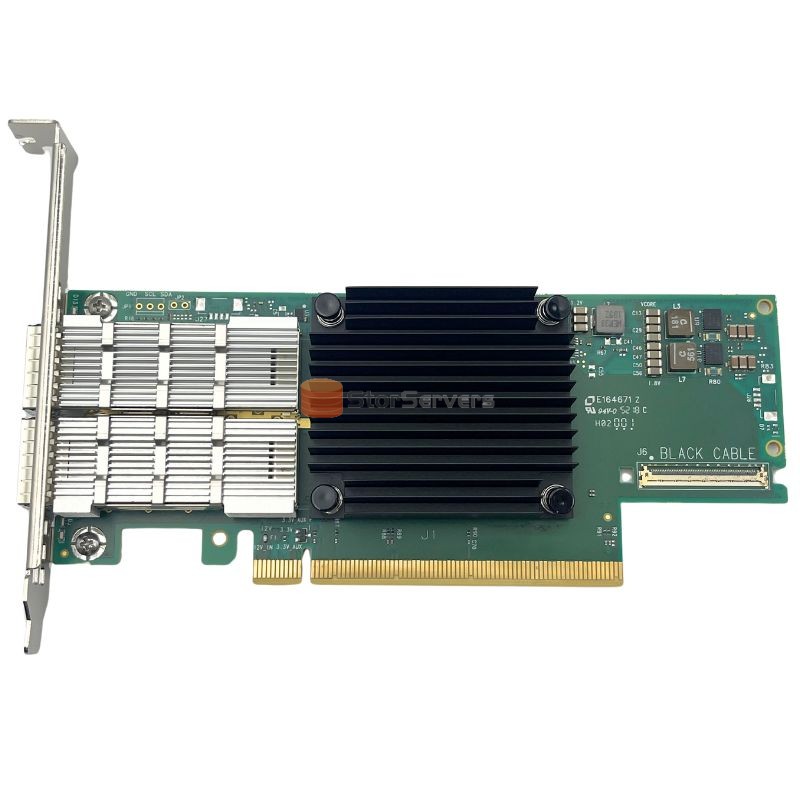

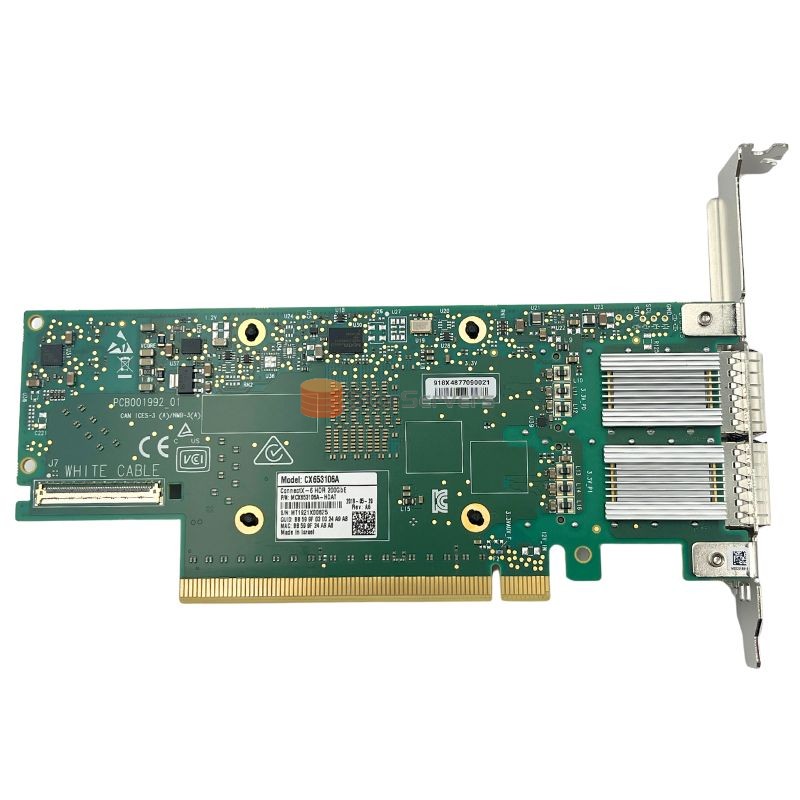

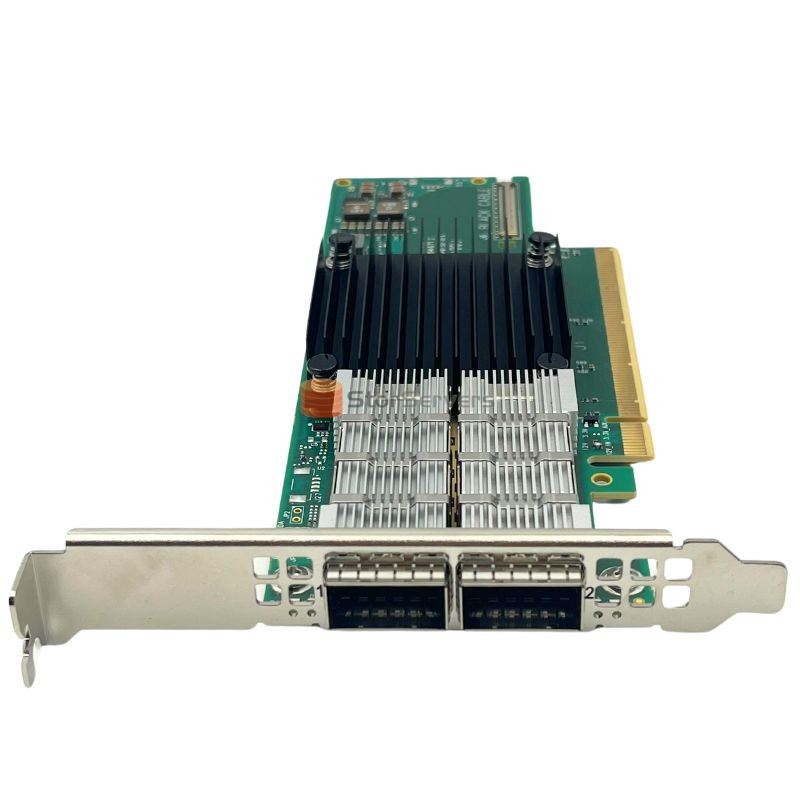

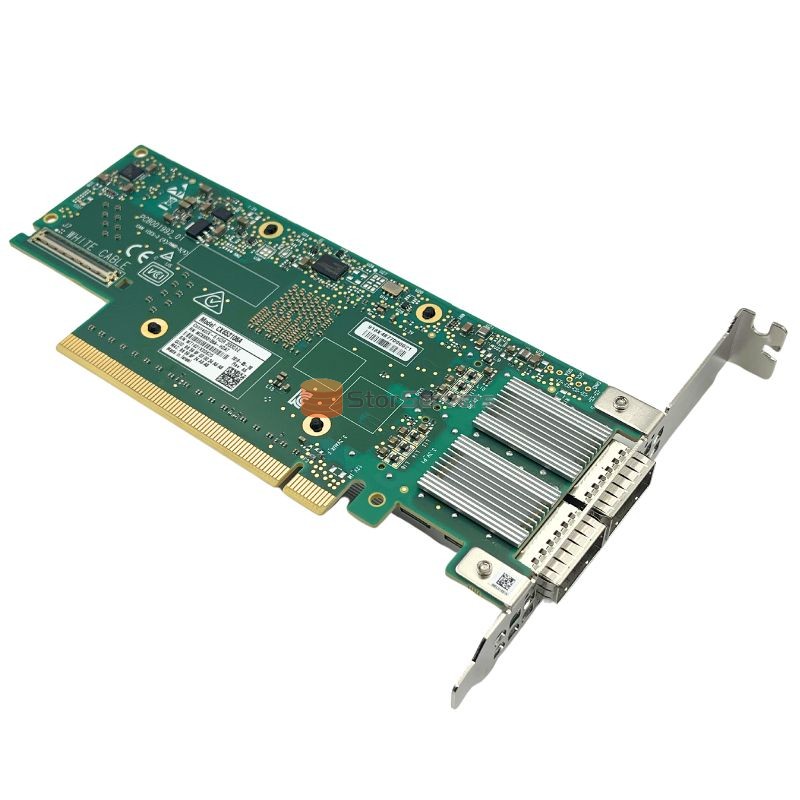

Network Interface Card MCX653106A-HDAT ConnectX-6 VPI HDR/200GbE

ConnectX-6 VPI Card 200Gb/s InfiniBand & Ethernet Adapter Card
Model MCX653106A-HDAT
Lifecycle Active
Distributor Inventory Yes
Warranty 3 Years

Facebook Twitter Pinterest LinkedIn 分享
MCX653106A-HDAT QSFP56 PCIe 4.0 x16
Key Features
  • ConnectX-6 Virtual Protocol Interconnect (VPI) cards are a groundbreaking addition to the ConnectX series of industry-leading network adapter cards. Providing two ports of 200Gb/s for InfiniBand and Ethernet connectivity, sub-600ns latency and 215 million messages per second, ConnectX-6 VPI cards enable the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications. In addition to all the existing innovative features of past versions, ConnectX-6 cards offer a number of enhancements to further improve performance and scalability.
  • ConnectX-6 VPI supports HDR, HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as 200, 100, 50, 40, 25, and 10Gb/s Ethernet speeds.
Features
  • Up to 200Gb/s connectivity per port
  • Max bandwidth of 200Gb/s
  • Up to 215 million messages/sec
  • Sub 0.6usec latency
  • Block-level XTS-AES mode hardware encryption
  • FIPS capable
  • Advanced storage capabilities including block-level encryption and checksum offloads
  • Supports both 50G SerDes (PAM4) and 25G SerDes (NRZ) based ports
  • Best-in-class packet pacing with sub-nanosecond accuracy
  • PCIe Gen 3.0 and Gen 4.0 support
  • RoHS compliant
  • ODCC compatible
Specification
Model MCX653106A-HDAT
Adapter Card Size 6.6 in. x 2.71 in. (167.65mm x 68.90mm)
Connector Dual QSFP56 InfiniBand and Ethernet
Ethernet 1/10/25/40/50/100/200 Gb/s
PCI Express Gen3/4 8.0GT/s/16GT/s, x16 lanes
Maximum current 100mA
Maximum power available through QSFP56 port 5W
Passive Cables 23.6W

Lead time

Quantity (pieces) 1-10 10-60 >60
Lead time (days) 3 3-5 To be negotiated
