NSP-1766 Network Security Platform 1U Rackmount 6LAN Industrial PC 6LAN Intel GbE Soldered on Board CPU
Product Introduction
With the flexibility of being able to extend the rackmount PC according to the specific application, the rackmount computers conform to the universal 19 inch industry standard. Benefit from components of the highest performance class.
| Specification |
Optional specification |
| Chassis |
All steel construction, blue |
OEM other colours available |

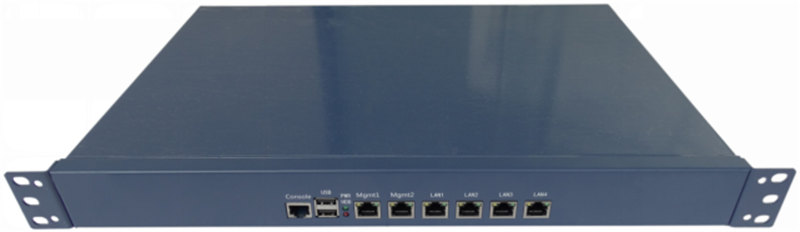

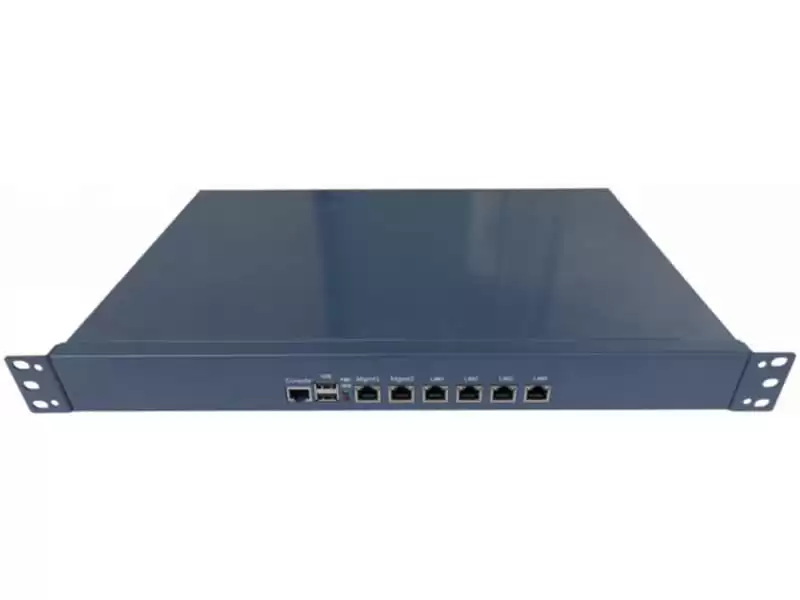

| Front |
1×COM RJ45,2USB， POWER/HDD indicator light,6LAN RJ45 GbE |
Can be customised with customer's logo or other requirements |

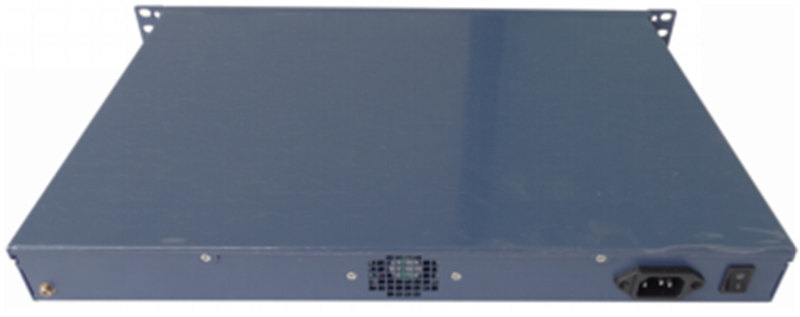

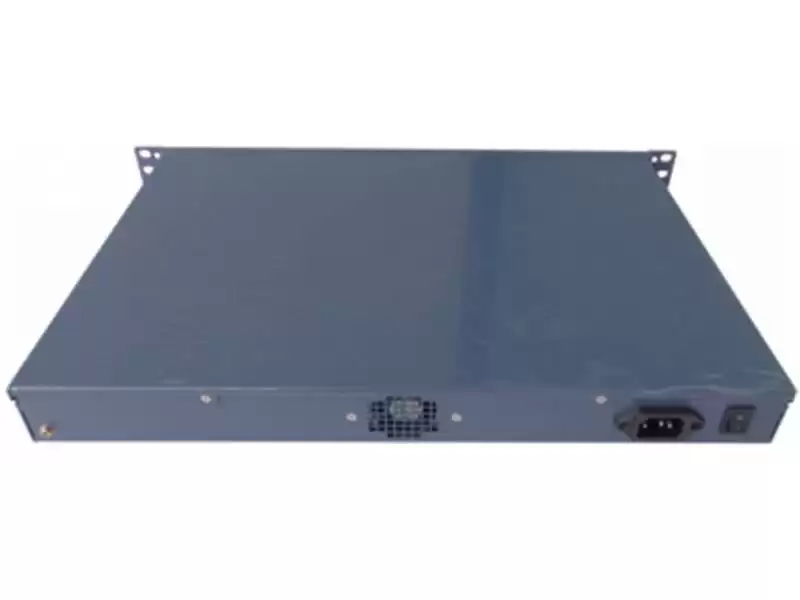

| Back |
1×Fan，AC input |
Other interfaces can be customised |
| Hard disk rack |
1 x 2.5" hard drive rack |
|
| Adaptive Motherboard |
A variety of 6LAN dedicated board paste low-power CPU motherboards to choose from |
|
| CPU/GPU |
D525 |
3855U/3865U |
| Memory |
2G DDR3 |
Optional 4G/8G/16G memory |
| Hard Disk |
32G MSATA(Option to add 1T HDD） |
Optional 64G/128G/256G Msata SSD; Support 2.5-inch mechanical hard drive of various capacities |
| Interfaces |
AC input；6×LAN RJ45；1×COM RJ45；2USB |
|
| Size |
482mm * 300mm * 45.2mm |
N.W/G.W |
3.5/4KG |
| Power Supply |
Built-in industrial DC power supply |
|
| Installation mode |
19" Standard Rackmount |
| Work and Environment |
| Working temperature |
（-20～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |
| Ordering Information |
| NSP-1766-D525 Soldered on board D525 CPU |
| NSP-1766-3865U Soldered on board 3865U CPU |
Product Features
■ Thermal, dust and shock resistance
■ 6LAN Intel GbE
■ Various low-power motherboards to choose from
■ Optional CPU such as D525/3855U/3865U
■ Hardware solutions for soft routing

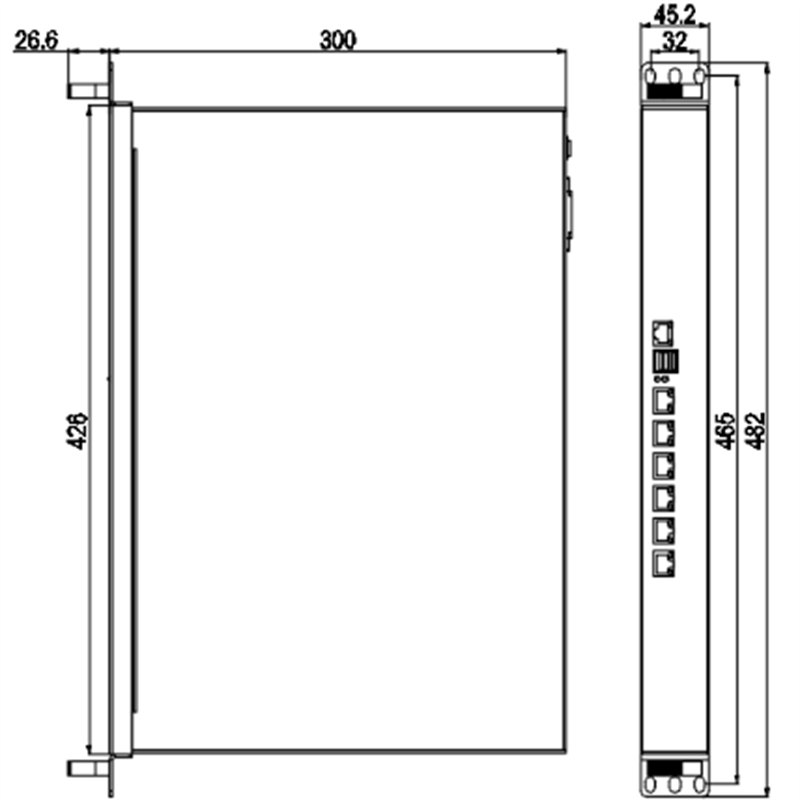

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
