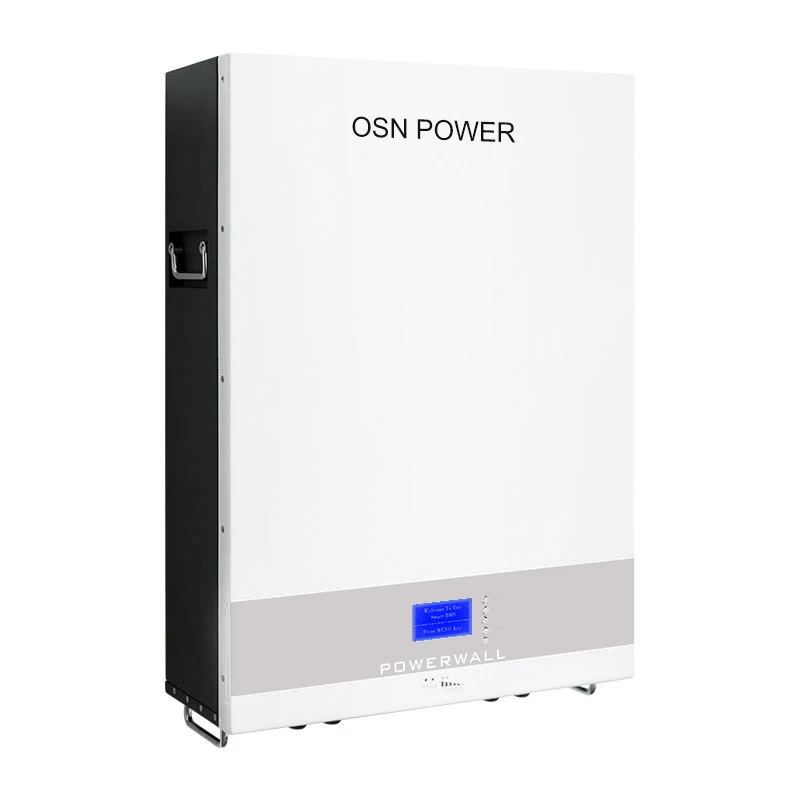

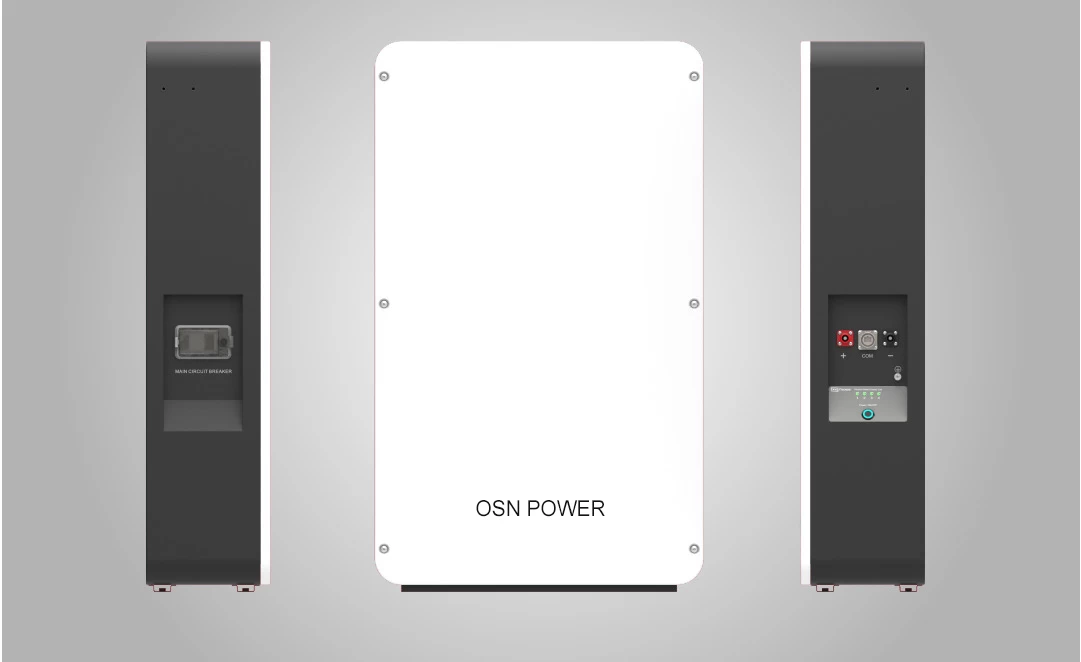

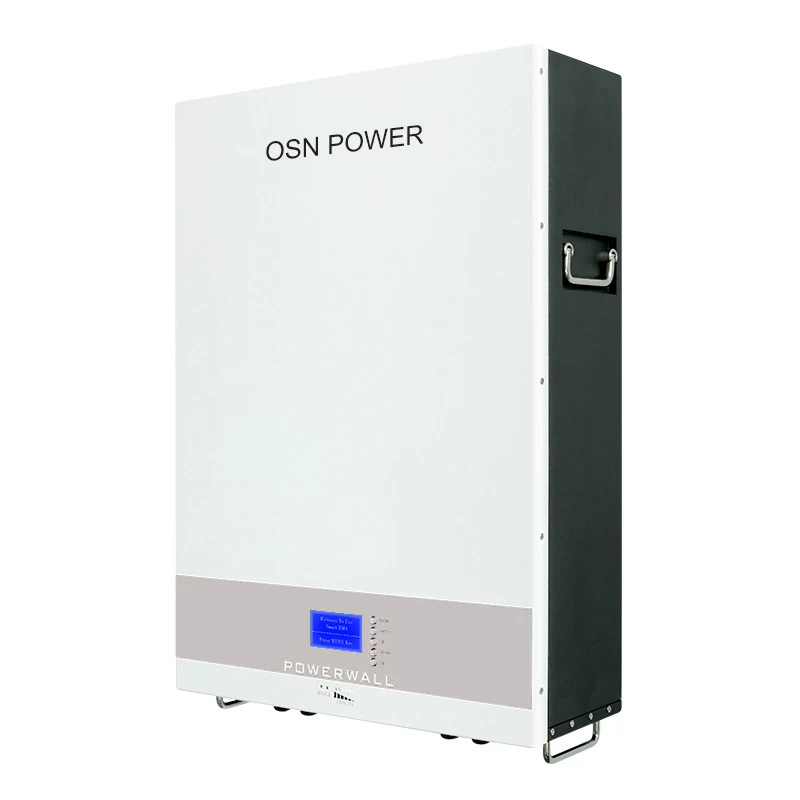

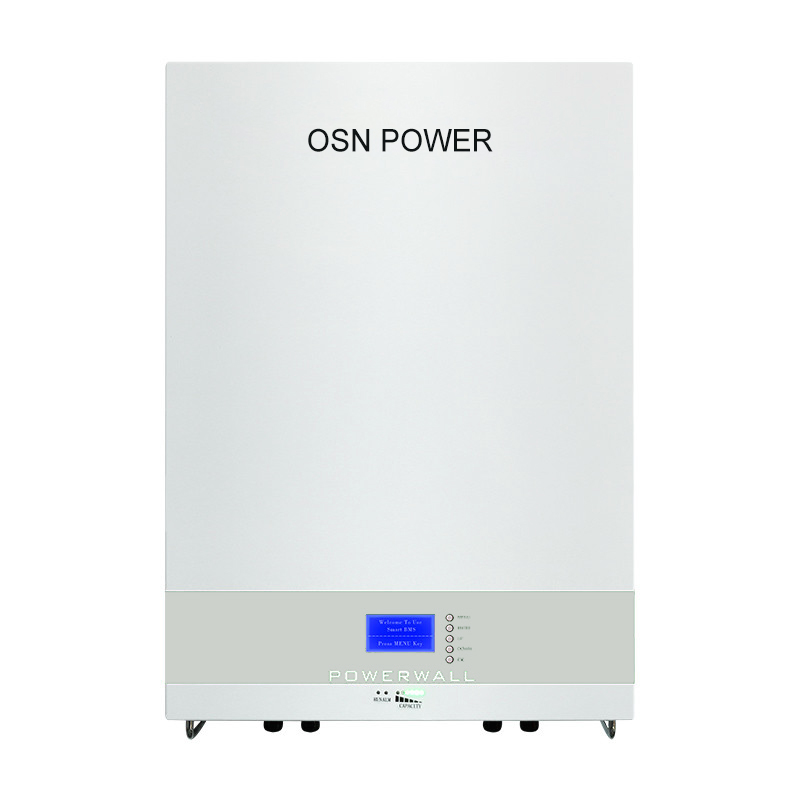

New!LTO 48Volt 40Ah 2kwh wall-mounted solar system powerwall

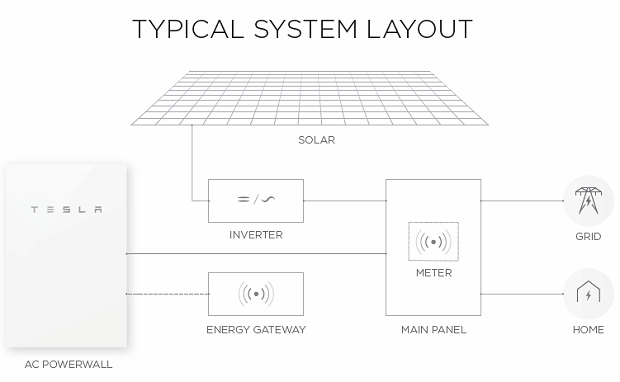

We design lithium titanium oxide (LTO) for ESS,LTO battery in its anode to achieve excellent characteristics, including safety, long life, low-temperature performance, rapid charging, high input/output power and large effective capacity.LTO battery module for ESS is the latest technology, Wall-mounted LTO battery Can be used in both off-grid and hybrid setups, compact size, modular expansion.



Product Name

LTO 48Volt 40Ah 2kwh wall-mounted off grid solar system powerwall



Highlights

The most advanced battery technology LTO in anode

Fast charging up to 10C rate

Super long lifespan, >30000 times at 80% DOD.

Flexible system design

Built-in high-end BMS with full protection,

Communication CAN/RS485/RS232 optional


Details:


Specification for LTO 48V 40Ah Wall-mounted  Solar Power System Batteries


Products type MODEL : ESS-LTO4840
Cell Technology lithium titanium oxide (LTO)
Battery Pack Capacity (Wh) 1920
Battery pack Voltage (Vdc) 48
Battery pack Capacity (AH) 40
Battery pack Cell Quantity in Series (pcs) 20S
Battery pack Charge Voltage (Vdc) 57V
Battery System Charge Current (Standard) 10A
Battery pack Charge Current (Max.) 100A
Battery pack Discharge lower-Voltage (Vdc) 30V
Battery pack Discharge Current 100A
Efficiency 98%
Dimension (L*W*H, mm) Customized
Depth of Discharge 100%
Communication Option of CANBUS OR RS485, SMbus
Protection Class IP54
Weight 68KG
Operation Life 25+ years
Operation Cycle Life Over 30000 times
Operation and storage Temperature -55 ~60 ℃
