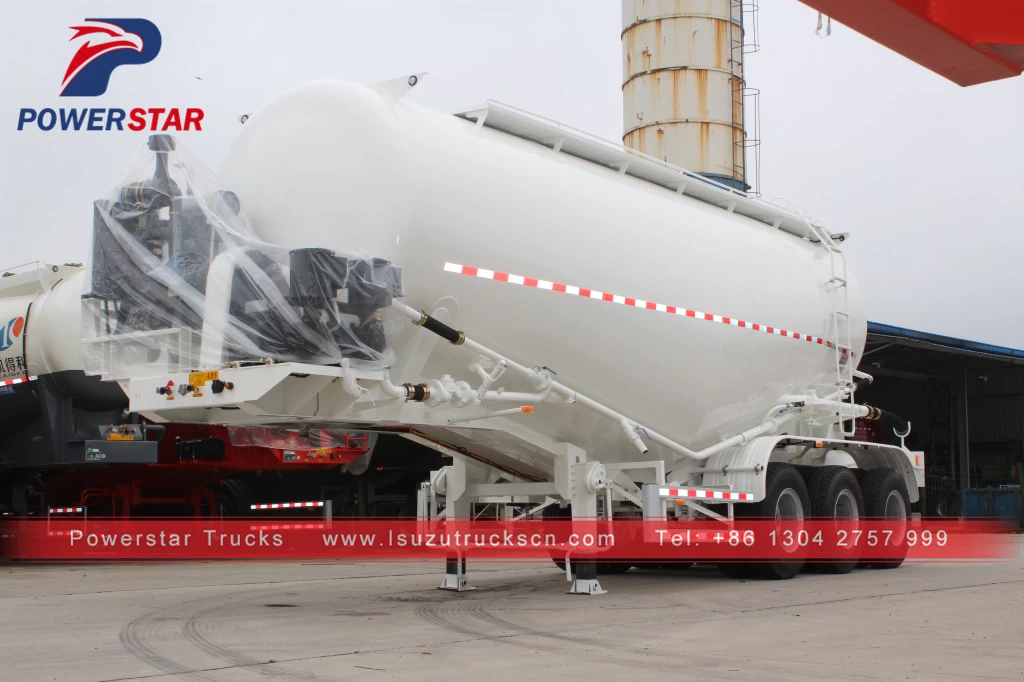

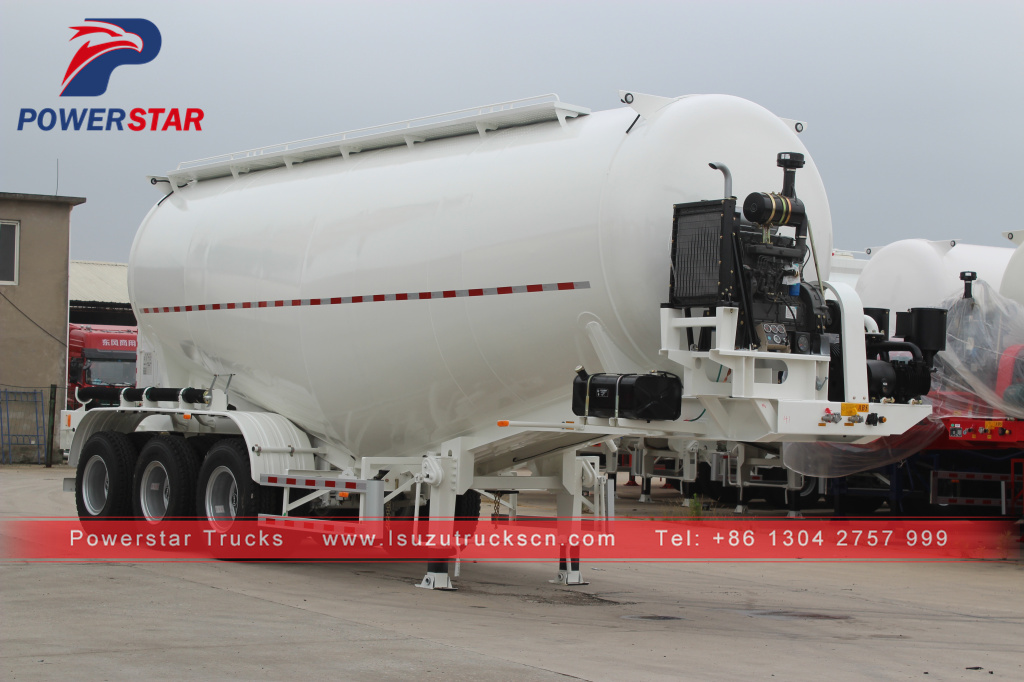

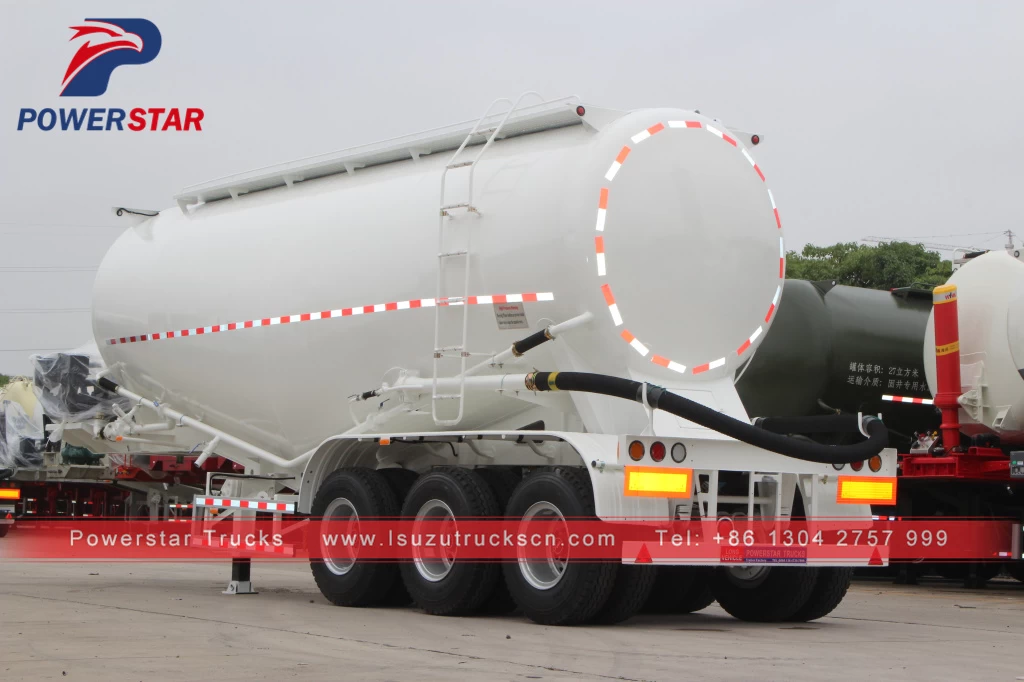

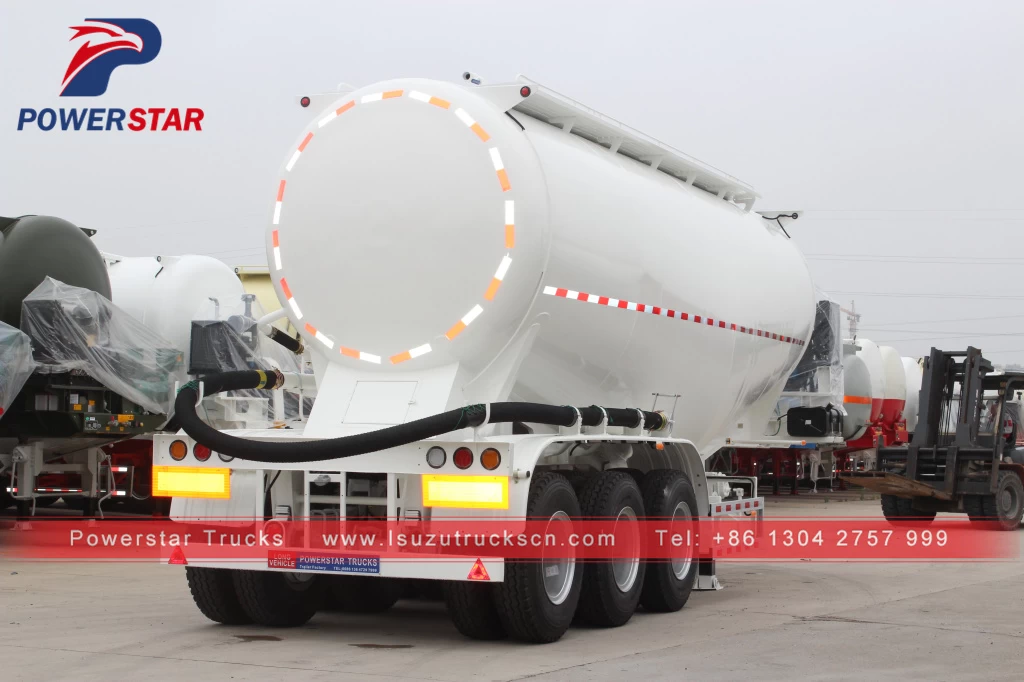

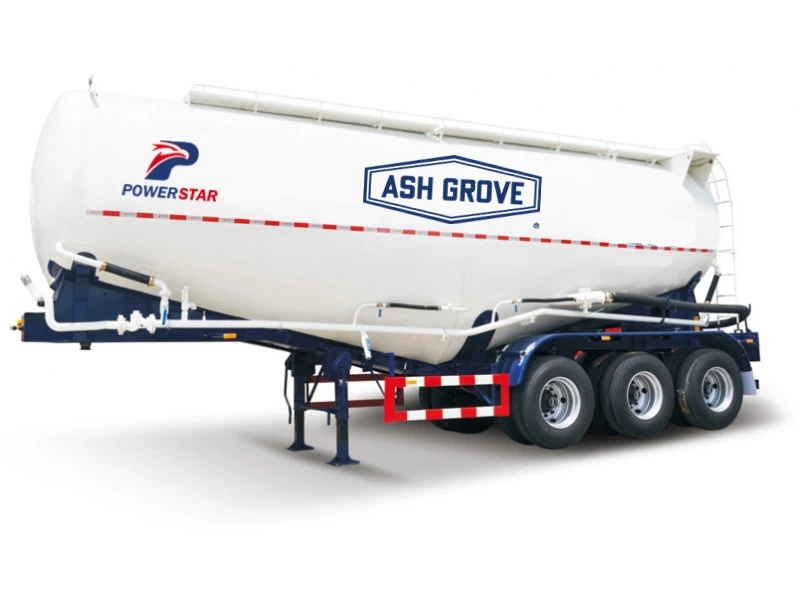

35Tons Powder tank trailer Powerstar brand bulk cement tanker trailer
Applications:
Bulk Cement Powder Tank Semi Trailer (also called Dry bulk powder cement tank trailer, V shape bulk cement tank semi trailer, Powder transport semi trailer, Dry cement powder delivery semi trailer, Concrete powder tank semi trailer, Coal ash tank trailer) is suitable for carrying bulk cement, coal ash, Lime podwer, mineral powder and other powder material with the partice diameter no more than 0.1mm.
Powerstar Brand bulk cement powder tank trailer is mainly used in cement factories, cement warhouses and large construction sites. With Powerstar dry powder tank trailer, it will not only reduce the loss rate of cement power material, but also improve teh loading and unloading efficiency.
Key Features:
---- 15 years Manufacturer experience.
---- From 30 cbm to 80 cbm capacity.
---- Export to More than 70 Countries or Area.
---- 100% customer design.
---- Quickly delivery to Worldwide.
Specifications:
Type:
|
3 Axles Cement Powder Tanker Semi Trailer
|
Model:
|
PST9403GXHT
|

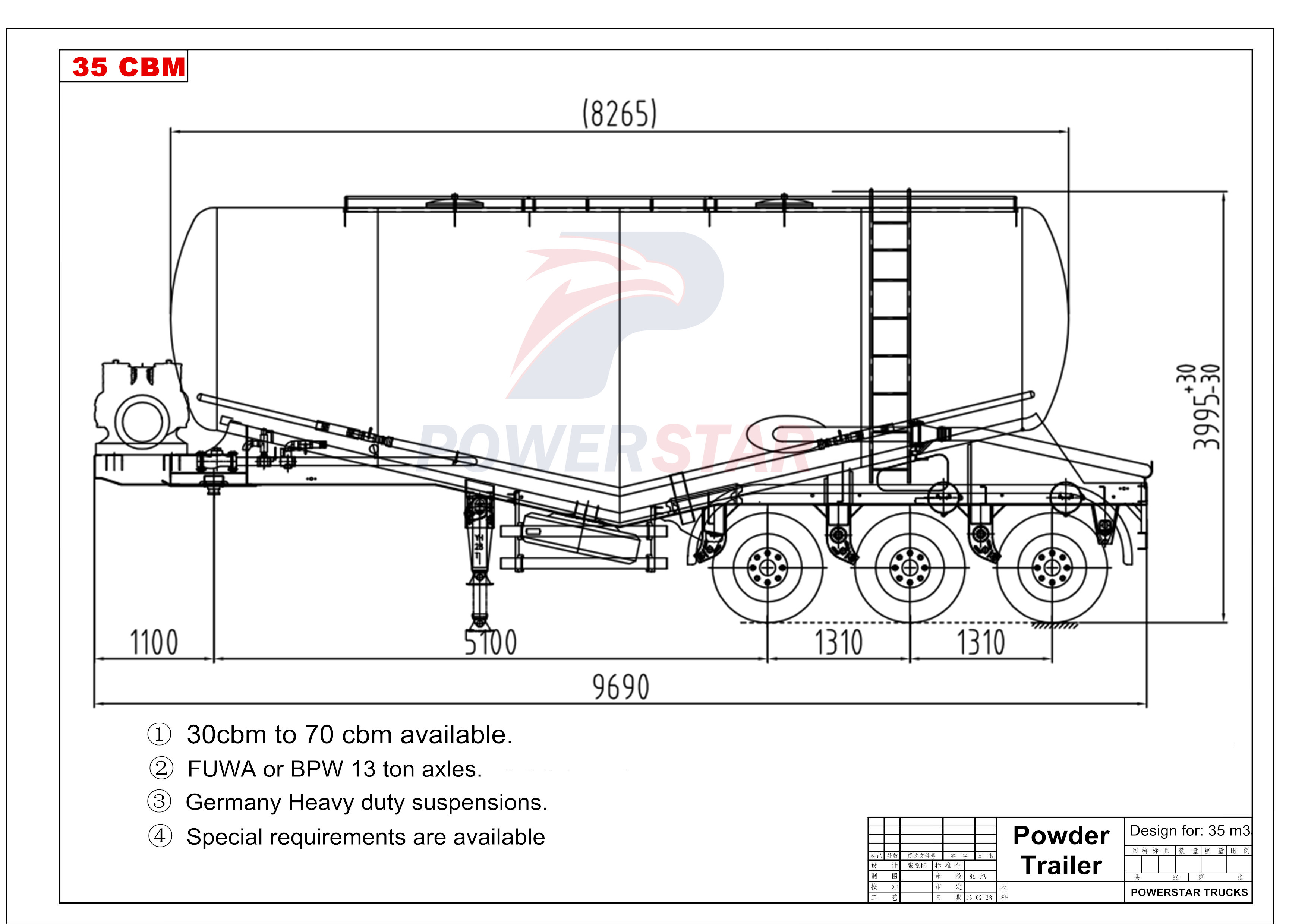

Dimension:
|
Size:
|
9,690*2500*3995mm
|
Weight:
|
Payload:
|
35 Cubic meter
|
Tare weight:
|
Approx. 7450kg
|
G.V.W.R.:
|
Approx. 53,000kg
|
Frame & Structure:
|
Main beam:
|
Material Q345B. Fabricated “H” beam height 500mm, Top flange thickness 12mm, Middle web thickness 6mm, Bottom flange thickness 14mm
|
Side beam:
|
14# channel steel
|
Platform:
|
2.5mm thick chequer plate with supporting channel
|
Cross beam:
|
80*40mm square tube
|
Kingpin:
|
JOST 2” or 3.5" SAE Kingpin, bolted in type
|
Twist lock:
|
No
|
Welding standard:
|
All welding are to be done by qualified welder per applicable national standard
|
Painting:
|
Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um
|

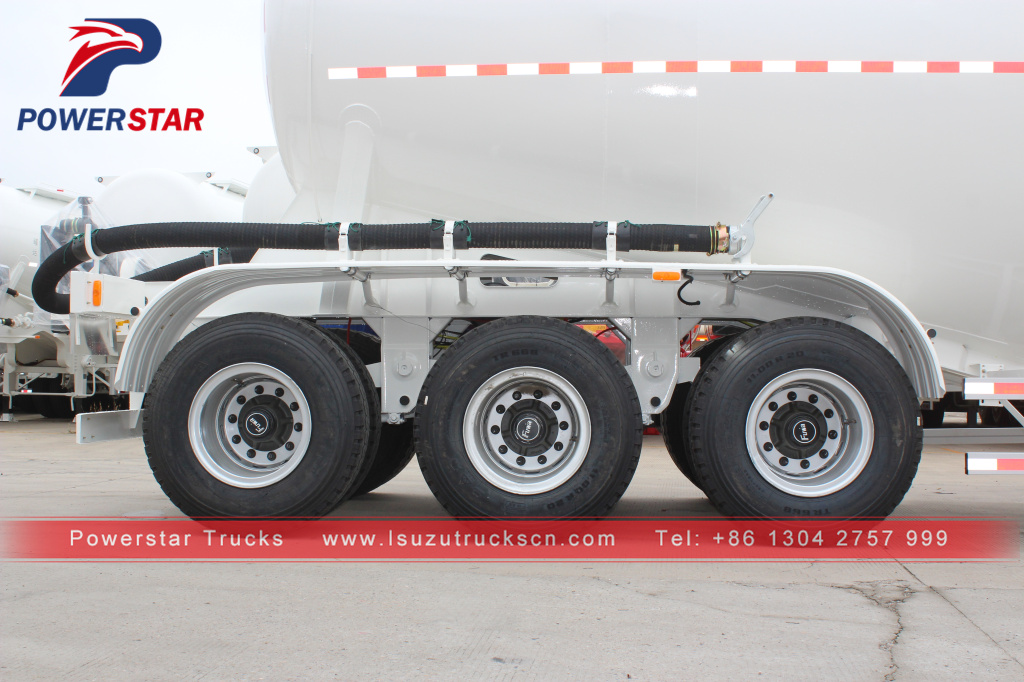

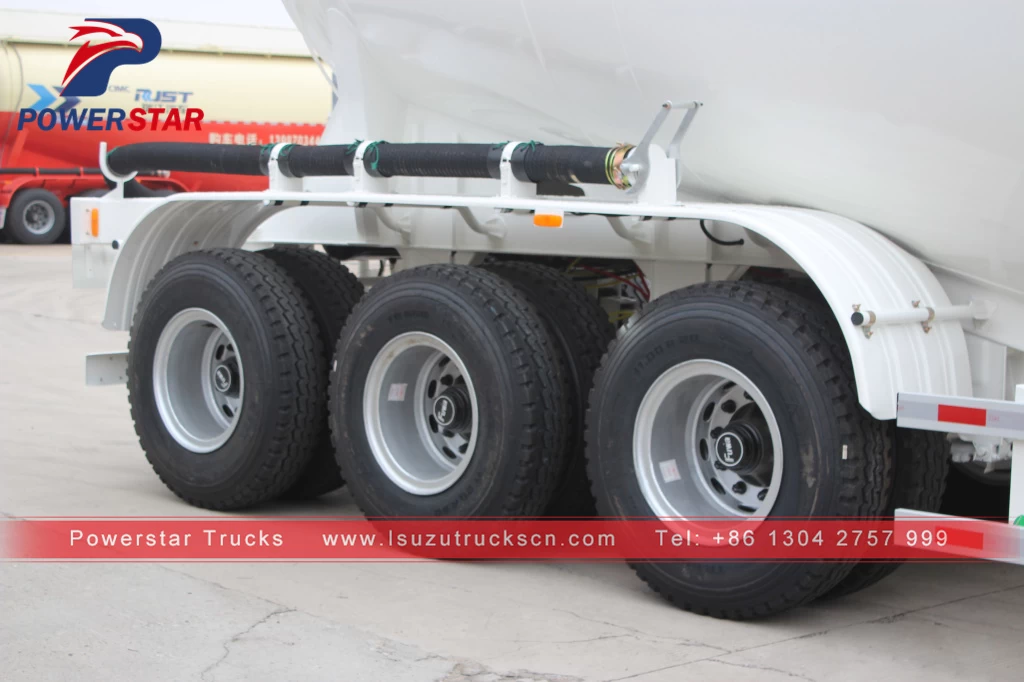

Running gear:
|
Suspension:
|
Germany type mechanical suspension, leaf spring 13mmx90mm, China
|
Axle:
|
FUWA 150x150 square beam axle, 3pcs*13 ton capacity, China
|

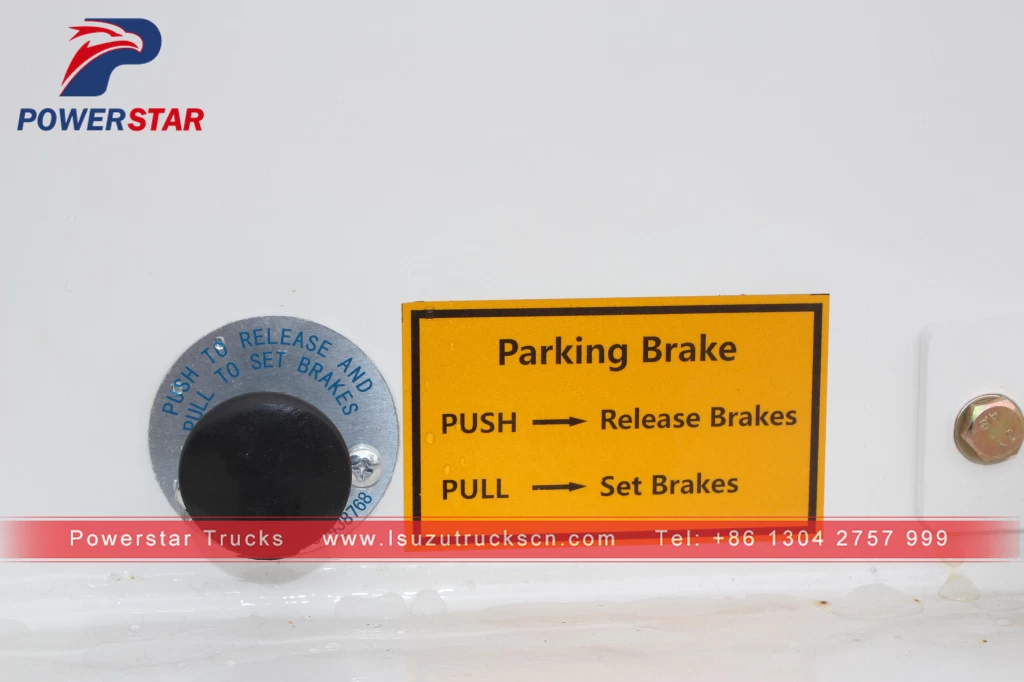

Brake system:
|
Dual line pneumatic brake, SAE hose and connector
|
Brake chamber:
|
4 units T30/30 spring brake chambers, 2 units T30 brake chambers
|
Air tank:
|
40L, 2 pcs, China
|
Emergency relay valve:
|
Wabco relay valve
|
Tire:
|
Triangle brand, 12R22.5, 12 pcs. China
|
Rim:
|
9.00*22.5 steel disc wheel, 10 holes ISO, 12 pcs. China
|

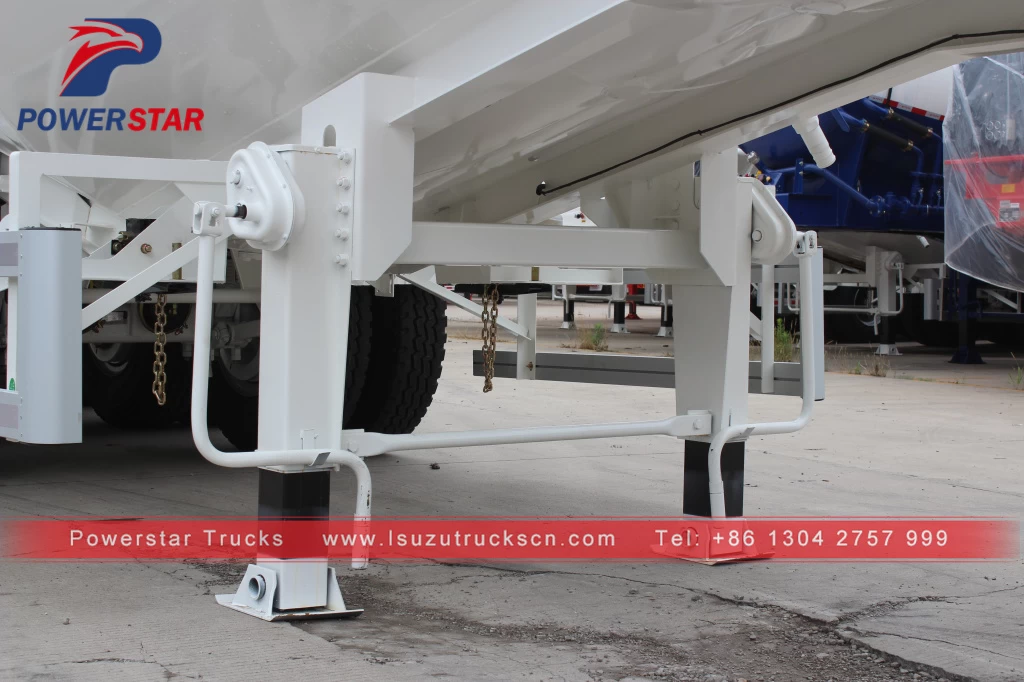

Landing gear:
|
JOST C200 two speed telescopic manual landing gear
|
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
