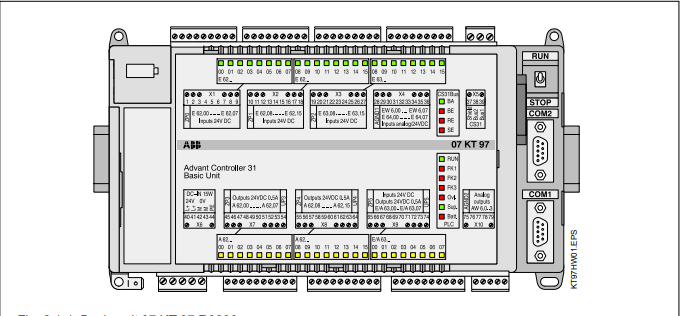

• The basic unit 07 KT 97 R200 is the standard device for all applications. In addition, there are basic units with reduced performance (e.g. 07 KT 95 or 07 KT 96) as well as ones with extended performance (e.g. 07 KT 97 R260 with ARCNET connection, 07 KT 97 R0220 with PROFIBUS connection and 07 KT 97 R0262 with both ARCNET and PROFIBUS connection). A comparison table is given on page 3. This document describes the basic unit 07 KT 97 R200 and then adds the data sheets of the other devices which only show the differences.

  Gross Weight:

  5.4 kg

• Instructions and Manuals:

  2CDC121008D0202

• Invoice Description:

  07 KT 97 central processing unit

• Made To Order:

  No

• Maximum Hardware Counter Input Frequency:

  50 kHz

• Maximum Number of Analog I/Os:

  232 AI, 228 AO

• Maximum Number of Digital I/Os:

  1024

• Memory Size User Data:

  256 kB

• Memory Size User Program:

  480 kB

• Memory Type User Data:

  Flash EPROM

• Memory Type User Program:

  Flash EPROM, non-volatile RAM, SMC

• Minimum Order Quantity:

  1 piece

• Number of Analog Configurable I/Os:

  0

• Number of Digital Configurable I/Os:

  8

• Number of Digital Inputs DC 24V:

  24

• Number of Digital Outputs DC 24V:

  16

• Number of Hardware Counters:

  2

• Object Classification Code:

  K

• Order Multiple:

  1 piece

• Output Current:

  0.5 A

• Output Voltage (Uout):

  24 V DC

• Package Level 1 Gross Weight:

  1.1 kg

• Package Level 1 Units:

  1 case

• Parallel Extension:

  1

• Part Type:

  New

• Primary Voltage:

  24 V

• Product Depth:

  85 mm

• Product Main Type:

  07KT97

• Product Name:

  07 KT 97 central processing unit

• Product Net Weight:

  5.4 kg

• Product Type:

  Spare_Parts

• Programming Software:

  AC1131
