New Design 36000 liters tanker trailer to transport JET A-1
Introduction of Jet fuel tanker trailer for sale
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1.SUNSKY FUEL TANKER TRAILER with heavy duty and extra durability design,opting for high tensible low carbon alloy Q345B steel.I beam welded by automotive arc-submerge process.Specially to used to transport JET A-1.
2.Equipped famous brand part in axles,suspension，landing gear.Higher property for your transportation.More reliable and ensure the long life span of trailers.
3.Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
4.SUNSKY fuel tanker trailer have quality guarantee,some easily broken parts will be delivered with trailers.Spare parts like tires ,axles etc. can be supplied to you in cost price!
5.The capacity and compartments can be custom-built as your requirement.
Features:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1) Manufacturer, 32 years professional experience.
2) One to Two years guarantee term provided freely.
3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
36,000L 2-axle Fuel Tanker Semi-trailer
|
|
Feature:
|
Carry Jet A-1, Aviation fuel
|
|
Dimension(L*W*H):
|
10900*2500*3750mm(36,000L)
|
|
Material:
|
Carbon Steel
|
|
Compartment:
|
1
|
|
Capacity(kgs):
|
36,000L
|
|
Tare weight(kgs):
|
9,500kgs
|
|
Kingpin
|
bolt-in 3.5”
|
|
Landing gear
|
19”
|
|
Tire size
|
13R22.5（9 sets）
|
|
Rim size
|
9.0*22.5（9 sets）
|
|
Axle
|
Hos brand.14 tons 2 Axles
|
|
Leafs spring
|
Hos brand Bogie suspension
|
|
Brake system
|
RE 6 relay valve
|
|
Manhole:
|
Aluminum alloy ø500mm (20”) manhole with aluminum alloy cover; with breather valve;
|
|
Discharge Valve
|
Aluminum alloy discharge valve with cover
|
|
Foot Valve
|
Pneumatic control DN80 aluminum alloy foot valves
|
|
Pneumatic Control system
|
1set Pneumatic Control combined switch
1unit emergency switch
|
|
Discharge Hose
|
2 units 3”×6M factory PVC hose with quick coupling on both ends
|
|
Vapor Recovery & Overfill system
|
Optional
|
|
Fire Extinguisher Carrier
|
2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside
|
|
Electric system:
|
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
|
|
Prime & Topcoat painting
|
S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting
|
|
We can build the trailers according to customer’s design and requirement
|

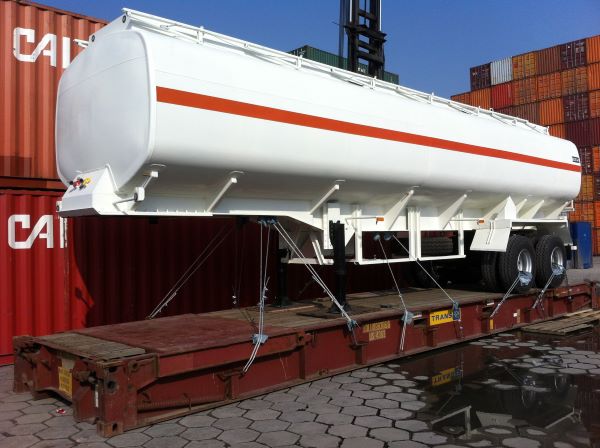

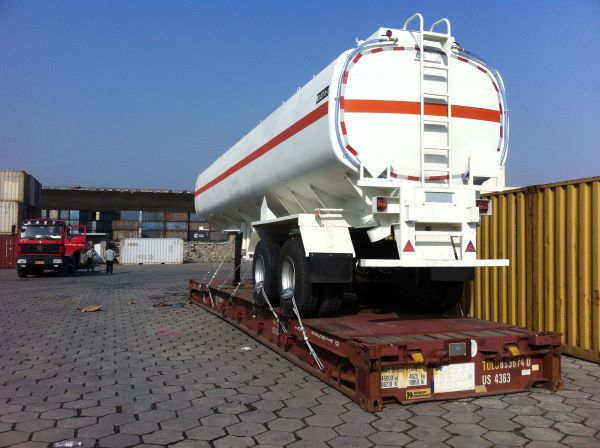

Loading Photo: Aviation fuel tanker trailer
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
FAQ:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1. How many liters can the tanker semi-trailer carry？
Answer:The fuel tanker trailer above can carry 36000 liters,if you have request in the capacity of tanker,we can make it as your requirement.
2. How long can the tanker semi-trailer use?
Answer:In the condition of normal use,the lifespan can be more than 10 years.And we promise one year free warranty term for the trailers.
3. How can I get a discount price for the tanker semi-trailer?
Answer:You can follow our Facebook (Sunsky Semi-trailer Manufacturer)to get more information about the promotion,we also have discount depends on your order quantities and time.
