New Design High Quality Ceiling Support Pipe Forming Machine

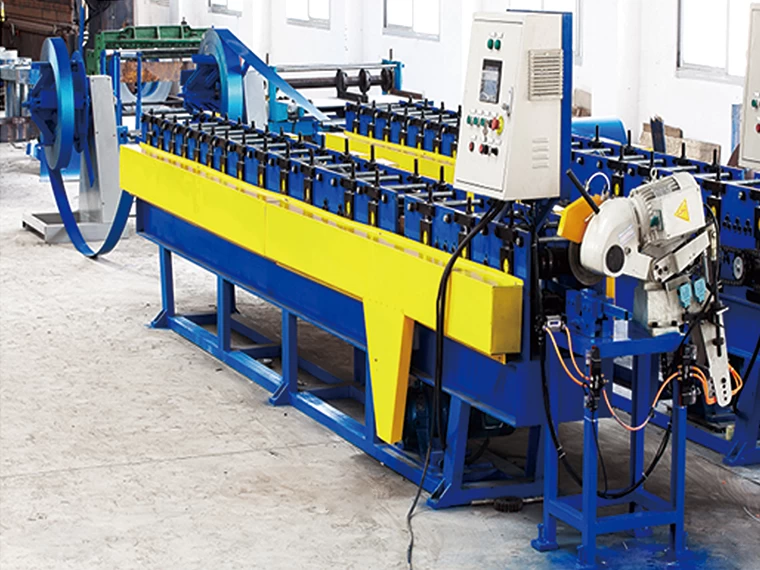

This machine can produce 2 profiles with one common the motor / hydraulic device / PLC control system, it uses of clutch mechanism to control the production of the two forming mills. This design saves space and cost for customer convenient. Besides, the change-over can be finished by PLC computer control system in offer convenient customer use.



Work Flow of HOWICK Style Truss Forming Machine:

3Tons Decoiler  →Roll Forming Mill(3kw)→ Sawing Device(penumatic sawing)→PLC Control System→Product Rack(one unit)



Main Components of HOWICK Style Truss Forming Machine

1.Manual Decoiler: one set

Un-powered,Manually control steel coil inner bore shrinkage and stop

Max. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: 3-5Ton

With Hydraulic Decoiler for options.



2.Cold Rolling Mill:

Material Thickness:0.2-0.3mm,Material Width: about 112mm,

With feeding material guide, body frame made from 450# H type steel by welding,Side wall thcikness: 18mm

Rollers manufactured from tooling steel Cr12, precision machined, hard Chrome Coated

Shafts manufactured from 45#,Diameter=φ75mm,precision machined

Motor Driving,Gear chain transmission,18 steps to form

Main Motor=3KW , Frequency speed control 380V/50Hz/3Ph or 220V/60Hz/3Ph

Forming speed approx.12m/min



3.Sawing device

Cutting motor:3KW

4.PLC Control System(Touch screen and PLC brand:German Siemens,Inverter brand:Japan Panasonic,Encoder brand:Japan Omron)

Control the quantity and cutting length automatically

Combined with: PLC, Inverter, Touch Screen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

 Truss Forming Machine PLC Control System



5.Exit Rack Un-powered,one unit



6.User's manual in English



Features of Ceiling Support Pipe Forming Machine

  This Machine's design saves space and cost for customer convenience.Besides,the change-over can be finished by PLC computer control system in order to offer convenient customer use.



After-sale Service
1. The warranty of Ceiling Support Pipe Forming Machine is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories.

Terms of Trade

1. Minimum order quantity (MOQ): 1 set

2. Delivery time: about 45days

3. Port of loading: port of Xiamen

4. Type of payment: T/T or L/C

5.Packing method: with nude packing steadily fixed in one 40' container suitable for long-distance transportation.

6. Export: Australia, UK, Ireland,Greece, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,  Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.


You can also buy Howick Style Truss Forming Machine in high quality. We will provide sincere service and reasonable price for you!
